Dual XPON mode (GPON and EPON compatible) V-Sol
Dual XPON mode (GPON and EPON compatible) V-Sol
Regular price
€36,90
Final price
Regular price
-8%
€40,00
Sale price
€36,90
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Dual XPON mode (GPON and EPON compatible) - 1 Gigabit LAN port with auto-negotiation - Integrated CATV interface for RF television - Wireless Wi-Fi 4 (802.11n) network at 300 Mbps - 2 external 5dBi 2T2R MIMO antennas - Single-mode SC/APC optical connector (up to 20 km)
📋 SPECIFICATIONS:

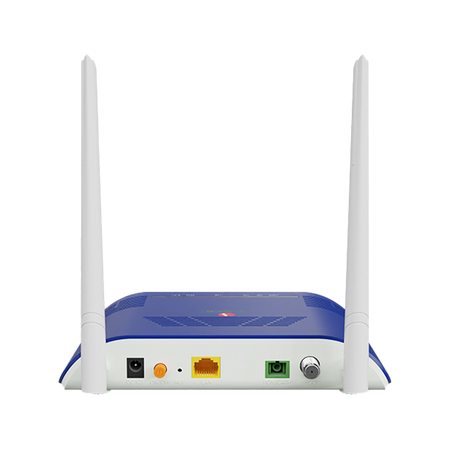

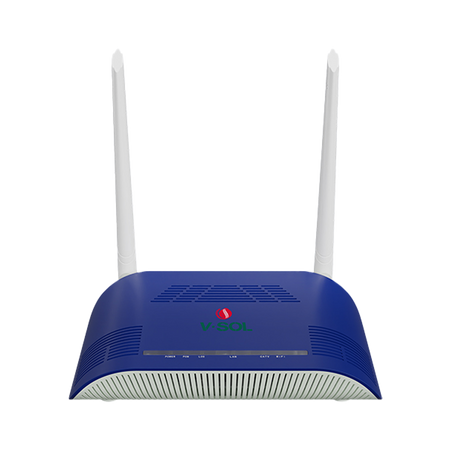

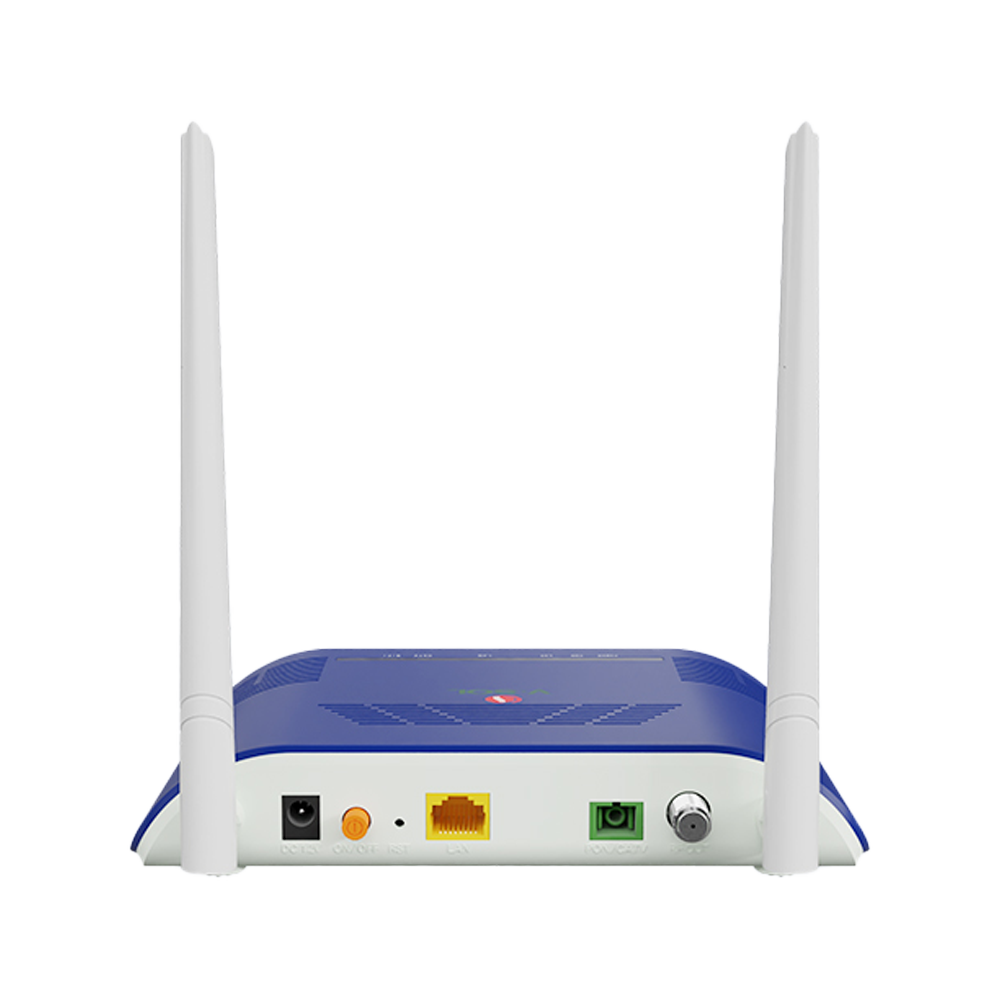

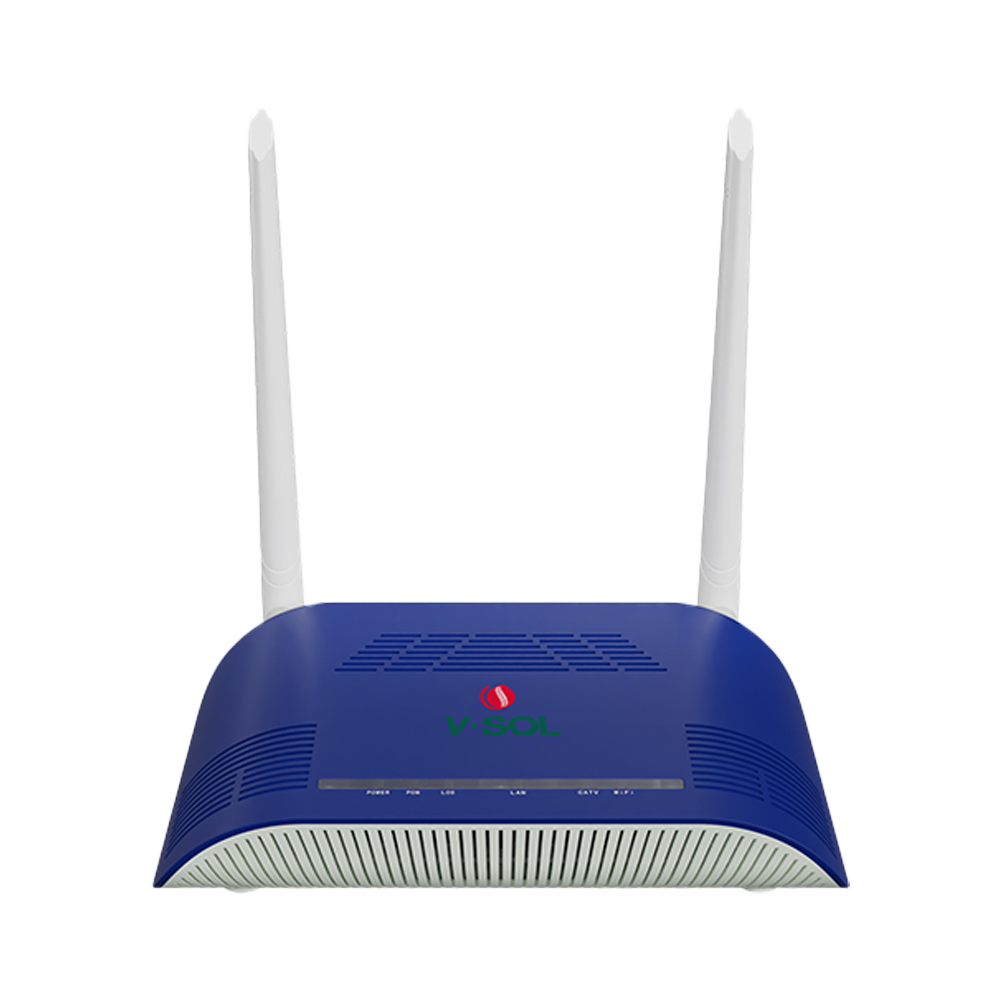

• Model: V2801T
• Manufacturer: V-SOL
• Device type: Triple Play XPON ONU / ONT
• Optical modes: GPON Class B+ / EPON PX20+ (Auto-detection)
• Optical connector: 1× SC/APC single-mode
• Wavelengths: TX 1310 nm / RX 1490 nm / CATV 1550 nm
• TX transmission power: 0 to +4 dBm
• RX receiving sensitivity: -27 dBm (GPON) / -25 dBm (EPON)
• Optical overload: -8 dBm (GPON) / -3 dBm (EPON)
• Maximum transmission distance: 20 km
• LAN interface: 1× RJ45 Gigabit Ethernet (10/100/1000 Mbps) (Auto-MDI/MDIX)
• CATV (RF) interface: 1× F-female coaxial connector (75 Ω)
• RF frequency range: 47 to 1000 MHz
• RF output level (AGC): ≥ 81 ± 2 dBµV from (-12 to +2 dBm optical input)
• CATV optical return loss: ≥ 40 dB
• Network operating modes: Bridge / Router
• Layer 3 functions: IPv4/IPv6 Dual Stack, NAT, DHCP Server/Client, PPPoE, Static routing
• VLAN support: VLAN Tag, Trunk, Transparent (up to 8 VLANs)
• Management and protocols: OMCI, OAM, TR-069, WEB, Telnet, CLI, SNMP
• Security and firewall: Rogue ONU detection, Dying Gasp, MAC/IP/URL filtering, DoS prevention
• LED indicators: POWER, LOS, PON, LAN, CATV
• External power supply: DC 12V / 0.5A
• Power consumption: ≤ 4.2 W
• Operating temperature: -10 °C to +55 °C
• Operating humidity: 10% to 90% (non-condensing)
• Dimensions: 120 mm × 100 mm × 30 mm (Length × Width × Height)
• Net weight: 0.13 kg
• Mounting: Desktop / wall-mount
📦 INCLUDED:
• 1x VSOL-V2801T XPON ONT router
• 1x External AC-DC power adapter (DC 12V, 1A)
• 1x User manual and configuration instructions
| Model | V2801T |
|---|---|
| Manufacturer | V-SOL |
| Device Type | XPON Triple Play ONU / ONT |
| Optical Modes | GPON Class B+ / EPON PX20+ (Auto-detection) |
| Optical Connector | 1× SC/APC single-mode |
| Wavelengths | TX 1310 nm / RX 1490 nm / CATV 1550 nm |
| TX Transmit Power | 0 to +4 dBm |
| RX Receive Sensitivity | -27 dBm (GPON) / -25 dBm (EPON) |
| Optical Overload | -8 dBm (GPON) / -3 dBm (EPON) |
| Maximum Transmission Distance | 20 km |
| LAN Interface | 1× RJ45 Gigabit Ethernet (10/100/1000 Mbps, Auto-MDI/MDIX) |
| CATV Interface (RF) | 1× F-female coaxial connector (75 Ω) |
| RF Frequency Range | 47 to 1000 MHz |
| RF Output Level (AGC) | ≥ 81 ± 2 dBµV (-12 to +2 dBm optical input) |
| CATV Optical Return Loss | ≥ 40 dB |
| Network Operating Modes | Bridge / Router |
| Layer 3 Features | IPv4/IPv6 Dual Stack, NAT, DHCP Server/Client, PPPoE, Static Routing |
| VLAN Support | VLAN Tag, Trunk, Transparent (up to 8 VLANs) |
| Management and Protocols | OMCI, OAM, TR-069, WEB, Telnet, CLI, SNMP |
| Security and Firewall | Rogue ONU Detection, Dying Gasp, MAC/IP/URL Filtering, DoS Prevention |
| LED Indicators | POWER, LOS, PON, LAN, CATV |
| External Power Supply | DC 12V / 0.5A |
| Power Consumption | ≤ 4.2 W |
| Operating Temperature | -10 °C to +55 °C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Dimensions | 120 mm × 100 mm × 30 mm (Length × Width × Height) |
| Net Weight | 0.13 kg |
| Mounting | Desktop / Wall-mount |
