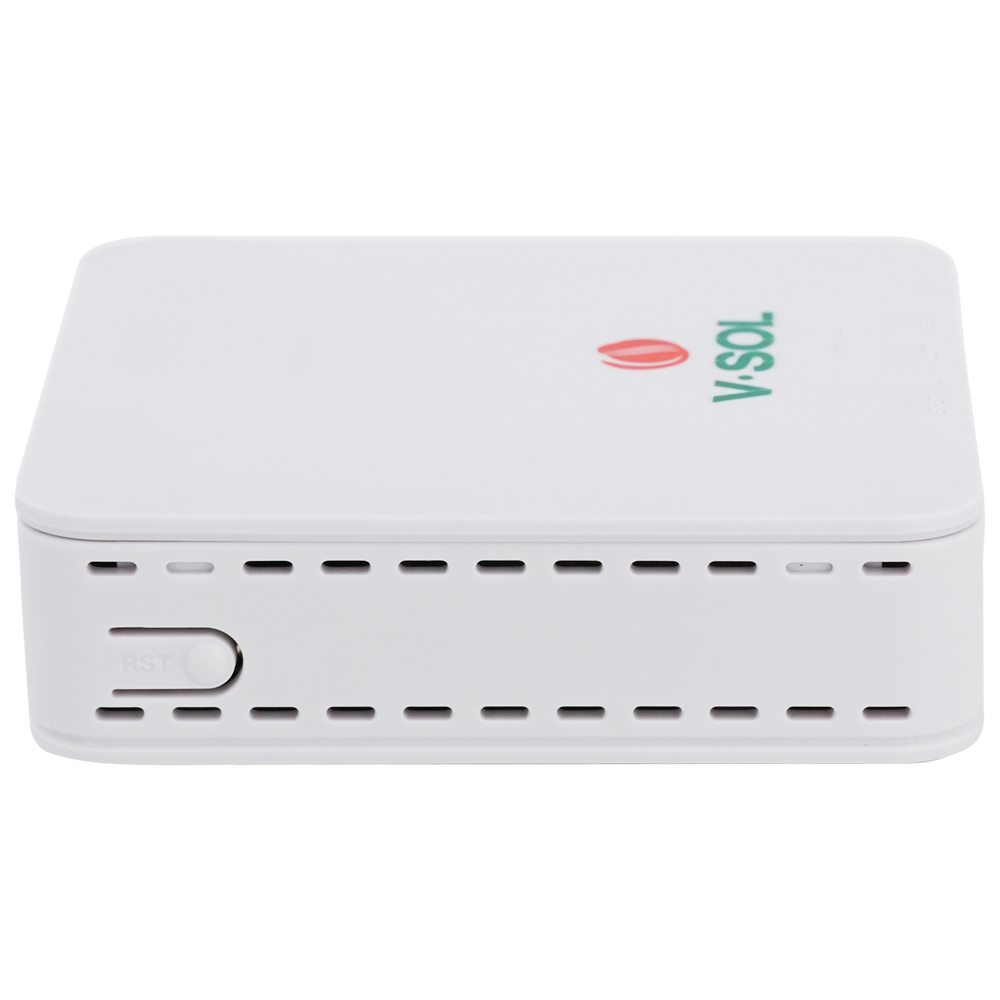

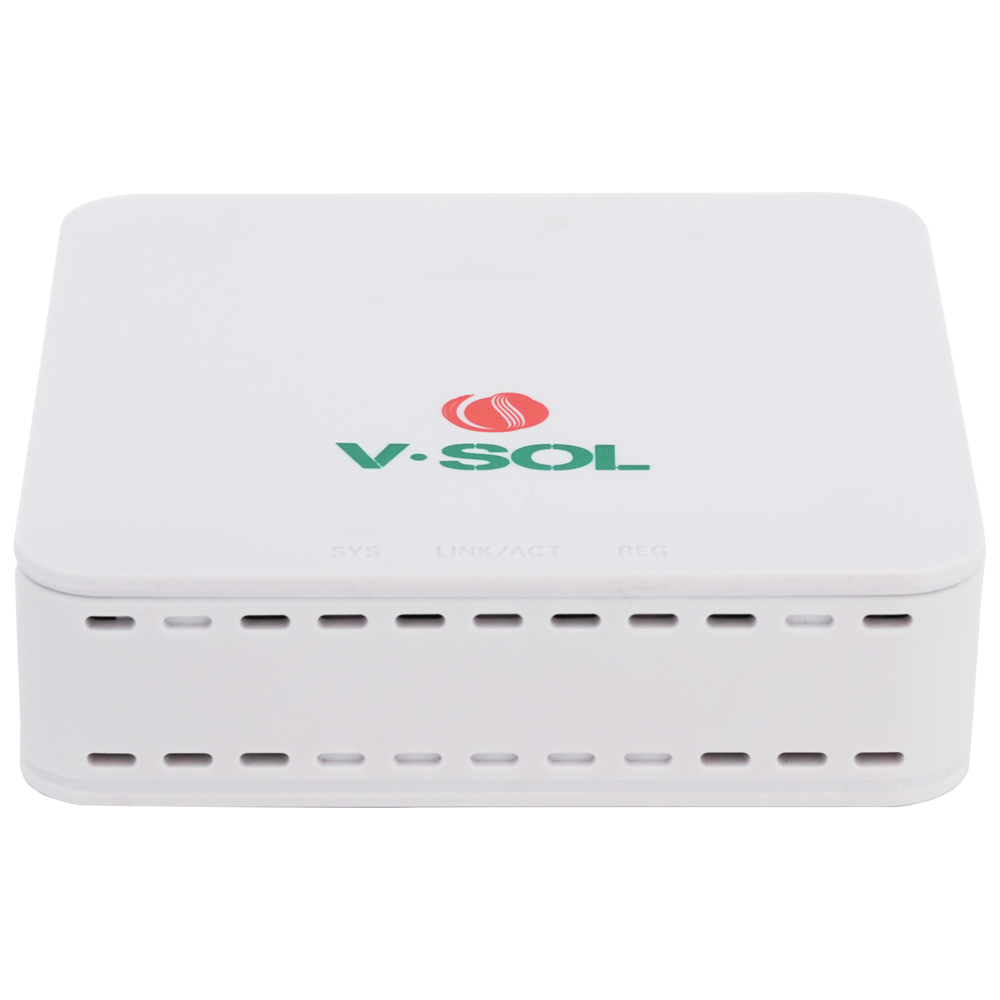

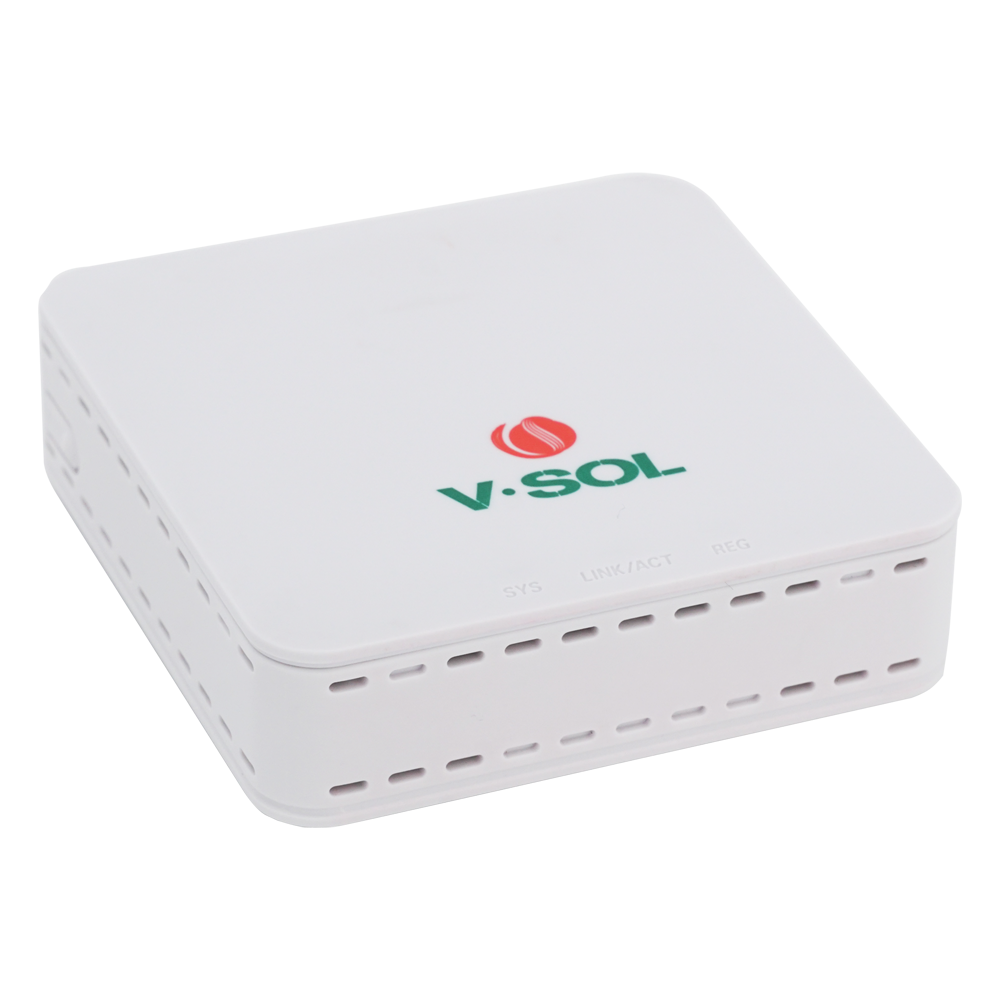

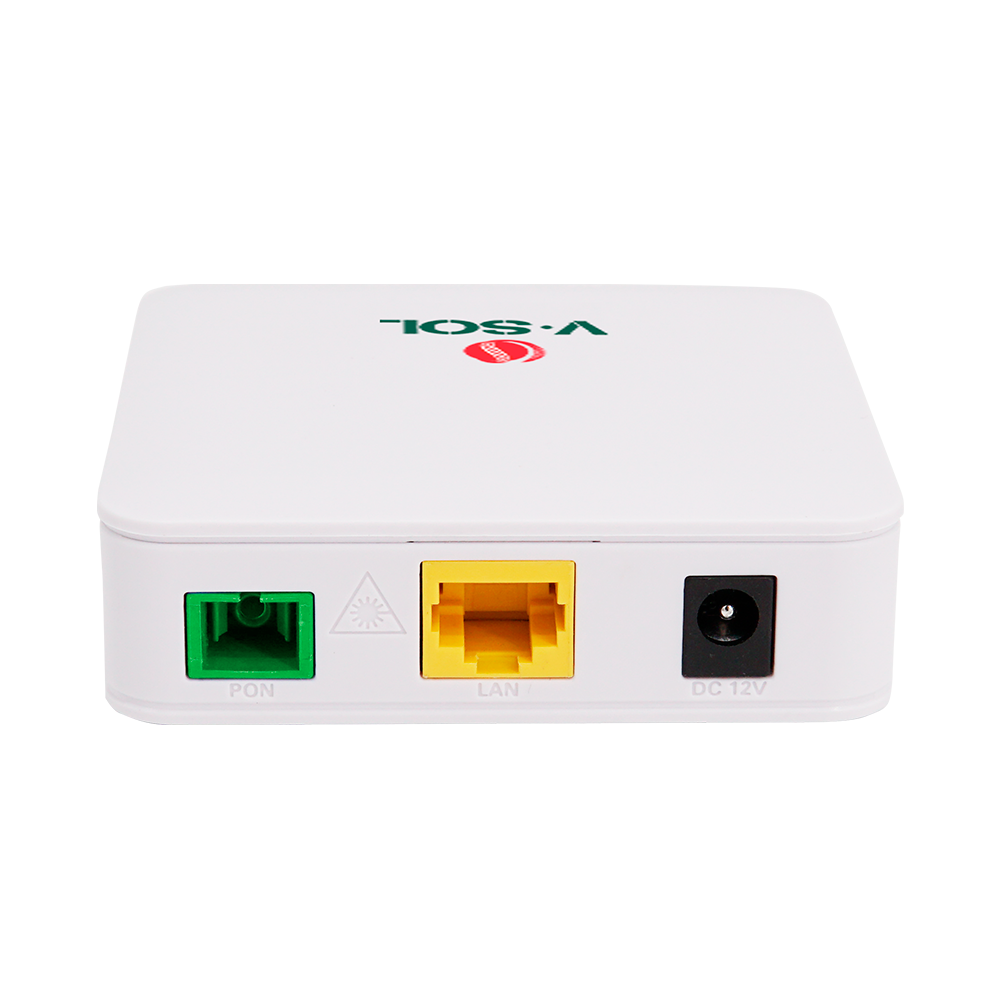

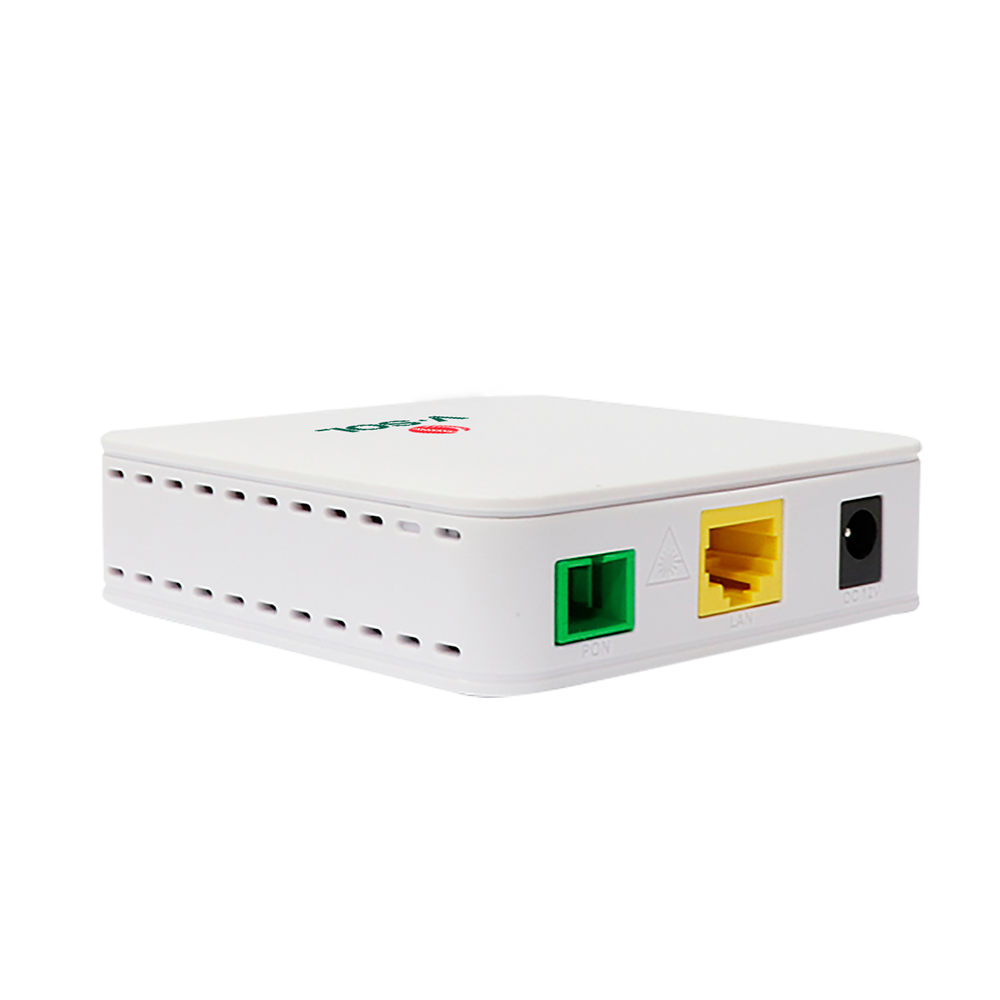

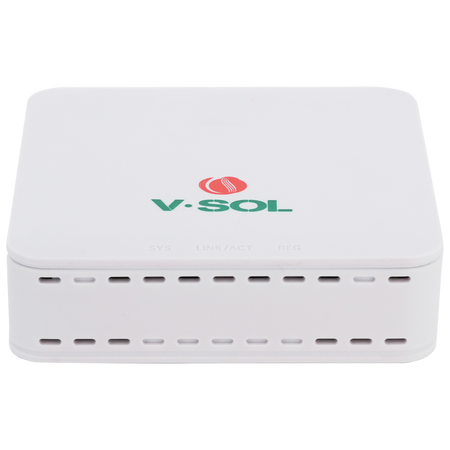

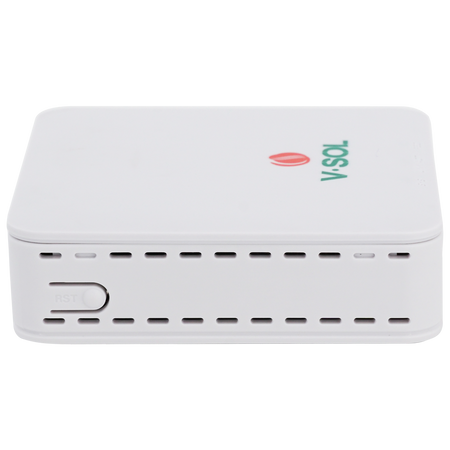

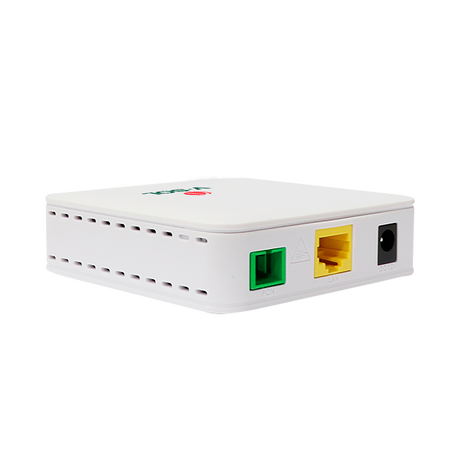

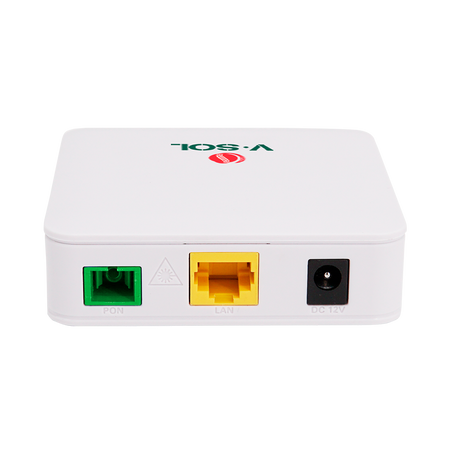

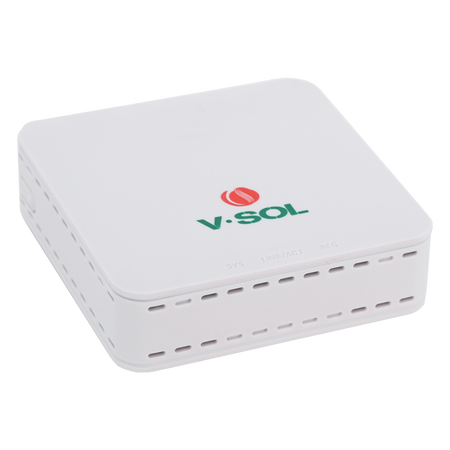

V-SOL XPON ONT 1x PON 1x RJ45 10/100/1000Mbps LAN
V-SOL XPON ONT 1x PON 1x RJ45 10/100/1000Mbps LAN
Regular price
€19,60
Final price
Regular price
-11%
€22,00
Sale price
€19,60
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL XPON ONT - 1X PON 1x LAN RJ45 10/100/1000Mbps - Ideal for home and business FTTH
📋 SPECIFICATIONS:
• Brand: V-SOL
• Interface: 1X PON 1x LAN RJ45 10/100/1000Mbps
• PON: XPON port (EPON PX20+ and GPON Class B+); Single-mode SC, SC/APC connector; Transmission optical power: 0 to +4 dBm; Receiver sensitivity: -27 dBm; Overload optical power: -3 dBm (EPON) or -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm
• Management Protocols: OAM/OMCI/Telnet/Web/TR069
• Layer 2 functions (switching): Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN
• Layer 3 functions (routing): IPv4, IPv6 and IPv4/IPv6 dual stack; DHCP/PPPOE/Static; Static route, DHCP server; NAT/DDNS/Virtual server
• Multicast: IGMP v1/v2/v3; Maximum number of multicast VLANs: 8; Maximum number of multicast groups: 64
• QoS: Supports 4 QoS queues (VoIP, IPTV, Internet ...); Compatible with SP, WRR, 802.1P and DSCP
• Security: Basic firewall functions; MAC filter based on MAC or URL; ACL; Compatible with loop detection
• Color: White
• Dimensions: 82mm x 82mm x 25mm
• Weight: 85g
• Operating Temp.: 0º C ~ +55º C
• Power supply: DC 12V 0.5A (adapter included)
📦 INCLUDED:
• XPON ONT• User instructions• AC/DC adapter• UTP cable
| Interface | 1X PON, 1x 10/100/1000Mbps RJ45 LAN |
|---|---|
| PON | XPON port (EPON PX20+ and GPON Class B+) Single-mode SC, SC/APC connector; Transmission optical power: 0 to +4 dBm; Receiving sensitivity: -27 dBm; Overload optical power: -3 dBm (EPON) or -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069 |
| Layer 2 functions (switching) | Compatible with 802.1D and 802.1ad bridges, 802.1Q VLAN |
| Layer 3 functions (routing) | IPv4, IPv6 and IPv4/IPv6 dual stack, DHCP/PPPoE/Static, Static route, DHCP server, NAT/DDNS/Virtual server |
| Multicast | IGMP v1/v2/v3, Maximum number of multicast VLANs: 8, Maximum number of multicast groups: 64 |
| QoS | Supports 4 QoS queues (VoIP, IPTV, Internet...), Compatible with SP, WRR, 802.1P and DSCP |
| Security | Basic firewall functions, MAC or URL-based MAC filter, ACL, Loop detection compatible |
| Color | White |
| Dimensions | 82mm x 82mm x 25mm |
| Weight | 85g |
| Operating temp. | 0º C ~ +55º C |
| Power supply | DC 12V 0.5A (adapter included) |
