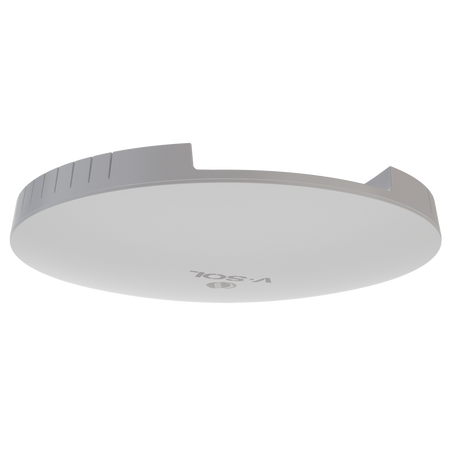

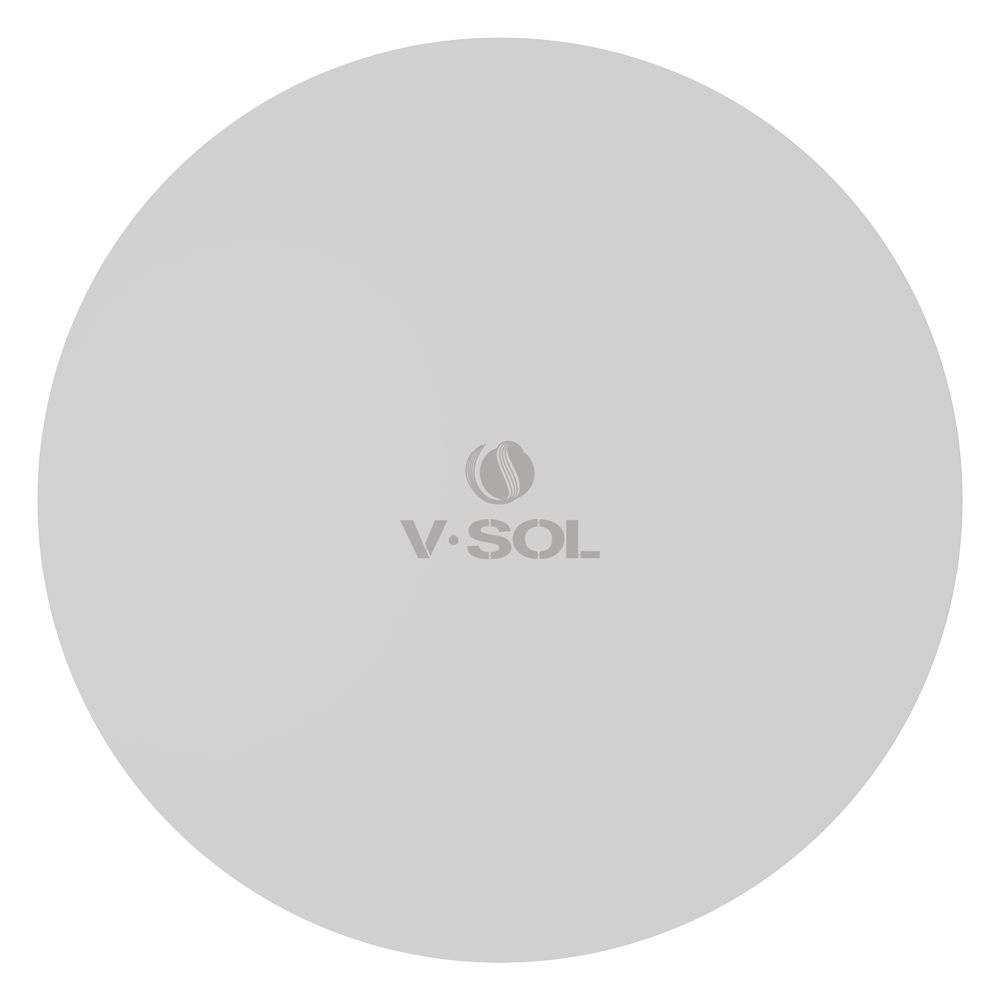

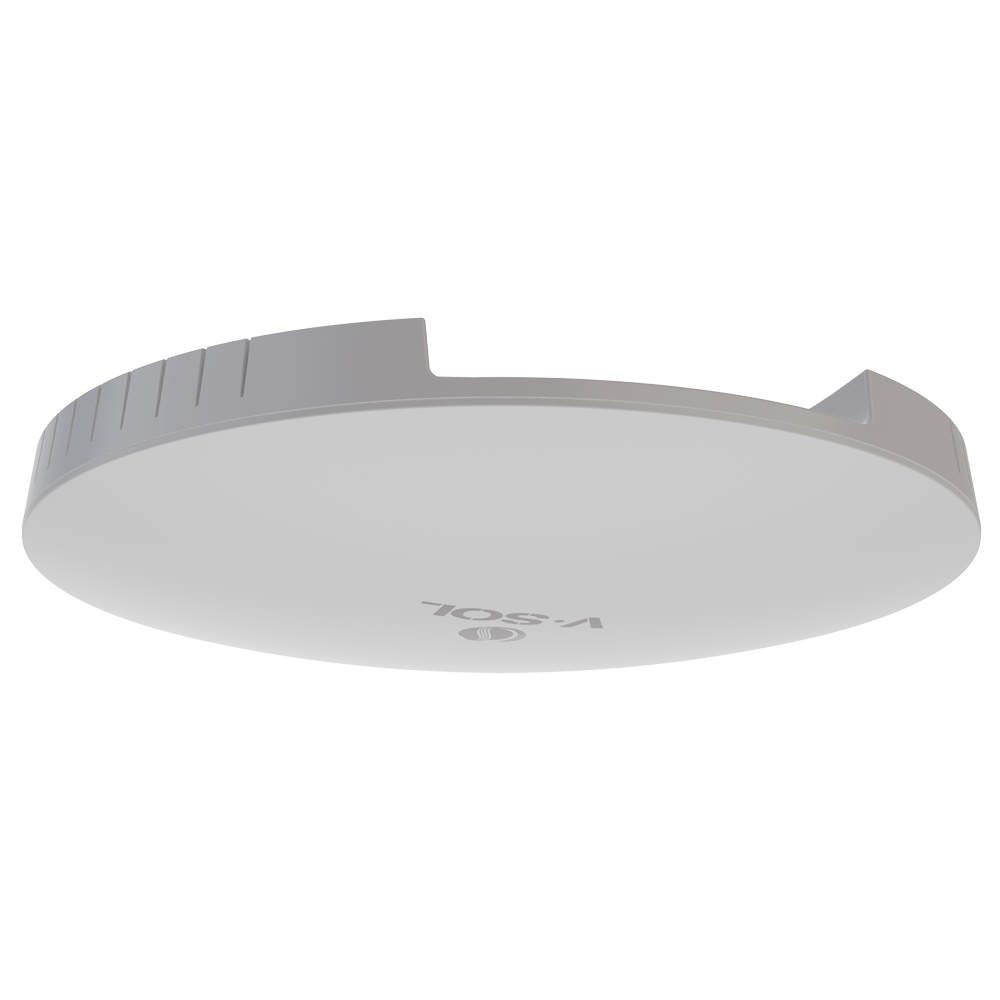

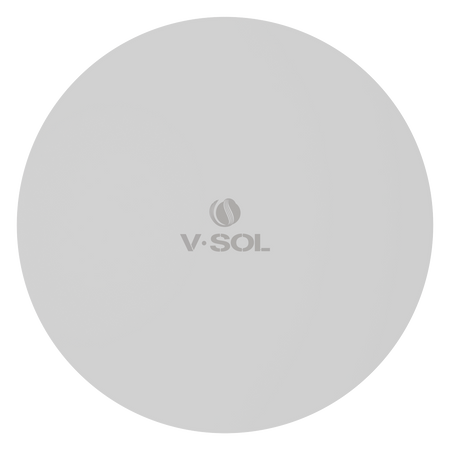

V-SOL - XPON Omnidirectional Wi-Fi 6 AP - 1X PON (PoF) 1x 10/100/1000Mbps RJ45 LAN - 802.11ax 2x2 dual band 2.4 and 5GHz 3x3 - Designed to create a complete Mesh network - Ideal for hotels and restaurants
📋 SPECIFICATIONS:
• Brand: VSOL

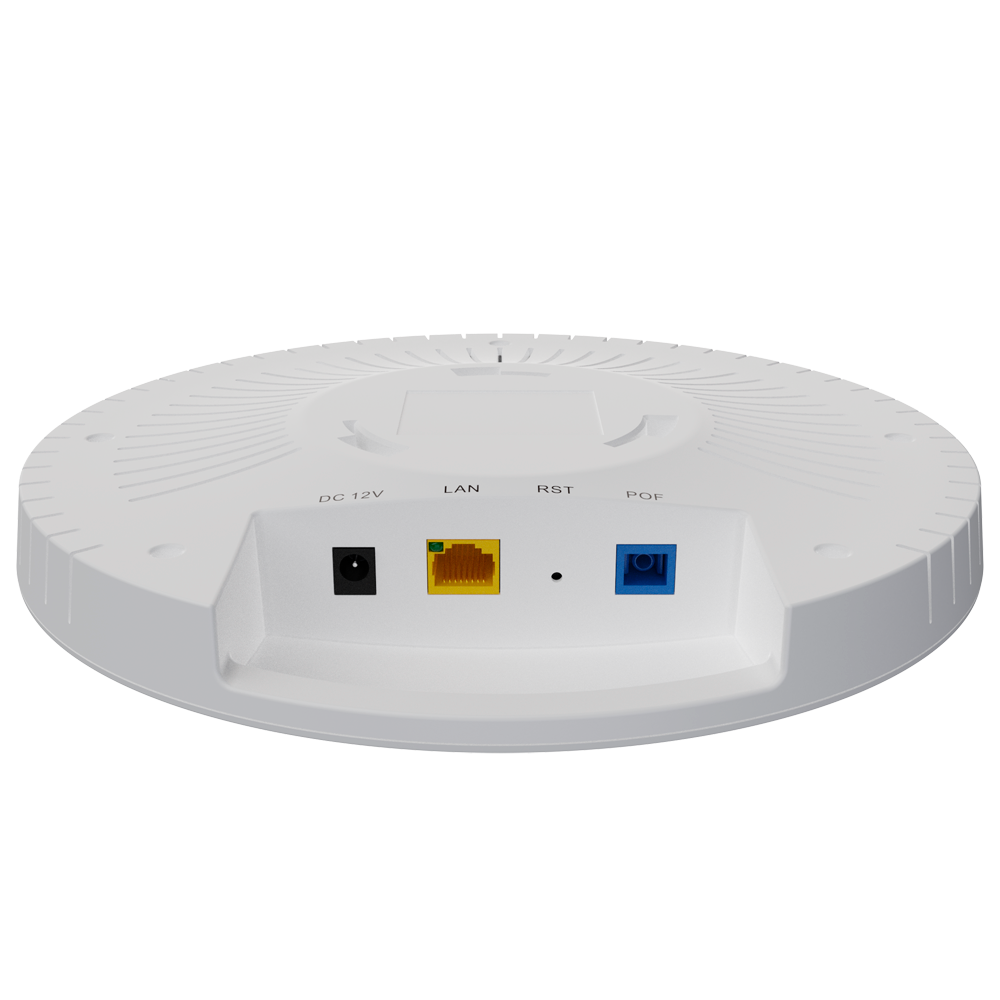

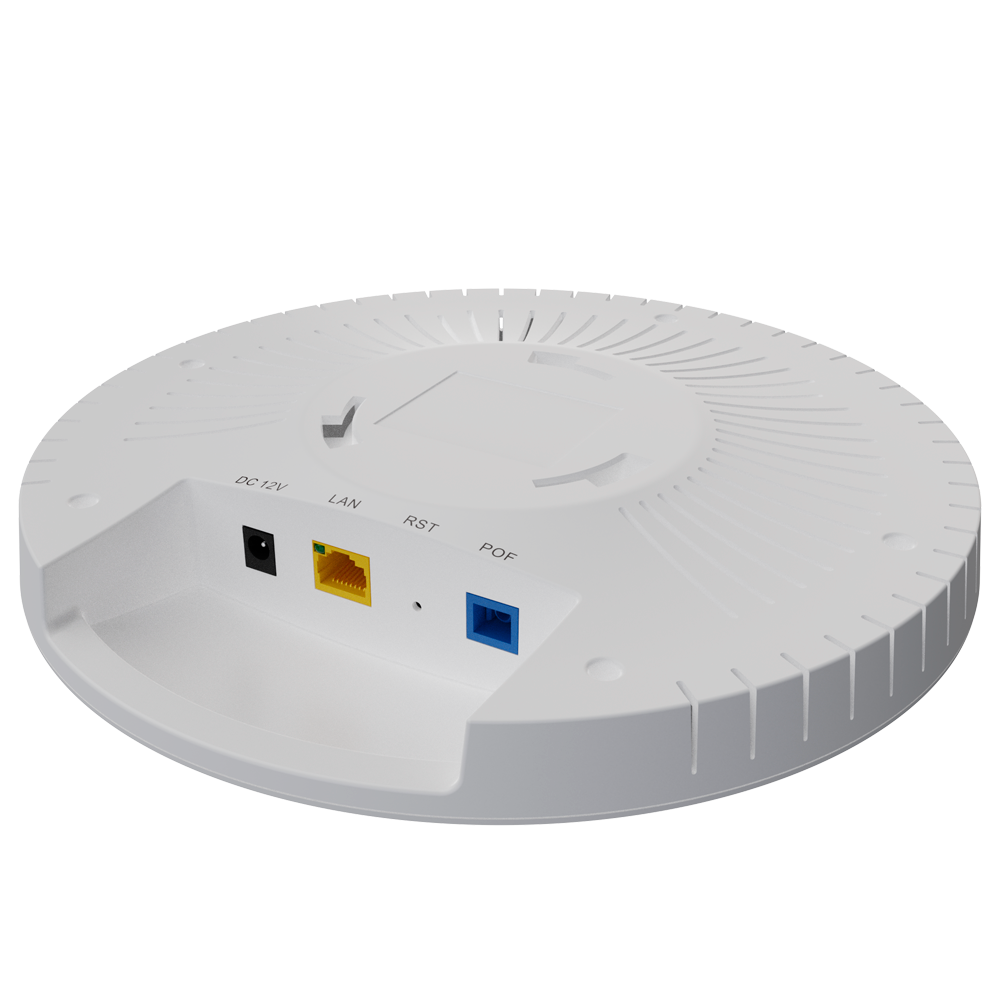

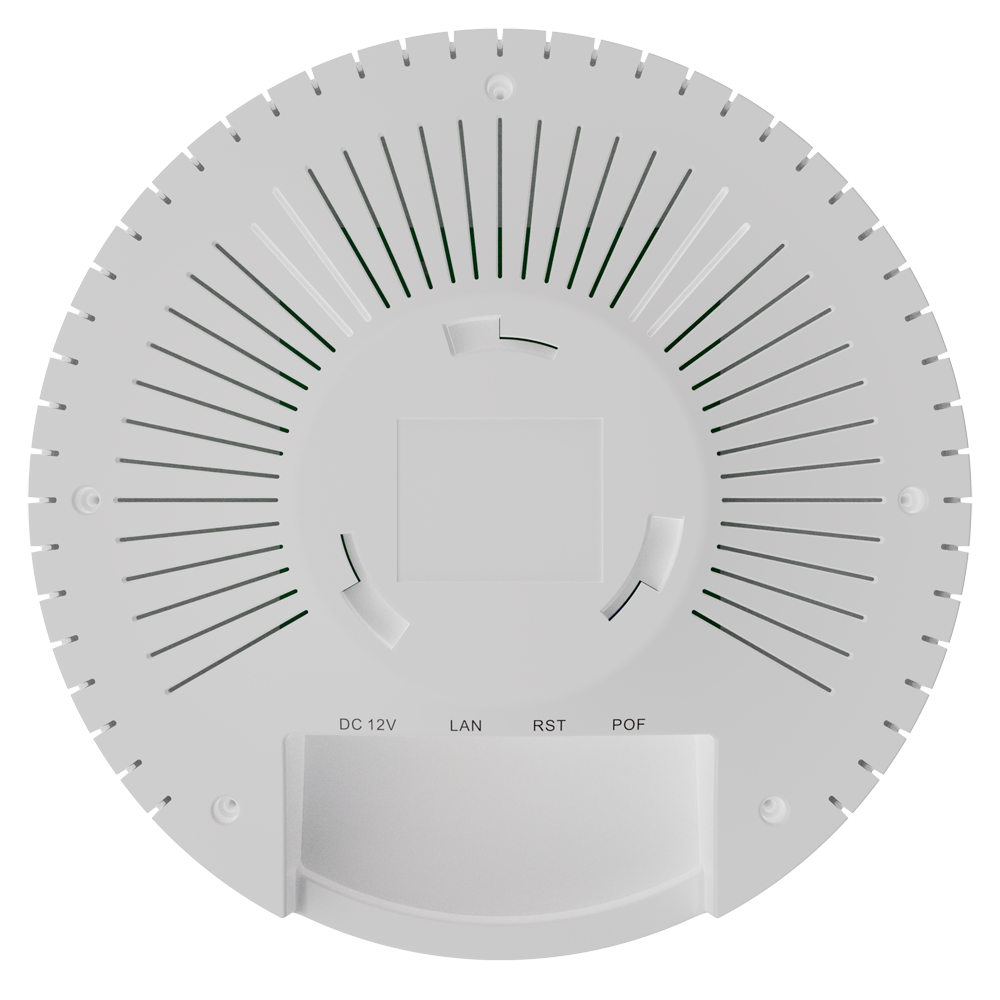

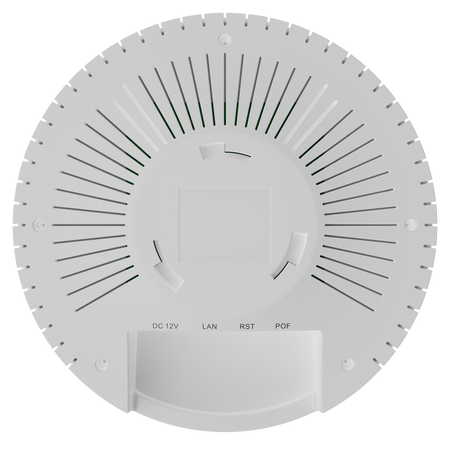

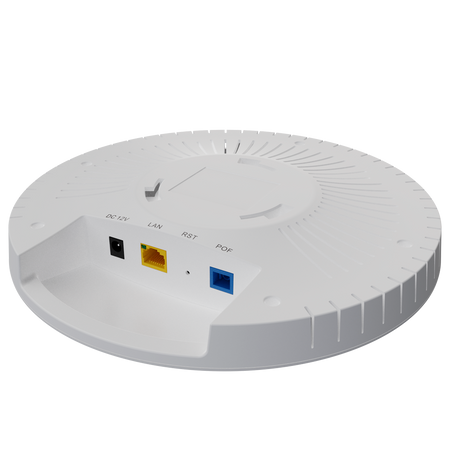

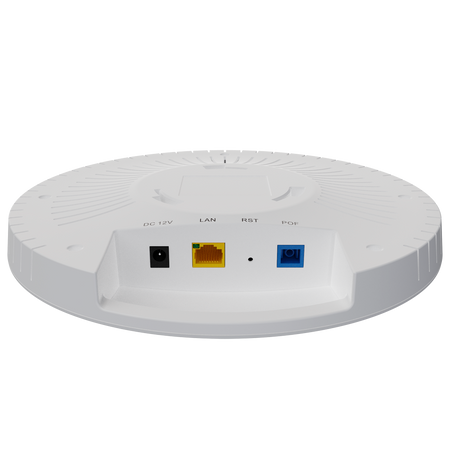

• Interface: 1X PON (PoF) 1x 10/100/1000Mbps RJ45 LAN
• PON: 1 XPON port (EPON PX20+ and GPON Class B+); single-mode SC, SC/UPC connector; PoF compatible; Optical transmit power: 0 to +4 dBm; Receive sensitivity: -27 dBm; Optical overload power: -3 dBm (EPON) or -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm
• WiFi Antennas: IEEE802.11b/g/n/ac/ax compatible; 2402 Mbps at 5 GHz and 574 Mbps at 2.4 GHz; 2.4 GHz: 2 x 2, 5 GHz: 3 x 3; 5 internal 4 dBi antennas
• WiFi Functions: Integrated 802.11b/g/n/ac; Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES); Multiple SSIDs; Hidden SSIDs; WiFi Mesh; Supports up to 64 device connections
• Management Protocols: OAM/OMCI/Telnet/Web/TR069; Supports full function management via VSOL OLT
• Layer 2 (switching) functions: Compatible with 802.1D and 802.1ad bridges, 802.1Q VLAN
• Layer 3 and 4 functions: IPv4, IPv6, and IPv4/IPv6 dual stack; DHCP/PPPOE/Static; Static route, DHCP server; NAT/DMZ/DDNS/Virtual server/ALG and UPnP
• Multicast: IGMP v1/v2/v3, IGMP Snooping; IGMP Proxy; MLD v1/v2; MLD Proxy
• QoS: Supports 4 QoS queues (VoIP, IPTV, Internet...); Compatible with SP, WRR, 802.1P, and DSCP
• Security: Basic firewall functions; MAC filter based on MAC or URL; ACL; Compatible with loop detection; Supports anti-DoS function; Parental control
• System functions: NTP (Network Time Protocol); Scheduled device reboot; Ping and traceroute diagnostic tools; Compatible with Iperf speed measurement function; WLAN packet capture
• Color: White
• Dimensions: 240mm x 240mm x 32mm
• Weight: 400g
• Operating Temp: 0º C ~ +55º C
• Power Supply: AC: 12 V 1.5 A; PoF: 14-60 V
📦 INCLUDED:
• Wi-Fi 6 AX3000 Router • User instructions
| Interface | 1X PON (PoF) 1x LAN RJ45 10/100/1000Mbps |
|---|---|
| PON | 1 XPON port (EPON PX20+ and GPON Class B+) single-mode SC, SC/UPC connector PoF compatible Transmit optical power: 0 to +4 dBm Receiving sensitivity: -27 dBm Overload optical power: -3 dBm (EPON) or -8 dBm (GPON) Transmission distance: 20 km Wavelength: TX 1310 nm, RX 1490 nm |
| WiFi Antennas | Compatible with IEEE802.11b/g/n/ac/ax 2402 Mbps at 5 GHz and 574 Mbps at 2.4 GHz 2.4 GHz: 2 x 2, 5 GHz: 3 x 3; 5 internal 4 dBi antennas |
| WiFi Functions | Integrated 802.11b/g/n/ac Authentication: WPA-PSK (TKIP)/WPA2-PSK (AES) Multiple SSIDs Hidden SSIDs WiFi Mesh Supports up to 64 device connections |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069 Supports full feature management via VSOL OLT |
| Layer 2 (switching) functions | Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN |
| Layer 3 and 4 functions | IPv4, IPv6 and IPv4/IPv6 dual stack DHCP/PPPoE/Static Static route, DHCP server NAT/DMZ/DDNS/Virtual server/ALG and UPnP |
| Multicast | IGMP v1/v2/v3, IGMP Snooping IGMP Proxy MLD v1/v2 MLD Proxy |
| QoS | Supports 4 QoS queues (VoIP, IPTV, Internet...) Compatible with SP, WRR, 802.1P and DSCP |
| Security | Basic firewall functions MAC filter based on MAC or URL ACL Loop detection compatible Supports anti-DoS function Parental control |
| System functions | NTP (Network Time Protocol) Scheduled device reboot Ping and traceroute diagnostic tools Compatible with Iperf speed measurement function WLAN packet capture |
| Color | White |
| Dimensions | 240mm x 240mm x 32mm |
| Weight | 400g |
| Operating temp | 0º C ~ +55º C |
| Power supply | AC: 12 V 1.5 A PoF: 14-60 V |
