V-SOL

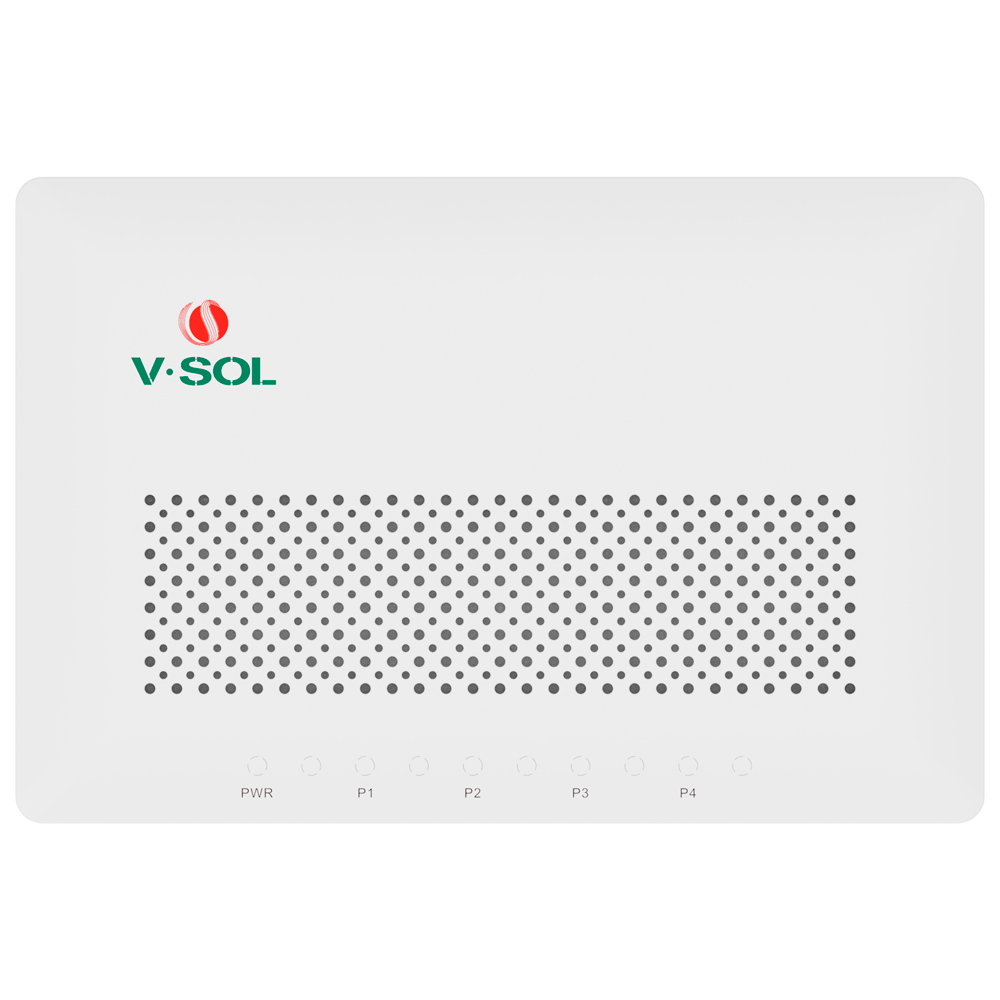

V-Sol fiber optic splitter with power supply

SKU: VSOL-V1805P-U
(0)
In stock
Usually shipped within 24 hours
€64,56 Final price
-5% €68,00 €64,56 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

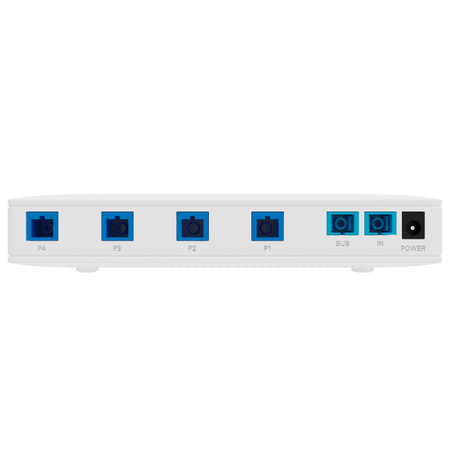

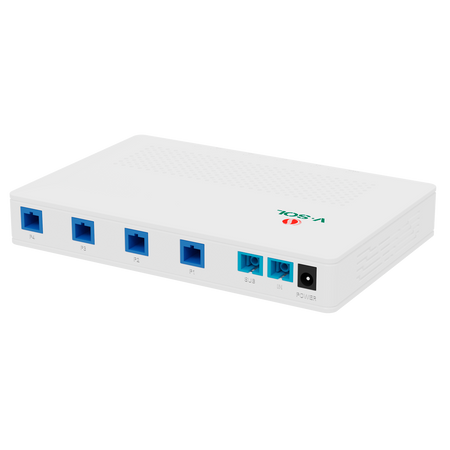

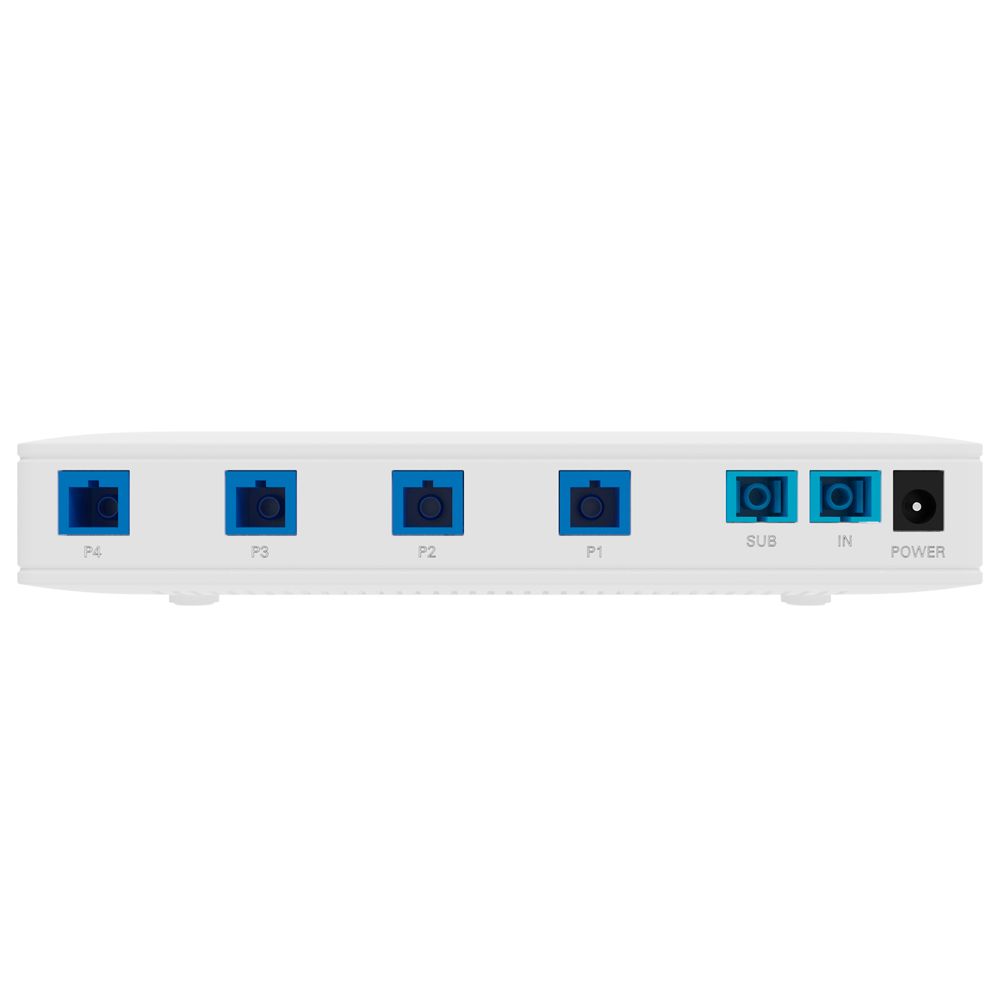

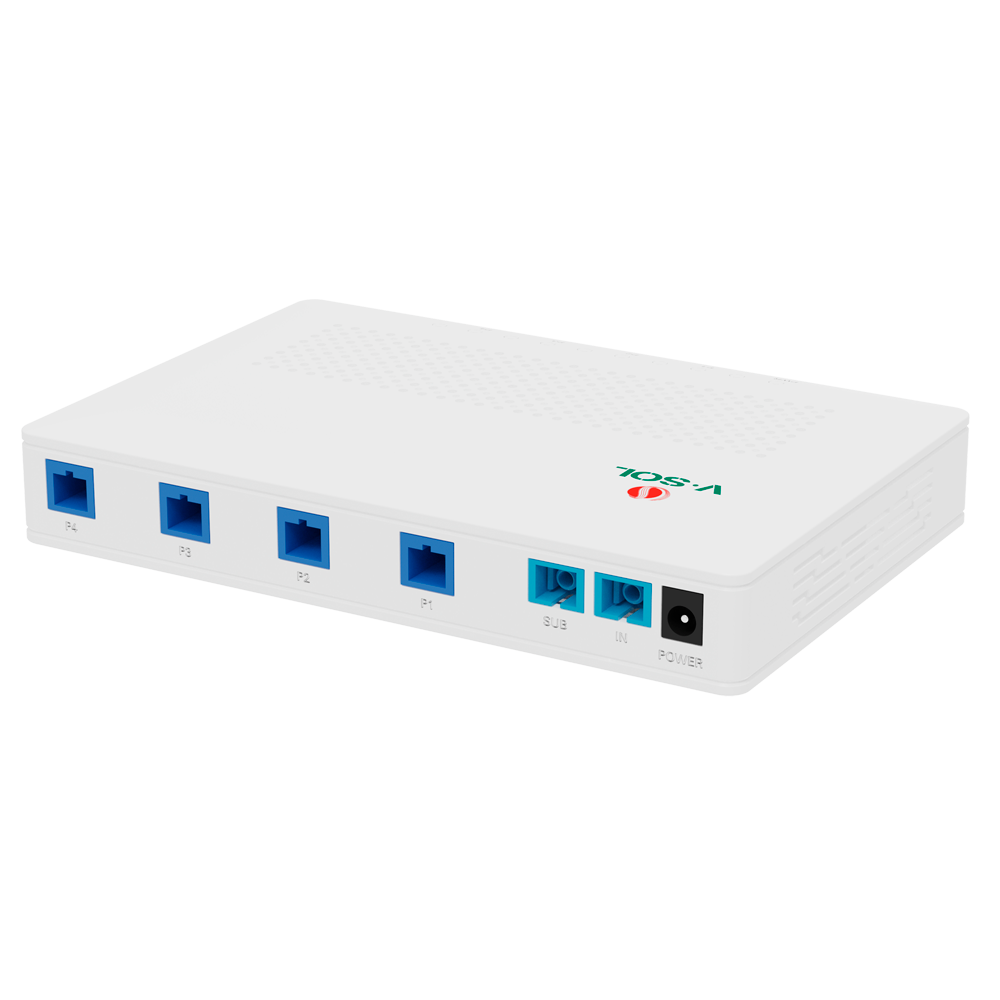

V-SOL Fiber optic splitter with power supply - Wavelength from 1260 nm to 1650 nm - PON standard (compatible with other brands) - 2 x SC uplink connectors - 4 SC PON connectors for ONU (PoF) - Desktop and wall-mount installation

📋 SPECIFICATIONS:
• Brand: V-SOL
• Fiber type: PoF (PON with optical fiber power supply)
• PON: 1 to 5 power splitters, 1 cascade output port (4 output ports, max. approx. 30 W per single port, APC and UPC optional)
• Connector type: SC
• Optical signal indicator: Output insertion loss (dB): ≤15.6; Cascade port insertion loss (dB): ≤1.8; Uniformity (dB): ≤0.7; Polarization dependent loss (dB): ≤0.3; Return loss (dB): ≥50; Directivity (dB): ≥55; Operating wavelength range (nm): 1260–1650; Interface type: SC/UPC, SC/APC
• Power indicator: Input voltage: 48V DC; Permissible input fluctuation range: 44–54V DC; Number of outputs: 4; Nominal output voltage: 48V DC; Output voltage range: 44–54V DC; Nominal output current: 0.25A (0.5A max per port)
• Operating environment: Operating temperature: -20–+45℃; Storage temperature: -20–+55℃
• Dimensions: 26 (W) x 180 (H) × 120 (D) mm

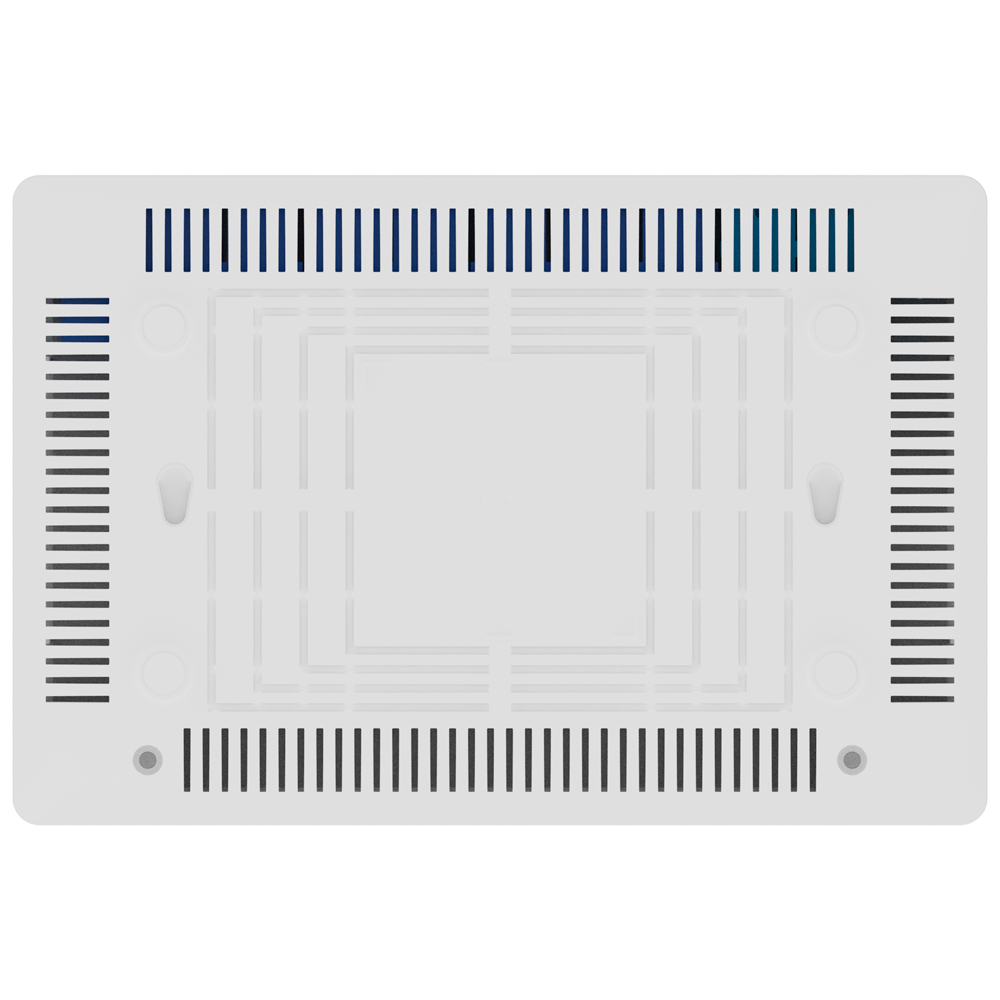

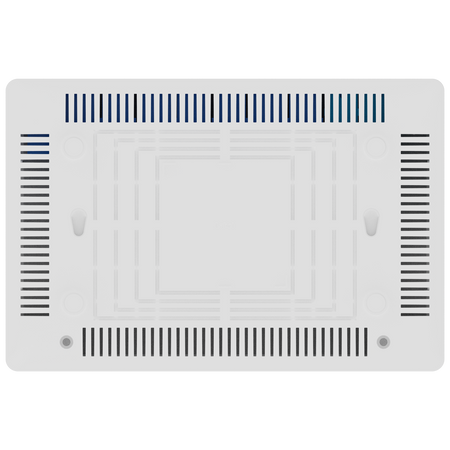

• Installation: Wall and desktop mounting

📦 INCLUDED:
• Splitter• User manual
Fiber type PoF (PON with optical fiber power supply)
PON 1 to 5 power splitters, 1 cascade output port (4 output ports, max. approx. 30 W per single port, APC and UPC optional)
Connector type SC
Optical signal indicator Output insertion loss (dB): ≤15.6 Cascade port insertion loss (dB): ≤1.8 Uniformity (dB): ≤0.7 Polarization dependent loss (dB): ≤0.3 Return loss (dB): ≥50 Directivity (dB): ≥55 Operating wavelength range (nm): 1260～1650 Interface type: SC/UPC, SC/APC
Power indicator Input voltage: 48V DC Permissible input fluctuation range: 44～54V DC Number of outputs: 4 Rated output voltage: 48V DC Output voltage range: 44～54V DC Rated output current: 0.25A (0.5A max per port)
Operating environment Operating temperature: -20～+45℃ Storage temperature: -20～+55℃
Dimensions 26 (W) x 180 (H) ×120 (D) mm
Installation Wall and desktop mounting
