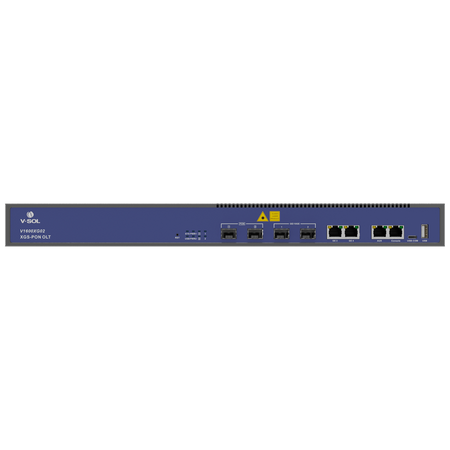

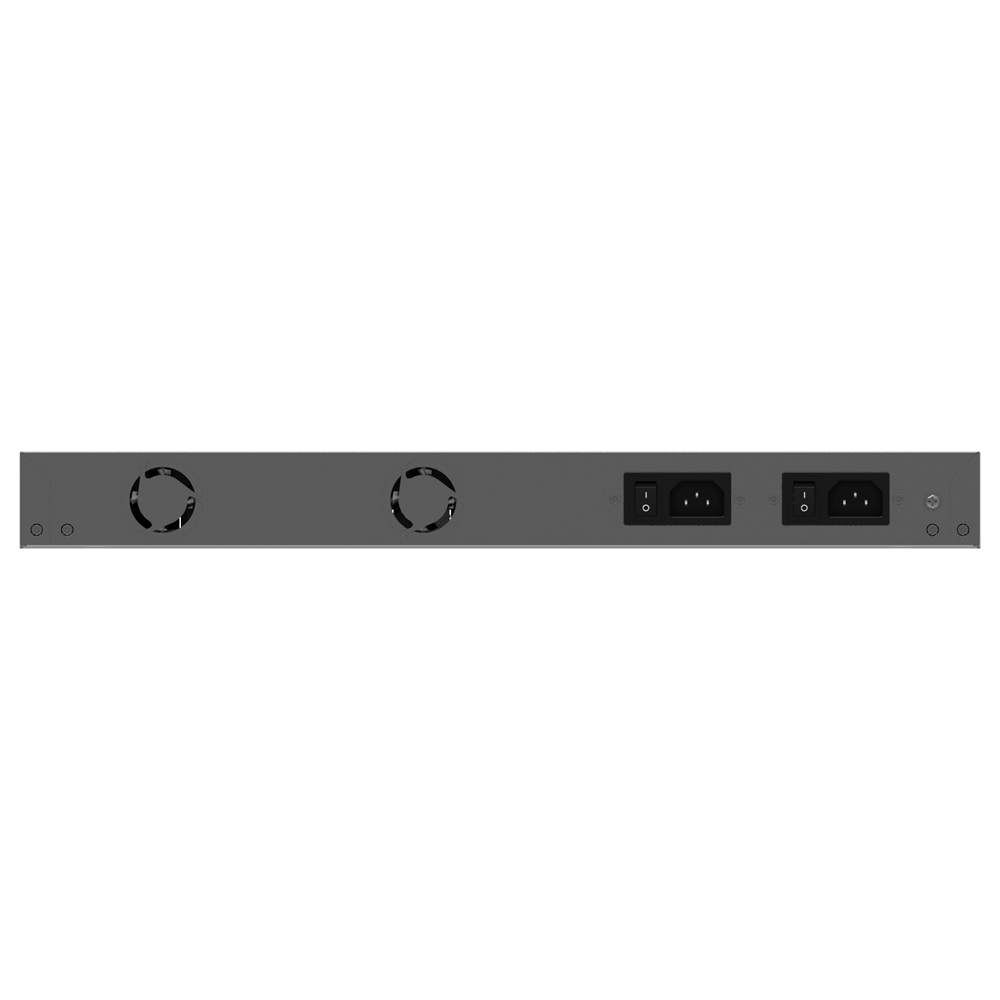

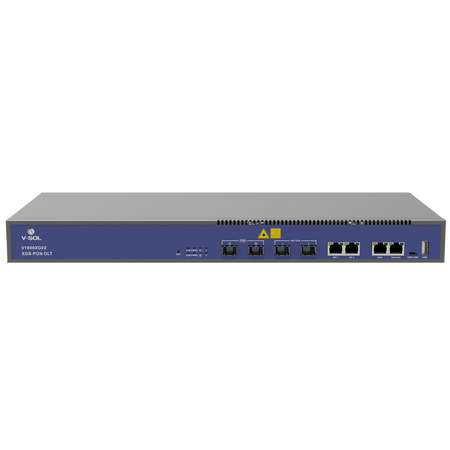

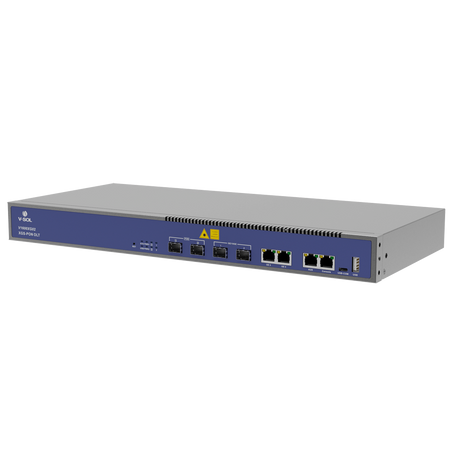

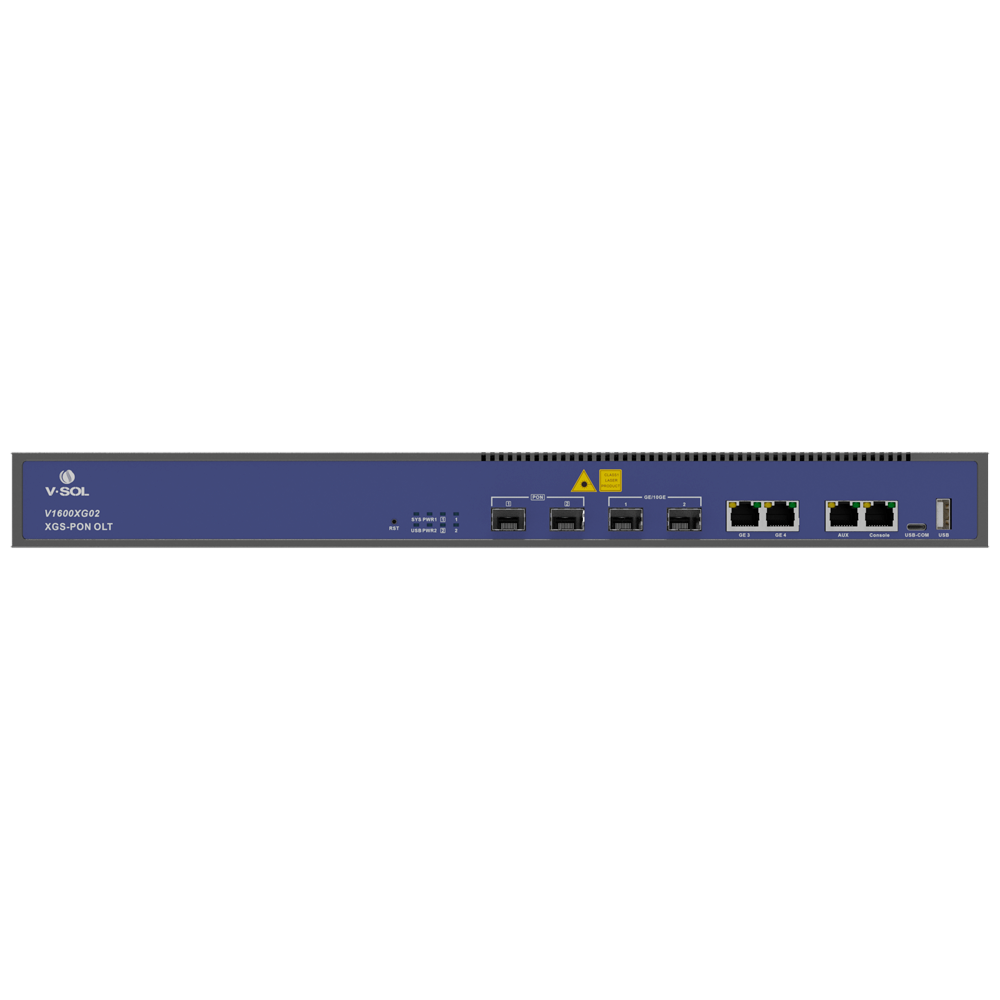

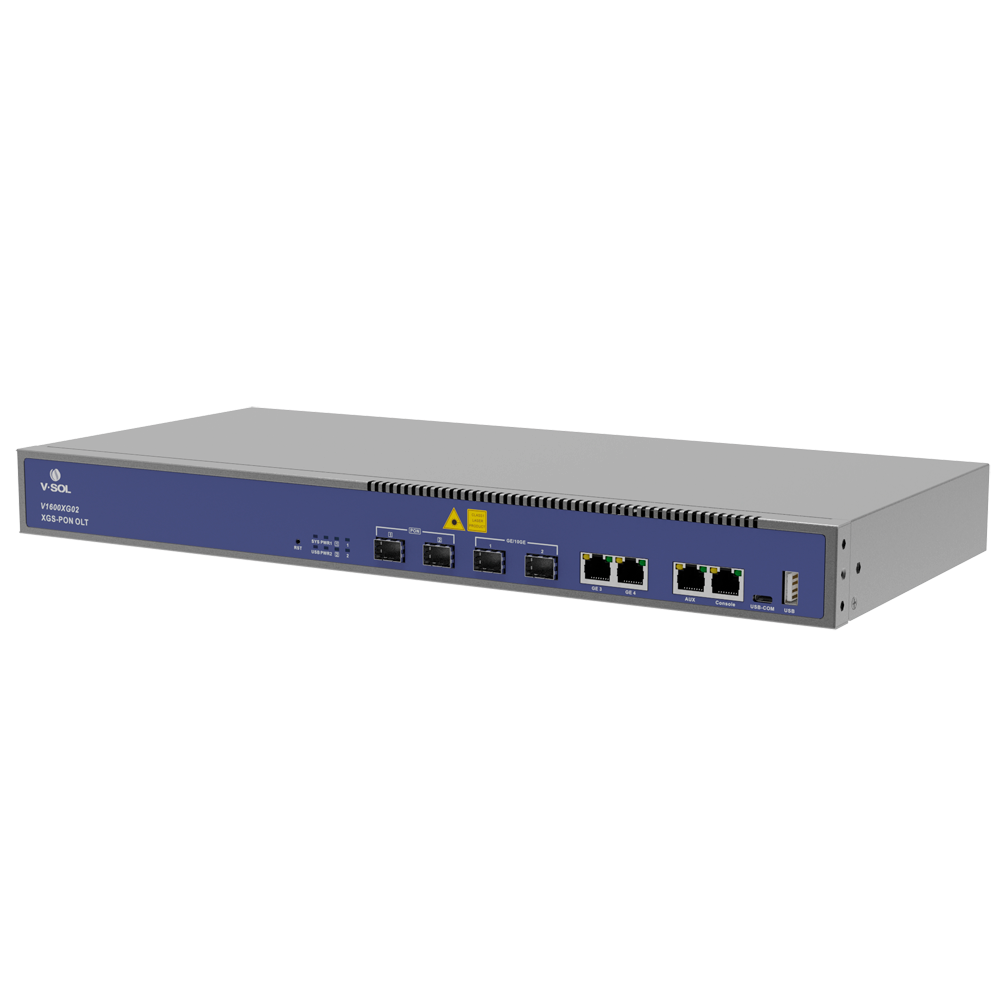

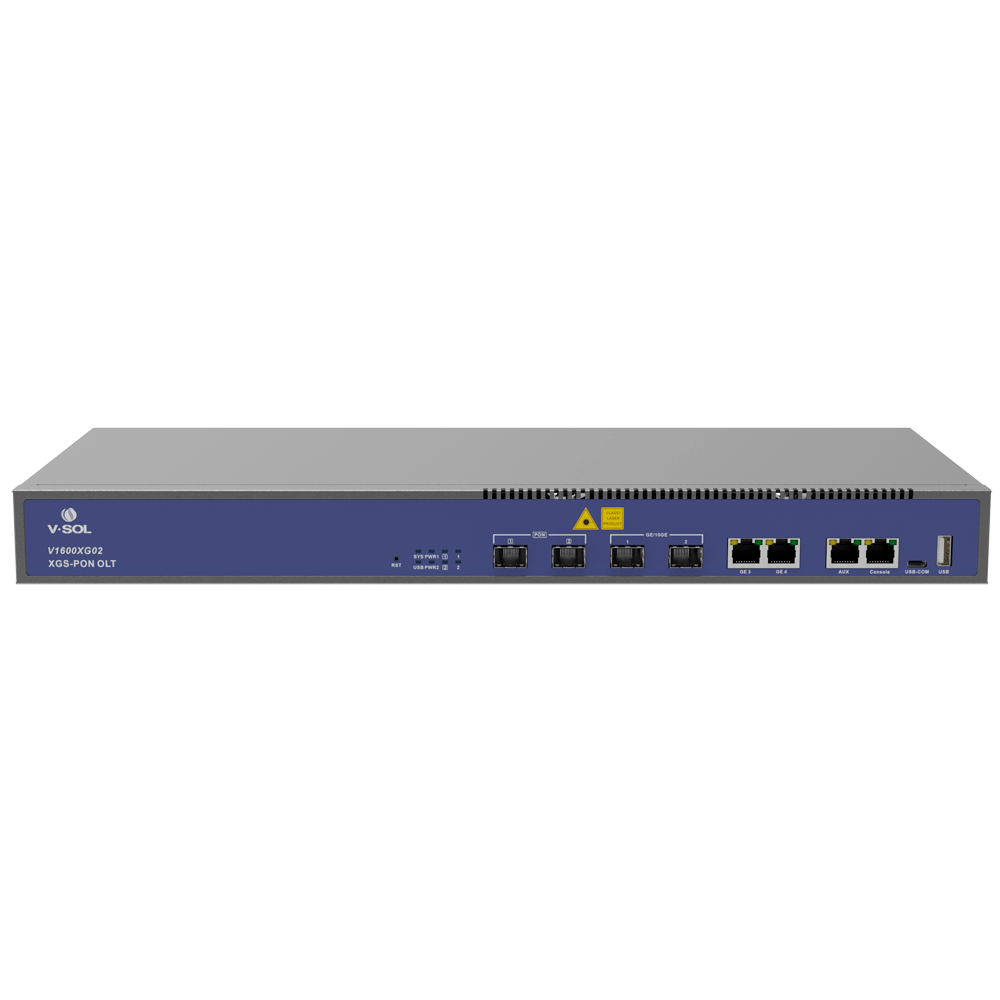

V-SOL 2 GPON XG-PON/XGS-PON OLT
Regular price
€1.821,58
Final price
Regular price
-9%
€2.000,00
Sale price
€1.821,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL 2 GPON XG-PON/XGS-PON OLT - 10/100/1000 Mbps RJ45 ports + 1/10Gigabit SFP+ port - Up to 256 ONTs per device - Transmission distance up to 20 km - Layer 3 Routing (NAT, DMZ, ACL, PPPOE, DHCP) - Layer 2 Switching (VLAN, MULTICAST, STP)
📋 SPECIFICATIONS:
• Brand: V-SOL

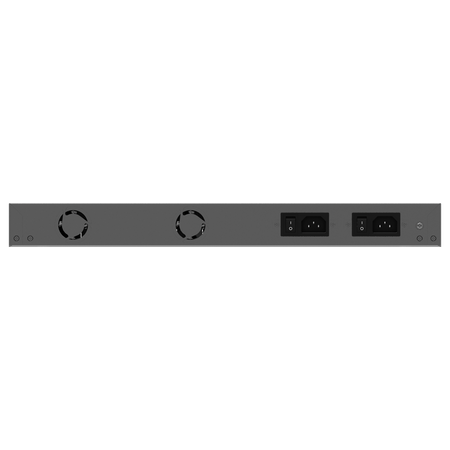

• Chassis: 1U Rack
• Interfaces: 4 x 10/100/1000 Mbps RJ45 ports + 2 x 1/10Gigabit SFP+ ports; 2 ports (GPON 1.25Gbps/2.5Gbps, XG-PON 2.5Gbps/9.95Gbps, XGS-PON 9.95Gbps/9.95Gbps); 1 x USB-COM port (Type C); 1 x USB2.0 port; 1 x Auxiliary port; 1 x Console port

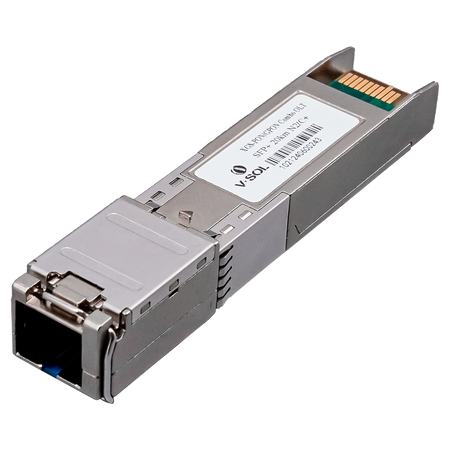

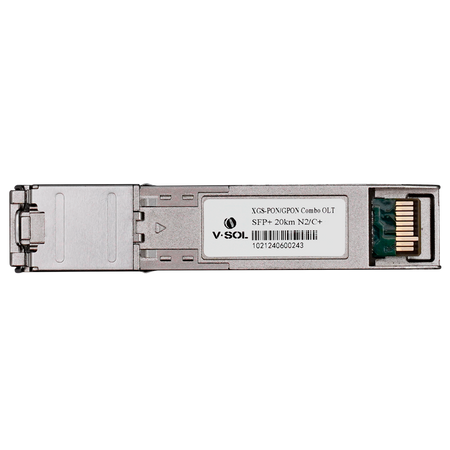

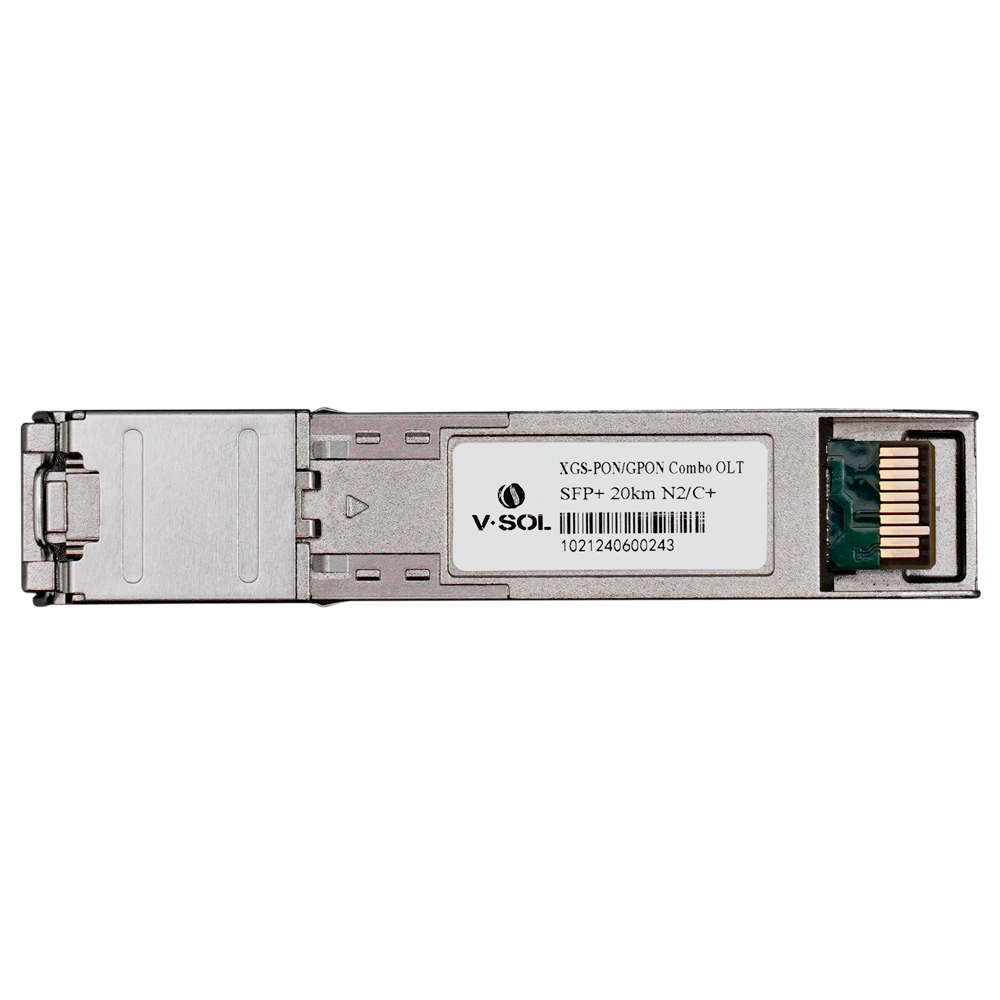

• GPON: GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps; XG-PON port speed: Upload/Download ~ 2.5Gbps/9.95Gbps; XGS-PON port speed: Upload/Download ~ 9.95Gbps/9.95Gbps; Fiber type: Single-mode 9/125μm; Connector: SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm; GPON wavelength: TX 1490nm, RX 1310nm; XG-PON, XGS-PON wavelength: TX 1577nm, RX 1270nm; Wavelength splitting ratio: 1/256 (up to 256 ONTs, 128 ONTs recommended); Maximum transmission distance: 20 KM
• Backplane bandwidth: 208 Gbps
• Forwarding rate: 124.992 Mbps
• Management Protocols: WEB/Telnet/CLI/SNMP; Port status configuration monitoring and management; Online ONT configuration and management; User management; Alarm management
• Layer 2 Switching: MAC address table (up to 16,000); Supports VLAN (up to 4096); Port-based storm control; Supports 802.1D and 802.1W (STP); Port isolation; Port-based bandwidth limitation; IEEE802.x flow control; Port monitoring and statistics
• Multicast: IGMP snooping; 1000 L2 Multicast IP groups; 1000 L3 Multicast IP groups
• DHCP: DHCP server, DHCP relay, DHCP snooping; DHCP option82; DHCPv6 server, DHCPv6 relay
• Layer 3 Routing: Dynamic and static ARP table; WAN configuration (DHCP/PPPoE/Static); Static routing, NAT, DMZ; QoS based on DSCP, MAC, IP, Protocol, etc.; Access Control List (ACL)
• GPON Functions: Compliant with ITU-T984.x standard (standard for GPON networks); Transmission distance up to 20 km; Data encryption, multicast, port-based VLAN, separation, etc.; Automatic ONT detection, link detection, and remote software upgrade; VLAN division and user separation to prevent broadcast storms; Power-off alarm function for easy connection troubleshooting; Broadcast storm resistance function
• Power supply: AC 100 V - 240 V
• Operating temperature: -20°C - 60°C
• Dimensions: 442mm x 200mm x 43.6mm
• Weight: 2.485 kg
📦 INCLUDED:
• V-SOL 2 GPON XG-PON/XGS-PON OLT • AC power cable • User instructions • Rack mounting brackets
| Case | 1U Rack |
|---|---|
| Interfaces | 4x 10/100/1000 Mbps RJ45 ports + 2x 1/10 Gigabit SFP+ ports, 2x ports (GPON 1.25Gbps/2.5Gbps, XG-PON 2.5Gbps/9.95Gbps, XGS-PON 9.95Gbps/9.95Gbps), 1x USB-COM port (Type C), 1x USB 2.0 port, 1x Auxiliary port, 1x Console port |
| GPON | GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps; XG-PON port speed: Upload/Download ~ 2.5Gbps/9.95Gbps; XGS-PON port speed: Upload/Download ~ 9.95Gbps/9.95Gbps; Fiber type: Single-mode 9/125μm; Connector: SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm; GPON wavelength: TX 1490nm, RX 1310nm; XG-PON, XGS-PON wavelength: TX 1577nm, RX 1270nm; Wavelength split ratio: 1/256 (up to 256 ONTs, 128 ONTs recommended); Maximum transmission distance: 20 KM |
| Backplane bandwidth | 208 Gbps |
| Forwarding rate | 124.992 Mbps |
| Management protocols | WEB/Telnet/CLI/SNMP, port status configuration and monitoring management, online ONT configuration and management, user management, alarm management |
| Layer 2 switching | Mac address table (up to 16,000), supports Vlan (up to 4096), port-based storm control, supports 802.1D and 802.1W (STP), port isolation, bandwidth limitation per port, IEEE802.x flow control, port monitoring and statistics |
| Multicast | IGMP snooping, 1000 L2 multicast IP groups, 1000 L3 multicast IP groups |
| DHCP | DHCP server, DHCP relay, DHCP snooping, DHCP option82, DHCPv6 server, DHCPv6 relay |
| Layer 3 routing | Dynamic and static ARP table, WAN configuration (DHCP/PPPoE/Static), static routing, NAT, DMZ, QoS based on DSCP, MAC, IP, protocol, etc., Access Control List (ACL) |
| GPON functions | Compliant with ITU-T984.x standard (GPON network standard), transmission distance up to 20 km, data encryption, multicast, port-based VLAN, separation, etc., automatic ONT detection, link detection and remote software upgrade, VLAN division and user separation to prevent broadcast storms, power-off alarm function for easy connection troubleshooting, broadcast storm resistance function |
| Power supply | AC 100 V - 240 V |
| Operating temperature | -20°C - 60°C |
| Dimensions | 442mm x 200mm x 43.6mm |
| Weight | 2.485 kg |
