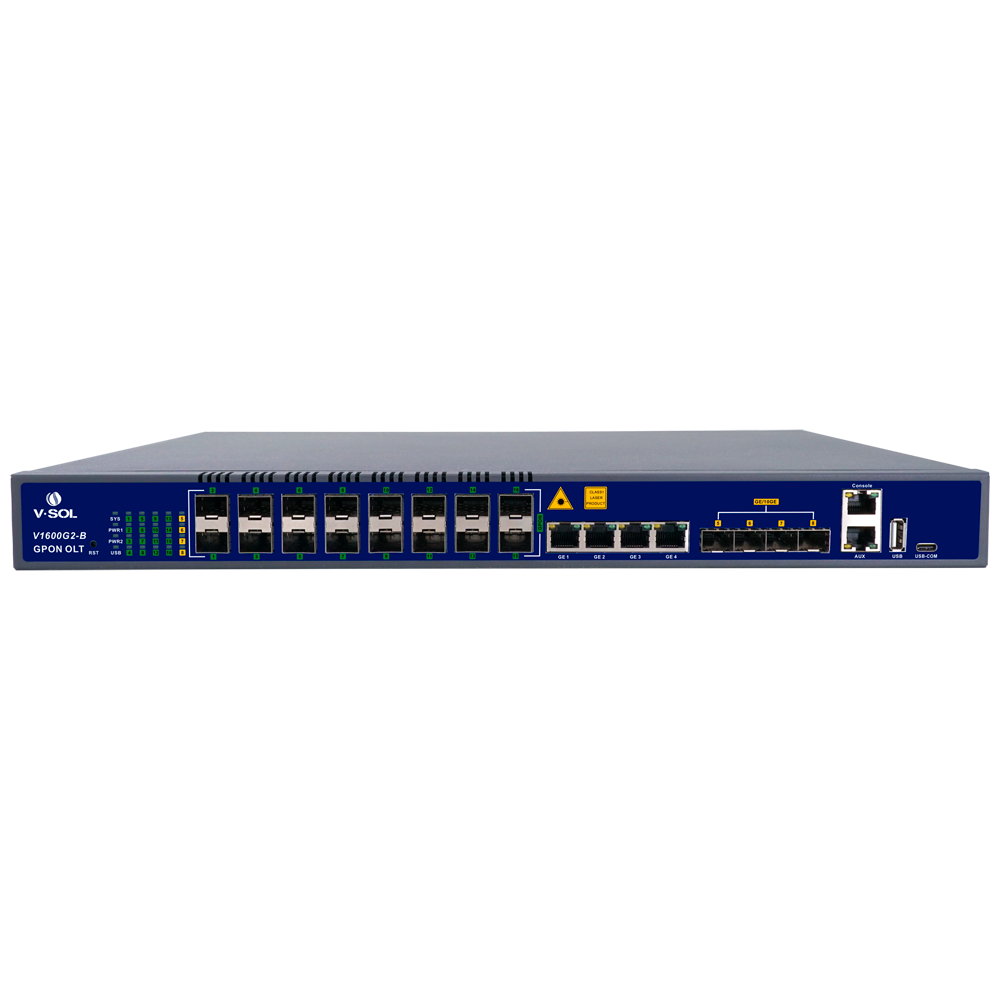

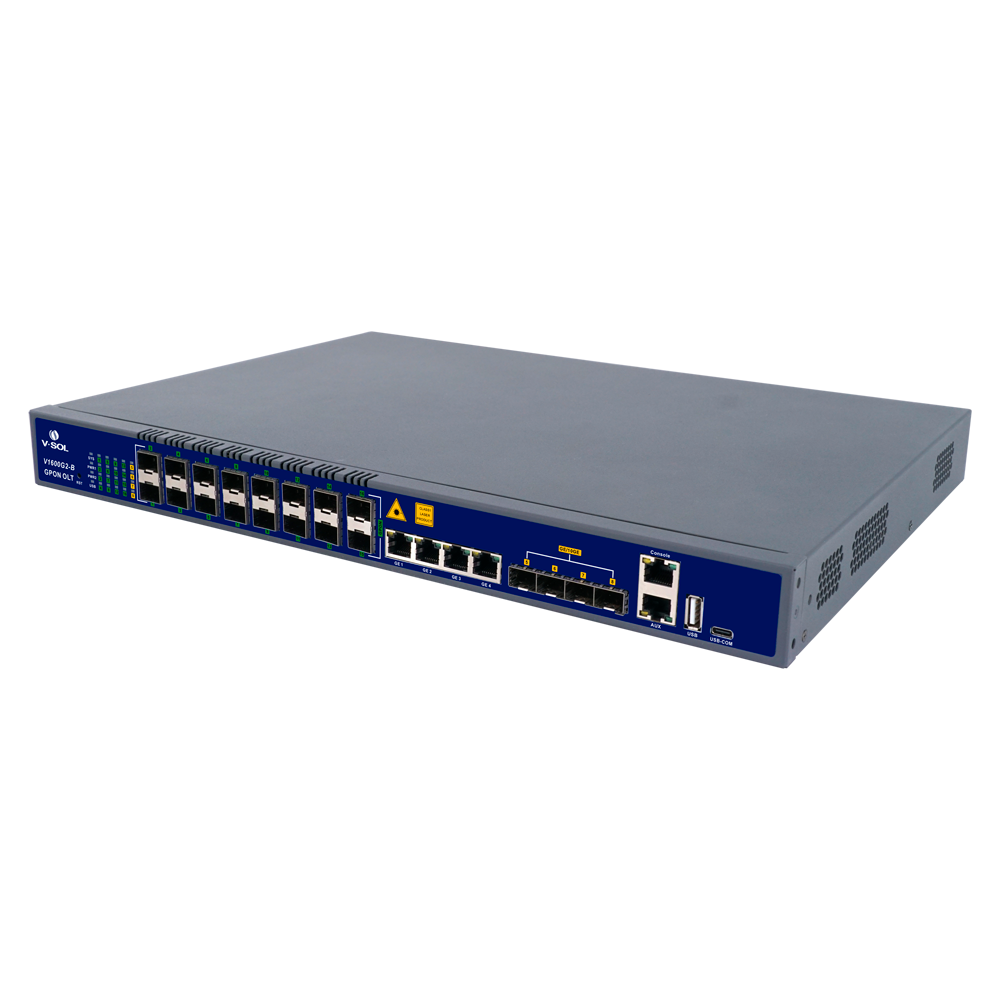

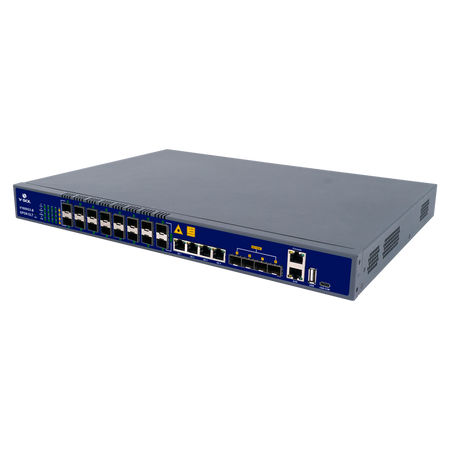

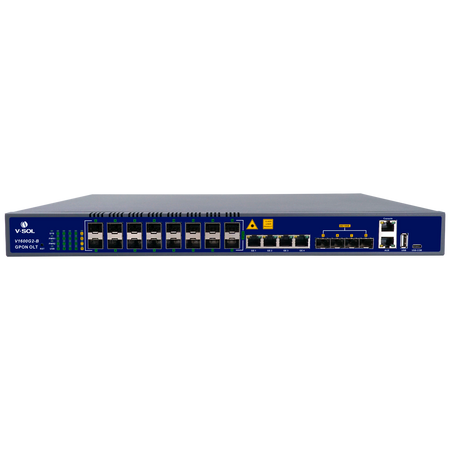

V-SOL 16-Port GPON OLT
Regular price
€4.081,27
Final price
Regular price
-15%
€4.800,00
Sale price
€4.081,27
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL 16-Port GPON OLT - 4 GE RJ45 Ports + 4 SFP+ (1GE/10GE) - Up to 128 ONTs per device - Transmission distance up to 20 km - Layer 3 Routing ( NAT, DMZ, ACL, PPPOE, DHCP ) - Layer 2 Switching ( VLAN, MULTICAST, STP )
📋 SPECIFICATIONS:
• Brand: V-SOL
• Chassis: 1U Rack
• Interfaces: 4 x 10/100/1000 Mbps RJ45 Ports + 4 x 1/10 Gigabit SFP+ Ports; 16 x 1.25Gbps/2.5Gbps GPON Ports; 1 x USB-COM Port ( Type C )
• GPON: GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps; Fiber type: Single-mode 9/125μm; Connector: SC/UPC, TX: 7.5±0.5dBm, Sensitivity: -32dBm; Wavelength: TX 1490nm, RX 1310nm; Split ratio: 1/128 ( up to 128 ONTs ); Maximum transmission distance: 20 KM
• Backplane bandwidth: 208 Gbps
• Forwarding rate: 124.992 Mbps
• Management protocols: WEB/Telnet/CLI/SNMP; Port status monitoring and configuration management; Online ONT configuration and management; User management; Alarm management
• Surge protection: 4KV
• Layer 2 Switching: MAC address table ( up to 1000 ); Supports VLAN (up to 4096); Port-based storm control; Supports 802.1D and 802.1W ( STP ); Port isolation; Bandwidth limitation per port; IEEE802.x flow control; Port monitoring and statistics
• Multicast: IGMP snooping; 256 Multicast IP Groups
• DHCP: DHCP server, DHCP relay, DHCP snooping; DHCP option82; DHCPv6 server, DHCPv6 relay
• Layer 3 Routing: Dynamic and static ARP table; WAN configuration (DHCP/PPPoE/Static); Static routing, NAT, DMZ; QoS based on DSCP, MAC, IP, Protocol, etc.; Access Control List (ACL)
• GPON Functions: Compliant with ITU-T984.x standard (standard for GPON networks); Transmission distance up to 20 km; Data encryption, multicast, port-based VLAN, separation, etc.; Automatic ONT detection, link detection, and remote software upgrade; VLAN division and user separation to prevent broadcast storms; Power-off alarm function for easy connection troubleshooting; Broadcast storm resistance function
• Power supply: AC 100 V - 240 V; DC 12V/2A
• Operating temperature: -20°C - 60°C
• Dimensions: 442mm x 200mm x 43.6mm
• Weight: 4.80 kg
📦 INCLUDED:
• V-SOL 16-Port GPON OLT • AC Power cable • User manual
| Case | 1U Rack |
|---|---|
| Interfaces | 4x 10/100/1000 Mbps RJ45 ports + 4x 1/10 Gigabit SFP+ ports, 16x 1.25Gbps/2.5Gbps GPON ports, 1x USB-COM port (Type C) |
| GPON | GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps, Fiber type: Singlemode 9/125μm, Connector: SC/UPC, TX: 7.5±0.5dBm, Sensitivity: -32dBm, Wavelength: TX 1490nm, RX 1310nm, Wavelength split ratio: 1/128 (up to 128 ONTs), Max transmission distance: 20 KM |
| Backplane bandwidth | 208 Gbps |
| Forwarding rate | 124.992 Mbps |
| Management protocols | WEB/Telnet/CLI/SNMP, Port status monitoring and configuration management, Online ONT configuration and management, User management, Alarm management |
| Surge protection | 4KV |
| Layer 2 Switching | MAC address table (up to 1000), VLAN support (up to 4096), Port-based storm control, Supports 802.1D and 802.1W (STP), Port isolation, Bandwidth limitation per port, IEEE802.x flow control, Port monitoring and statistics |
| Multicast | IGMP snooping, 256 IP Multicast groups |
| DHCP | DHCP server, DHCP relay, DHCP snooping, DHCP option82, DHCPv6 server, DHCPv6 relay |
| Layer 3 Routing | Dynamic and static ARP table, WAN configuration (DHCP/PPPoE/Static), Static routing, NAT, DMZ, QoS based on DSCP, MAC, IP, Protocol, etc., Access Control List (ACL) |
| GPON functions | Compliant with ITU-T984.x standard (GPON network standard), Transmission distance up to 20 km, Data encryption, multicast, port-based VLAN, separation, etc., ONT auto-detection, link detection, and remote software upgrade, VLAN division and user separation to prevent broadcast storms, Power-off alarm function for easy connection troubleshooting, Broadcast storm resistance function |
| Power supply | AC 100 V - 240 V, DC 12V/2A |
| Operating temperature | -20°C - 60°C |
| Dimensions | 442mm x 200mm x 43.6mm |
| Weight | 4.80 kg |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
