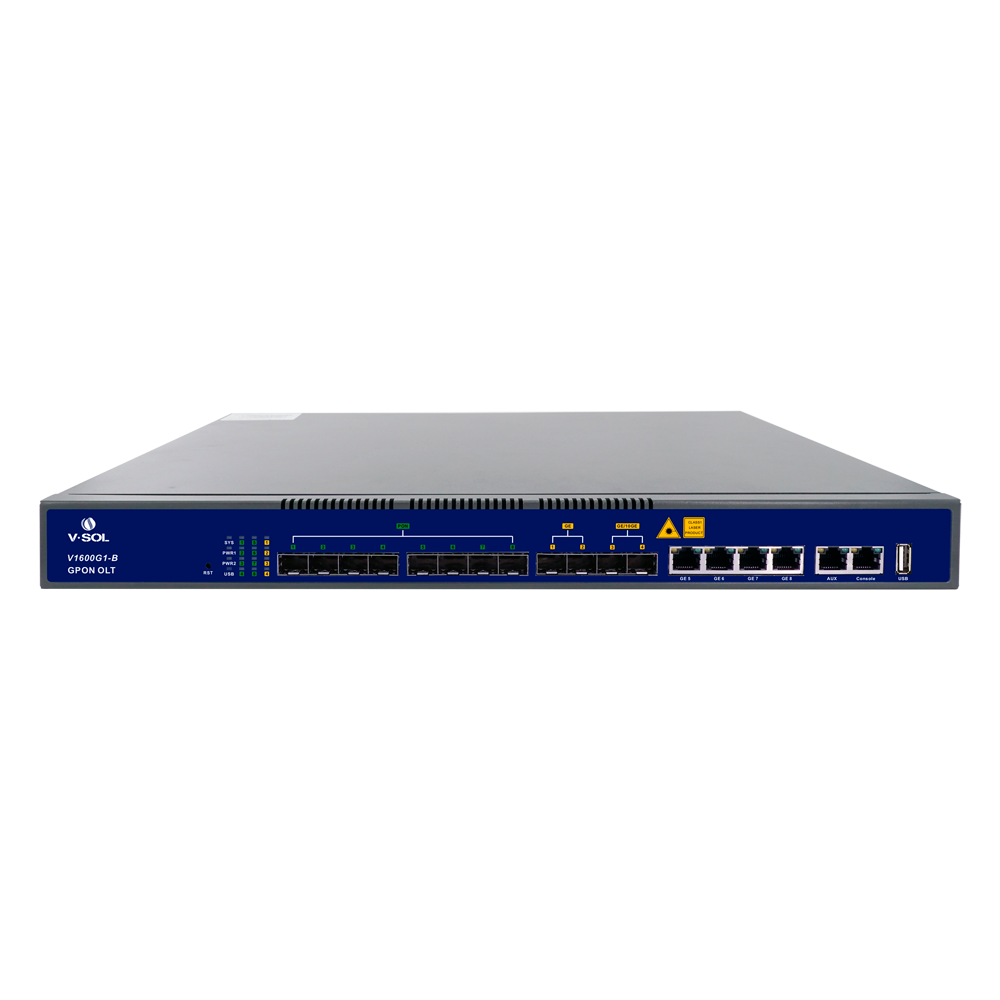

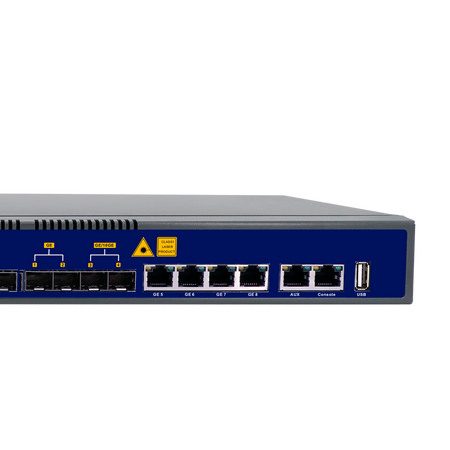

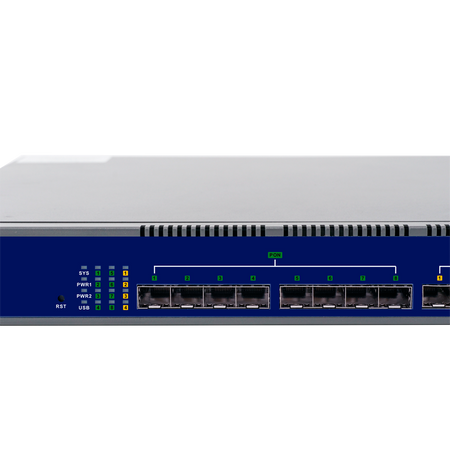

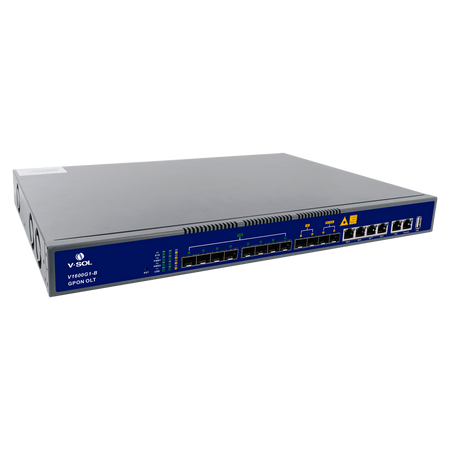

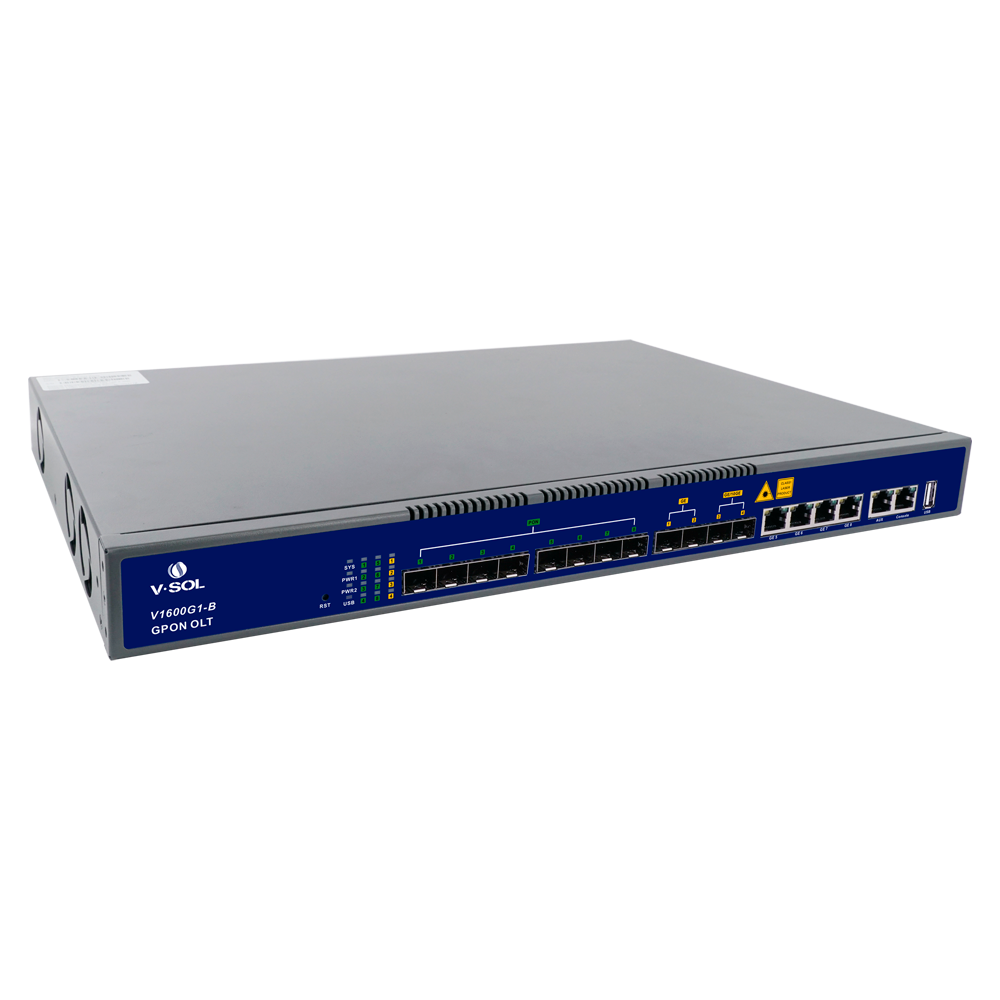

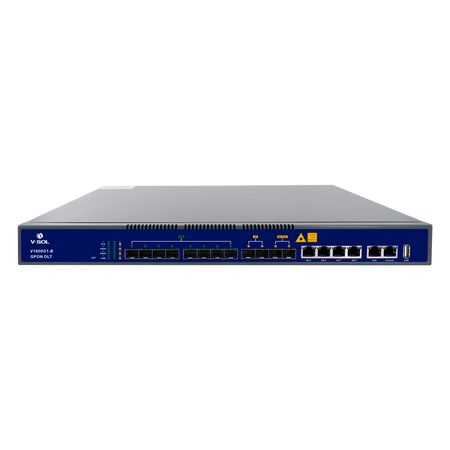

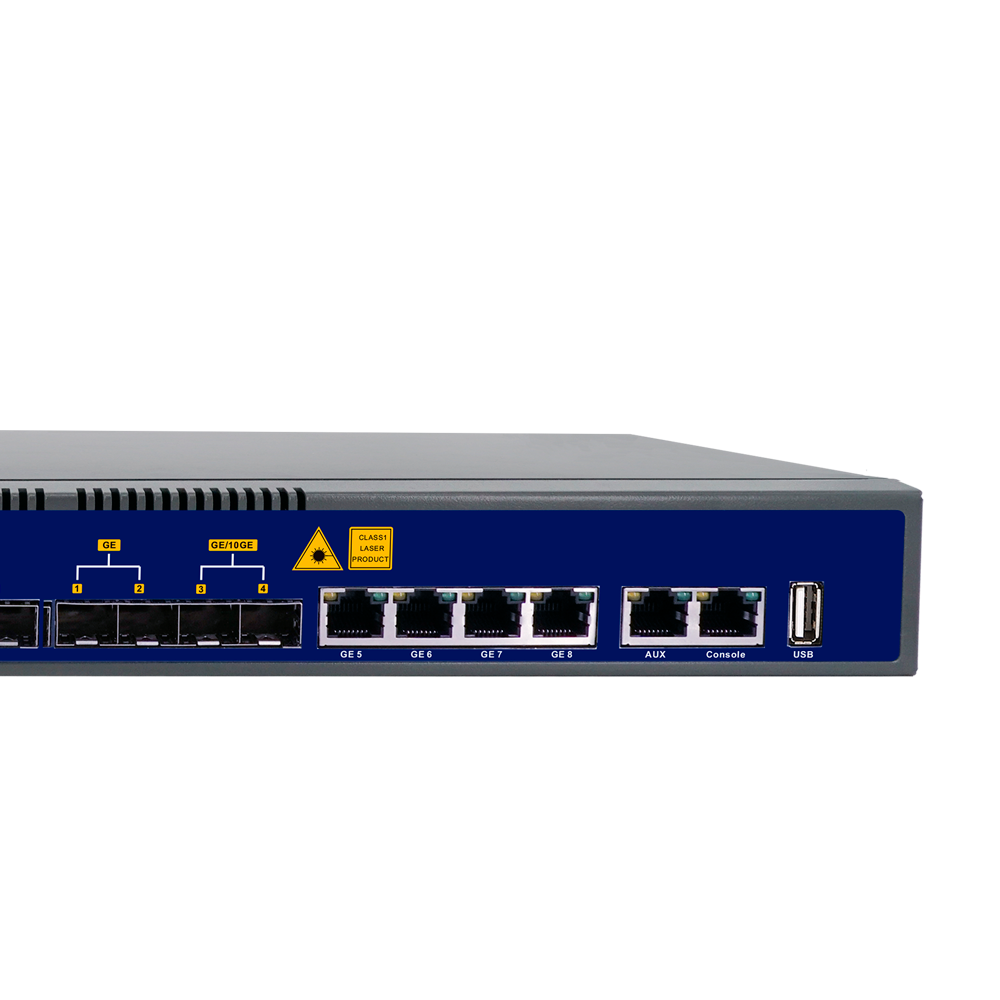

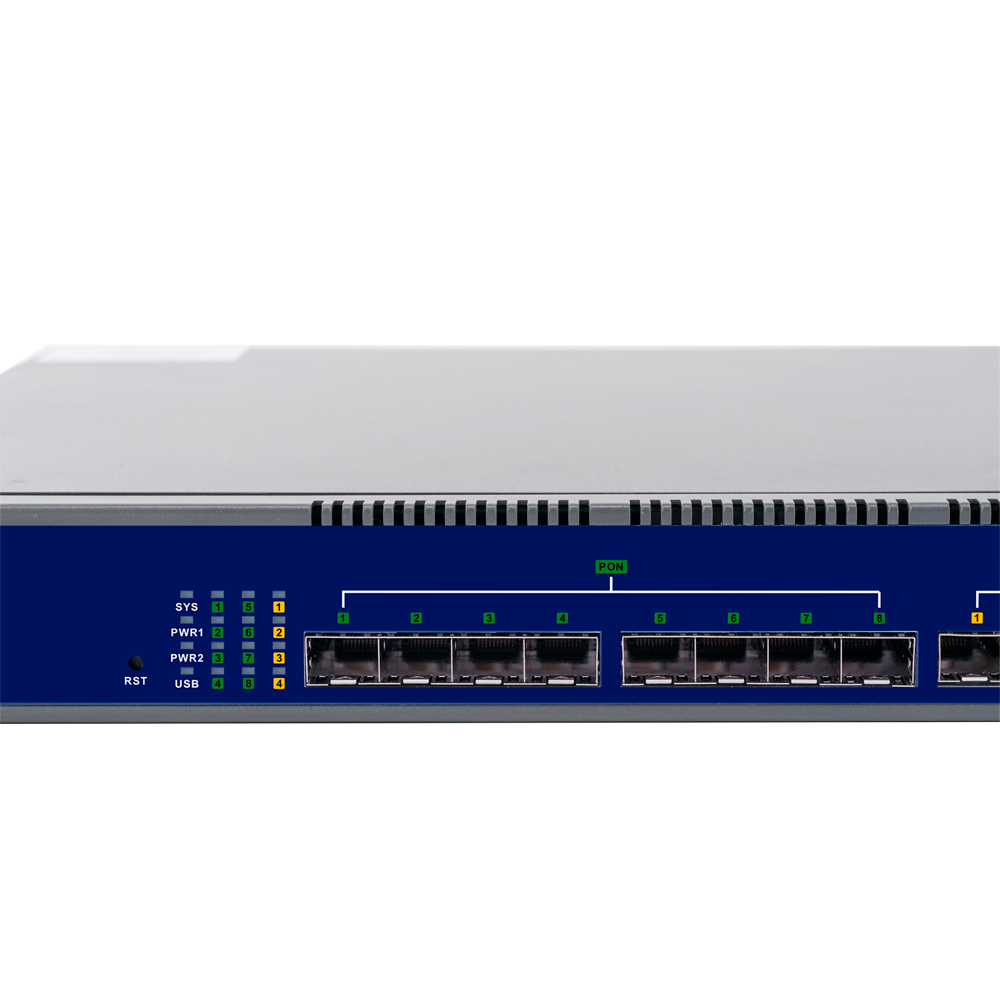

V-SOL 8-Port GPON OLT
Regular price
€2.248,16
Final price
Regular price
-12%
€2.550,00
Sale price
€2.248,16
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL 8-Port GPON OLT - 4 RJ45 GE Ports + 2 SFP/GE + 2 SFP+ - Up to 128 ONTs per device - Transmission distance up to 20 km - Layer 3 Routing (NAT, DMZ, ACL, PPPOE, DHCP) - Layer 2 Switching (VLAN, MULTICAST, STP)
📋 SPECIFICATIONS:
• Brand: V-SOL
• Chassis: 1U Rack
• Interfaces: 4 10/100/1000 Mbps RJ45 ports + 2 SFP/GE + 2 1/10 Gigabit SFP+ ports; 8 1.25Gbps/2.5Gbps GPON ports; 1 USB-COM port (Type C)
• GPON: GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps; Fiber type: Single-mode 9/125μm; Connector: SC/UPC, TX: 7.5±0.5dBm, Sensitivity: -32dBm; Wavelength: TX 1490nm, RX 1310nm; Wavelength split ratio: 1/128 (up to 128 ONTs); Maximum transmission distance: 20 KM
• Backplane bandwidth: 104 Gbps
• Forwarding rate: 68.448 Mbps
• Management protocols: WEB/Telnet/CLI/SNMP; Port status configuration monitoring and management; Online ONT configuration and management; User management; Alarm management
• Surge protection: 4KV
• Layer 2 Switching: MAC address table (up to 1000); VLAN support (up to 4096); Port-based storm control; Support for 802.1D and 802.1W (STP); Port isolation; Per-port bandwidth limiting; IEEE802.x flow control; Port monitoring and statistics
• Multicast: IGMP snooping; 256 Multicast IP groups
• DHCP: DHCP server, DHCP relay, DHCP snooping; DHCP option82; DHCPv6 server, DHCPv6 relay
• Layer 3 Routing: Dynamic and static ARP table; WAN configuration (DHCP/PPPoE/Static); Static routing, NAT, DMZ; QoS based on DSCP, MAC, IP, protocol, etc.; Access Control List (ACL)
• GPON features: Compliant with ITU-T984.x standard (GPON network standard); Transmission distance up to 20 km; Data encryption, multicast, per-port VLAN, separation, etc.; ONT auto-discovery, link detection, and remote software upgrade; VLAN division and user separation to avoid broadcast storms; Power-off alarm function for easy connection troubleshooting; Broadcast storm resistance function
• Power supply: AC 100 V - 240 V; DC 12V/2A
• Operating temperature: -20°C - 60°C
• Dimensions: 442mm x 200mm x 43.6mm
• Weight: 4.05 kg
📦 INCLUDED:
• V-SOL 8-Port GPON OLT • AC power cable • User manual
| Case | 1U Rack |
|---|---|
| Interfaces | 4x 10/100/1000 Mbps RJ45 ports + 2x SFP/GE + 2x 1/10 Gigabit SFP+ ports 8x 1.25Gbps/2.5Gbps GPON ports 1x USB-COM port (Type C) |
| GPON | GPON port speed: Upload/Download ~ 1.25Gbps/2.5Gbps Fiber Type: Single-mode 9/125μm Connector: SC/UPC, TX: 7.5±0.5dBm, Sensitivity: -32dBm Wavelength: TX 1490nm, RX 1310nm Split ratio: 1/128 (up to 128 ONTs) Maximum transmission distance: 20 KM |
| Backplane bandwidth | 104 Gbps |
| Forwarding rate | 68.448 Mbps |
| Management Protocols | WEB/Telnet/CLI/SNMP Port status monitoring and configuration management Online ONT configuration and management User management Alarm management |
| Surge protection | 4KV |
| Layer 2 Switching | MAC address table (up to 1000) Supports VLAN (up to 4096) Port-based storm control Supports 802.1D and 802.1W (STP) Port isolation Port-based bandwidth limitation IEEE802.x flow control Port monitoring and statistics |
| Multicast | IGMP snooping 256 IP Multicast groups |
| DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82 DHCPv6 server, DHCPv6 relay |
| Layer 3 Routing | Dynamic and static ARP table WAN configuration (DHCP/PPPoE/Static) Static routing, NAT, DMZ QoS based on DSCP, MAC, IP, protocol, etc. Access Control List (ACL) |
| GPON Features | Compliant with ITU-T984.x standard (GPON network standard) Transmission distance up to 20 km Data encryption, multicast, per-port VLAN, separation, etc. Auto-discovery of ONT, link detection, and remote software upgrade VLAN partitioning and user separation to prevent broadcast storms Power-off alarm function for easy connection troubleshooting Broadcast storm resistance function |
| Power Supply | AC 100 V - 240 V DC 12V/2A |
| Operating temperature | -20°C - 60°C |
| Dimensions | 442mm x 200mm x 43.6mm |
| Weight | 4.05 kg |
