VSOL-SC-APC-OS2-1M-Y-14-ABS
VSOL-SC-APC-OS2-1M-Y-14-ABS

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

V-SOL

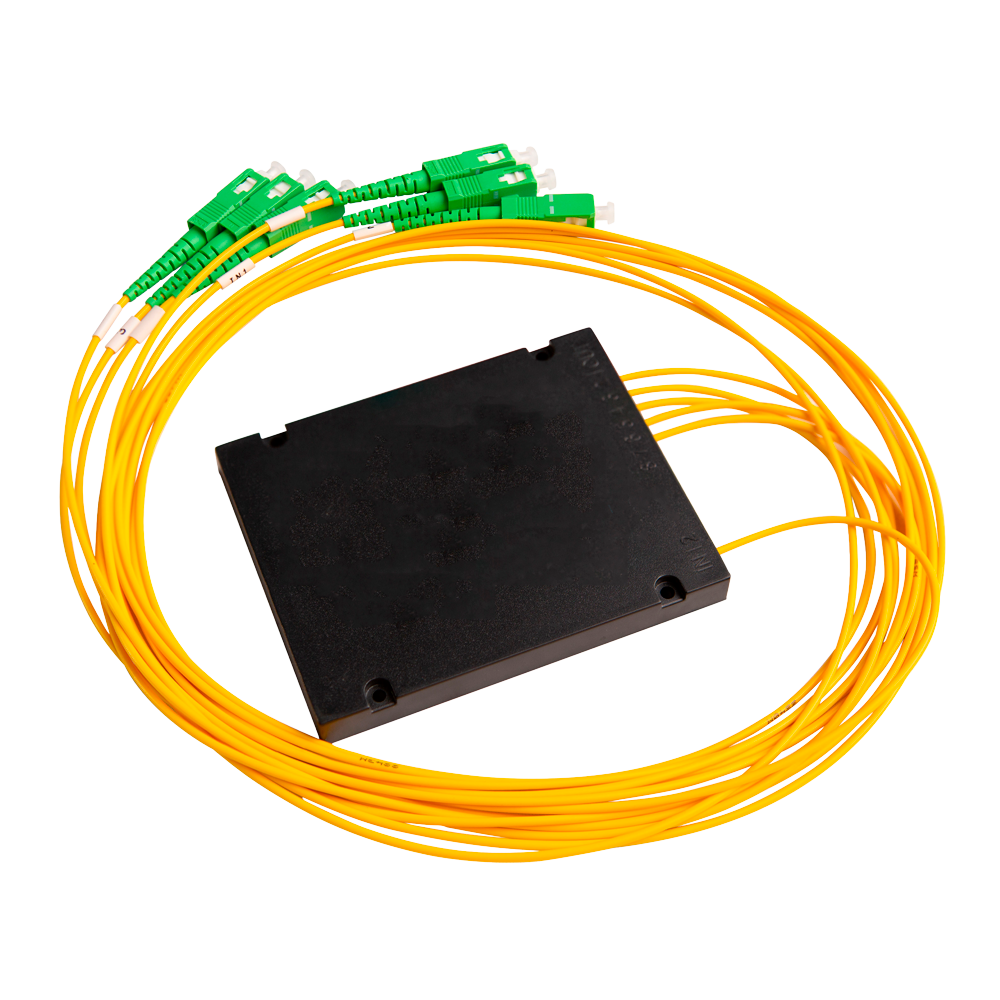

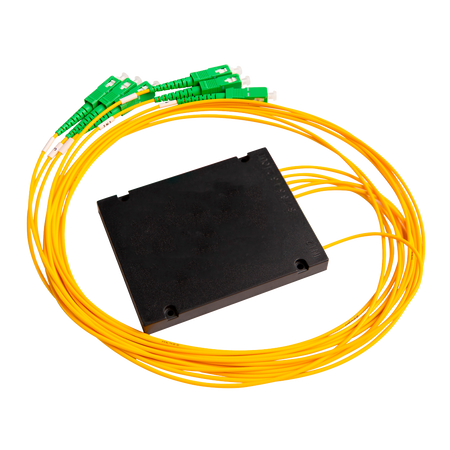

V-Sol Passive Optical Splitter - 4 x SC Connectors for ONU

SKU: VSOL-SC-APC-OS2-1M-Y-14-ABS
(0)
In stock
Usually shipped within 24 hours
€9,22 Final price
-10% €10,20 €9,22 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Vsol Passive Optical Splitter - Wavelength from 1260 nm to 1650nm - Compatible with Vsol and standard solutions - 1 x SC uplink connector - 4 x SC connectors for ONU

📋 SPECIFICATIONS:
• Allowed wavelength: From 1260 nm to 1650nm
• Fiber type: PON ( G657A )
• Connector type: SC
• Splitter type: 1:4
• Basic specifications: Plug and Play; Multiple installation methods; High splitting reliability; Compact size
• PON specifications: Insertion loss (dB) (max.) 7.2; Uniformity (dB) (max.) 0.6; Return loss (dB) (min.) 55; Temperature stability (dB) (max.) 0.5; Polarization dependent loss (dB) (max.) 0.2; Wavelength dependent loss (dB) (max.) [%WVAR%]; Directivity (dB) (min.) 55; * Each connector will add a loss of 0.2 dB
• Power consumption: No power consumption (it is a passive element)
• Operating temperature: -40° C ~ 85° C
• Dimensions: 40×4×4 mm

📦 INCLUDED:
• Splitter
Wavelength range 1260 nm to 1650 nm
Fiber type PON ( G657A )
Connector type SC
Splitter type 1:4
Basic specifications Plug and Play Multiple installation methods High splitting reliability Compact size
PON specifications Insertion loss (dB) (max.) 7.2 Uniformity (dB) (max.) 0.6 Return loss (dB) (min.) 55 Temperature stability (dB) (max.) 0.5 Polarization dependent loss (dB) (max.) 0.2 Wavelength dependent loss (dB) (max.) [%WVAR%] Directivity (dB) (min.) 55 * Each connector will add 0.2 dB loss
Power consumption No power consumption (it is a passive element)
Operating temperature -40° C ~ 85° C
Dimensions 40×4×4 mm
