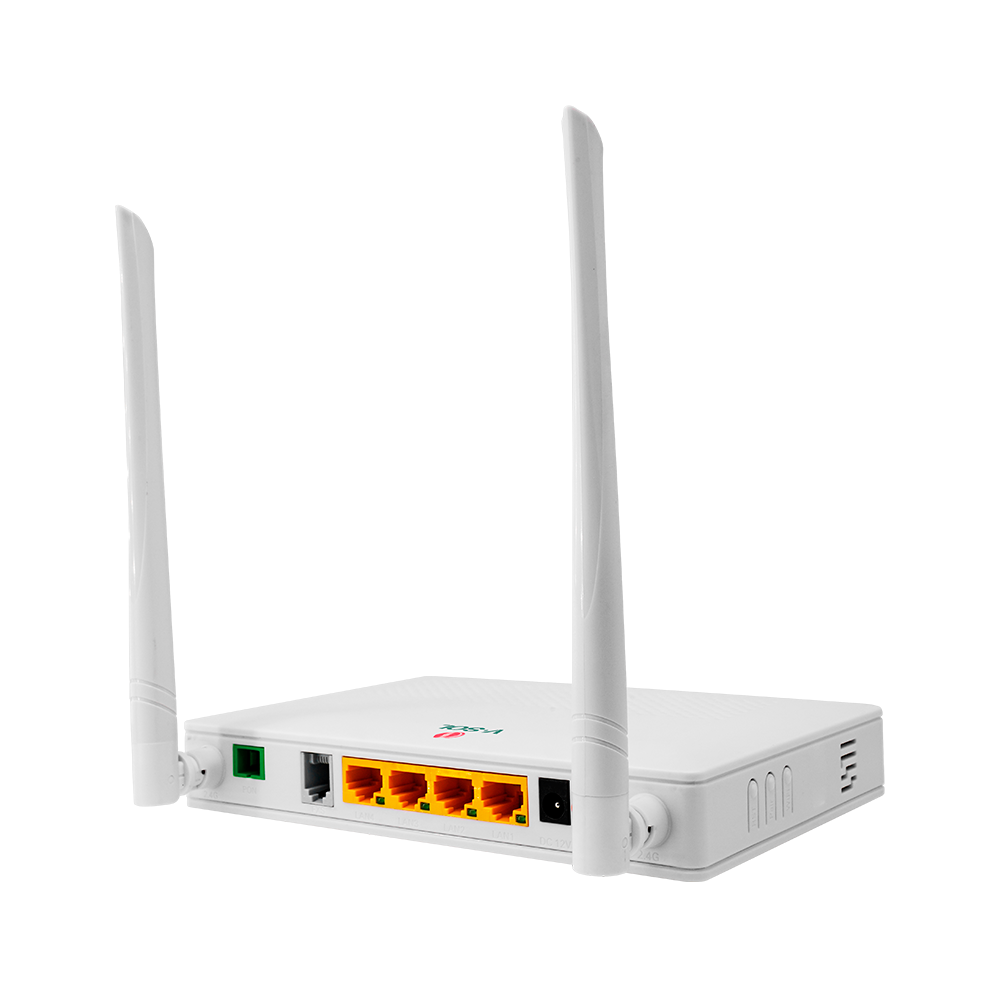

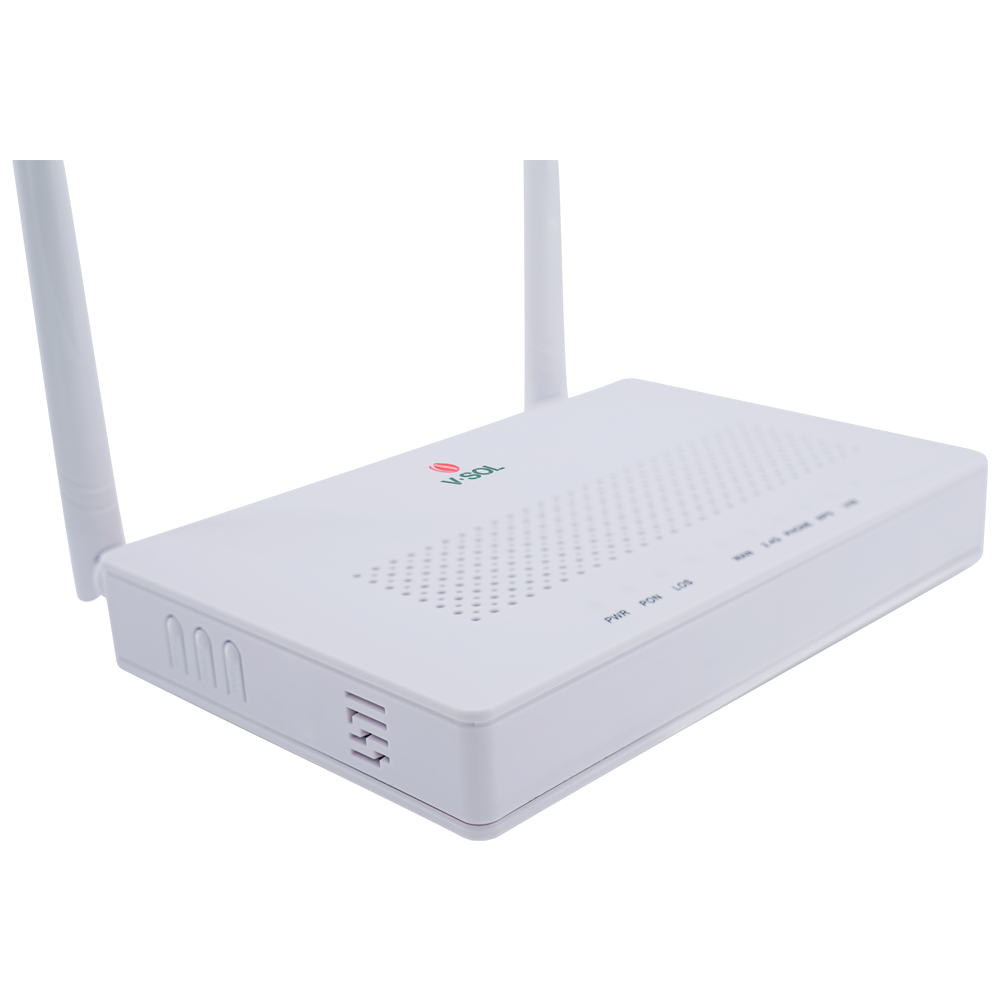

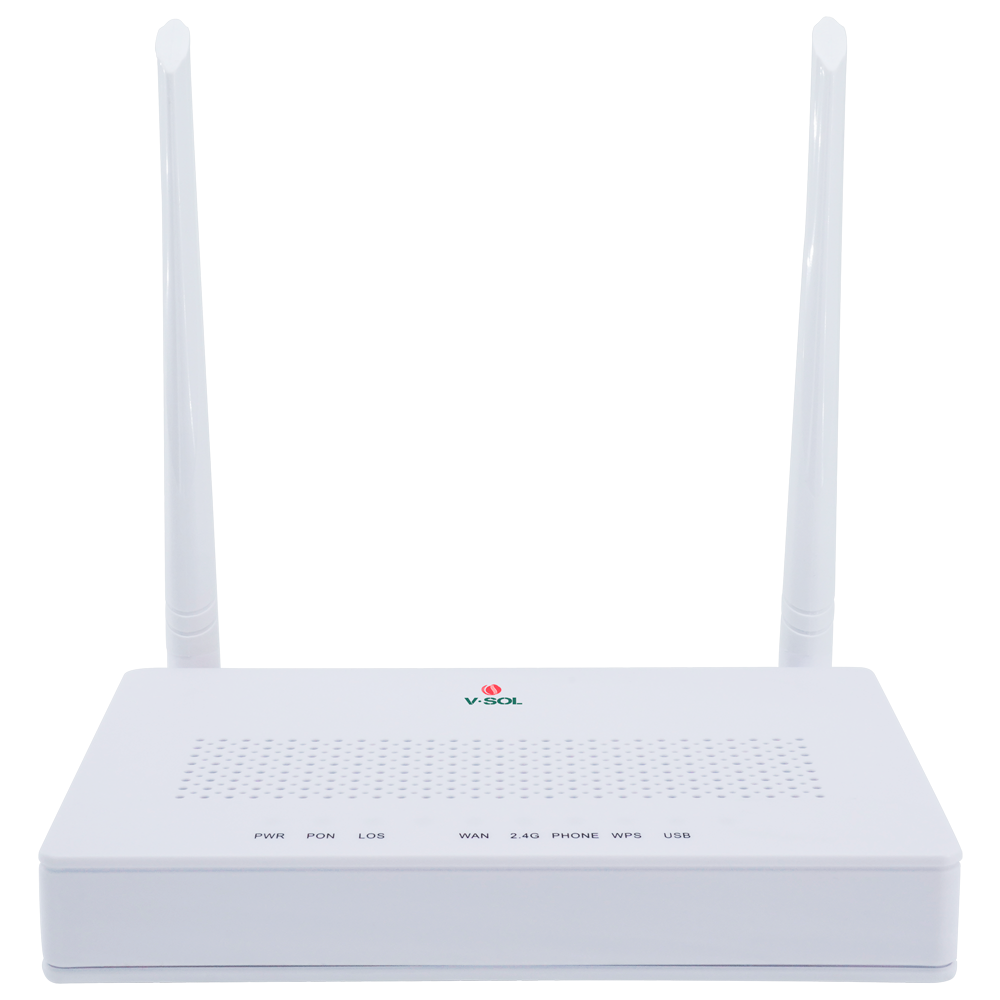

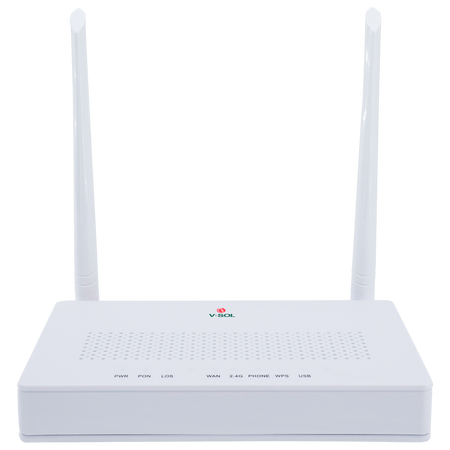

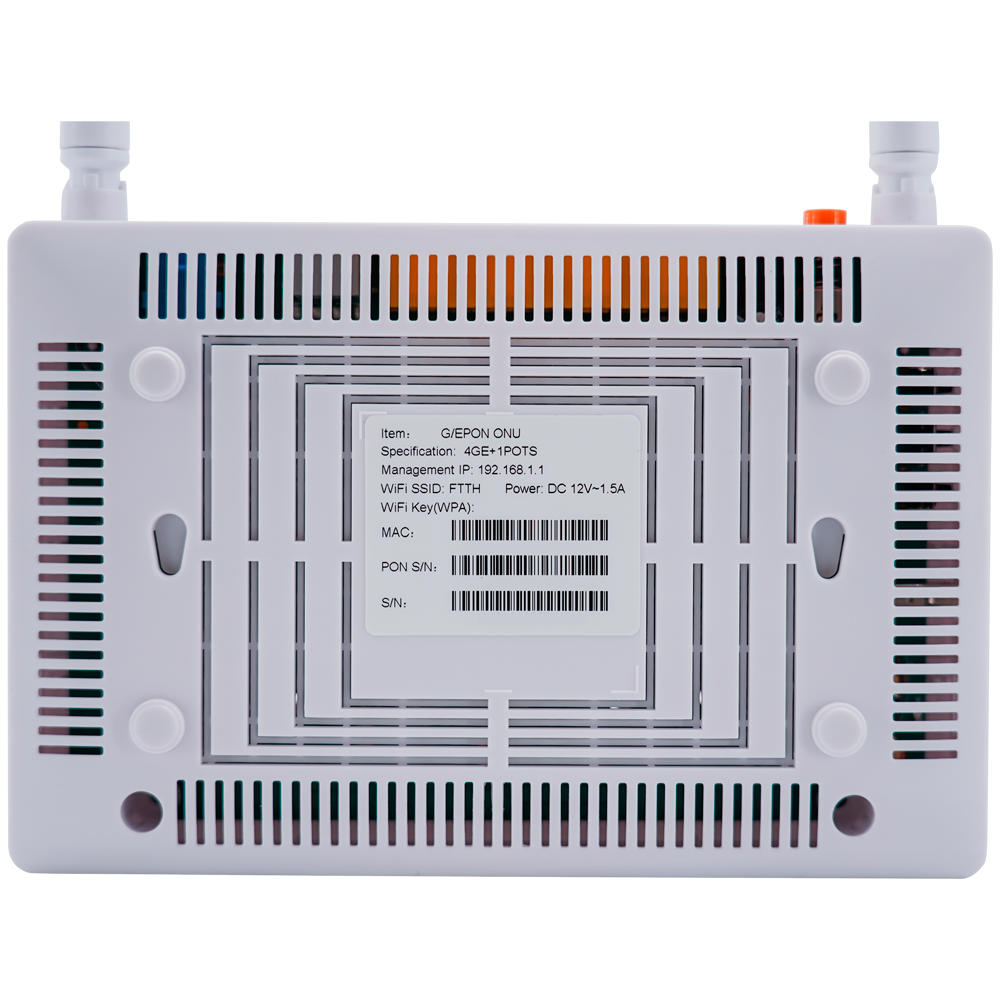

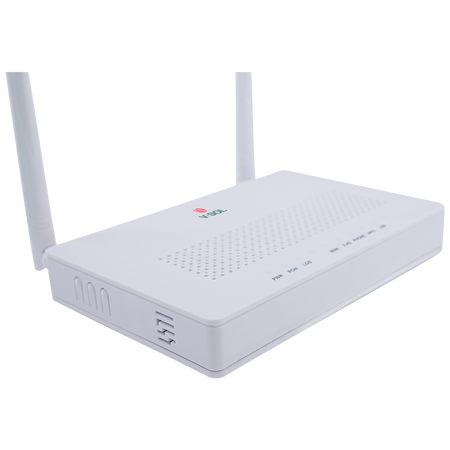

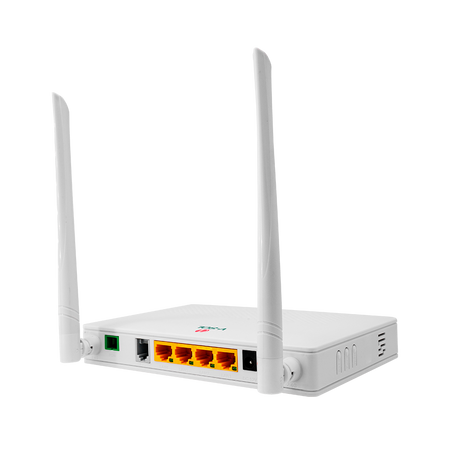

V-SOL Wi-Fi 4 ONT Router - 1x PON 4x 10/100/1000Mbps RJ45 LAN 1x RJ11
V-SOL Wi-Fi 4 ONT Router - 1x PON 4x 10/100/1000Mbps RJ45 LAN 1x RJ11
Regular price
€46,12
Final price
Regular price
-6%
€49,00
Sale price
€46,12
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
V-SOL Wi-Fi 4 ONT Router - 1X PON 4x LAN RJ45 10/100/1000Mbps 1x RJ11 - 802.11 b/g/n - Ideal for home and business FTTH
📋 SPECIFICATIONS:
• Brand: V-SOL

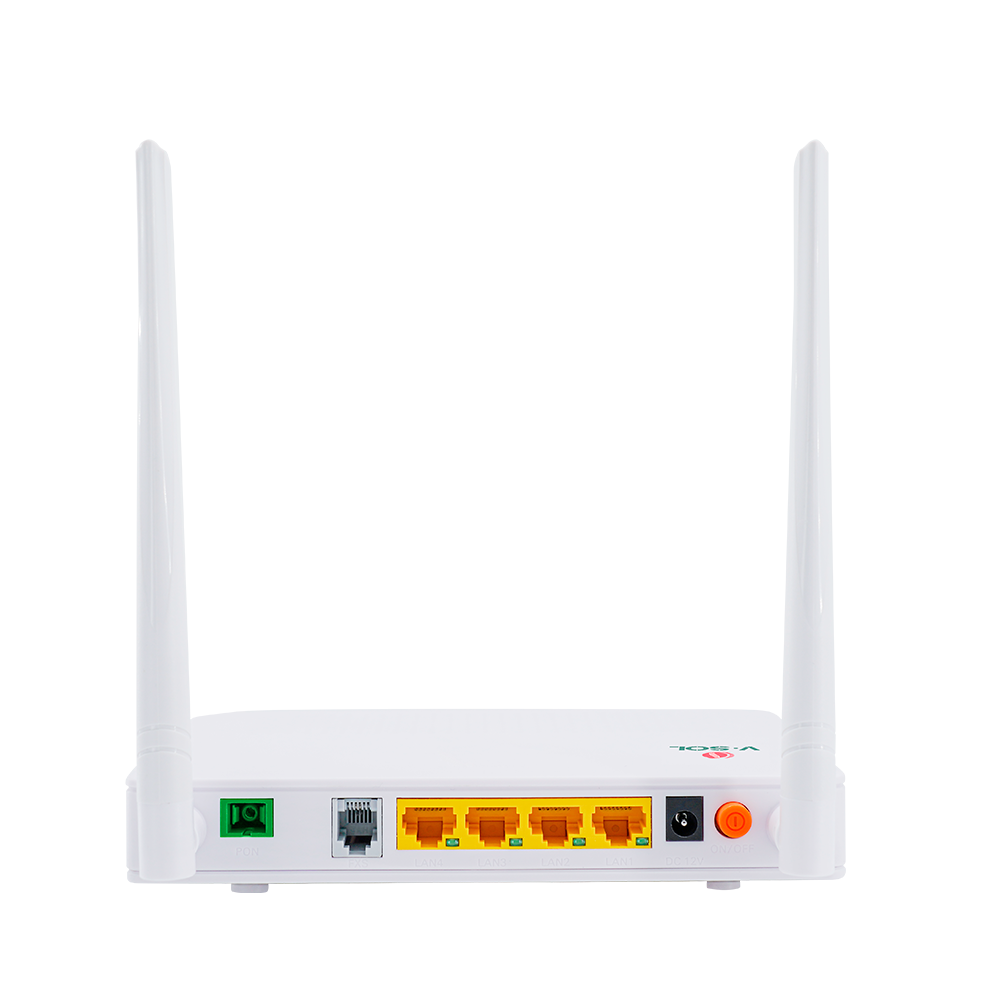

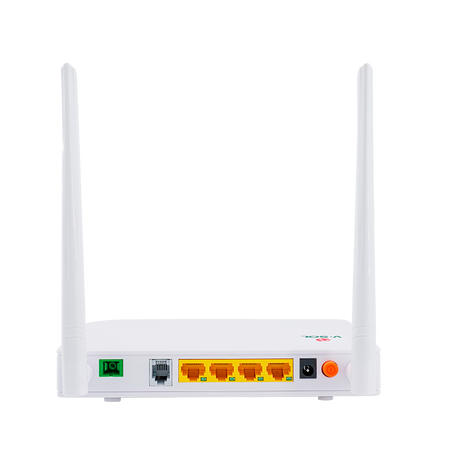

• Interface: 1X PON 4x LAN RJ45 10/100/1000Mbps 1x RJ11 ( FXS )
• PON: XPON port (EPON PX20+ and GPON Class B+); Single-mode SC, SC/APC connector; Transmit optical power: 0 to +4 dBm; Receive sensitivity: -27 dBm; Overload optical power: -3 dBm (EPON) or -8 dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm
• WiFi Antennas: IEEE802.11b/g/n compliant; Wi-Fi: 2.4 GHz 2x2, speed up to 300 Mbps; Transmit power: 2.4 GHz: 17 dBm
• WiFi Functions: Integrated 802.11b/g/n; Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES)
• Management Protocols: OAM/OMCI/Telnet/Web/TR069; Supports full HGU function management via VSOL OLT
• Layer 2 functions (switching): Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN
• Layer 3 functions (routing): IPv4, IPv6, and IPv4/IPv6 dual stack; DHCP/PPPOE/Static; DHCP server and client; NAT/DMZ/DDNS
• Multicast: IGMP v1/v2/v3, IGMP Snooping
• Security: Compatible with loop detection, flow control, and storm control
• VoIP: SIP and IMS SIP; G.711a/G.711u/G.722/G.729 codecs; Echo cancellation, VAD/CNG, DTMF retransmission; T.30/T.38 FAX; Caller ID/Call waiting/Call forwarding/Call transfer/Call hold/Three-way calling; Line testing according to GR-909
• Color: White
• Dimensions: 205mm x 140mm x 37mm
• Weight: 340g
• Operating Temp: 0º C ~ +55º C
• Power Supply: DC 12V 1A (adapter included)
📦 INCLUDED:
• Wi-Fi 4 ONT Router• User manual• AC/DC adapter• UTP cable
| Interface | 1x PON, 4x 10/100/1000Mbps RJ45 LAN, 1x RJ11 (FXS) |
|---|---|
| PON | XPON port (EPON PX20+ and GPON Class B+) Single-mode SC, SC/APC connector, Transmission optical power: 0 to +4 dBm, Receiver sensitivity: -27 dBm, Overload optical power: -3 dBm (EPON) or -8 dBm (GPON), Transmission distance: 20 km, Wavelength: TX 1310 nm, RX 1490 nm |
| WiFi Antennas | IEEE802.11b/g/n compliant, Wi-Fi: 2.4 GHz 2x2, speed up to 300 Mbps, Transmission power: 2.4 GHz: 17 dBm |
| WiFi Functions | Integrated 802.11b/g/n, Authentication: WPA-PSK (TKIP)/WPA2-PSK (AES) |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069, Supports full HGU function management via VSOL OLT |
| Layer 2 functions (switching) | Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN |
| Layer 3 functions (routing) | IPv4, IPv6 and IPv4/IPv6 dual stack, DHCP/PPPoE/Static, DHCP server and client, NAT/DMZ/DDNS |
| Multicast | IGMP v1/v2/v3, IGMP Snooping |
| Security | Compatible with loop detection, flow control and storm control |
| VoIP | SIP and IMS SIP, Codec G.711a/G.711u/G.722/G.729, Echo cancellation, VAD/CNG, DTMF retransmission, FAX T.30/T.38, Caller ID/Call waiting/Call forwarding/Call transfer/Call hold/Three-way calling, Line test according to GR-909 |
| Color | White |
| Dimensions | 205mm x 140mm x 37mm |
| Weight | 340g |
| Operating temp. | 0º C ~ +55º C |
| Power supply | DC 12V 1A (adapter included) |
