V-SOL Wi-Fi 5 ONT Router
Regular price
€61,10
Final price
Regular price
-5%
€64,00
Sale price
€61,10
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

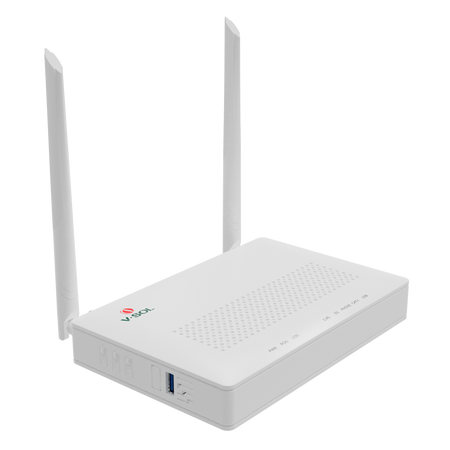

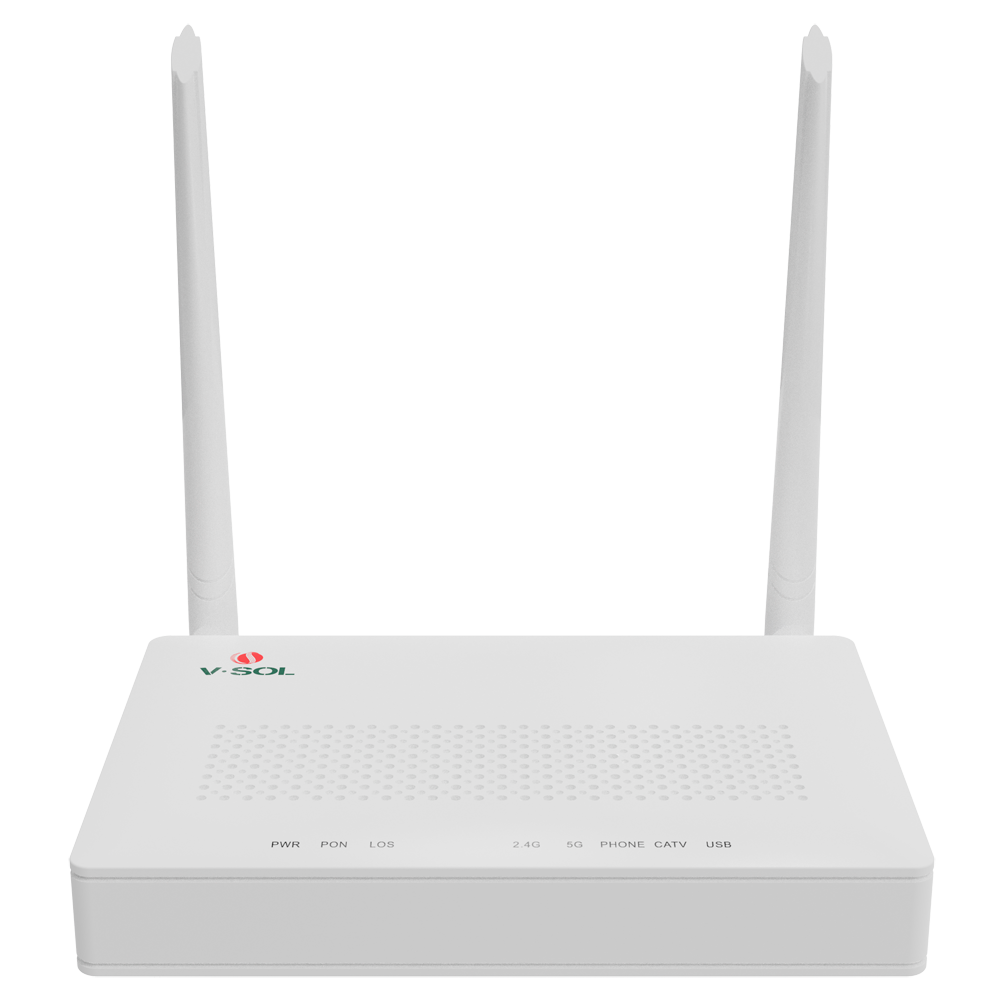

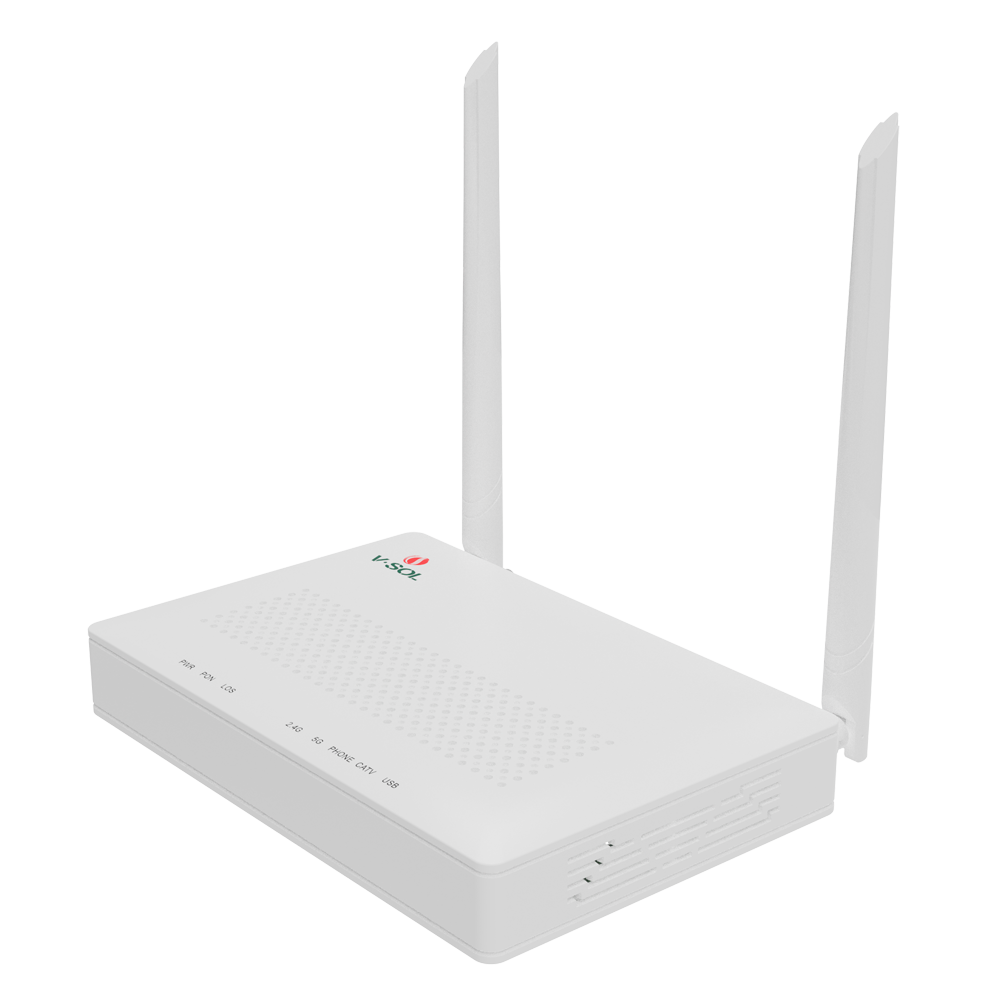

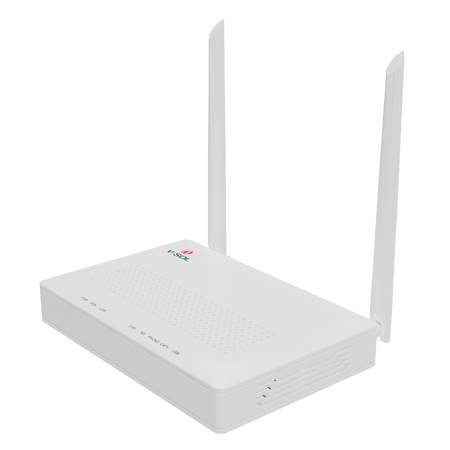

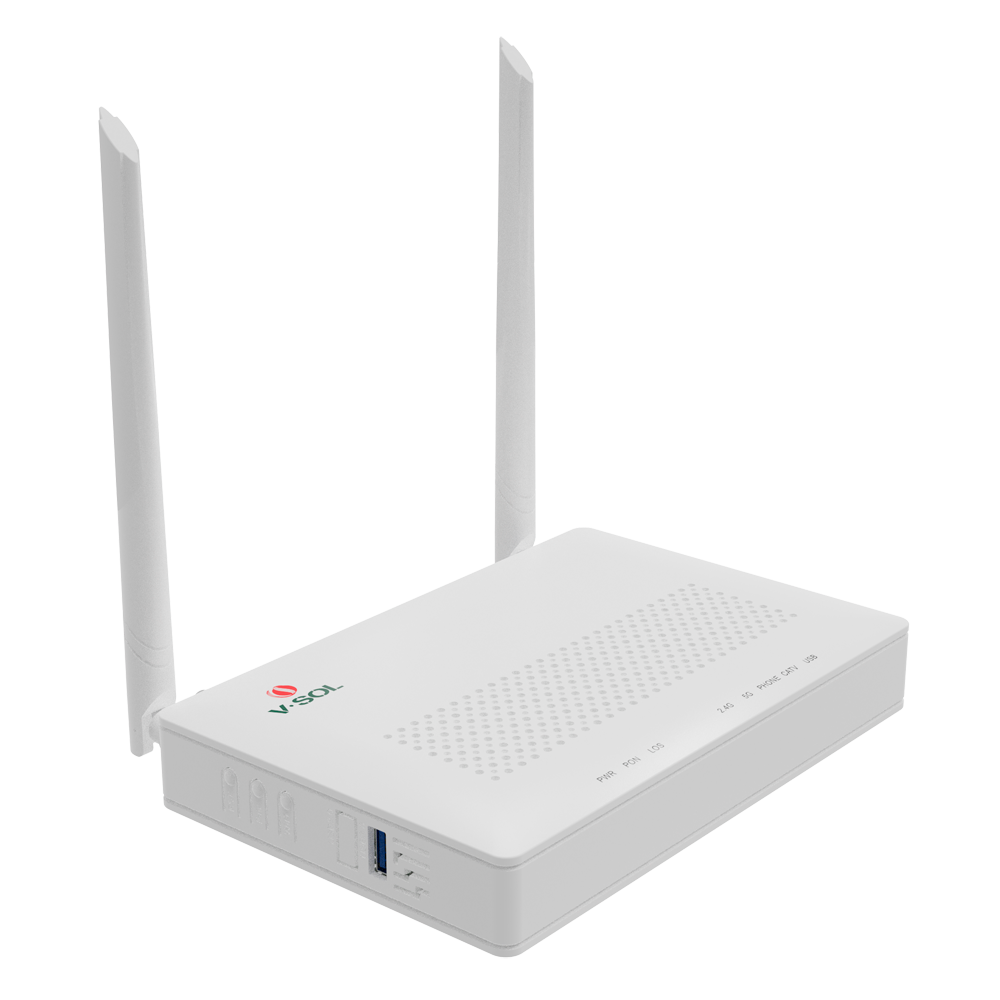

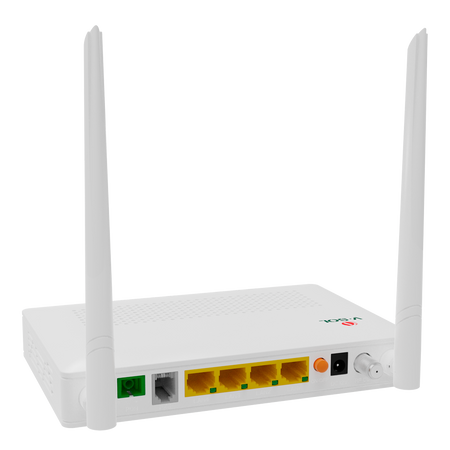

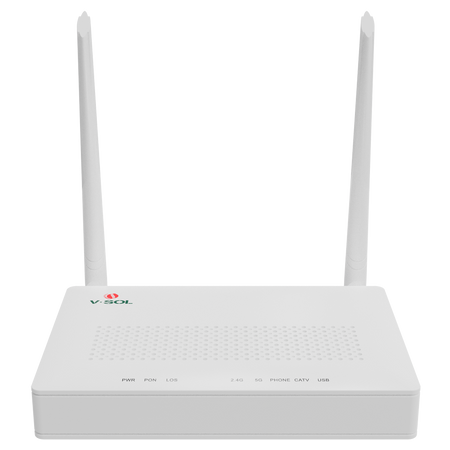

V-SOL Wi-Fi 5 ONT Router - 1x PON 4x GE RJ45 LAN 1x RJ11 1x CATV - 802.11ac 2x2 dual band 2.4 and 5GHz - Ideal for home and business FTTH
📋 SPECIFICATIONS:
• Brand: V-SOL

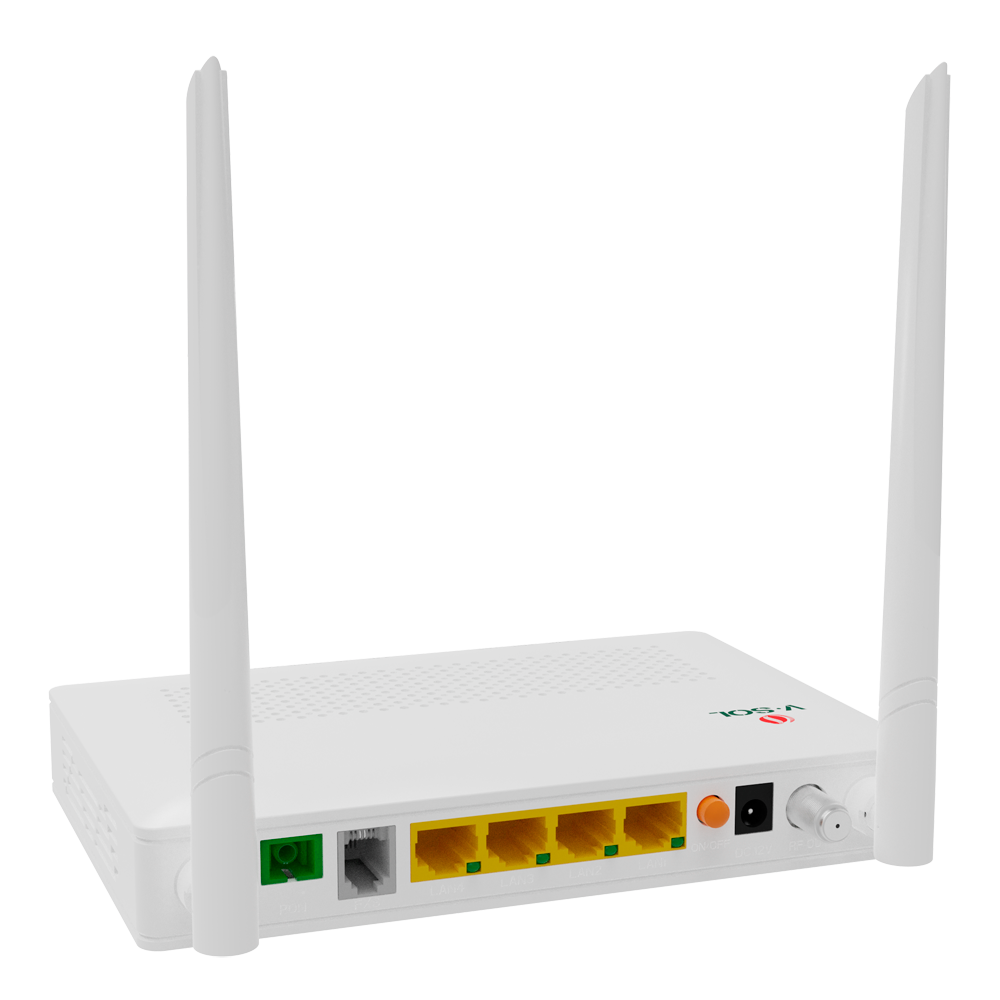

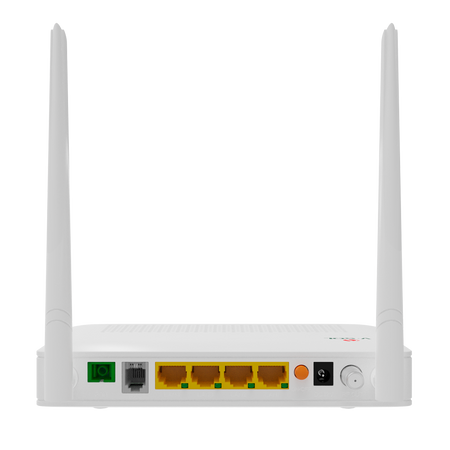

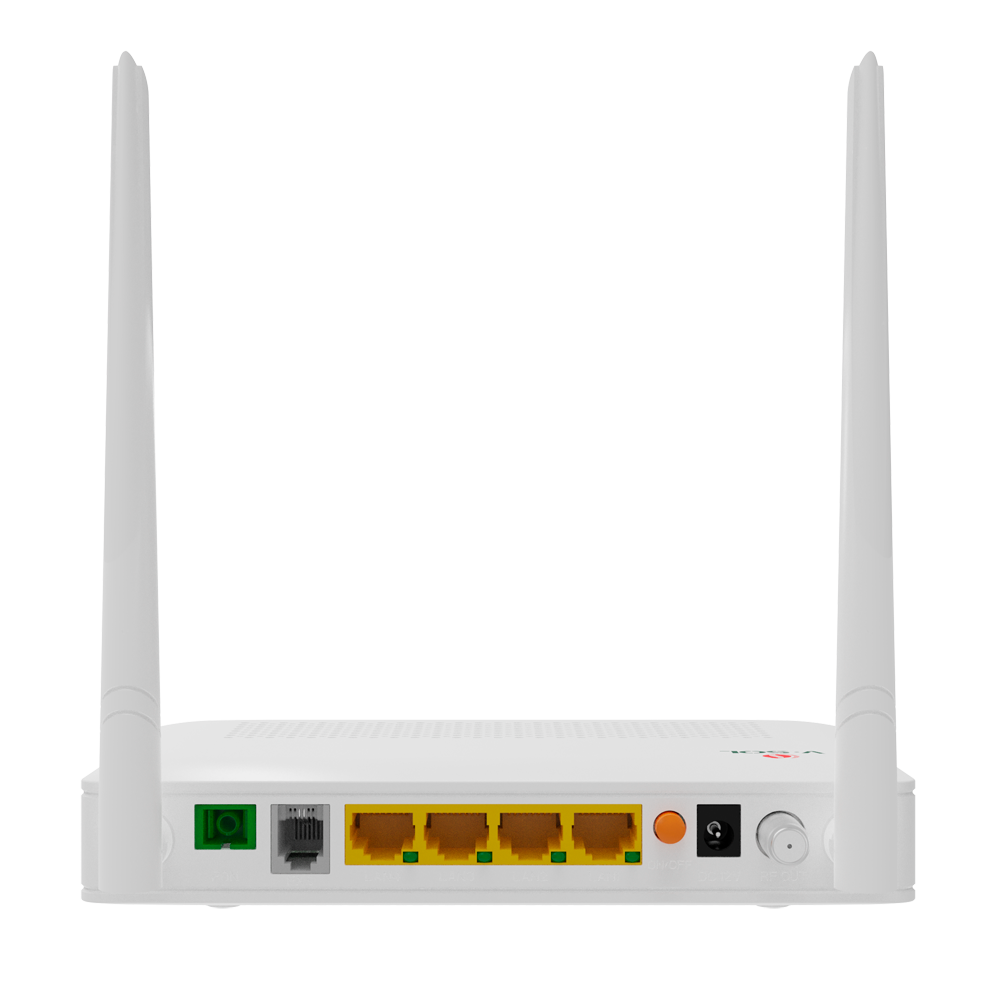

• Interface: 1X PON 4x LAN RJ45 10/100/1000Mbps 1x RJ11 (FXS) 1x CATV
• PON: XPON port (EPON PX20+ and GPON Class B+); Single-mode SC, SC/APC connector; Transmitting optical power: 0 to +4 dBm; Receiving sensitivity: -27 dBm; Overload optical power: -3dBm (EPON) or -8dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm
• CATV: Optical receiving wavelength: 1550 ± 10 nm; Optical input range: +2 ～ -18 dBm; Optical return loss: ≥40 dB; RF frequency range: 47 ～ 1000 MHz; RF output impedance: 75 Ω; RF output level and AGC range:; ≥81 ± 2 dBuv at +1 ～ -10 dBm; ≥79 ± 2 dBuv at 0 ～ -11 dBm; ≥77 ± 2 dBuv at -1 ～ -12 dBm; ≥75 ± 2 dBuv at -2 ～ -13 dBm; ≥73 ± 2 dBuv at -3 ～ -14 dBm; ≥71 ± 2 dBuv at -4 ～ -15 dBm; MER: ≥32dB (-14dBm optical input)
• Wi-Fi Antennas: Compliant with IEEE802.11b/g/n/ac; Wi-Fi: 2.4 GHz, 5 GHz 2x2, speeds up to 1.167 Gbps, multiple SSIDs; Transmitting power: 2.4 GHz: 18 dBm; 5 GHz: 17 dBm; Receiving power: 2.4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 <-63 dBm
• Wi-Fi Functions: Integrated 802.11b/g/n/ac; Authentication: WPA-PSK (TKIP)/WPA2-PSK (AES); Multiple SSIDs; Hidden SSIDs; WiFi Mesh; Supports up to 64 device connections
• Management protocols: OAM/OMCI/Telnet/Web/TR069; Supports full HGU function management via VSOL OLT
• Layer 2 functions (switching): Compatible with 802.1D and 802.1ad bridging, 802.1Q VLAN
• Layer 3 functions (routing): IPv4, IPv6 and IPv4/IPv6 dual stack; DHCP/PPPoE/Static; Static routing, DHCP server; NAT/DMZ/DDNS/Virtual server
• Multicast: IGMP v1/v2/v3, IGMP snooping; IGMP proxy; MLD snooping v1/v2; MLD proxy
• QoS: Supports 4 QoS queues (VoIP, IPTV, Internet...); Compatible with SP, WRR, 802.1P and DSCP
• Security: Basic firewall functions; MAC filtering based on MAC or URL; ACL; Compatible with loop detection
• System functions: NTP (Network Time Protocol); Scheduled device reboot; Ping and traceroute diagnostic tools
• Color: White
• Dimensions: 180mm x 120mm x 32mm
• Weight: 280g
• Operating Temp: 0º C ~ +55º C
• Power Supply: DC 12V 1A (adapter included)
📦 INCLUDED:
• Wi-Fi 5 ONT Router• User instructions• AC/DC adapter• UTP cable
| Interface | 1x PON, 4x 10/100/1000Mbps RJ45 LAN, 1x RJ11 (FXS), 1x CATV |
|---|---|
| PON | XPON port (EPON PX20+ and GPON Class B+) Single-mode SC, SC/APC connector; Transmission optical power: 0 to +4 dBm; Receiving sensitivity: -27 dBm; Optical overload power: -3dBm (EPON) or -8dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm |
| CATV | Optical receiving wavelength: 1550 ± 10 nm; Optical input range: +2 ～ -18 dBm; Optical return loss: ≥40 dB; RF frequency range: 47 ～ 1000 MHz; RF output impedance: 75 Ω; RF output level and AGC range: ≥81 ± 2 dBuv at +1 ～ -10 dBm, ≥79 ± 2 dBuv at 0 ～ -11 dBm, ≥77 ± 2 dBuv at -1 ～ -12 dBm, ≥75 ± 2 dBuv at -2 ～ -13 dBm, ≥73 ± 2 dBuv at -3 ～ -14 dBm, ≥71 ± 2 dBuv at -4 ～ -15 dBm; MER: ≥32dB (at -14dBm optical input) |
| WiFi Antennas | Compliant with IEEE802.11b/g/n/ac; Wi-Fi: 2.4 GHz, 5 GHz 2x2, speed up to 1.167 Gbps, multiple SSIDs; Transmission power: 2.4 GHz: 18 dBm, 5 GHz: 17 dBm; Receiving power: 2.4 GHz: HT40-MCS7 -71 dBm, 5 GHz: VHT80 MCS9 <-63 dBm |
| WiFi Functions | Integrated 802.11b/g/n/ac; Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES); Multiple SSIDs; Hidden SSIDs; WiFi Mesh; Supports up to 64 device connections |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069; Supports full management of HGU functions via VSOL OLT |
| Layer 2 Functions (switching) | Supports 802.1D and 802.1ad bridge, 802.1Q VLAN |
| Layer 3 Functions (routing) | IPv4, IPv6, and IPv4/IPv6 dual stack; DHCP/PPPOE/Static; Static route, DHCP server; NAT/DMZ/DDNS/Virtual server |
| Multicast | IGMP v1/v2/v3, IGMP snooping, IGMP proxy, MLD v1/v2 snooping, MLD proxy |
| QoS | Supports 4 QoS queues (VoIP, IPTV, Internet...); Compatible with SP, WRR, 802.1P, and DSCP |
| Security | Basic firewall functions; MAC filtering based on MAC or URL; ACLs; Loop detection support |
| System Functions | NTP (Network Time Protocol); Scheduled device reboot; Ping and traceroute diagnostic tools |
| Color | White |
| Dimensions | 180mm x 120mm x 32mm |
| Weight | 280g |
| Operating Temp | 0º C ~ +55º C |
| Power | DC 12V 1A (adapter included) |
