VSOL-HG3232AX30T-A
VSOL-HG3232AX30T-A

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

V-SOL

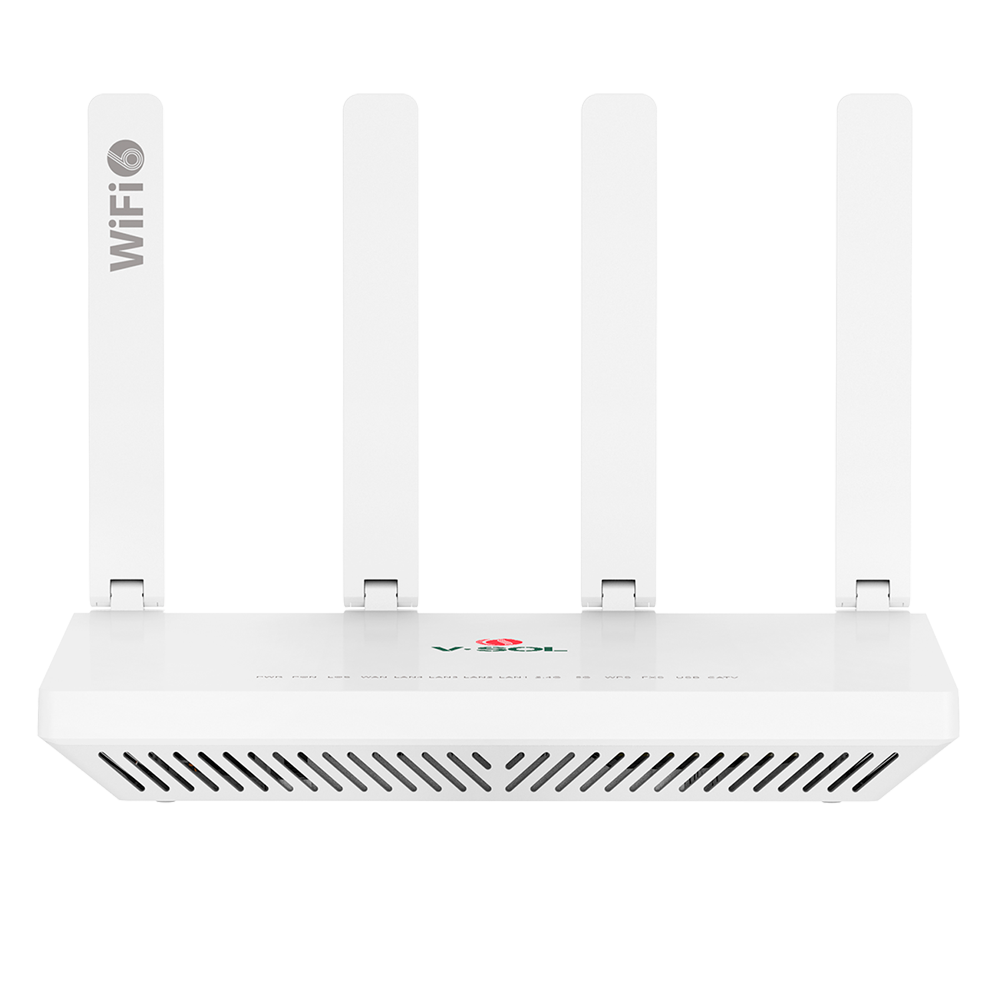

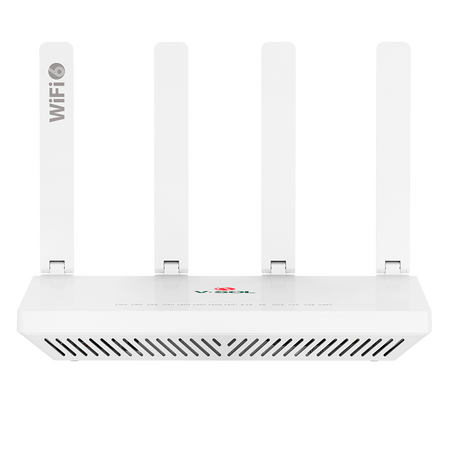

V-SOL Wi-Fi 6 ONT Router - 1x PON 4x GE RJ45 LAN 1x RJ11 1x CATV 1x USB3.0

SKU: VSOL-HG3232AX30T-A
(0)
In stock
Usually shipped within 24 hours
€91,31 Final price
-5% €96,00 €91,31 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

V-SOL Wi-Fi 6 ONT Router - 1X PON 4x GE RJ45 LAN 1x RJ11 1x CATV 1x USB3.0 - 802.11ax 3x3 dual band 2.4 and 5GHz - Ideal for home and business FTTH

📋 SPECIFICATIONS:
• Brand: V-SOL
• Interface: 1X PON 4x LAN RJ45 10/100/1000Mbps 1x RJ11 ( FXS ) 1x CATV 1x USB3.0
• PON: XPON port (EPON PX20+ and GPON Class B+); Single-mode SC, SC/APC connector; Transmission optical power: 0 to +4 dBm; Receiver sensitivity: -27 dBm; Overload optical power: -3dBm (EPON) or -8dBm (GPON); Transmission distance: 20 km; Wavelength: TX 1310 nm, RX 1490 nm
• CATV: Optical reception wavelength: 1550 ± 10 nm; Optical input range: +2 ～ -18 dBm; Optical reflection loss: ≥40 dB; RF frequency range: 47 ～ 1000 MHz; RF output impedance: 75 Ω; RF output level and AGC range:; ≥81 ± 2 dBuv at +1 ～ -10 dBm; ≥79 ± 2 dBuv at 0 ～ -11 dBm; ≥77 ± 2 dBuv at -1 ～ -12 dBm; ≥75 ± 2 dBuv at -2 ～ -13 dBm; ≥73 ± 2 dBuv at -3 ～ -14 dBm; ≥71 ± 2 dBuv at -4 ～ -15 dBm; MER: ≥32dB (-14dBm optical input)
• Wi-Fi antennas: IEEE802.11b/g/n/ac compliant; Wi-Fi: 2.4 GHz, 5 GHz 2x2, speed up to 1.167 Gbps, multiple SSIDs; Transmission power: 2.4 GHz: 18 dBm; 5 GHz: 17 dBm; Reception power: 2.4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 <-63 dBm
• Wi-Fi features: Built-in 802.11b/g/n/ac; Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES); Multiple SSIDs; Hidden SSIDs; WiFi Mesh; Supports up to 64 device connections
• Management protocols: OAM/OMCI/Telnet/Web/TR069; Supports full HGU function management via VSOL OLT
• Layer 2 features (switching): Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN
• Layer 3 features (routing): IPv4, IPv6 and IPv4/IPv6 dual stack; DHCP/PPPoE/Static; Static routing, DHCP server; NAT/DMZ/DDNS/Virtual server
• Multicast: IGMP v1/v2/v3, IGMP snooping; IGMP proxy; MLD snooping v1/v2; MLD proxy
• VoIP: SIP and IMS SIP; G.711a/G.711u/G.722/G.729 codecs; Echo cancellation, VAD/CNG, DTMF retransmission; T.30/T.38 FAX; Caller ID/Call Waiting/Call Forwarding/Call Transfer/Call Hold/Three-way conferencing; GR-909 line testing
• Security: Basic firewall functions; MAC filtering based on MAC or URL; ACL; Compatible with loop detection
• System functions: NTP (Network Time Protocol); Scheduled device reboot; Ping and traceroute diagnostic tools
• Color: White
• Dimensions: 260.4mm x 157.4mm x 45.8mm
• Weight: 550g
• Operating temp: 0º C ~ +55º C
• Power supply: DC 12V 1.5A (adapter included)

📦 INCLUDED:
• Wi-Fi 6 ONT Router• User manual• AC/DC adapter• UTP cable
Interface 1x PON 4x LAN RJ45 10/100/1000Mbps 1x RJ11 ( FXS ) 1x CATV 1x USB3.0
PON XPON port (EPON PX20+ and GPON Class B+) Single-mode SC, SC/APC connector Transmit optical power: 0 to +4 dBm Receiver sensitivity: -27 dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20 km Wavelength: TX 1310 nm, RX 1490 nm
CATV Optical receive wavelength: 1550 ± 10 nm Optical input range: +2 ～ -18 dBm Optical return loss: ≥40 dB - RF frequency range: 47 ～ 1000 MHz RF output impedance: 75 Ω RF output level and AGC range: ≥81 ± 2 dBuv at +1 ～ -10 dBm ≥79 ± 2 dBuv at 0 ～ -11 dBm ≥77 ± 2 dBuv at -1 ～ -12 dBm ≥75 ± 2 dBuv at -2 ～ -13 dBm ≥73 ± 2 dBuv at -3 ～ -14 dBm ≥71 ± 2 dBuv at -4 ～ -15 dBm MER: ≥32dB (-14dBm optical input)
WiFi Antennas Compliant with IEEE802.11b/g/n/ac Wi-Fi: 2.4 GHz, 5 GHz 2x2, speeds up to 1.167 Gbps, multiple SSIDs Transmit power: 2.4 GHz: 18 dBm; 5 GHz: 17 dBm Receive power: 2.4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 &lt;-63 dBm
WiFi Functions Integrated 802.11b/g/n/ac Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES) Multiple SSIDs Hidden SSIDs WiFi Mesh Supports up to 64 device connections
Management Protocols OAM/OMCI/Telnet/Web/TR069 Supports full HGU function management via VSOL OLT
Layer 2 functions (switching) Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN
Layer 3 functions (routing) IPv4, IPv6 and IPv4/IPv6 dual stack DHCP/PPPOE/Static Static route, DHCP server NAT/DMZ/DDNS/Virtual server
Multicast IGMP v1/v2/v3, IGMP snooping IGMP Proxy MLD snooping v1/v2 MLD Proxy
VoIP SIP and IMS SIP Codecs G.711a/G.711u/G.722/G.729 Echo cancellation, VAD/CNG, DTMF relay FAX T.30/T.38 Caller ID/Call waiting/Call forwarding/Call transfer/Call hold/Three-party conference Line test according to GR-909
Security Basic firewall functions MAC filtering based on MAC or URL ACLs Compatible with loop detection
System functions NTP (Network Time Protocol) Scheduled device reboot Ping and traceroute diagnostic tools
Color White
Dimensions 260.4mm x 157.4mm x 45.8mm
Weight 550g
Operating temp. 0º C ~ +55º C
Power supply DC 12V 1.5A (adapter included)
