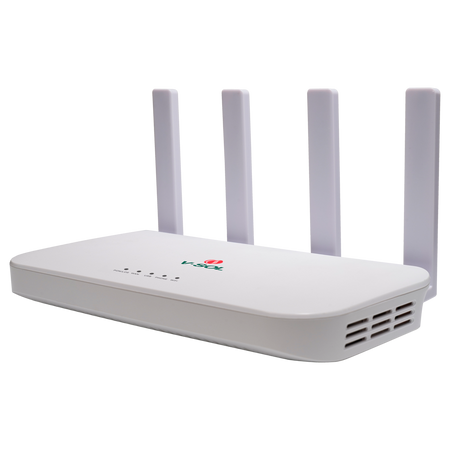

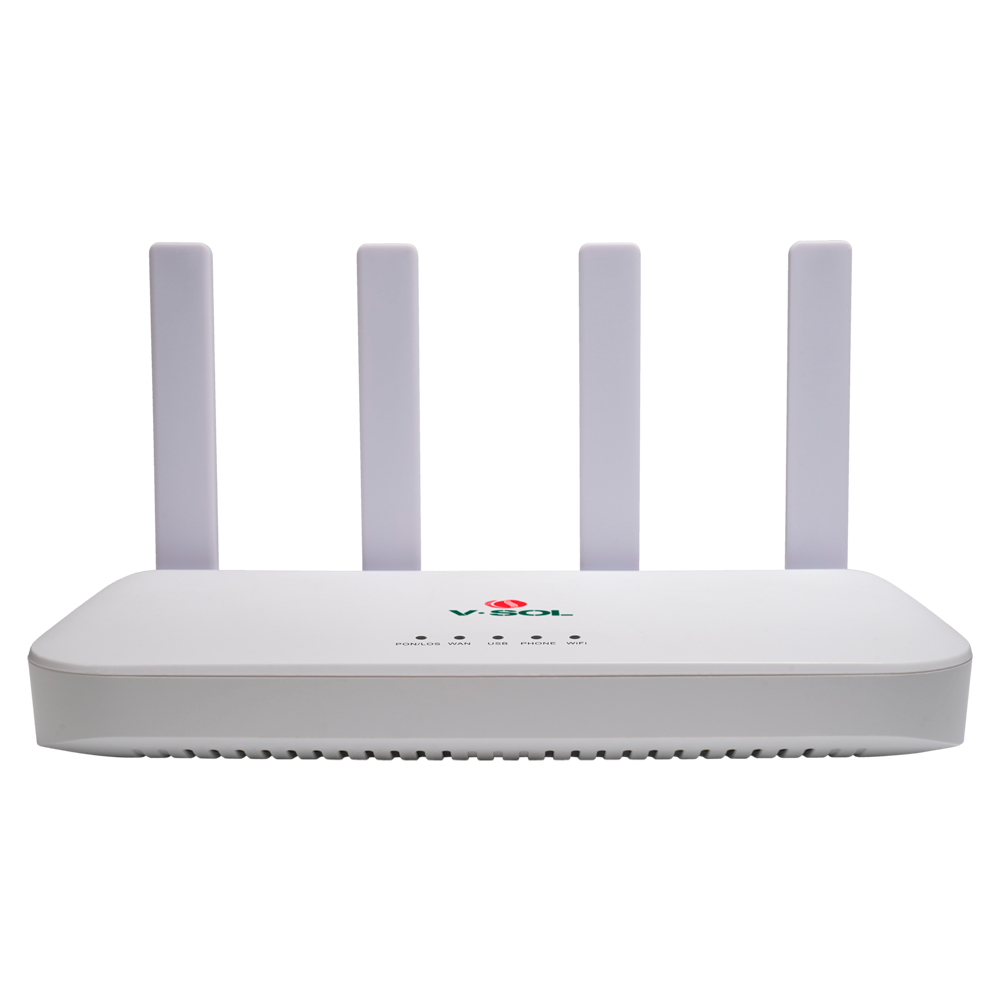

V-SOL Wi-Fi 6 ONT Router - 1x PON 1x 2.5GE RJ45 LAN 3x GE RJ45 LAN 1x RJ11
V-SOL Wi-Fi 6 ONT Router - 1x PON 1x 2.5GE RJ45 LAN 3x GE RJ45 LAN 1x RJ11
Regular price
€119,91
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

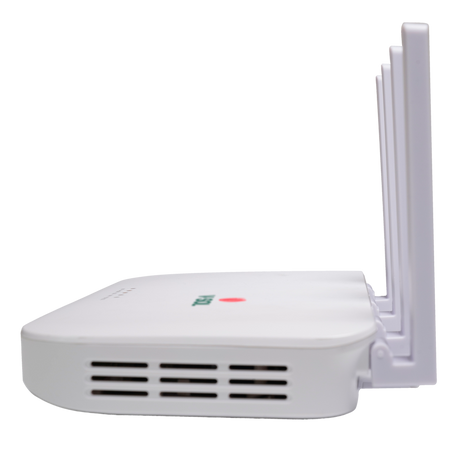

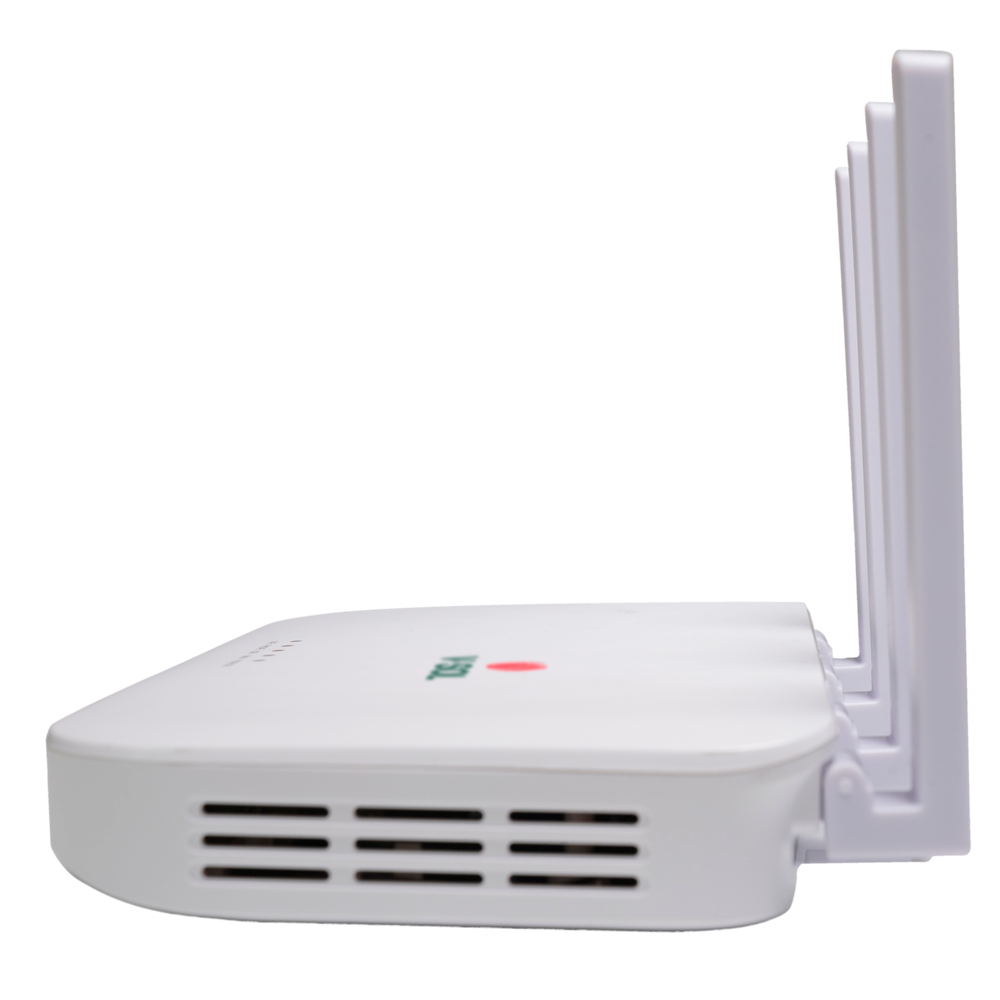

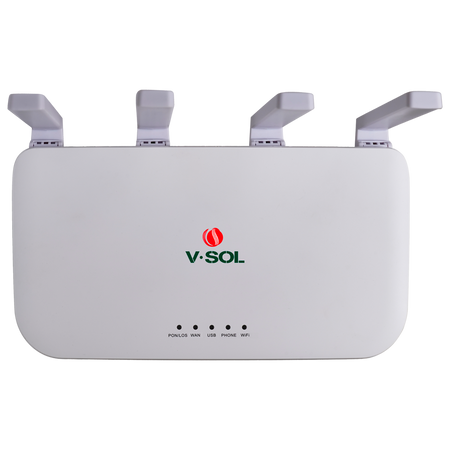

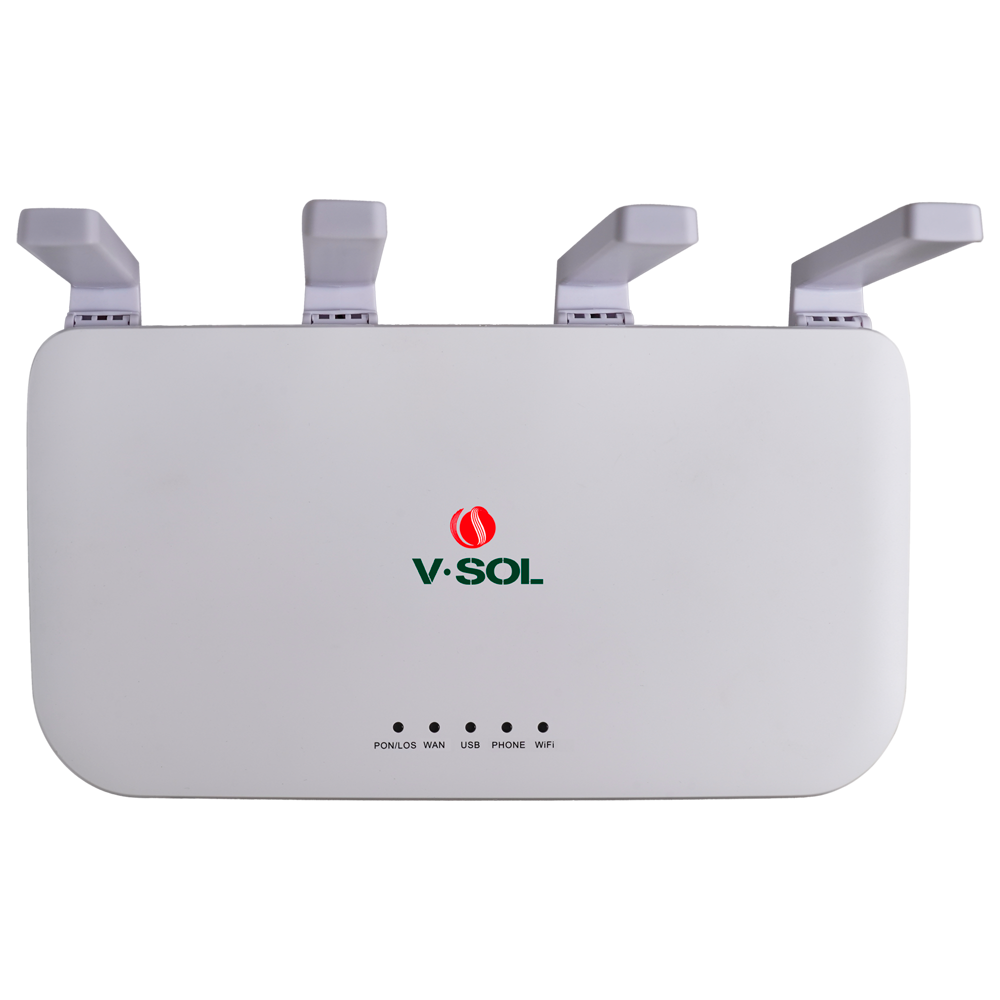

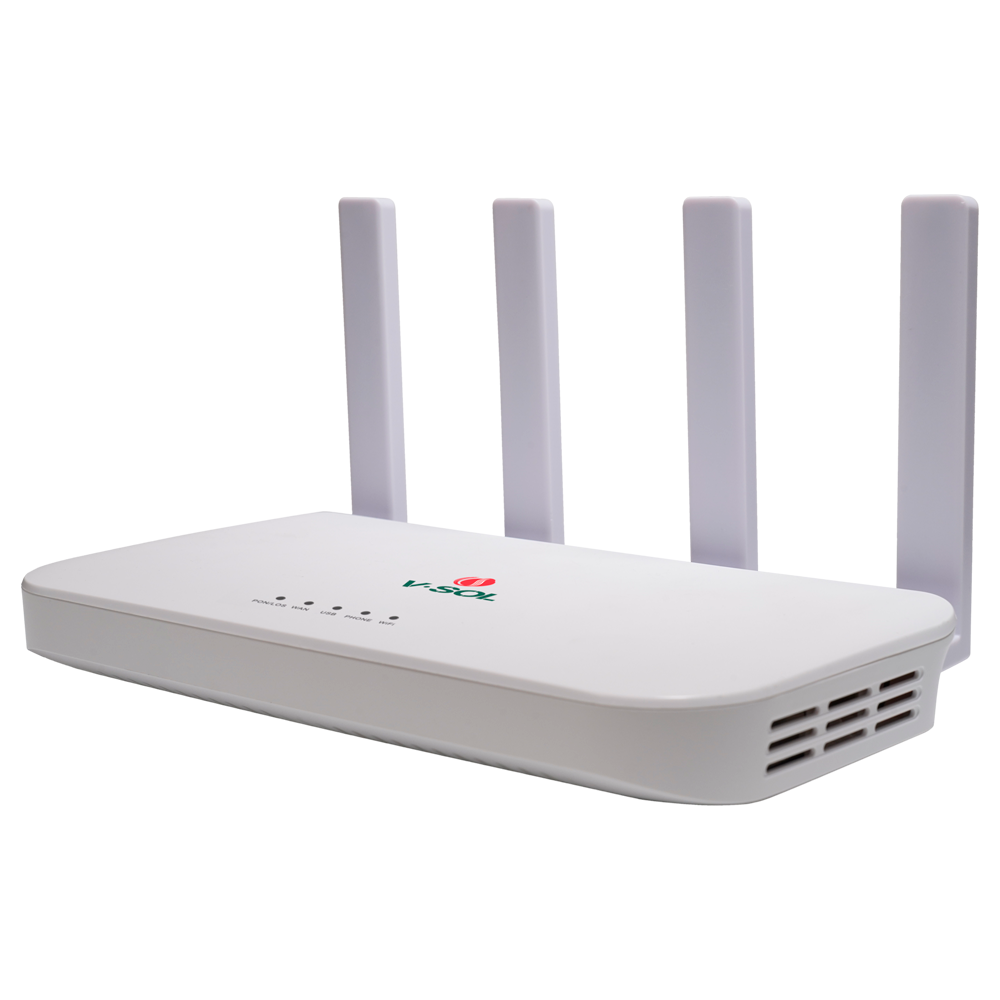

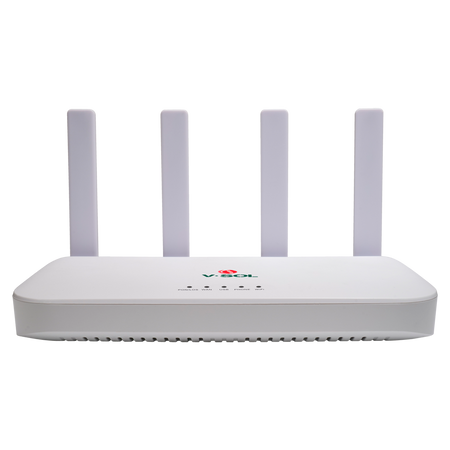

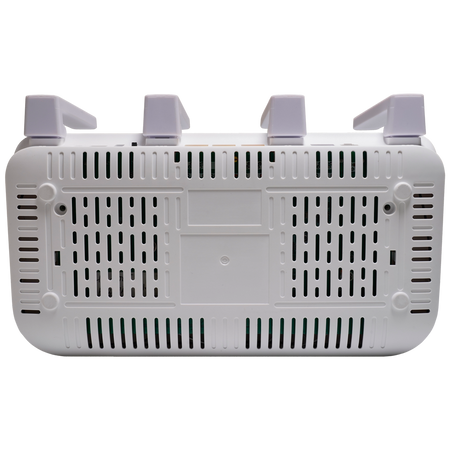

V-SOL Wi-Fi 6 Router ONT - 1X PON 1x 2.5GE RJ45 LAN 3x GE RJ45 LAN 1x RJ11 - 802.11ax 2x2 dual band 2.4 and 5GHz - Ideal for home and business FTTH
📋 SPECIFICATIONS:
• Brand: V-SOL

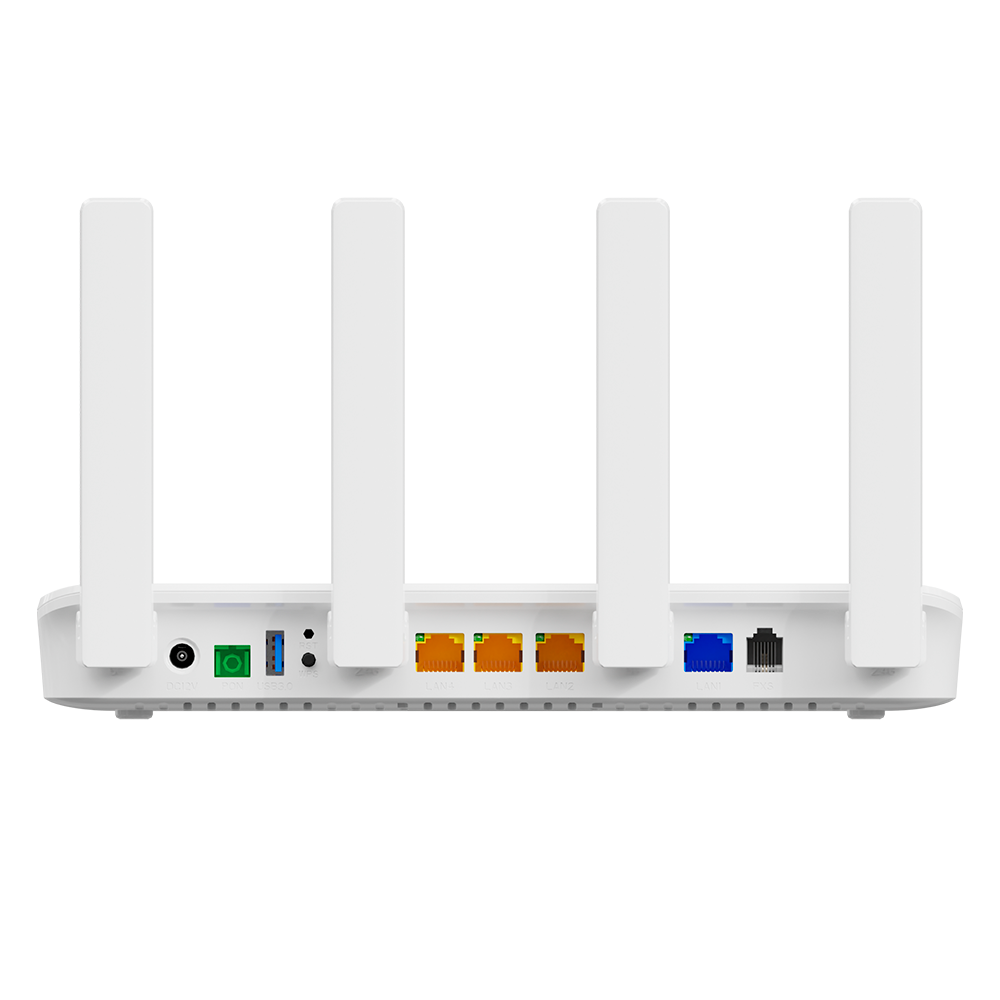

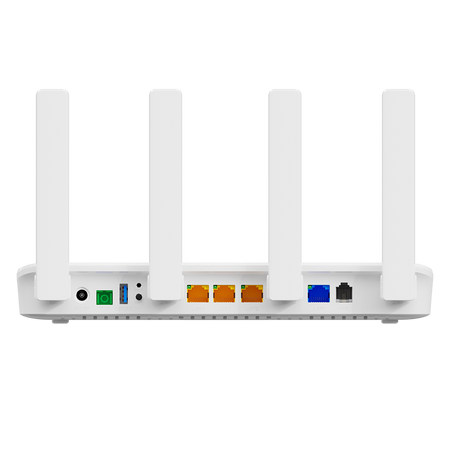

• Interface: 1x PON 1x 2.5GE RJ45 LAN 3x GE RJ45 LAN 1x RJ11 ( FXS )
• PON: 10G PON port: Class B+; Single-mode SC, SC/APC connector; Transmission optical power: 6 dBm (XGS-PON), 5 dBm (XG-PON), 4 dBm (10G EPON); Receiver sensitivity: -28 dBm; Overload optical power: -8 dBm; Transmission distance: 20 km; Wavelength: 10G EPON: DS 1577 nm/US 1310 nm; XG(S)-PON: DS 1577 nm/US 1270 nm; IEEE 802.3av (10G-EPON); ITU-T G.987 (XG-PON); ITU-T G.9807.1 (XGS-PON)
• Wi-Fi antennas: Compliant with IEEE802.11b/g/n/ac/ax; Wi-Fi: 2.4 GHz, 5 GHz 2x2, speed up to 3 Gbps, multiple SSIDs; Transmission power: 2.4 GHz: 18 dBm; 5 GHz: 17 dBm; Reception power: 2.4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 <-63 dBm
• Wi-Fi features: Built-in 802.11b/g/n/ac; Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES); Multiple SSIDs; Hidden SSIDs; WiFi Mesh; Supports up to 64 device connections
• Management protocols: OAM/OMCI/Telnet/Web/TR069; Supports full HGU function management via VSOL OLT
• Layer 2 features (switching): Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN
• Layer 3 features (routing): IPv4, IPv6 and dual stack IPv4/IPv6; DHCP/PPPoE/Static; Static routing, DHCP server; NAT/DMZ/DDNS/Virtual server
• VoIP: SIP and IMS SIP; Codecs G.711a/G.711u/G.722/G.729; Echo cancellation, VAD/CNG, DTMF retransmission; FAX T.30/T.38; Caller ID/Call Waiting/Call Forwarding/Call Transfer/Call Hold/Three-way conferencing; Line test according to GR-909
• Multicast: IGMP v1/v2/v3, IGMP snooping; IGMP proxy; MLD snooping v1/v2; MLD proxy
• QoS: Supports 4 QoS queues (VoIP, IPTV, Internet...); Compatible with SP, WRR, 802.1P and DSCP
• Security: Basic firewall functions; MAC filtering based on MAC or URL; ACL; Compatible with loop detection
• Color: White
• Dimensions: 244mm x 131mm x 36mm
• Weight: 425g
• Operating temp.: -10º C ~ +55º C
• Power supply: DC 12V 2A (adapter included)
📦 INCLUDED:
• Wi-Fi 6 Router ONT• User manual• AC/DC adapter• UTP cable
| Interface | 1x PON 1x 2.5GE RJ45 LAN 3x GE RJ45 LAN 1x RJ11 (FXS) |
|---|---|
| PON | 10G PON port: Class B+ Single-mode SC, SC/APC connector Transmit optical power: 6 dBm (XGS-PON), 5 dBm (XG-PON), 4 dBm (10G EPON) Receiver sensitivity: -28 dBm Overload optical power: -8 dBm Transmission distance: 20 km Wavelength: 10G EPON: DS 1577 nm/US 1310 nm XG(S)-PON: DS 1577 nm/US 1270 nm IEEE 802.3av (10G-EPON) ITU-T G.987 (XG-PON) ITU-T G.9807.1 (XGS-PON) |
| WiFi Antennas | Compliant with IEEE802.11b/g/n/ac/ax Wi-Fi: 2.4 GHz, 5 GHz 2x2, speeds up to 3 Gbps, multiple SSIDs Transmit power: 2.4 GHz: 18 dBm; 5 GHz: 17 dBm Receive sensitivity: 2.4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 <-63 dBm |
| WiFi Features | Integrated 802.11b/g/n/ac Authentication: WAP-PSK (TKIP)/WAP2-PSK (AES) Multiple SSIDs Hidden SSIDs WiFi Mesh Supports up to 64 device connections |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069 Supports full HGU function management via VSOL OLT |
| Layer 2 functions (switching) | Compatible with 802.1D and 802.1ad bridge, 802.1Q VLAN |
| Layer 3 functions (routing) | IPv4, IPv6, and IPv4/IPv6 dual stack DHCP/PPPoE/Static Static route, DHCP server NAT/DMZ/DDNS/Virtual server |
| VoIP | SIP and IMS SIP Codecs G.711a/G.711u/G.722/G.729 Echo cancellation, VAD/CNG, DTMF relay FAX T.30/T.38 Caller ID/Call waiting/Call forwarding/Call transfer/Call hold/Three-way conference Line test according to GR-909 |
| Multicast | IGMP v1/v2/v3, IGMP snooping IGMP proxy MLD snooping v1/v2 MLD proxy |
| QoS | Supports 4 QoS queues (VoIP, IPTV, Internet...) Compatible with SP, WRR, 802.1P and DSCP |
| Security | Basic firewall functions MAC or URL-based filtering ACLs Compatible with loop detection |
| Color | White |
| Dimensions | 244mm x 131mm x 36mm |
| Weight | 425g |
| Operating temp. | -10º C ~ +55º C |
| Power supply | DC 12V 2A (adapter included) |
