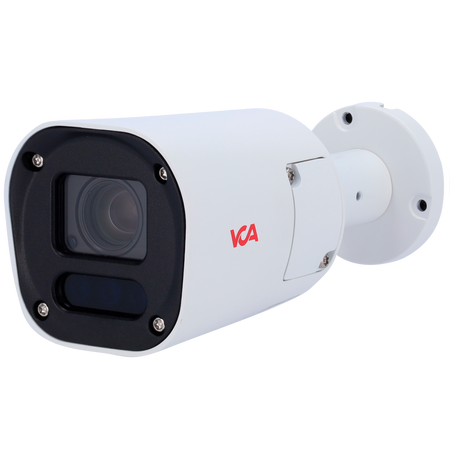

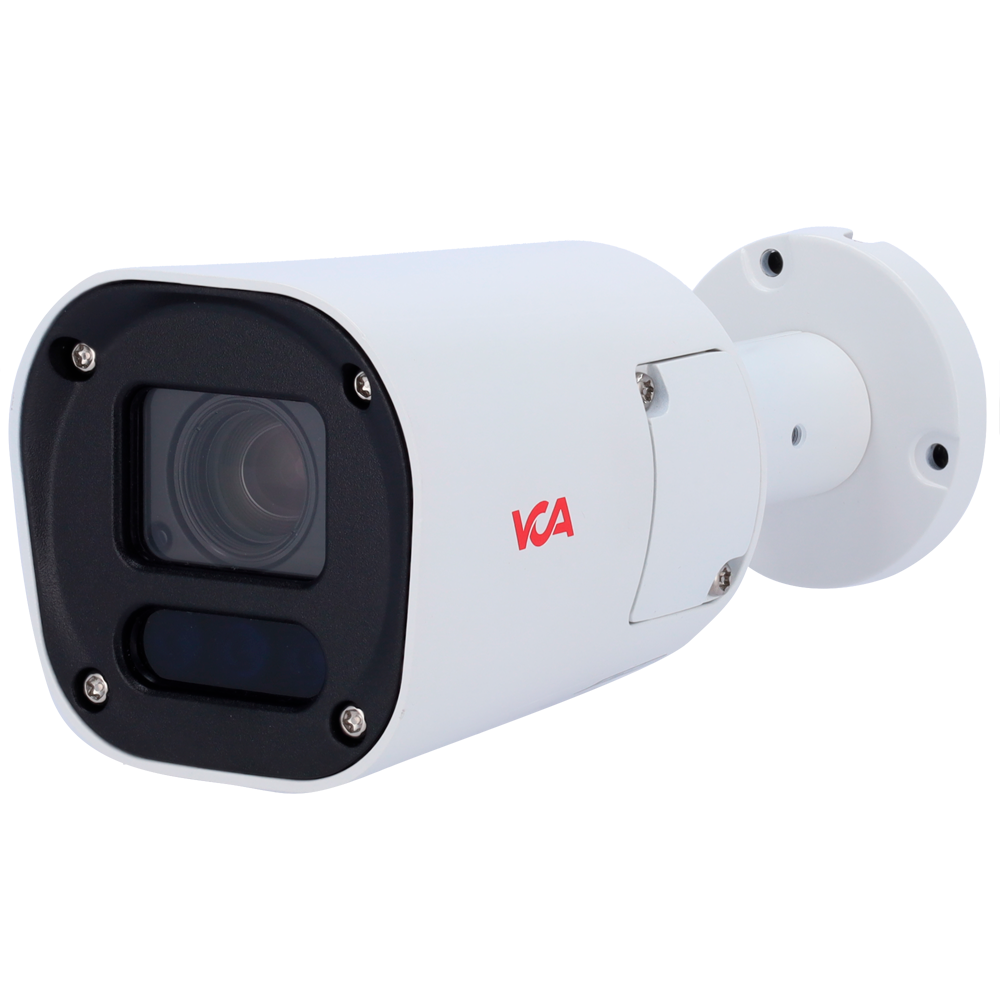

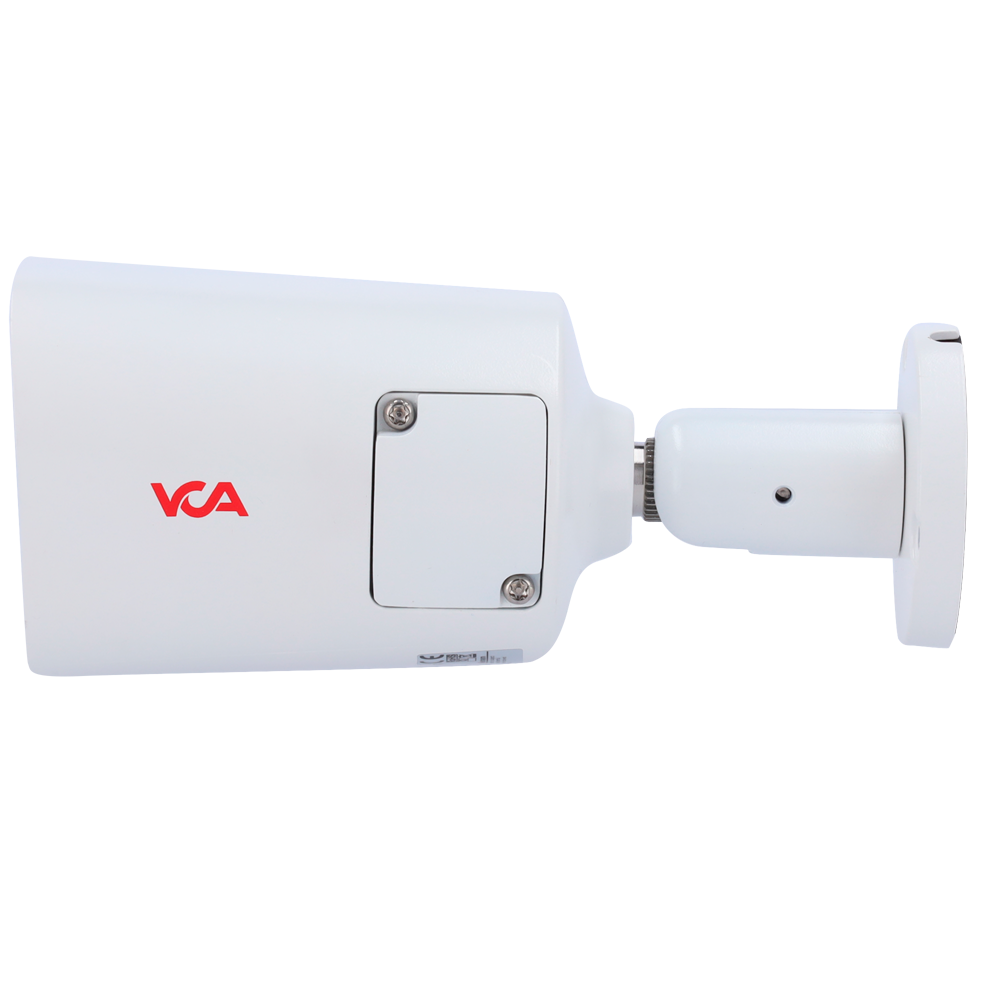

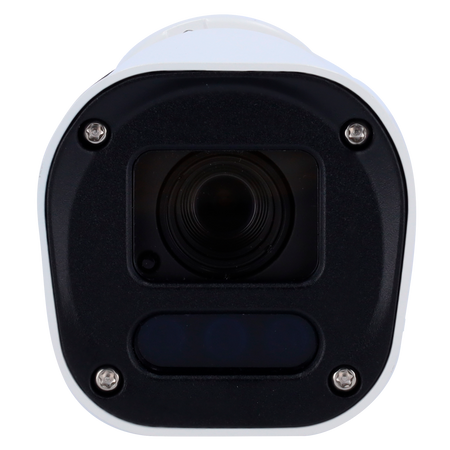

VCA Technology - model VCA-IPAi685S-ZR, IPAi-S series - 5MP IR AI Bullet IP Camera - 5MP resolution, 5~50mm lens. 40m IR. - VCA video analytics (optional deep learning) - ONVIF Profile S/T/M compatible, NDAA, IK10, IP67
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Series: IPAi-S
• Model: VCA-IPAi685S-ZR
• Optical sensor: Sony Starvis2 1/2.8” 5.17M CMOS
• Maximum resolution: 2592(H) x 1944(V)
• Minimum illumination: Color: 0.08 Lux; B/W: 0 Lux (IR LED On)
• WDR: True WDR 120 dB
• Lens: 5~50mm
• Viewing angle: Horizontal: 46.2º (wide) to 7.7º (tele)
• Aperture: F2.0
• Shutter: Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10)
• IR LED: High Power IR LED x 3; 40m distance
• Video compression: H.264, H.265, MJPEG
• Privacy Mask: Up to 16 zones
• Integrated video analytics: intrusion, detection zones and lines, tamper detection, presence, absence, loitering, entry, exit
• Optional video analytics (deep learning): person tracking, object tracking (people, cars, motorcycles), object metadata
• Ethernet: 10/100BASE-T
• ONVIF: ONVIF Profile S/T/M
• Security: HTTPS (SSL), IP filtering, 802.1x, Digest Authentication
• Protocols: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF
• Storage: microSD/microSDHC/microSDXC card slot (not included)
• Audio compression: G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz
• Audio input: Line input, supply voltage: 3VDC (3mA), input impedance: 3K Ohm
• Audio output: Line output, max output level: 1Vrms
• I/O terminals: 1 x alarm input, 1 x relay output
• Construction material: Aluminum (die-cast), white
• Housing: Compact dome
• Power consumption: DC12V max. 8.8W; PoE max. 11.1W
• Power supply: DC12V, PoE (IEEE 802.3af Class 3)
• Operating conditions: Humidity 10% ~ 90% RH (non-condensing); -30°C ~ 60°C
• Standards: FCC, CE, IP67, IK10
• Certifications: NDAA compliant
• Dimensions: 197.5mm x 86mm
• Weight: 0.99kg
• Warranty: 2 years
📦 INCLUDED:
• VCA-IPAi685S-ZR camera • Mounting manual and quick start guide • Mounting accessories
| Range | IPAi-S |
|---|---|
| Model | VCA-IPAi685S-ZR |
| Optical sensor | Sony Starvis2 1/2.8” 5.17M CMOS |
| Maximum resolution | 2592(H) x 1944(V) |
| Minimum illumination | Color: 0.08 Lux B/W: 0 Lux (IR LED On) |
| WDR | True WDR 120 dB |
| Lens | 5~50mm. |
| Viewing angle | Horizontal: 46.2º (wide) to 7.7º (tele) |
| Aperture | F2.0 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) |
| IR Led | High Power IR LED x 3 40m. distance |
| Video compression | H.264, H.265, MJPEG |
| Privacy Mask | Up to 16 zones |
| Integrated video analysis | intrusion detection, detection zones and lines, tampering detection, presence, absence, loitering, entry, exit |
| Optional video analysis (deep learning) | person tracking, object tracking (people, cars, motorcycles), object metadata |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF Profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | microSD/microSDHC/microSDXC card slot (not included) |
| Audio compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |
| Audio input | Line input, supply voltage: 3VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |
| I/O Terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast), white |
| Housing | Compact dome |
| Power consumption | DC12V max. 8.8W PoE max. 11.1W |
| Power supply | DC12V, PoE (IEEE 802.3af Class 3) |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing) -30°C ~ 60°C |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | Compliant with NDAA standards |
| Dimensions | 197.5mm x 86mm |
| Weight | 0.99kg |
| Warranty | 2 years |
