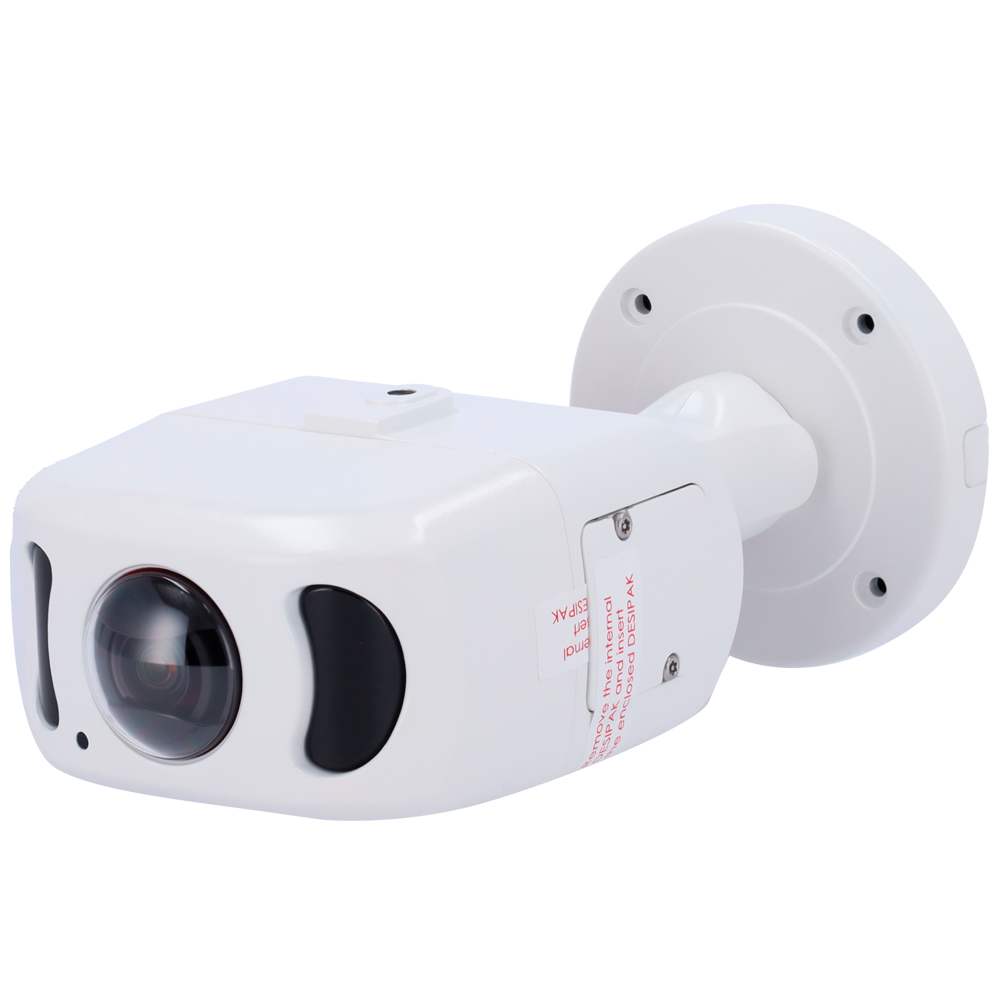

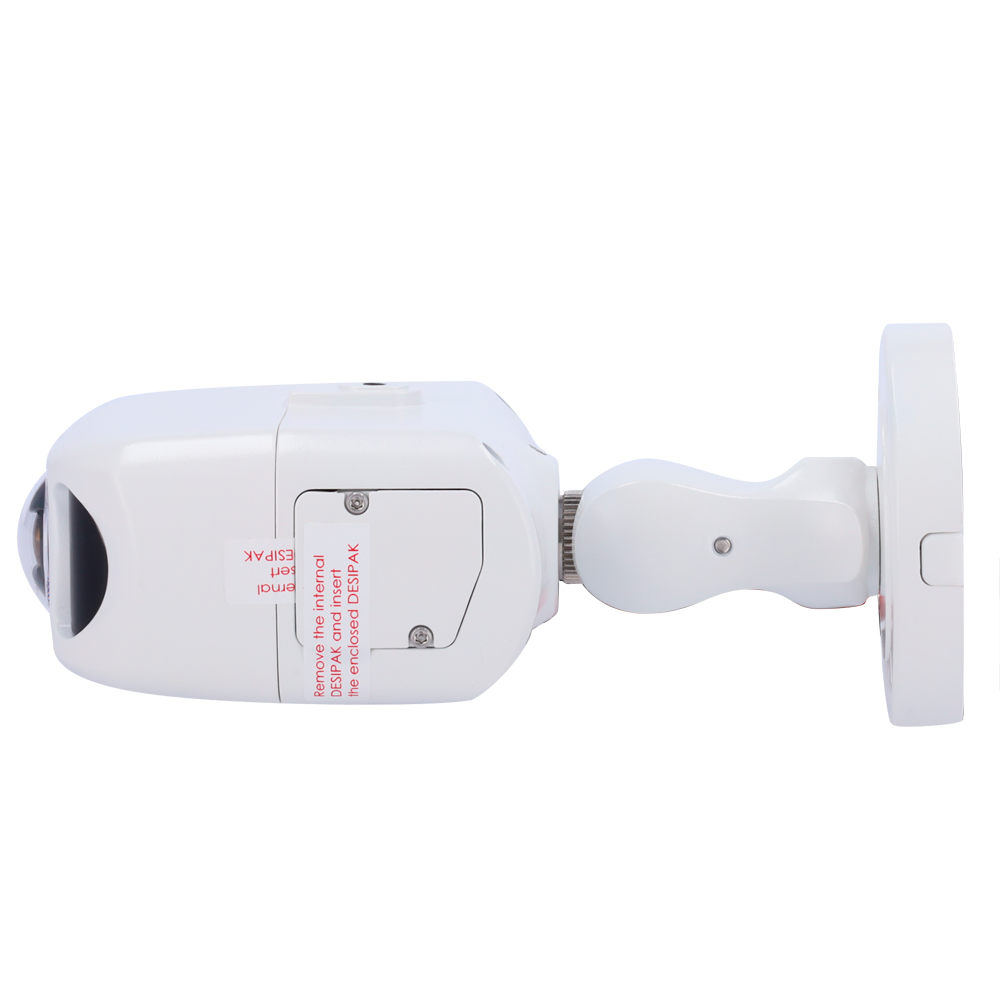

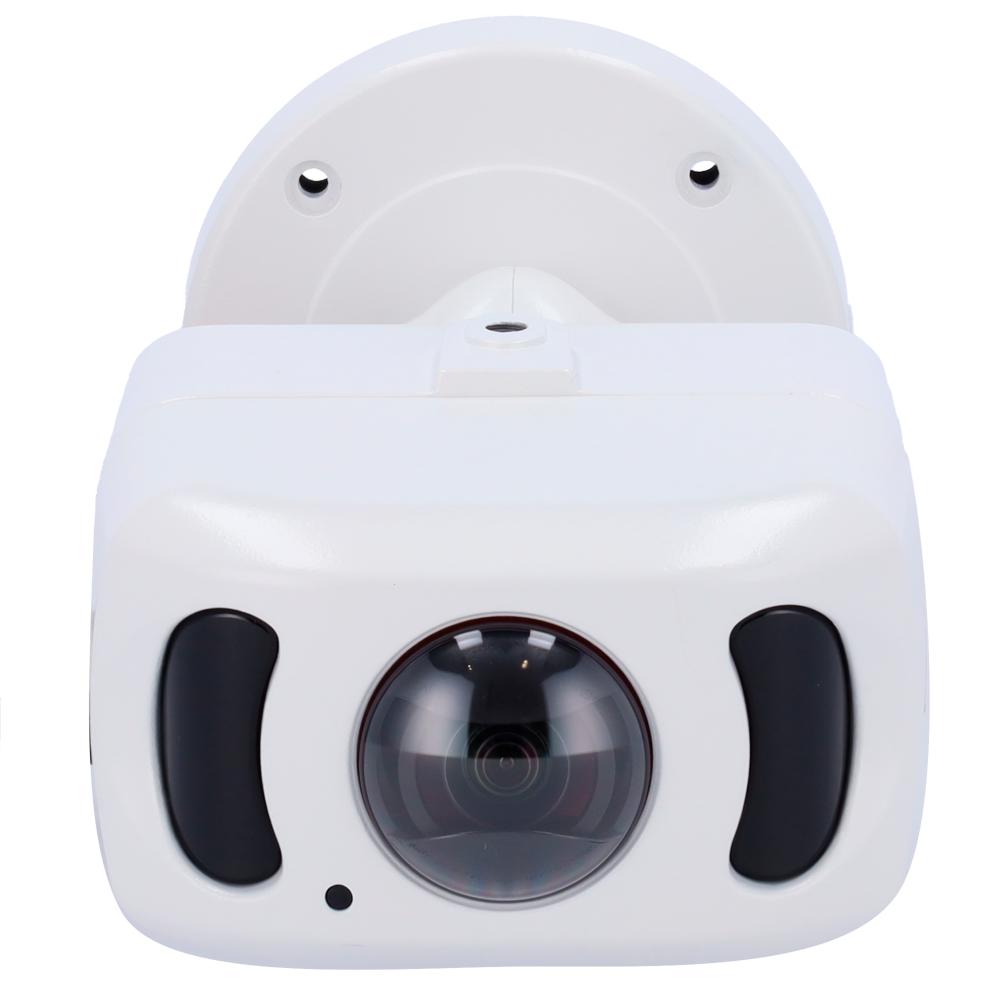

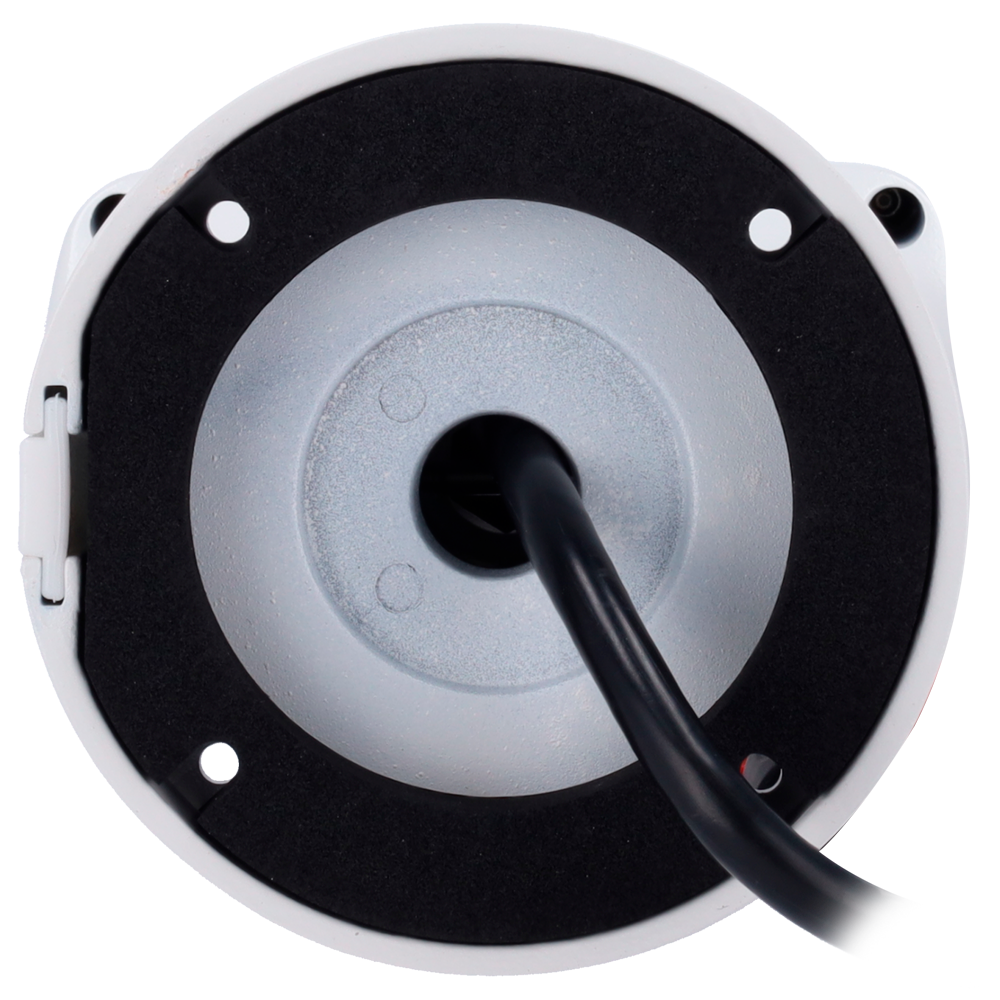

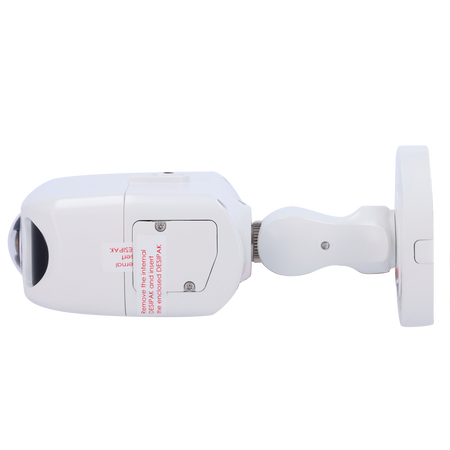

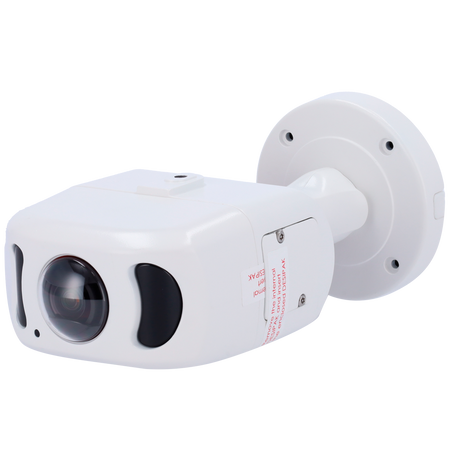

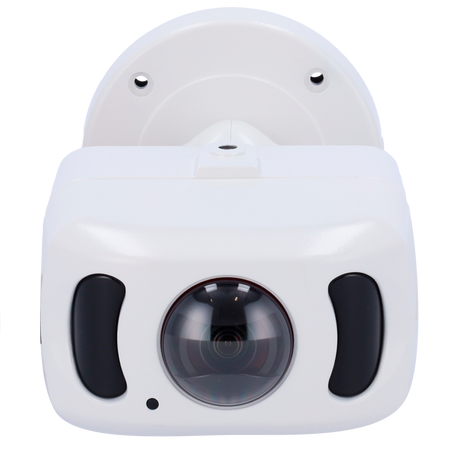

VCA Technology model, IPAi range - variant IPAI66A08FR
VCA Technology model, IPAi range - variant IPAI66A08FR
Regular price
€1.091,75
Final price
Regular price
-8%
€1.183,70
Sale price
€1.091,75
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

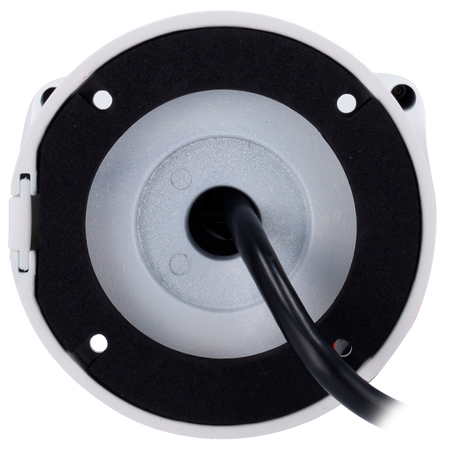

VCA Technology - model VCA-IPAi66A08-FR, IPAi series - 4K 180º IR AI Bullet IP Camera - 4K resolution 2.3mm lens. 30m IR - VCA video analytics (optional deep learning) - ONVIF Profile S/T/M compatible, NDAA, IK10, IP67
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Series: IPAi
• Model: VCA-IPAi66A08-FR
• Optical sensor: Sony Starvis2 1/1.8” 8.48M CMOS
• Maximum resolution: 3840(H) x 2160(V)
• Minimum illumination: Color: 0.15 Lux; B/W : 0 Lux (IR LED On)
• WDR: True WDR
• Lens: 2.3mm
• Viewing angle: Horizontal 180º, Vertical 80º
• Aperture: F2.8
• Shutter: Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10)
• IR LED: High Power IR LED x 4; 30m distance
• Video compression: H.264, H.265, MJPEG
• Integrated video analytics: intrusion, detection zones and lines, tamper detection, presence, absence, loitering, entry, exit
• Optional video analytics (deep learning): person tracking, object tracking (people, cars, motorcycles), object metadata
• Ethernet: 10/100BASE-T
• ONVIF: ONVIF Profile S/T/M
• Security: HTTPS (SSL), IP filtering, 802.1x, Digest Authentication
• Protocols: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF
• Storage: microSD/microSDHC/microSDXC card slot (not included)
• Audio compression: G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz
• Audio input: Line input, supply voltage: 3VDC (3mA), input impedance: 3K Ohm
• Audio output: Line output, maximum output level: 1Vrms

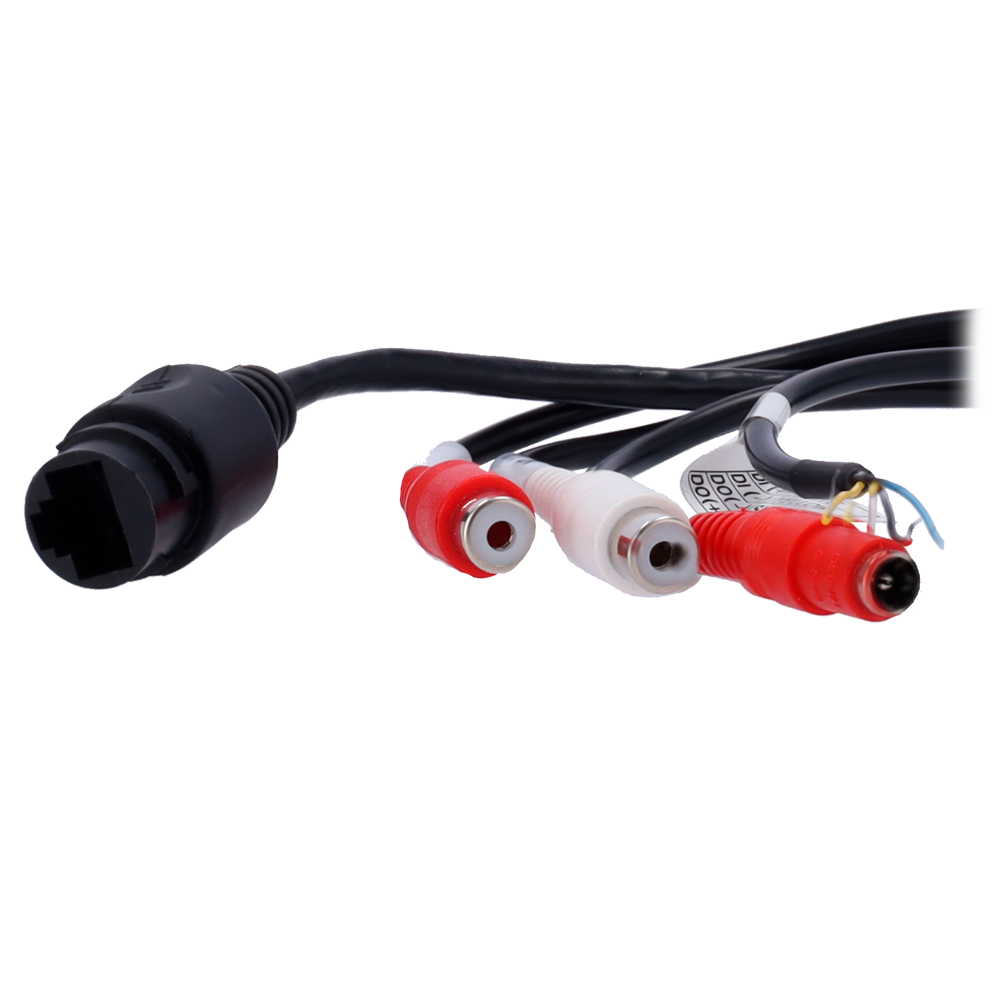

• I/O terminals: 1 x alarm input, 1 x relay output
• Construction material: Aluminum (die-cast), white
• Housing: Bullet
• Power consumption: DC12V max. 22W; PoE max. 9.2W
• Power supply: DC12V, PoE (IEEE 802.3af)
• Operating conditions: Humidity 10% ~ 90% RH (non-condensing); -30°C ~ 50°C (PoE), -40°C ~ 50°C (DC12V)
• Standards: FCC, CE, IP67, IK10
• Certifications: Compliant with NDAA standards
• Dimensions: 228mm x 96.7mm
• Weight: 0.97kg
• Warranty: 2 years
📦 INCLUDED:
• VCA-IPAi66A08-FR camera• Mounting manual and quick guide• Mounting accessories
| Range | IPAi |
|---|---|
| Model | VCA-IPAi66A08-FR |
| Optical sensor | Sony Starvis2 1/1.8” 8.48M CMOS |
| Maximum resolution | 3840(H) x 2160(V) |
| Minimum illumination | Color: 0.15 Lux B/W : 0 Lux (IR LED On) |
| WDR | True WDR |
| Lens | 2.3mm |
| Viewing angle | Horizontal 180º, Vertical 80º |
| Aperture | F2.8 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) |
| IR LED | High Power IR LED x 4 30m distance |
| Video compression | H.264, H.265, MJPEG |
| Integrated video analysis | intrusion detection, detection zones and lines, tampering detection, presence, absence, loitering, entry, exit |
| Optional video analysis (deep learning) | person tracking, object tracking (people, cars, motorcycles), object metadata |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | microSD/microSDHC/microSDXC card slot (not included) |
| Audio compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |
| Audio input | Line input, supply voltage: 3VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |

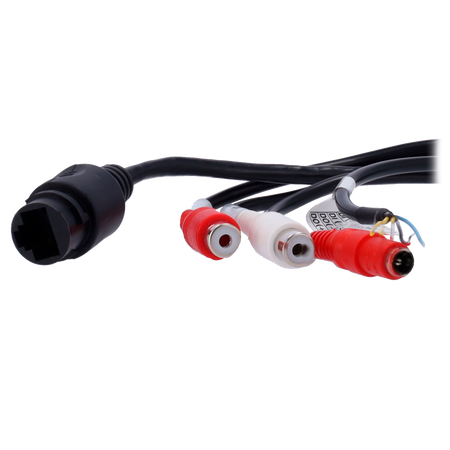

| I/O terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast), white |
| Housing | Bullet |
| Consumption | DC12V max. 22W PoE max. 9.2W |
| Power supply | DC12V, PoE (IEEE 802.3af) |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing) -30°C ~ 50°C (PoE), -40°C ~ 50°C (DC12V) |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | NDAA compliant |
| Dimensions | 228mm x 96.7mm |
| Weight | 0.97kg |
| Warranty | 2 years |
