VCA Technology model, IPAi range - IPAI65A05ZR variant
VCA Technology model, IPAi range - IPAI65A05ZR variant
Regular price
€1.220,55
Final price
Regular price
-8%
€1.323,36
Sale price
€1.220,55
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

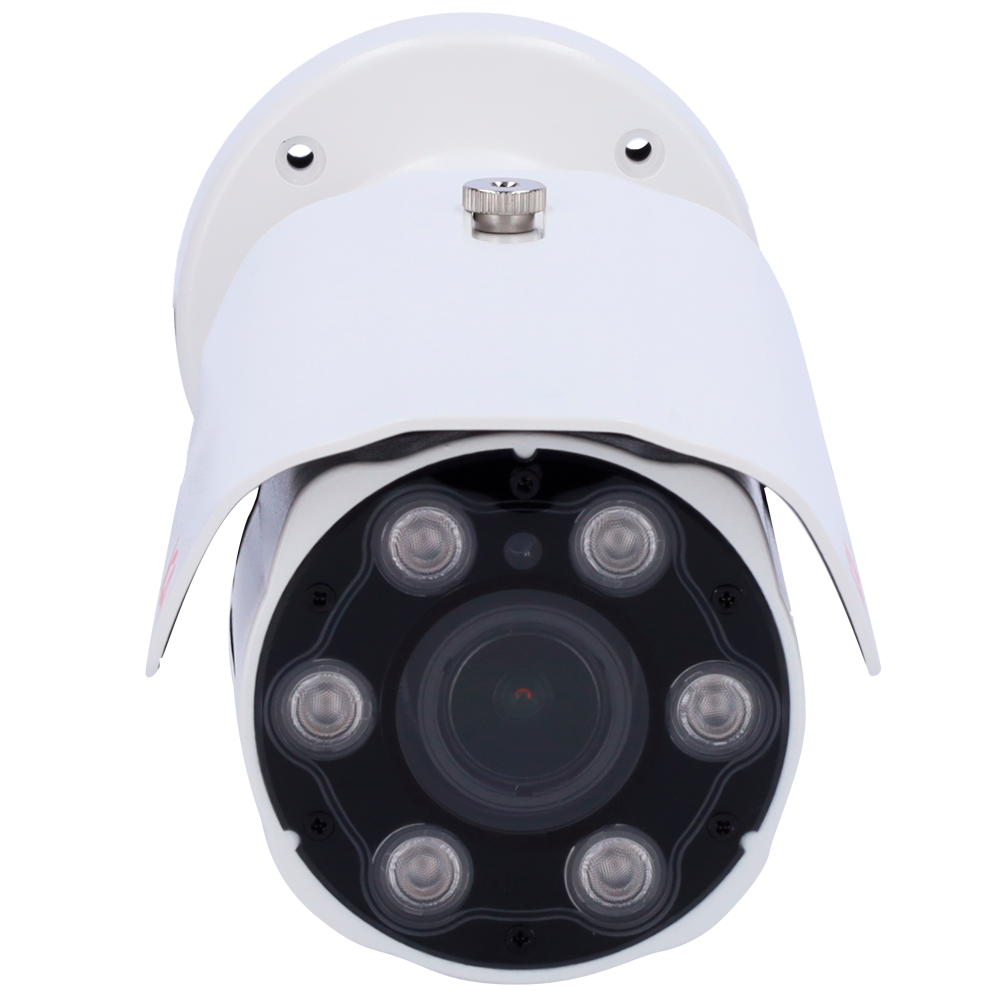

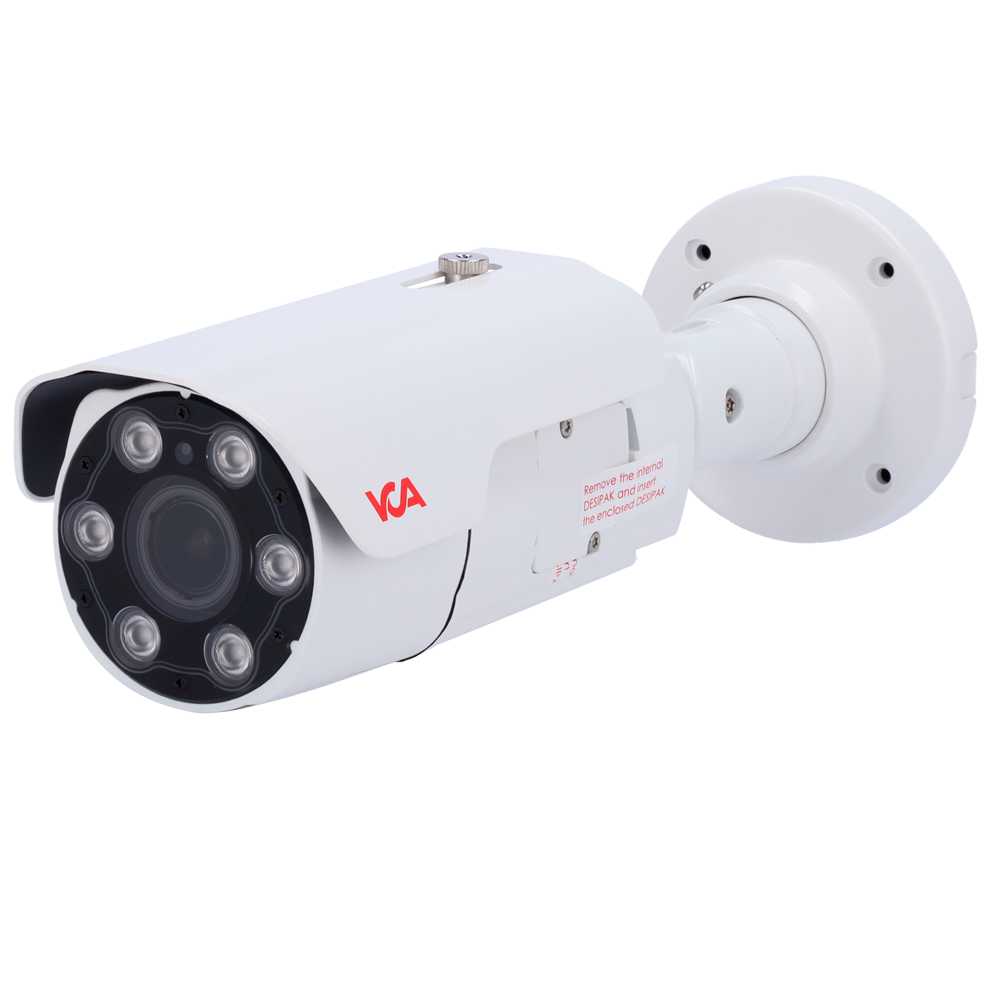

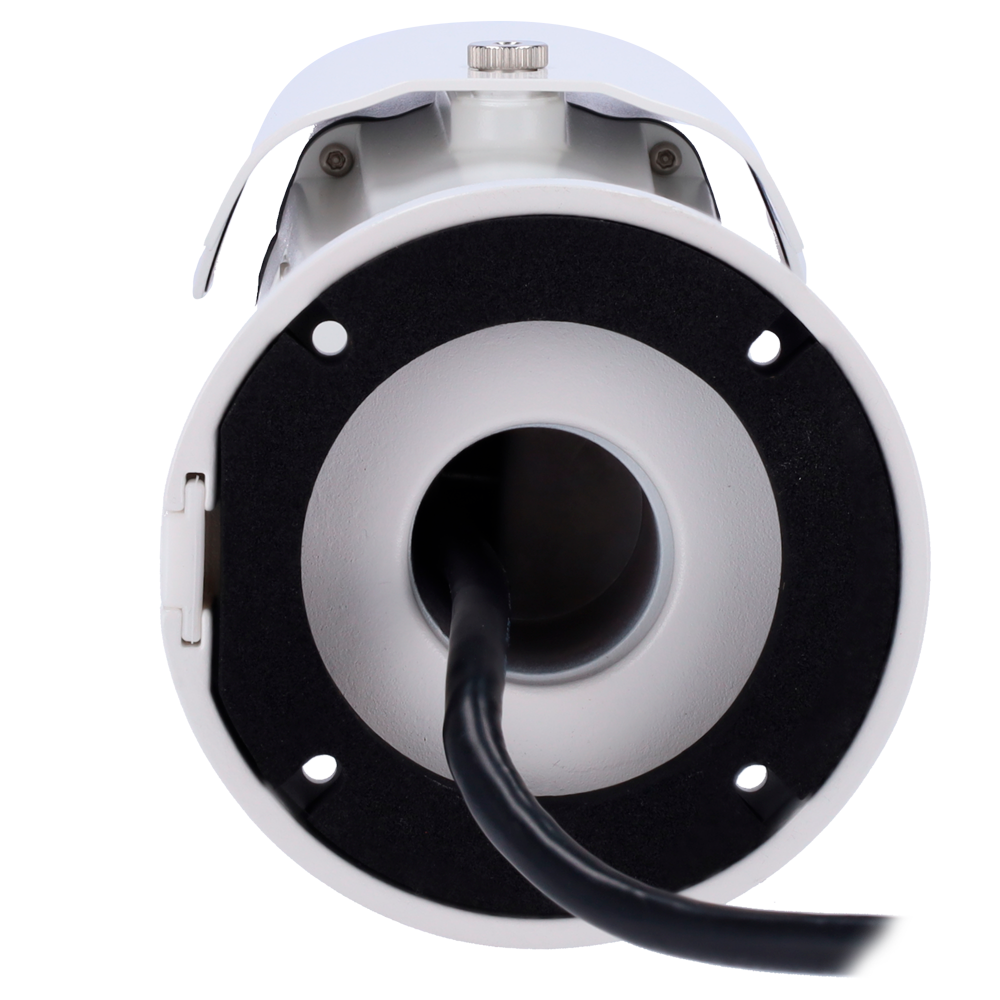

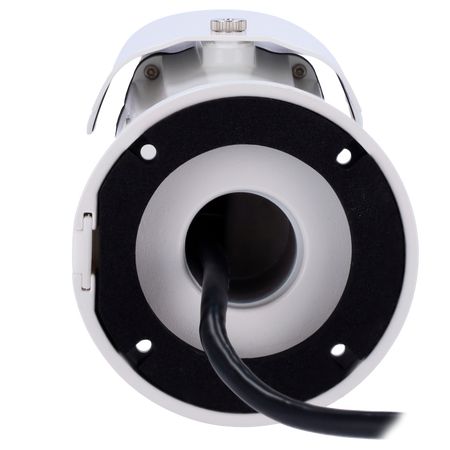

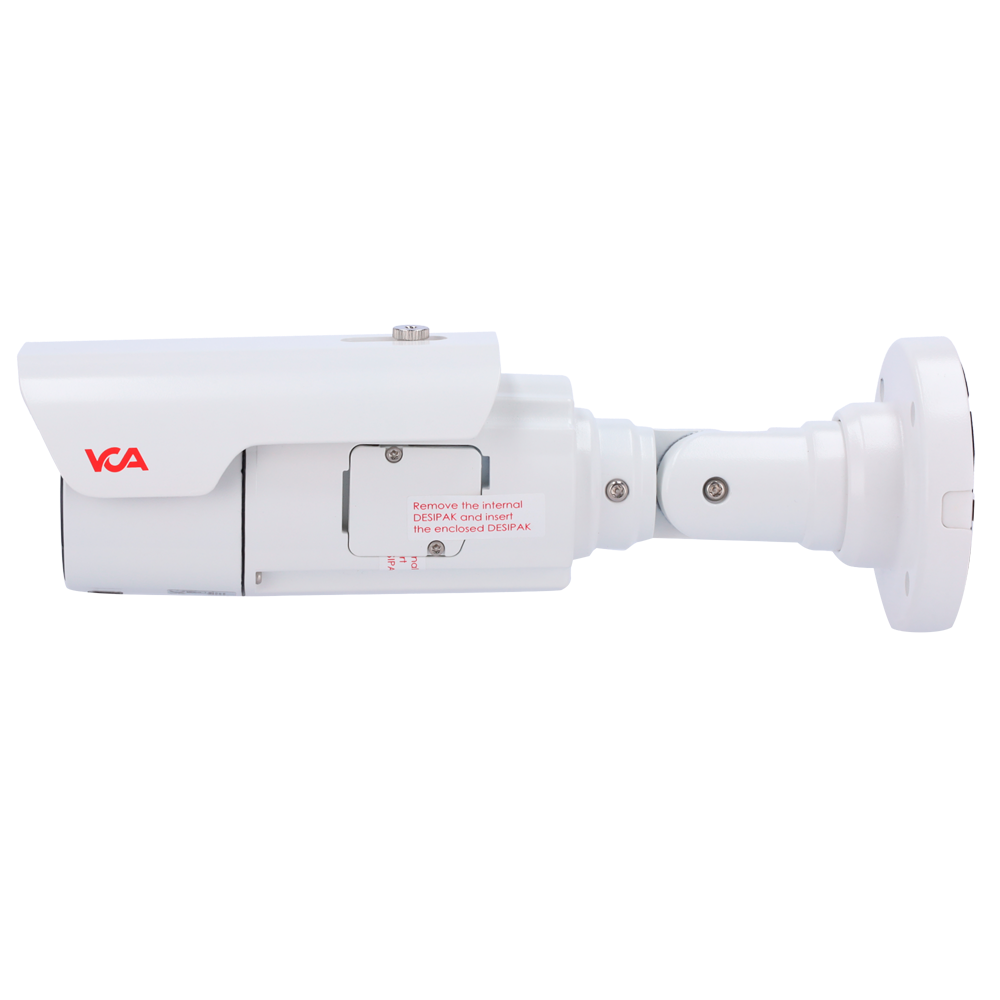

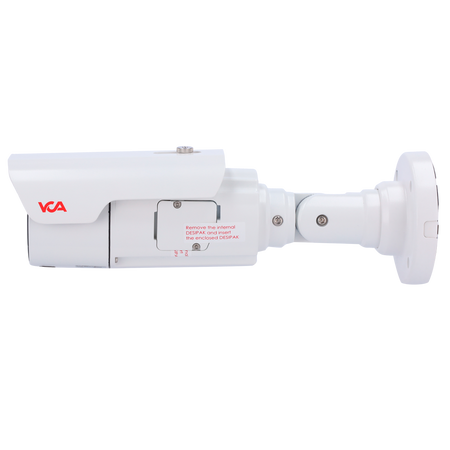

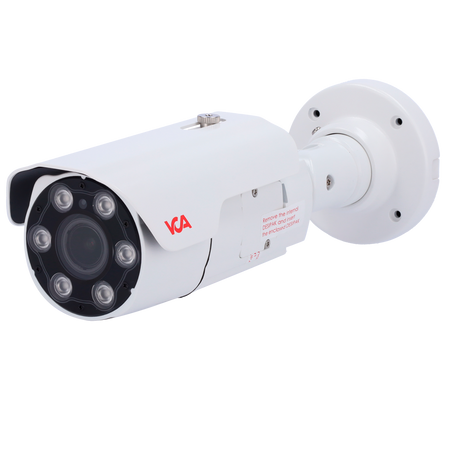

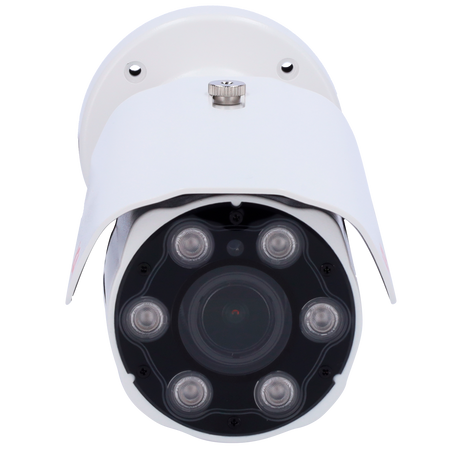

VCA Technology - model VCA-IPAi65A05-ZR, IPAi range - 5MP IR AI bullet IP camera - 5MP resolution, 6 ~ 50mm lens. IR 40m. - VCA video analytics (optional deep learning) - ONVIF profile S/T/M compatible, NDAA, IK10, IP67
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Range: IPAi
• Model: VCA-IPAi65A05-ZR
• Optical sensor: Sony Starvis EXMOR 1/2.8” 5M CMOS
• Maximum resolution: 2592(H) x 1944(V)
• Minimum illumination: Color: 0.08 Lux; B/W: 0 Lux (IR LED On)
• WDR: True WDR
• Lens: 6 ~ 50mm
• Viewing angle: Horizontal: 40.8º (wide) to 6.9º (tele)
• Aperture: F1.6
• Shutter: Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10)
• IR LED: High Power IR LED x 6; 40m. distance
• Video compression: H.264, H.265, MJPEG
• Privacy Mask: Up to 16 zones
• Built-in video analytics: intrusion, detection zones and lines, tampering detection, presence, absence, loitering, enter, exit
• Optional video analytics (deep learning): people tracking, object tracking (people, cars, motorcycles), object metadata
• Ethernet: 10/100BASE-T
• ONVIF: ONVIF profile S/T/M
• Security: HTTPS (SSL), IP filtering, 802.1x, Digest Authentication
• Protocols: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF
• Storage: microSD/microSDHC/microSDXC card slot (not included)
• Audio compression: G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz
• Audio input: Line input, supply voltage: 3VDC (3mA), input impedance: 3K Ohm
• Audio output: Line output, max. output level: 1Vrms

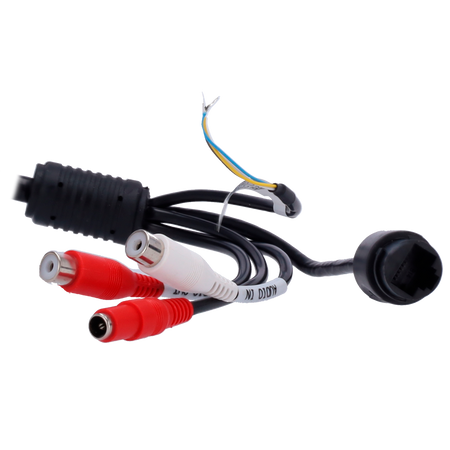

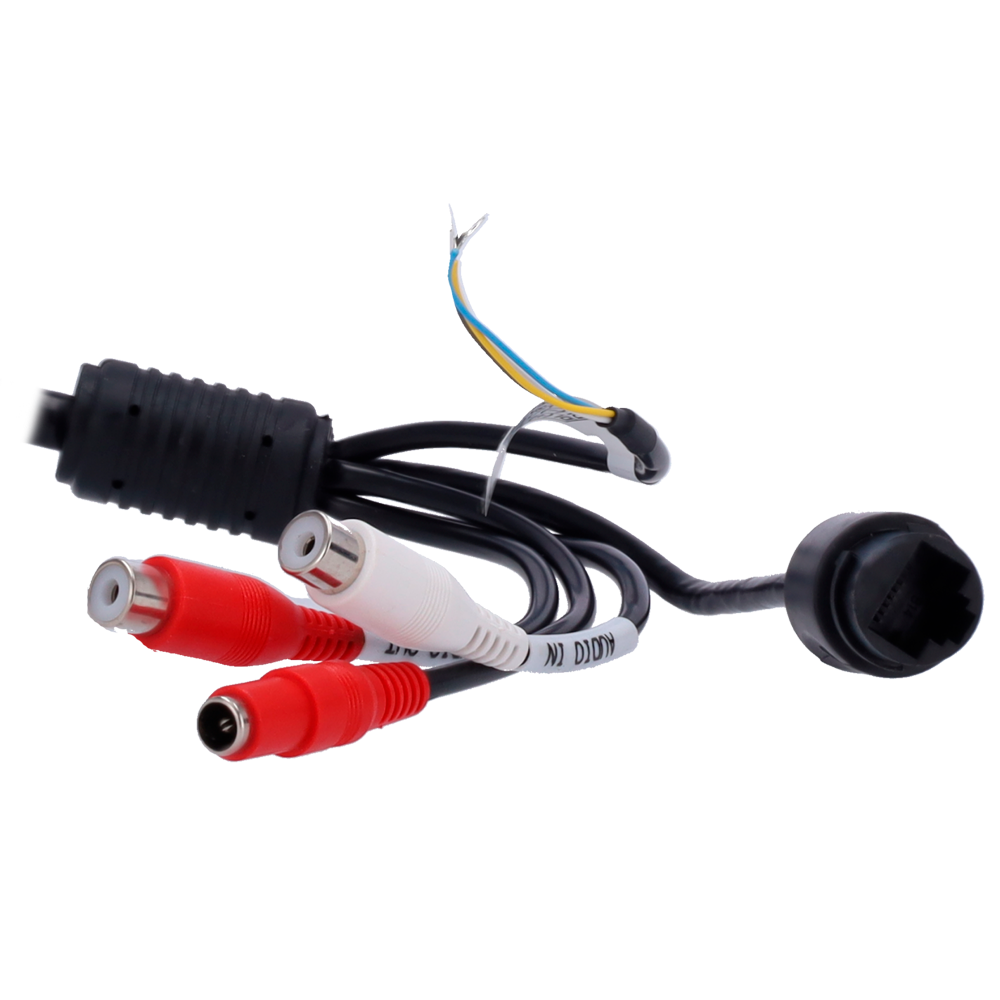

• I/O terminals: 1 x alarm input, 1 x relay output
• Construction material: Aluminum (die-cast), white
• Housing: Bullet
• Consumption: DC12V max. 13.2W; PoE max. 15.6W
• Power supply: DC12V, PoE+ (IEEE 802.3at Class 4)
• Operating conditions: Humidity 10% ~ 90% RH (non-condensing); -40°C ~ 60°C
• Standards: FCC, CE, IP67, IK10
• Certifications: NDAA compliant
• Dimensions: 309.8mm x 96.7mm
• Weight: 1.2kg
• Warranty: 2 years
📦 INCLUDED:
• VCA-IPAi65A05-ZR camera• Mounting manual and quick guide• Mounting accessories
| Range | IPAi |
|---|---|
| Model | VCA-IPAi65A05-ZR |
| Optical sensor | Sony Starvis EXMOR 1/2.8” 5M CMOS |
| Maximum resolution | 2592(H) x 1944(V) |
| Minimum illumination | Color: 0.08 Lux B/W: 0 Lux (IR LED On) |
| WDR | True WDR |
| Lens | 6 ~ 50mm |
| Viewing angle | Horizontal: 40.8º (wide) to 6.9º (tele) |
| Aperture | F1.6 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10) |
| IR LED | High Power IR LED x 6 40m distance |
| Video compression | H.264, H.265, MJPEG |
| Privacy Mask | Up to 16 zones |
| Integrated video analytics | intrusion detection, detection zones and lines, tampering detection, presence, absence, loitering, entry, exit |
| Optional video analytics (deep learning) | person tracking, object tracking (people, cars, motorcycles), object metadata |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF Profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | microSD/microSDHC/microSDXC card slot (not included) |
| Audio compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |
| Audio input | Line input, supply voltage: 3VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |
| I/O terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast), white |
| Housing | Bullet |
| Consumption | DC12V max. 13.2W, PoE max. 15.6W |
| Power supply | DC12V, PoE+ (IEEE 802.3at Class 4) |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing) -40°C ~ 60°C |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | NDAA compliant |
| Dimensions | 309.8mm x 96.7mm |
| Weight | 1.2kg |
| Warranty | 2 years |
