VCA Technology model, IPAi range - IPAI358MR variant
VCA Technology model, IPAi range - IPAI358MR variant
Regular price
€775,87
Final price
Regular price
-8%
€841,22
Sale price
€775,87
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

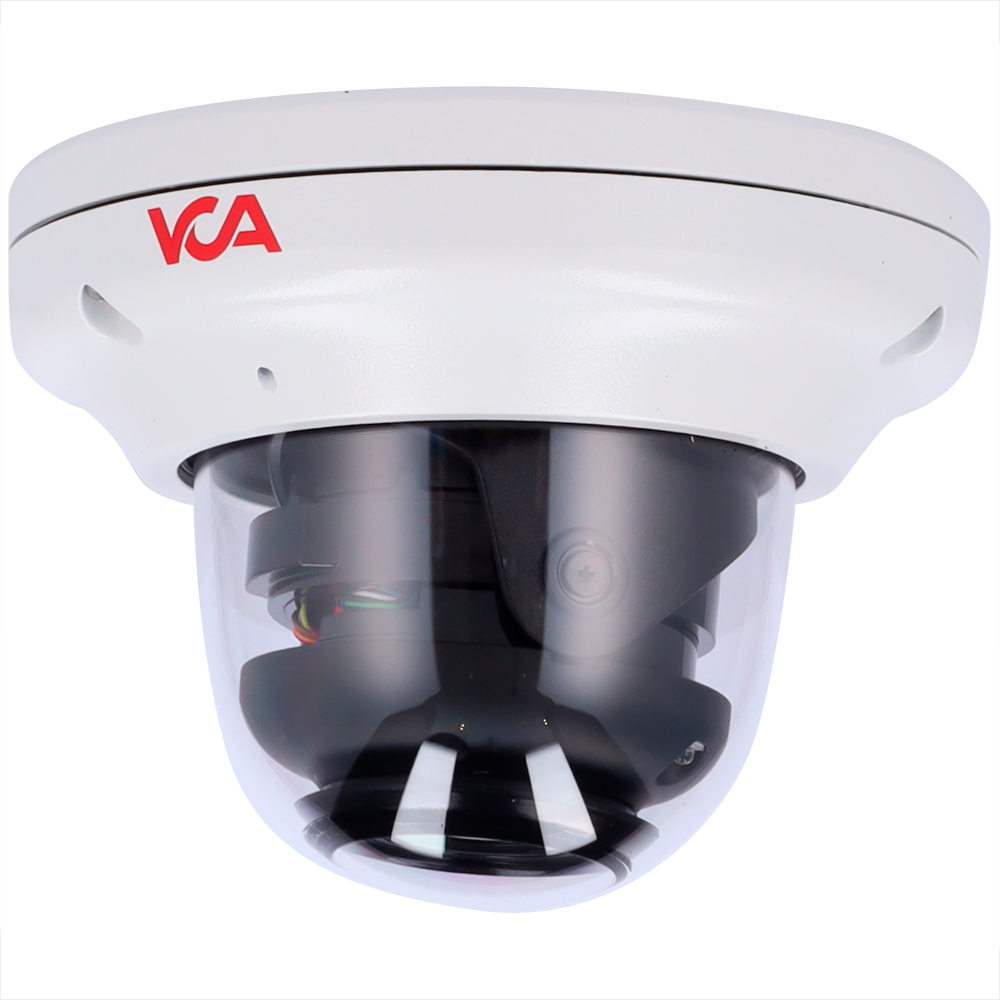

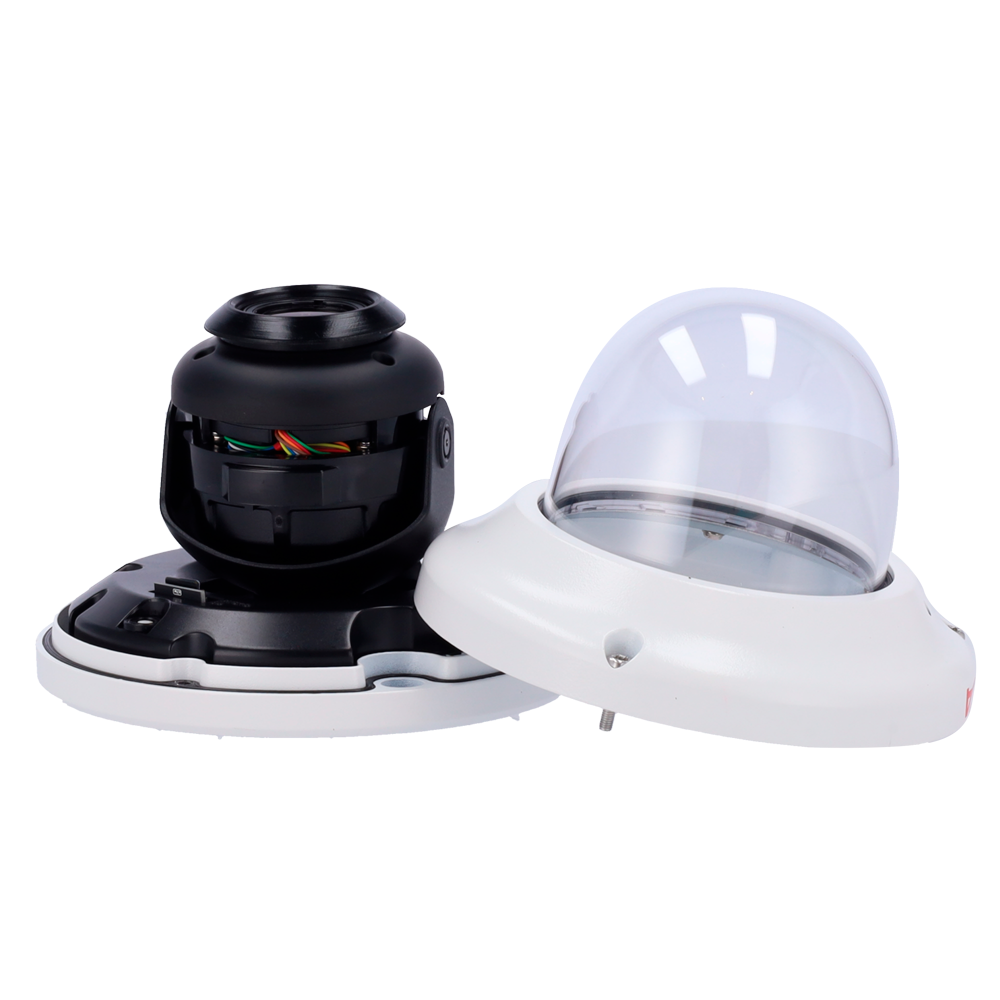

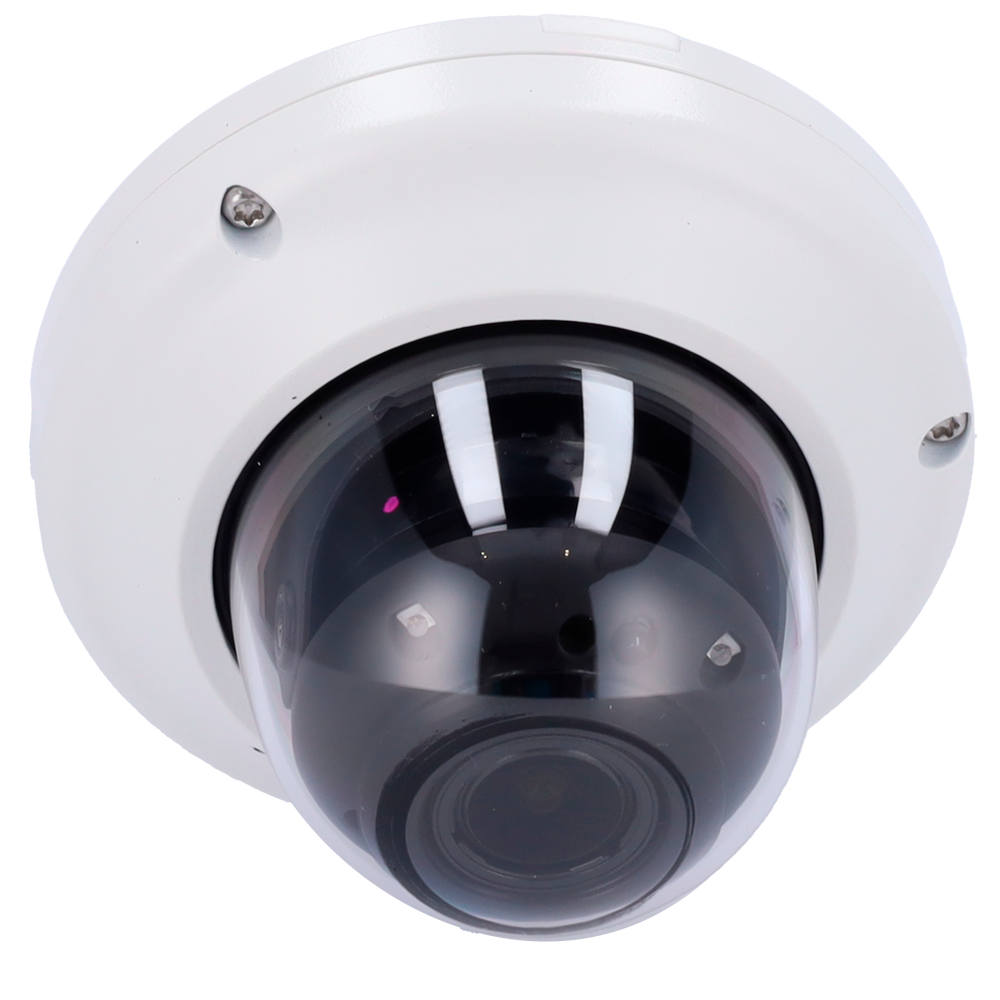

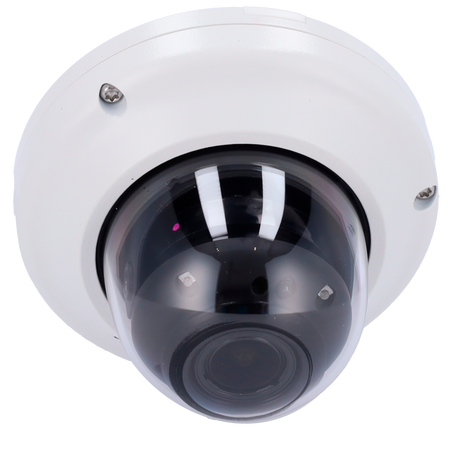

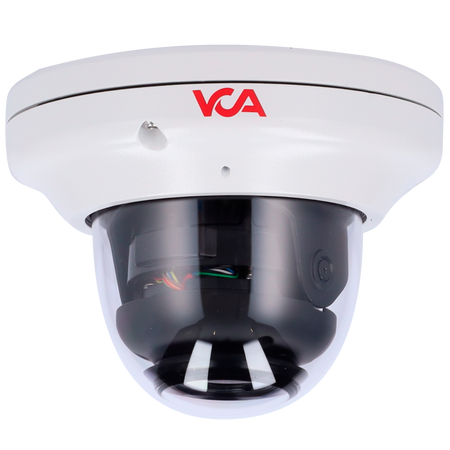

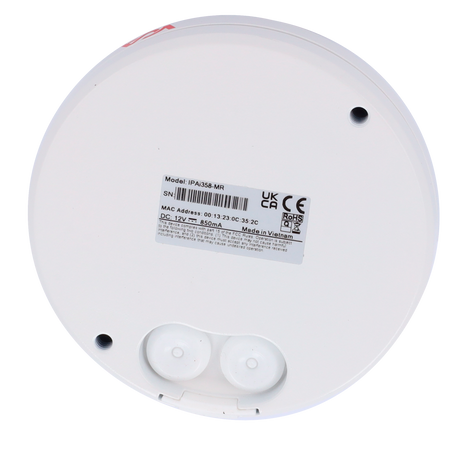

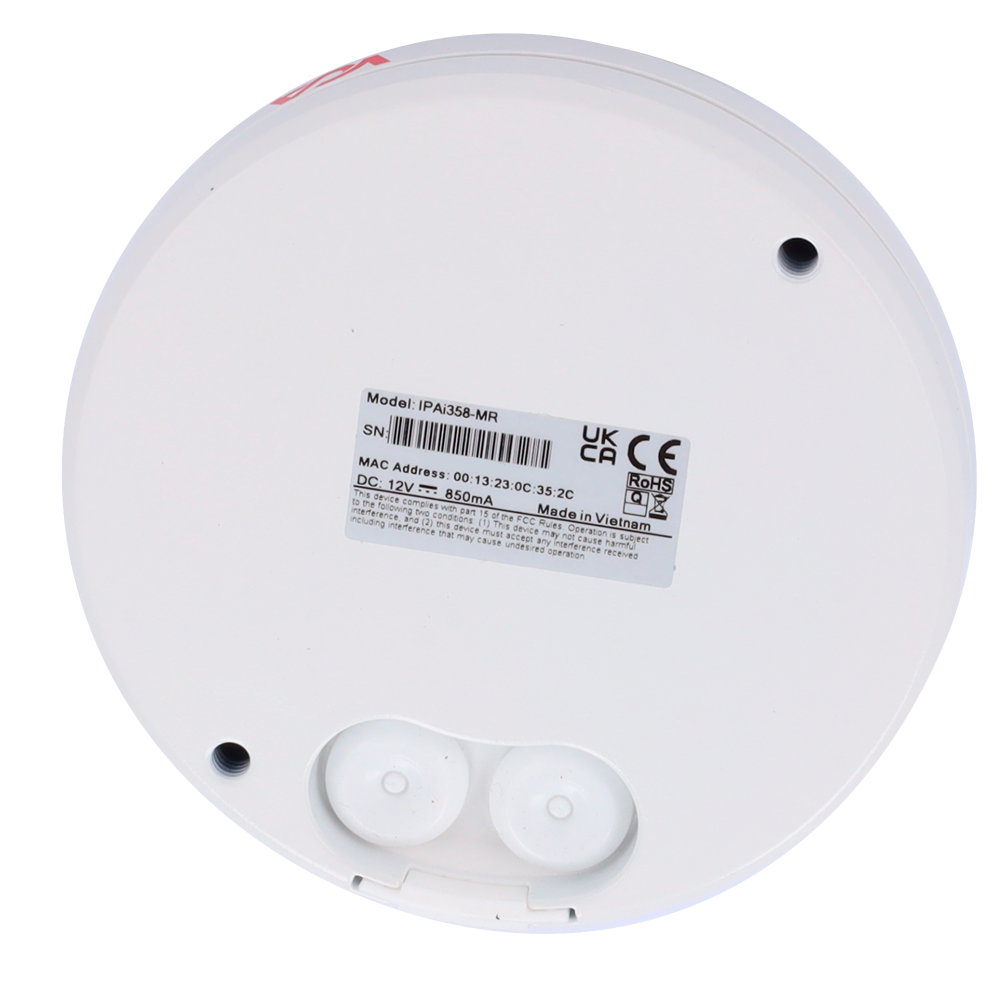

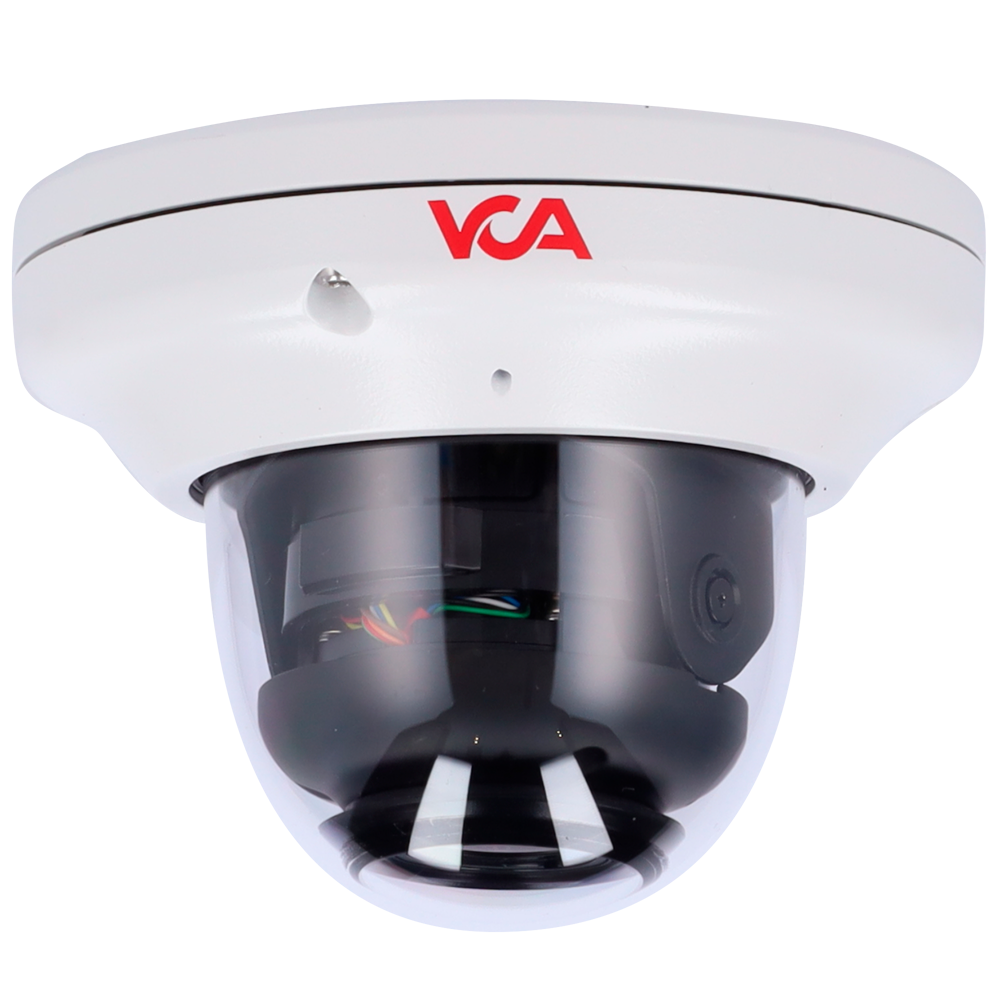

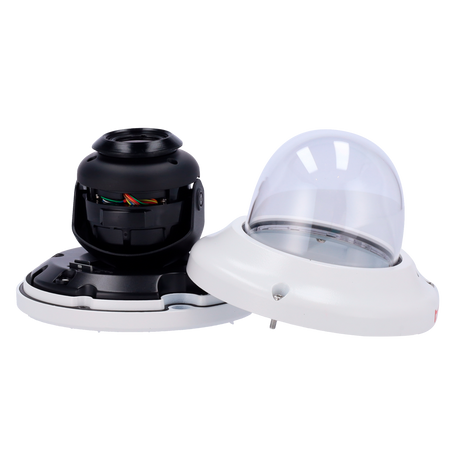

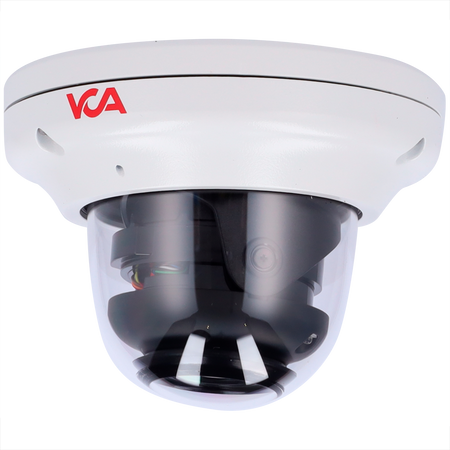

VCA Technology - model VCA-IPAi358-MR, IPAi range - 4K IR AI Mini Dome IP Camera - 8Mpx resolution, 2.7~13.5mm lens. IR 30m. - VCA video analytics (optional deep learning) - Compatible with ONVIF profile S/T/M, NDAA, IK10, IP67
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Range: IPAi
• Model: VCA-IPAi358-MR
• Optical sensor: Sony Starvis EXMOR 1/2.8” 8.6M CMOS
• Maximum resolution: 3840(H) x 2160(V)
• Minimum illumination: Color: 0.09 Lux; B/W: 0 Lux (IR LED On)
• WDR: True WDR 120 dB
• Lens: 2.7~13.5mm
• Viewing angle: Horizontal: 90.3° (wide) to 33.1° (tele)
• Aperture: F1.4
• Shutter: Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10)
• IR LED: High Power IR LED x 2; 30m distance
• Video compression: H.264, H.265, MJPEG
• Privacy Mask: Up to 16 zones
• Integrated video analytics: intrusion detection, detection zones and lines, tampering detection, presence, absence, loitering, entry, exit
• Optional video analytics (deep learning): people tracking, object tracking (people, cars, motorcycles), object metadata
• Ethernet: 10/100BASE-T
• ONVIF: ONVIF profile S/T/M
• Security: HTTPS (SSL), IP filtering, 802.1x, Digest Authentication
• Protocols: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF
• Storage: microSD/microSDHC/microSDXC card slot (not included)
• Audio compression: G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz
• Audio input: Built-in microphone, supply voltage: 2.4VDC (3mA), input impedance: 3K Ohm
• Audio output: Line out, maximum output level: 1Vrms
• I/O terminals: 1 x alarm input, 1 x relay output
• Construction material: Aluminum (die-cast), white
• Housing: Mini dome
• Consumption: DC12V max. 10.2W; PoE max. 12.5W
• Power supply: DC12V, PoE (IEEE 802.3af)
• Operating conditions: Humidity 10% ~ 90% RH (non-condensing); -30°C ~ 50°C
• Standards: FCC, CE, IP67, IK10
• Certifications: NDAA compliant
• Dimensions: Ø125mm x 92mm
• Weight: 0.85 kg
• Warranty: 2 years
📦 INCLUDED:
• VCA-IPAi358-MR camera• Installation manual and quick start guide• Mounting accessories
| Range | IPAi |
|---|---|
| Model | VCA-IPAi358-MR |
| Optical sensor | Sony Starvis EXMOR 1/2.8” 8.6M CMOS |
| Maximum resolution | 3840(H) x 2160(V) |
| Minimum illumination | Color: 0.09 Lux B/W: 0 Lux (IR LED On) |
| WDR | True WDR 120 dB |
| Lens | 2.7~13.5mm |
| Viewing angle | Horizontal: 90.3° (wide) to 33.1° (tele) |
| Aperture | F1.4 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) |
| IR LED | High Power IR LED x 2 30m distance |
| Video compression | H.264, H.265, MJPEG |
| Privacy mask | Up to 16 zones |
| Built-in video analysis | anti-intrusion, detection zones and lines, tampering detection, presence, absence, loitering, entrance, exit |
| Optional video analysis (deep learning) | person tracking, object tracking (people, cars, motorcycles), object metadata |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF Profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | microSD/microSDHC/microSDXC card slot (not included) |
| Audio compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |
| Audio input | Microphone included, supply voltage: 2.4VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |
| I/O terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast), white |
| Housing | Mini dome |
| Power consumption | DC12V max. 10.2W, PoE max. 12.5W |
| Power supply | DC12V, PoE (IEEE 802.3af) |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing) -30°C ~ 50°C |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | NDAA compliant |
| Dimensions | Ø125mm x 92mm |
| Weight | 0.85 kg |
| Warranty | 2 years |
