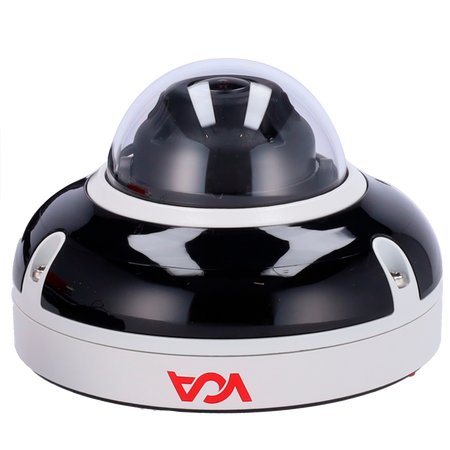

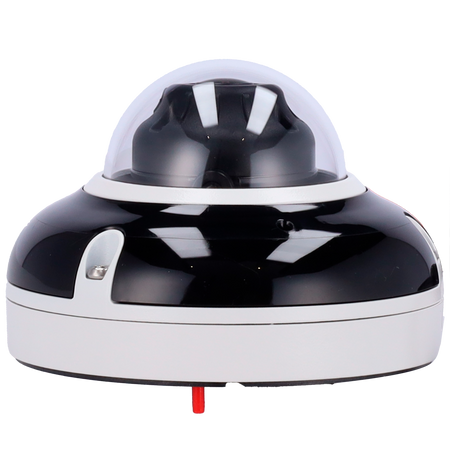

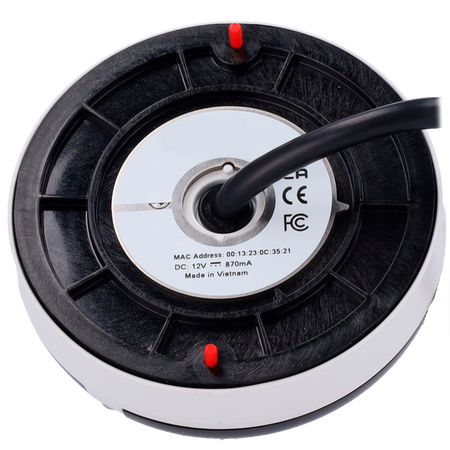

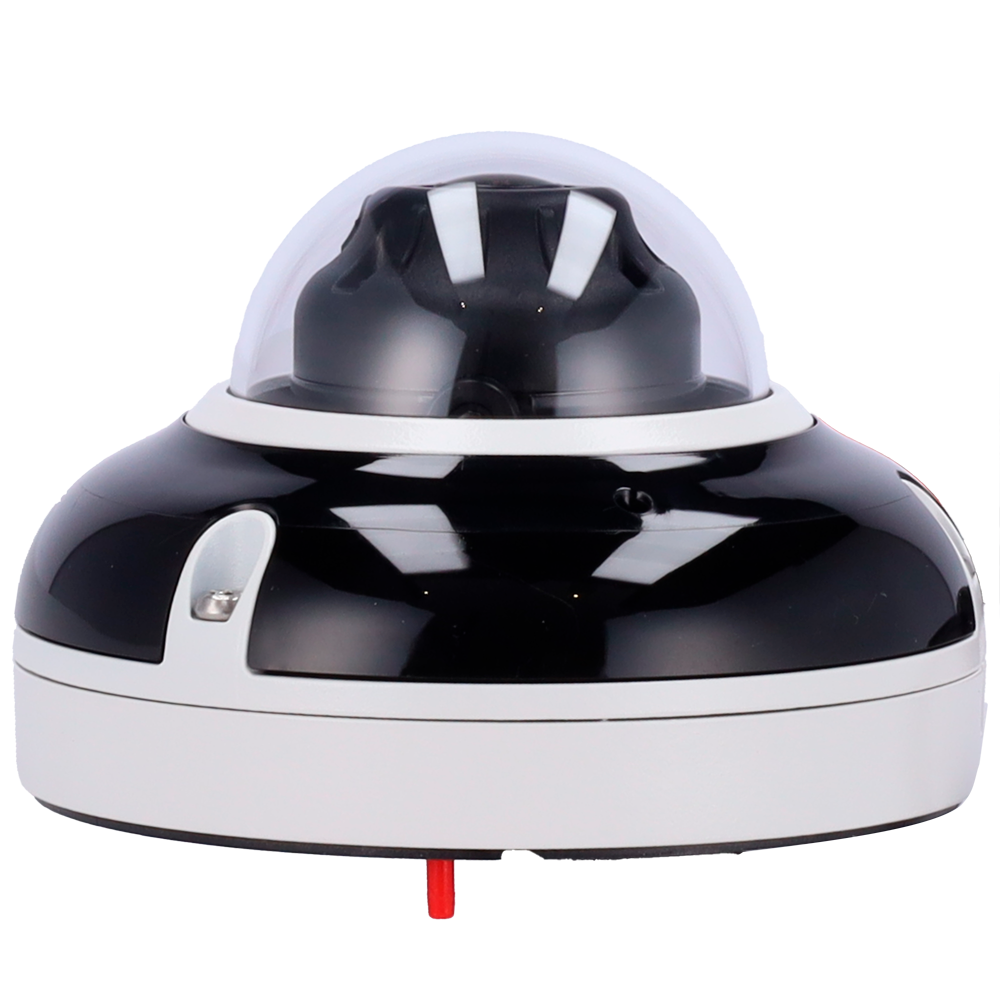

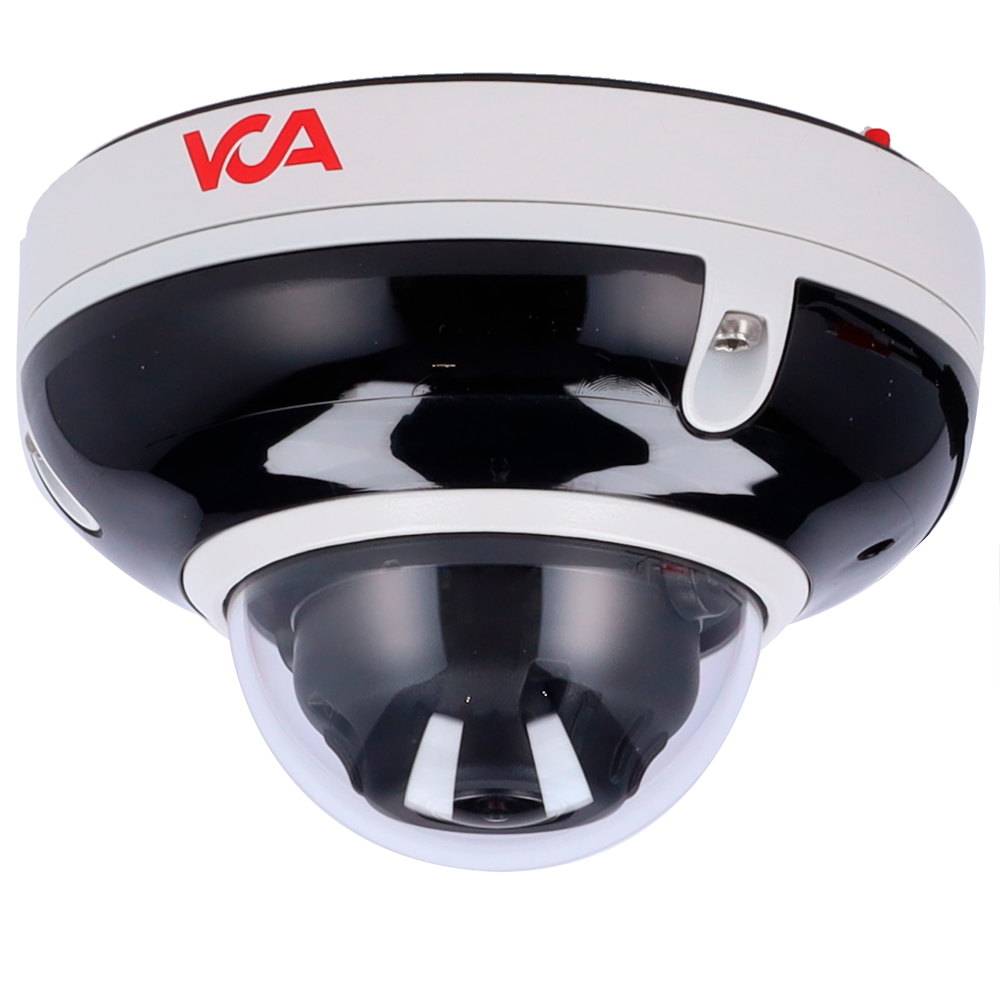

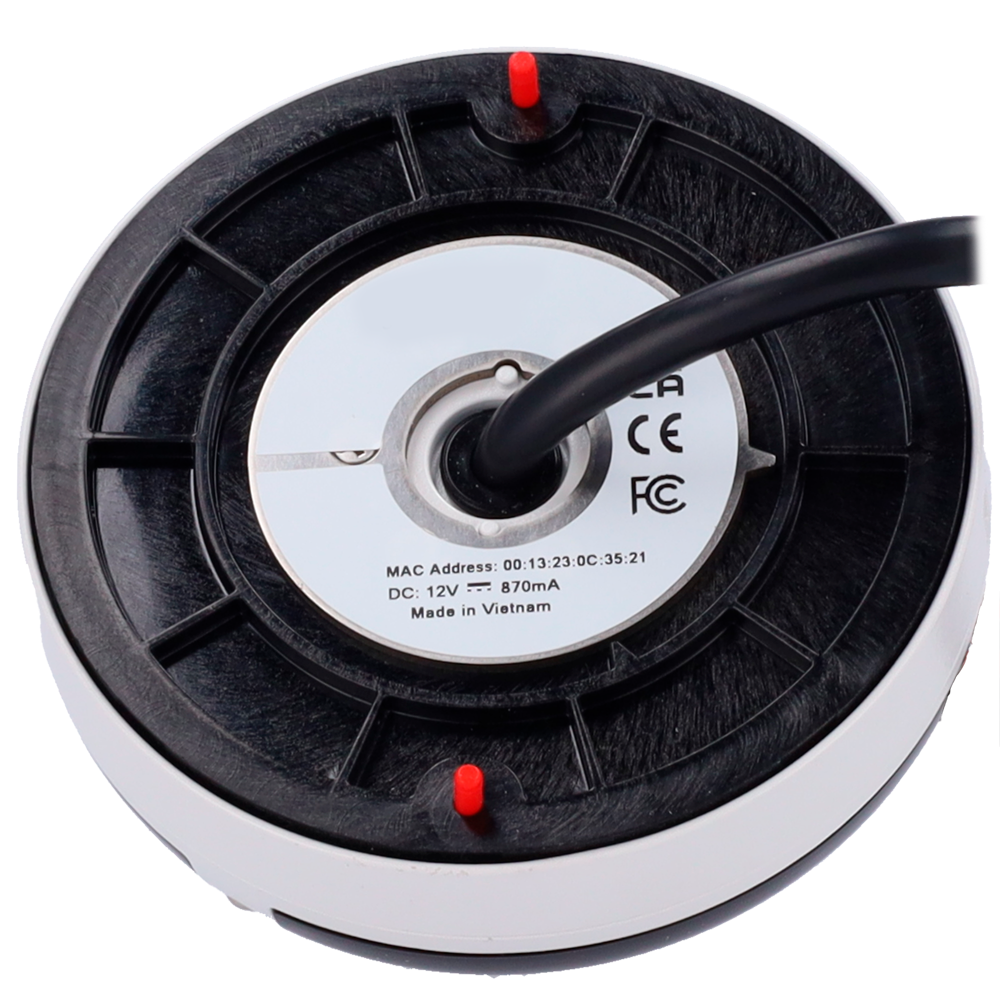

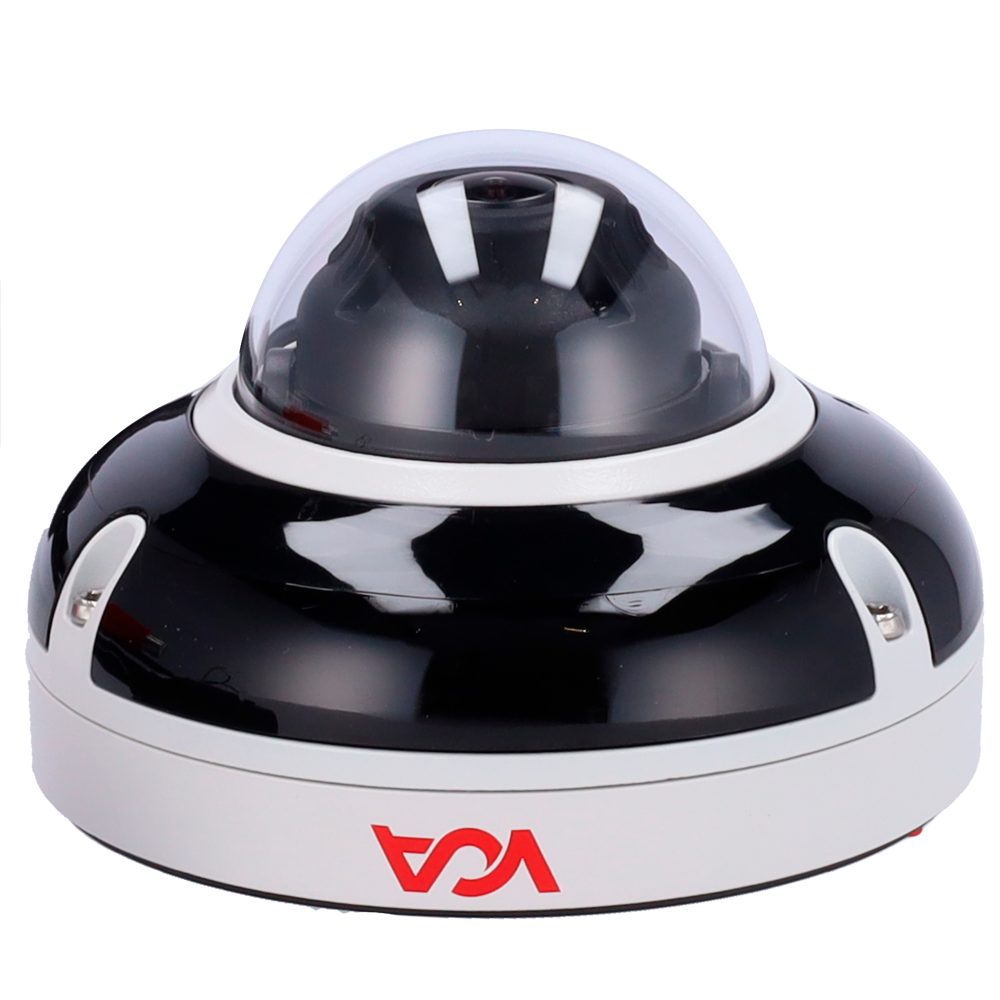

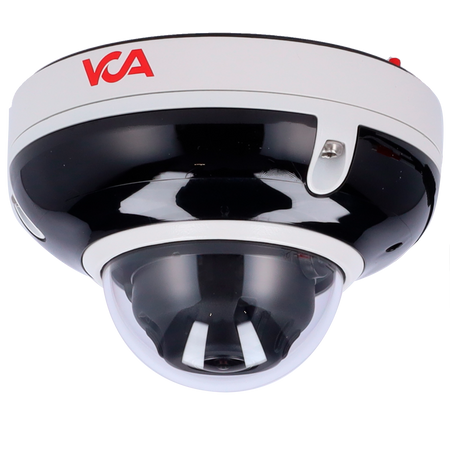

VCA Technology - model VCA-IPAi345S-FR, IPAi-S series - 5MP IR AI compact IP dome camera - 5Mpx resolution, 2.8mm lens. IR 30m. - VCA video analytics (optional deep learning) - ONVIF profile S/T/M compatible, NDAA, IK10, IP67
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Series: IPAi-S
• Model: VCA-IPAi345S-FR
• Optical sensor: Sony Starvis2 1/2.8” 5.17M CMOS
• Maximum resolution: 2592(H) x 1944(V)
• Minimum illumination: Color: 0.08 Lux; B/W: 0 Lux (IR LED On)
• WDR: True WDR 120 dB
• Lens: 2.8mm
• Viewing angle: 97.7º x 73º
• Aperture: F2.2
• Shutter: Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10)
• IR LED: High Power IR LED x 2; 30m distance
• Video compression: H.264, H.265, MJPEG
• Privacy Mask: Up to 16 zones
• Integrated video analytics: intrusion, detection zones and lines, tamper detection, presence, absence, loitering, entry, exit
• Optional video analytics (deep learning): people tracking, object tracking (people, cars, motorcycles), object metadata
• Ethernet: 10/100BASE-T
• ONVIF: ONVIF profile S/T/M
• Security: HTTPS (SSL), IP filtering, 802.1x, Digest Authentication
• Protocols: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF
• Storage: microSD/microSDHC/microSDXC card slot (not included)
• Audio compression: G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz
• Audio input: Microphone included, supply voltage: 2.4VDC (3mA), input impedance: 3K Ohm
• Audio output: Line output, maximum output level: 1Vrms

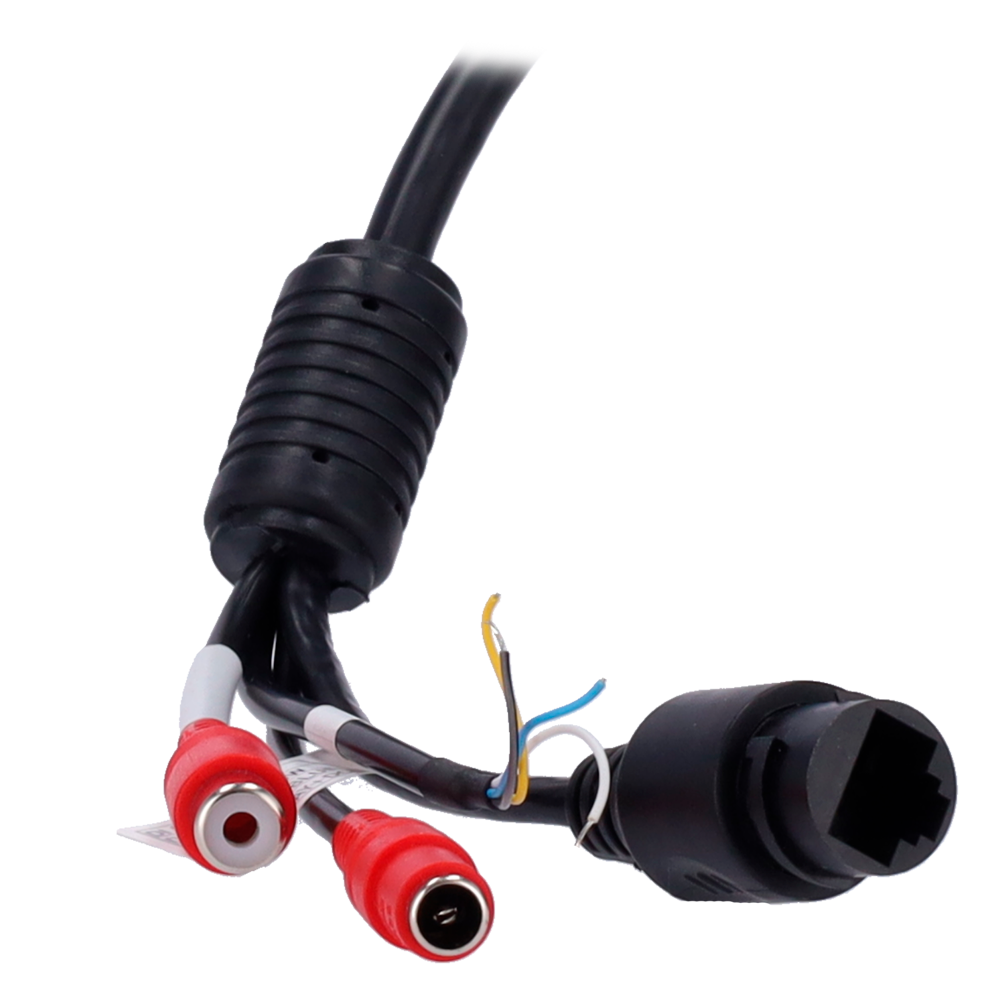

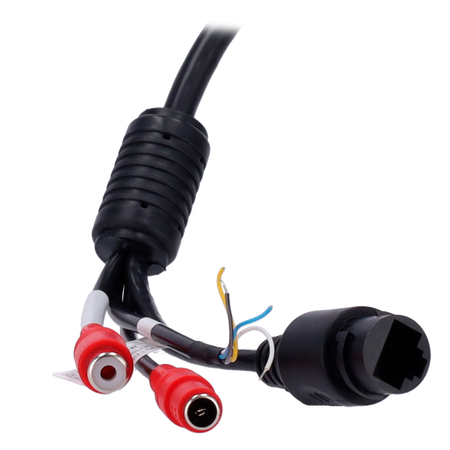

• I/O terminals: 1 x alarm input, 1 x relay output
• Construction material: Aluminum (die-cast), white
• Housing: Compact dome
• Consumption: DC12V max. 10.4W; PoE max. 12.5W
• Power supply: DC12V, PoE (IEEE 802.3af) Class 3
• Operating conditions: Humidity 10% ~ 90% RH (non-condensing); -30°C ~ 50°C
• Standards: FCC, CE, IP67, IK10
• Certifications: Compliant with NDAA standards
• Dimensions: Ø105mm x 72mm
• Weight: 0.44 kg
• Warranty: 2 years
📦 INCLUDED:
• VCA-IPAi345S-FR camera• Installation manual and quick start guide• Mounting accessories
| Range | IPAi-S |
|---|---|
| Model | VCA-IPAi345S-FR |
| Optical sensor | Sony Starvis2 1/2.8” 5.17M CMOS |
| Maximum resolution | 2592(H) x 1944(V) |
| Minimum illumination | Color: 0.08 Lux B/W: 0 Lux (IR LED On) |
| WDR | True WDR 120 dB |
| Lens | 2.8mm |
| Viewing angle | 97.7º x 73º |
| Aperture | F2.2 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) |
| IR Led | High Power IR LED x 2 30m. distance |
| Video compression | H.264, H.265, MJPEG |
| Privacy Mask | Up to 16 zones |
| Built-in video analysis | anti-intrusion, detection zones and lines, tampering detection, presence, absence, loitering, entry, exit |
| Optional video analysis (deep learning) | person tracking, object tracking (people, cars, motorcycles), object metadata |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | microSD/microSDHC/microSDXC card slot (not included) |
| Audio compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |
| Audio input | Microphone included, supply voltage: 2.4VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |
| I/O terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast), white |
| Housing | Compact dome |
| Consumption | DC12V max. 10.4W PoE max. 12.5W |
| Power supply | DC12V, PoE (IEEE 802.3af) Class 3 |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing) -30°C ~ 50°C |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | NDAA compliant |
| Dimensions | Ø105mm x 72mm |
| Weight | 0.44 kg |
| Warranty | 2 years |
