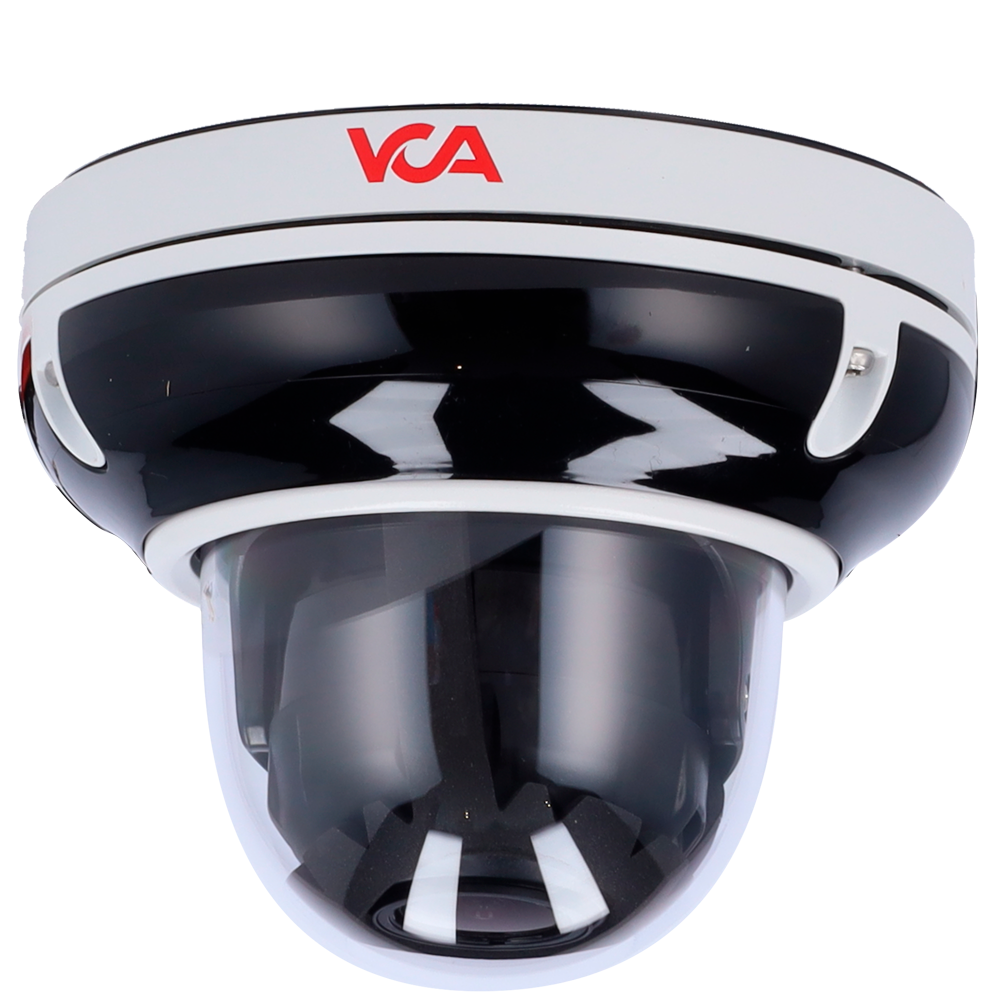

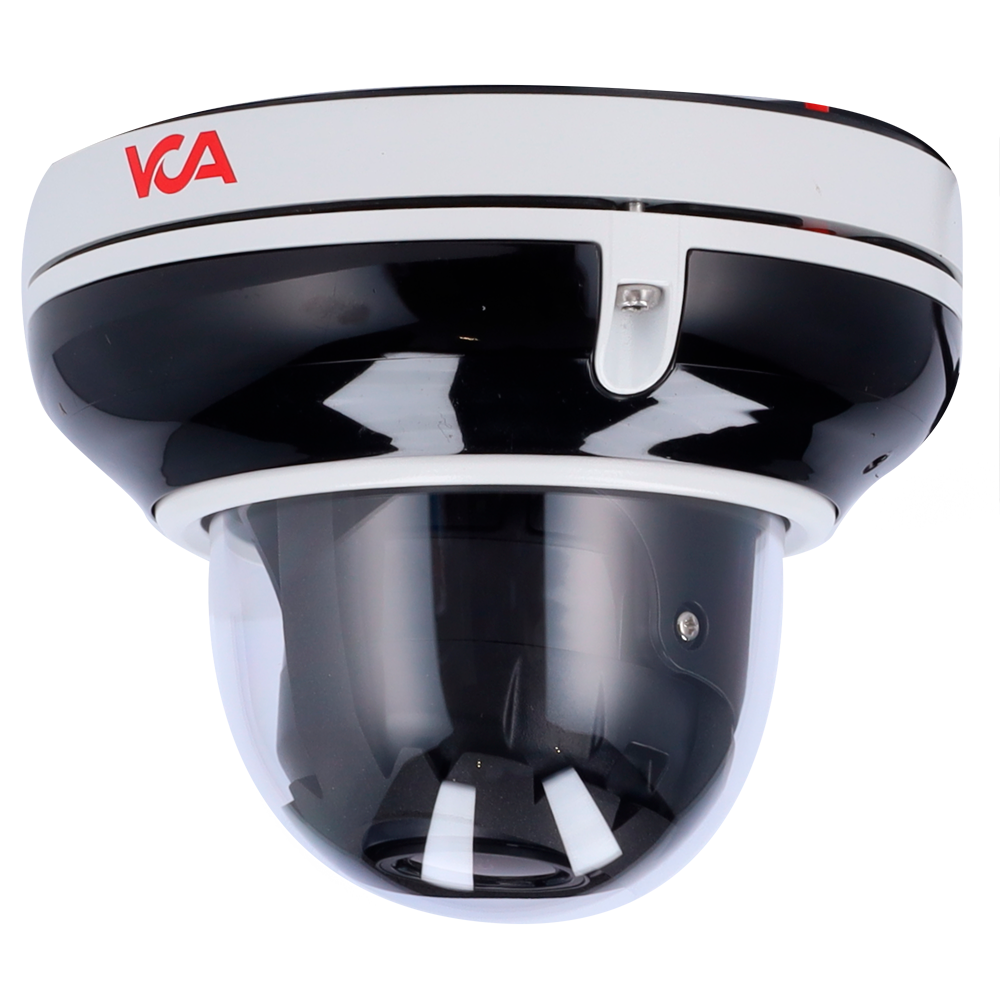

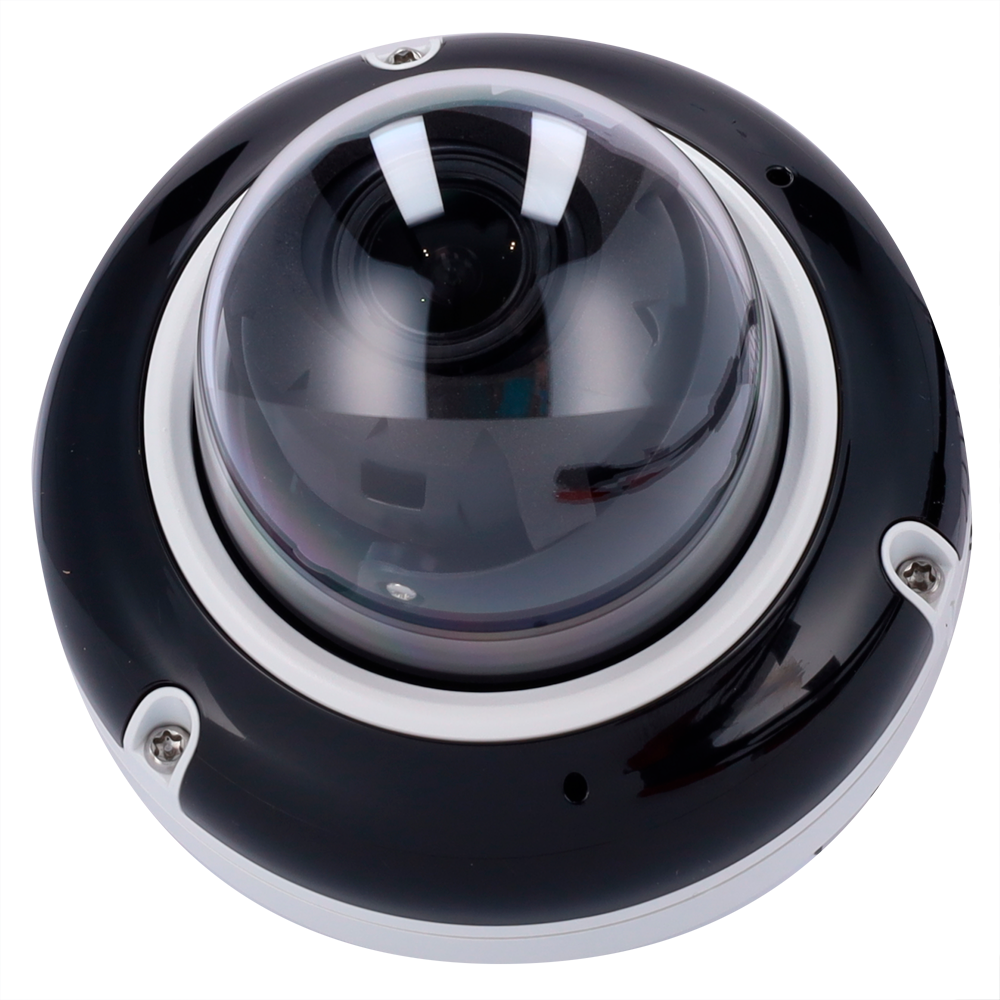

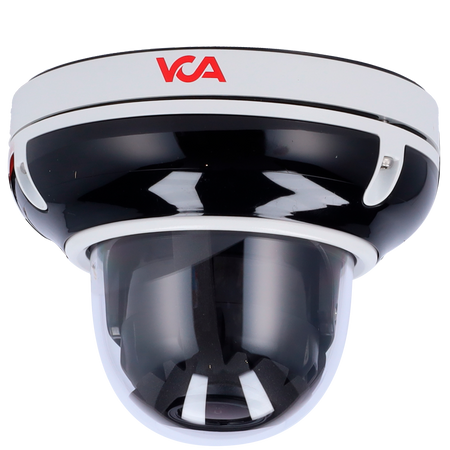

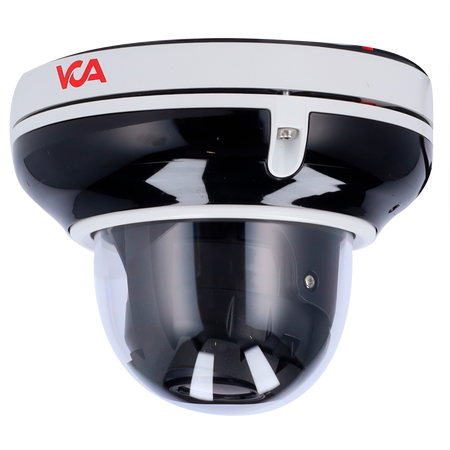

VCA Technology - model VCA-IPAi325S-MR, IPAi-S range - 5MP IR AI mini dome IP camera - 5Mpx resolution, 2.7~13.5mm lens. IR 30m. - VCA video analytics (optional deep learning) - ONVIF Profile S/T/M compatible, NDAA, IK10, IP67
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Range: IPAi-S
• Model: VCA-IPAi325S-MR
• Optical sensor: Sony Starvis2 1/2.8” 5.17M CMOS
• Maximum resolution: 2592(H) x 1944(V)
• Minimum illumination: Color: 0.04 Lux; B/W: 0 Lux (IR LED On)
• WDR: True WDR 120 dB
• Lens: 2.7~13.5mm.
• Field of view: Horizontal: 98.3° (wide) to 31.6° (tele)
• Aperture: F1.4
• Shutter: Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10)
• IR LED: High Power IR LED x 2; 30m range
• Video compression: H.264, H.265, MJPEG
• Privacy Mask: Up to 16 zones
• Integrated video analytics: intrusion, detection zones and lines, tamper detection, presence, absence, loitering, entry, exit
• Optional video analytics (deep learning): people tracking, object tracking (people, cars, motorcycles), object metadata
• Ethernet: 10/100BASE-T
• ONVIF: ONVIF Profile S/T/M
• Security: HTTPS (SSL), IP filtering, 802.1x, Digest Authentication
• Protocols: TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF
• Storage: Slot for microSD/microSDHC/microSDXC cards (not included)
• Audio compression: G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz
• Audio input: Microphone included, supply voltage: 2.4VDC (3mA), input impedance: 3K Ohm
• Audio output: Line out, maximum output level: 1Vrms

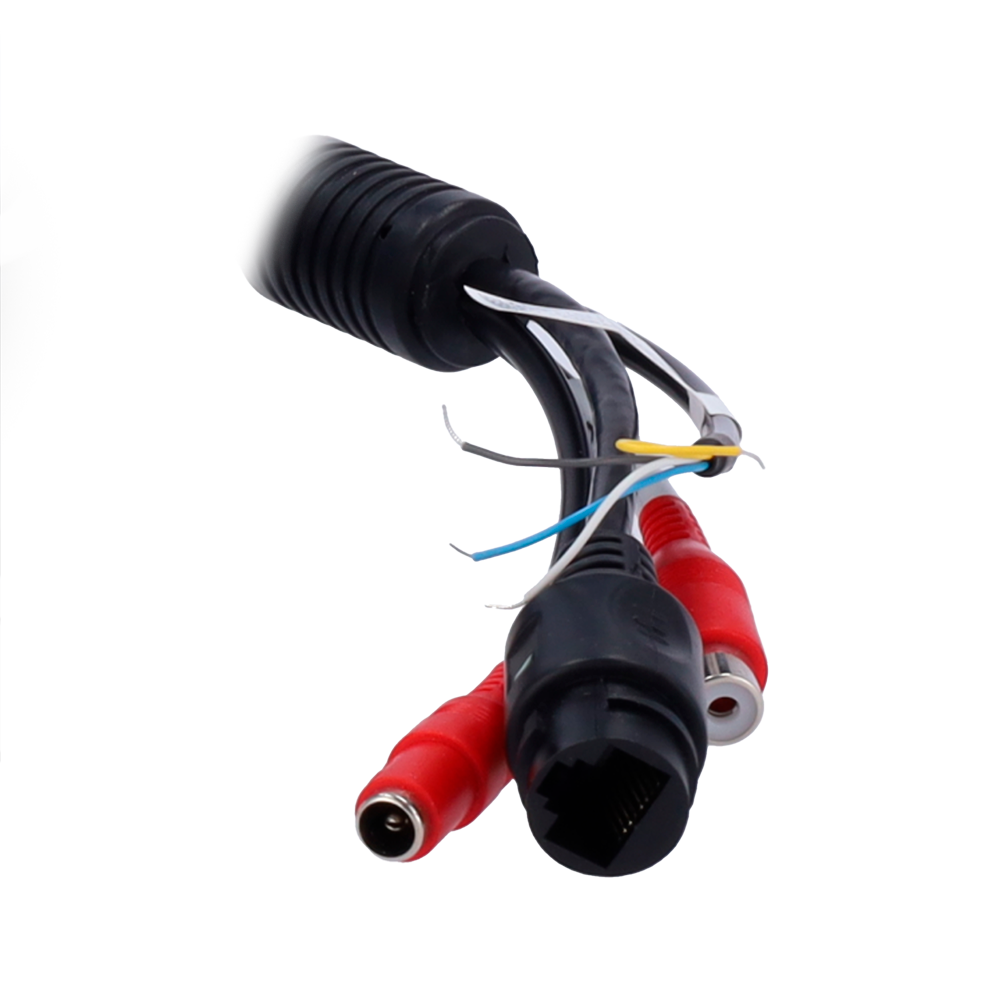

• I/O Terminals: 1 x alarm input, 1 x relay output
• Construction material: Aluminum (die-cast), white
• Housing: Mini dome
• Power consumption: DC12V max. 8.5W; PoE max. 11W
• Power supply: DC12V, PoE (IEEE 802.3af) Class 3
• Operating conditions: Humidity 10% ~ 90% RH (non-condensing); -30°C ~ 50°C
• Standards: FCC, CE, IP67, IK10
• Certifications: Compliant with NDAA standards
• Dimensions: Ø125mm x 100mm
• Weight: 0.63 kg
• Warranty: 2 years
📦 INCLUDED:
• VCA-IPAi325S-MR camera • Installation manual and quick start guide • Mounting accessories
| Range | IPAi-S |
|---|---|
| Model | VCA-IPAi325S-MR |
| Optical sensor | Sony Starvis2 1/2.8” 5.17M CMOS |
| Maximum resolution | 2592(H) x 1944(V) |
| Minimum illumination | Color: 0.04 Lux B/W: 0 Lux (IR LED On) |
| WDR | True WDR 120 dB |
| Lens | 2.7~13.5mm |
| Viewing angle | Horizontal: 98.3° (wide) to 31.6° (tele) |
| Aperture | F1.4 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10) |
| IR LED | High Power IR LED x 2 30m distance |
| Video compression | H.264, H.265, MJPEG |
| Privacy Mask | Up to 16 zones |
| Integrated video analytics | intrusion detection, detection zones and lines, tampering detection, presence, absence, loitering, entry, exit |
| Optional video analytics (deep learning) | person tracking, object tracking (people, cars, motorcycles), object metadata |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF Profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | microSD/microSDHC/microSDXC card slot (not included) |
| Audio compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |
| Audio input | Microphone included, supply voltage: 2.4VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |
| I/O terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast), white |
| Housing | Mini dome |
| Consumption | DC12V max. 8.5W, PoE max. 11W |
| Power supply | DC12V, PoE (IEEE 802.3af) Class 3 |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing) -30°C ~ 50°C |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | NDAA compliant |
| Dimensions | Ø125mm x 100mm |
| Weight | 0.63 kg |
| Warranty | 2 years |
