VCA Technology VCAserver AI video analysis - Nvidia Jetson Orin Nano 8GB - 2TB M.2 NVMe - Linux Ubuntu 22.04 LTS O.S. - Licenses included: 8ch ProAI 3ch Behavior - NX server installed max. 8 channels - not included
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Range: VCA AI Bridge

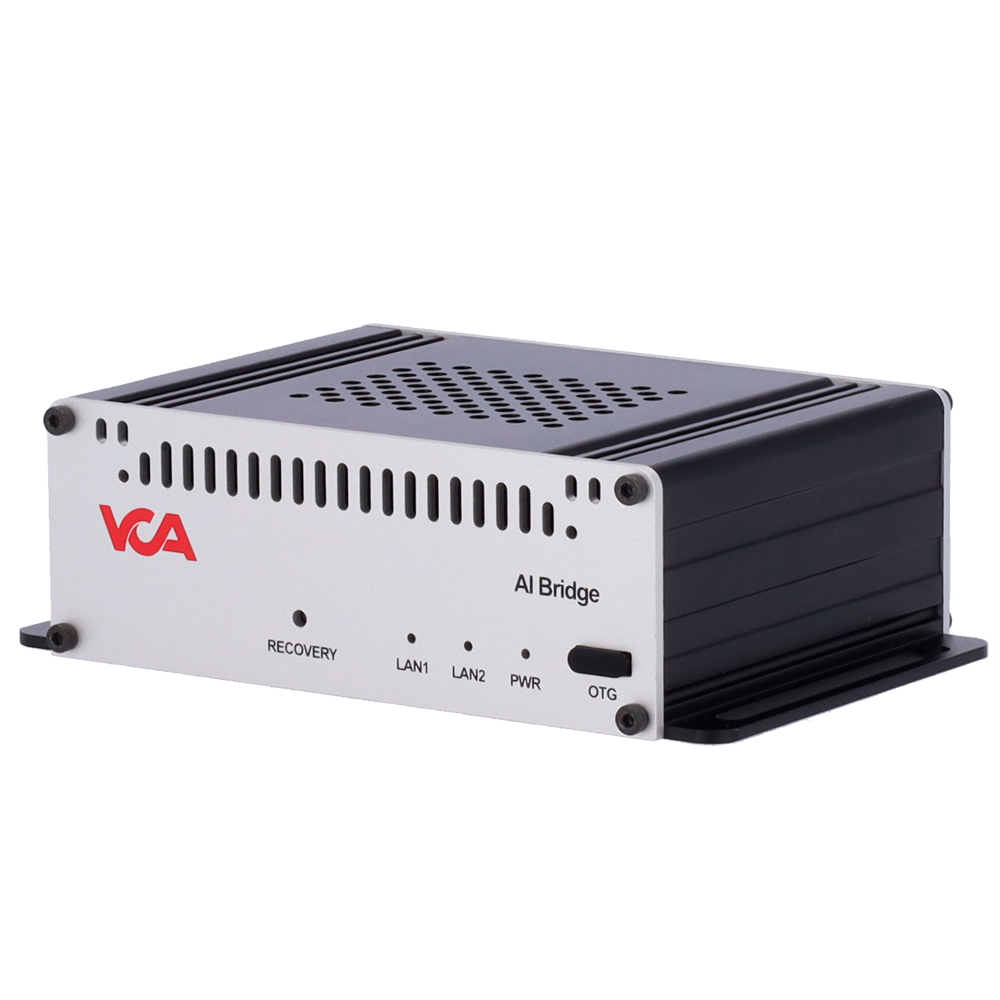

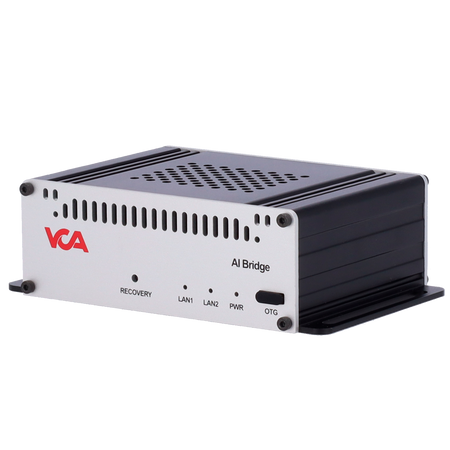

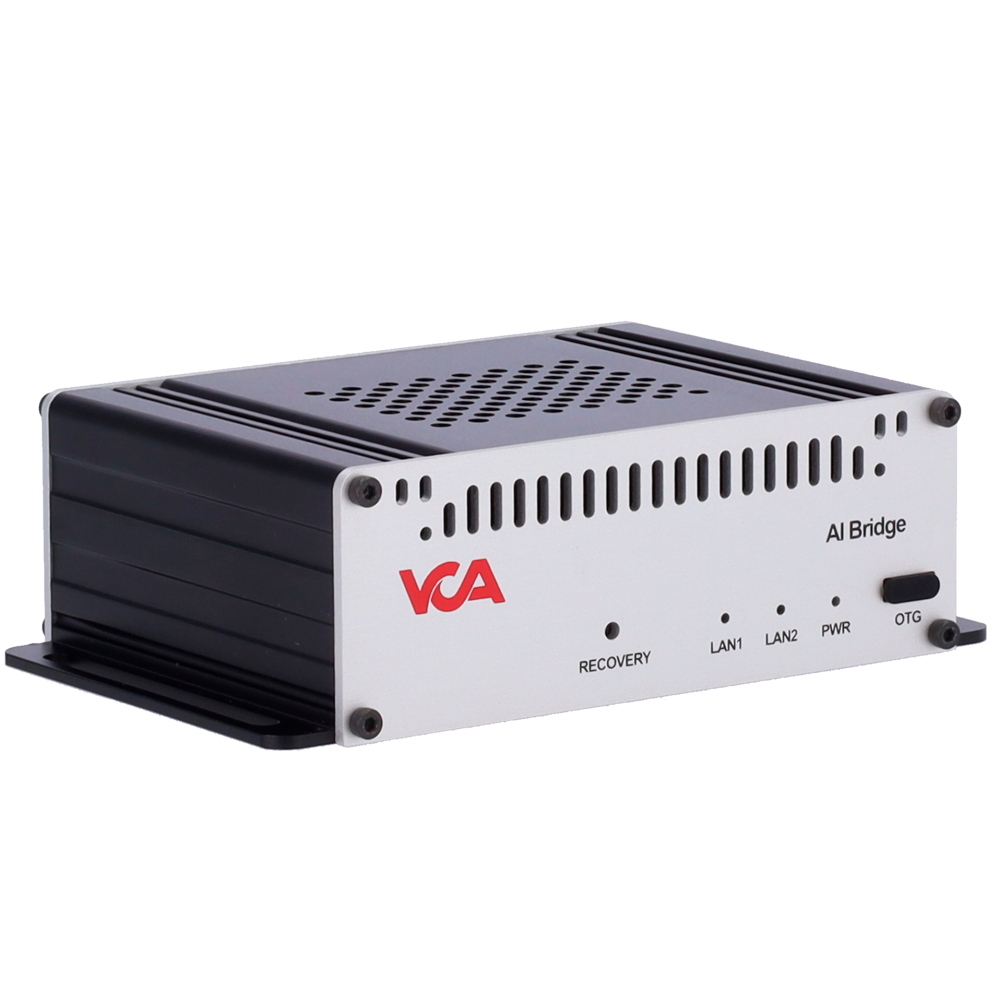

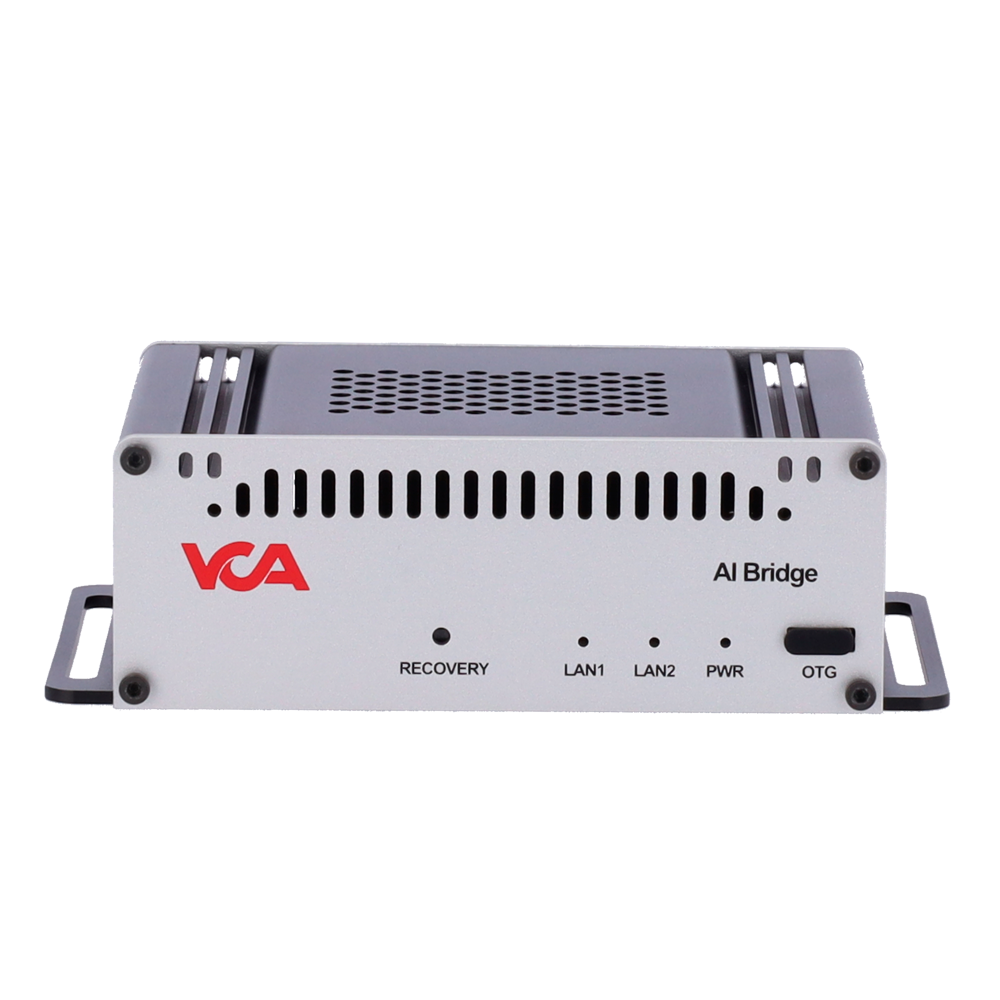

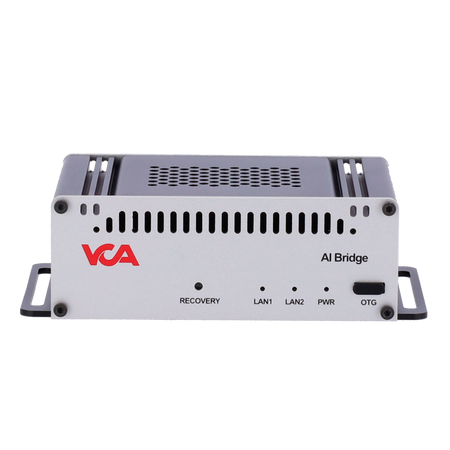

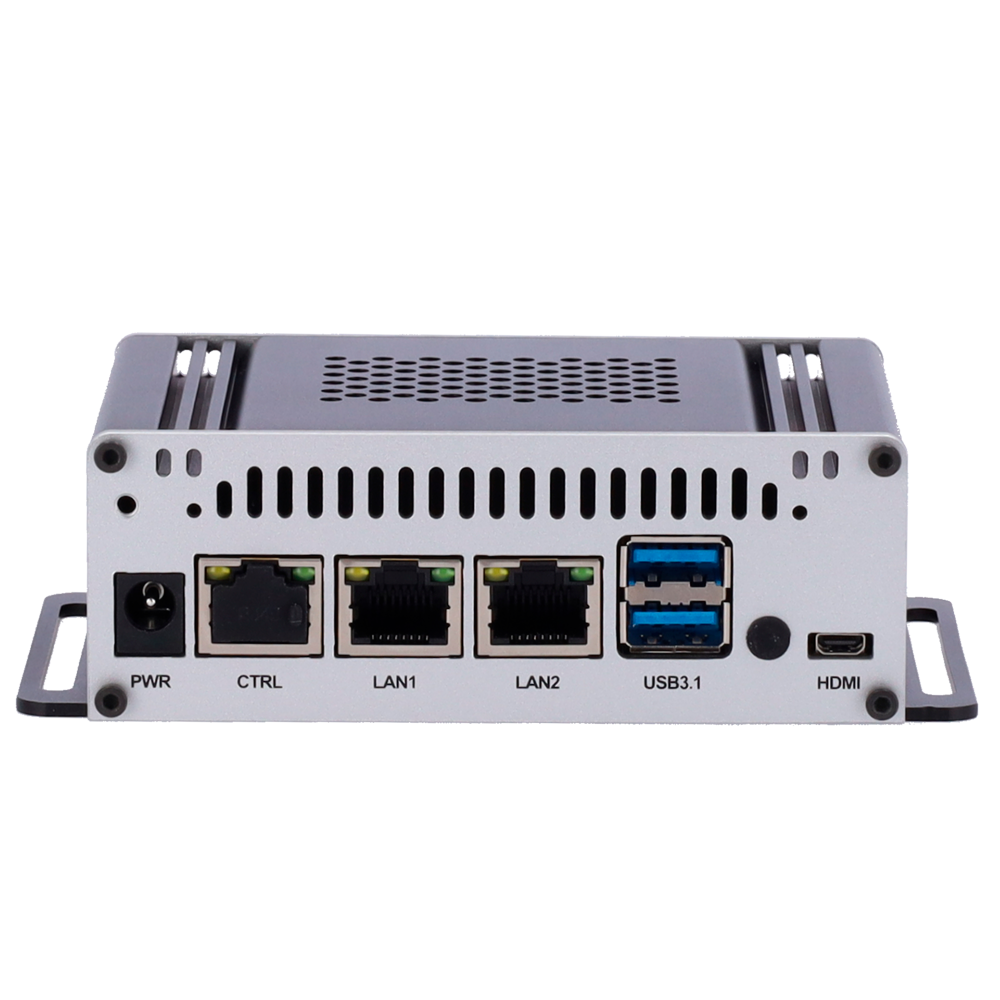

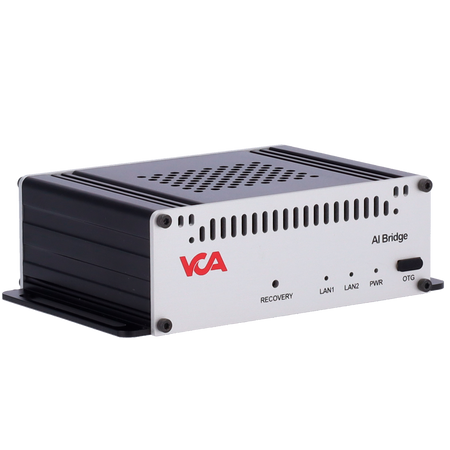

• Model: VCA-ABP302-NX-2TB
• Core module: NVIDIA Jetson Orin Nano 8GB
• GPU module: 1024-core NVIDIA Ampere with 32 Tensor cores
• Storage: 2TB M.2 NVMe
• Operating system: Linux Ubuntu 22.04 LTS

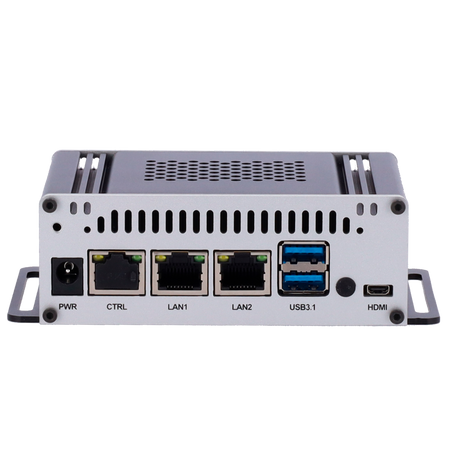

• Video (GPU): micro HDMI
• USB ports: 2 x USB 3.1 Gen (Type A)
• Ethernet: 2 x 1 RJ45 Gigabit
• Built-in VCA events: Intrusion, tamper, entry/exit from zone, presence/disappearance from zone, stopping in zone, dwell time, direction, people counting, abandoned object, removed object, passage in zone and line crossing, speed, logical rules
• AI video analysis included: VCA stream (12fps@640x360); DLOT/DLPT/DLST: 8 channels; Fight, aggression, fall, object in hand, accessories: 3 channels; DLOT: Deep Learning Object Tracker; DLPT: Deep Learning People Tracker; DLST: Deep Learning Skeleton Tracker
• Licenses included: 8ch ProAI; 3ch Behavior
• VMS integration: Integrated with Network Optix (events/objects/plugins)
• Housing: Industrial PC
• Construction material: Metal, silver and black color
• Consumption: DC12V/5A, maximum 1.5A (18Watt)

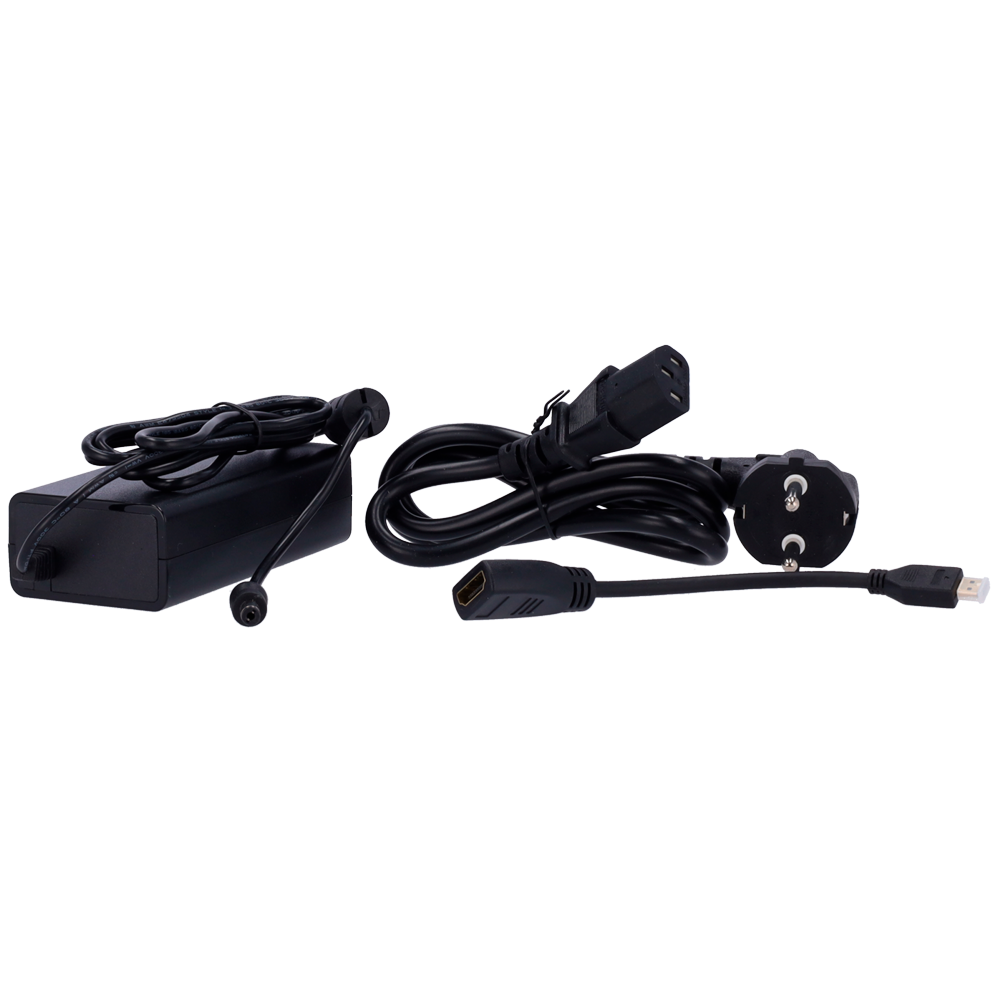

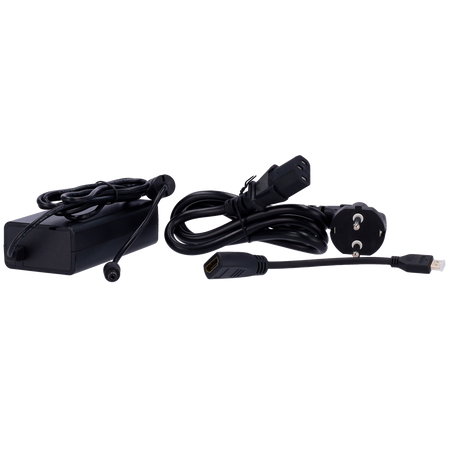

• Power supply: DC12V/5A
• Operating conditions: Humidity 20% ~ 85% RH (non-condensing); 0°C ~ 50°C
• Standards: FCC, CE, IP67, IK10
• Dimensions: 128.5mm x 39.1mm x 79mm
• Weight: 0.350 kg
• Warranty: 3 years
📦 INCLUDED:
• VCA-ABP302-NX-2TB device• Installation manual and quick start guide
| Range | VCA AI Bridge |
|---|---|
| Model | VCA-ABP302-NX-2TB |
| Core module | NVIDIA Jetson Orin Nano 8GB |
| GPU module | 1024-core NVIDIA Ampere with 32 Tensor cores |
| Storage | 2TB M.2 NVMe |
| Operating system | Linux Ubuntu 22.04 LTS |
| Video (GPU) | micro HDMI |
| USB ports | 2 x USB 3.1 Gen (Type A) |
| Ethernet | 2 x 1 RJ45 Gigabit |
| Integrated VCA events | Intrusion, tamper, zone entry/exit, appearance/disappearance in zone, loitering in zone, dwell time, direction, people counting, abandoned object, removed object, zone passage and line crossing, speed, logical rules |
| Included AI video analytics | VCA stream (12fps@640x360) DLOT/DLPT/DLST: 8 channels Fight, aggression, fall, object in hand, accessories: 3 channels DLOT: Deep Learning Object Tracker DLPT: Deep Learning People Tracker DLST: Deep Learning Skeleton Tracker |
| Licenses included | 8ch ProAI 3ch Behavior |
| VMS integration | Integrated with Network Optix (events/objects/plugins) |
| Housing | Industrial PC |
| Construction material | Metal, silver and black |
| Consumption | DC12V/5A, maximum 1.5A (18Watt) |
| Power supply | DC12V/5A |
| Operating conditions | Humidity 20% ~ 85% RH (non-condensing) 0°C ~ 50°C |
| Standards | FCC, CE, IP67, IK10 |
| Dimensions | 128.5mm x 39.1mm x 79mm |
| Weight | 0.350 kg |
| Warranty | 3 years |
