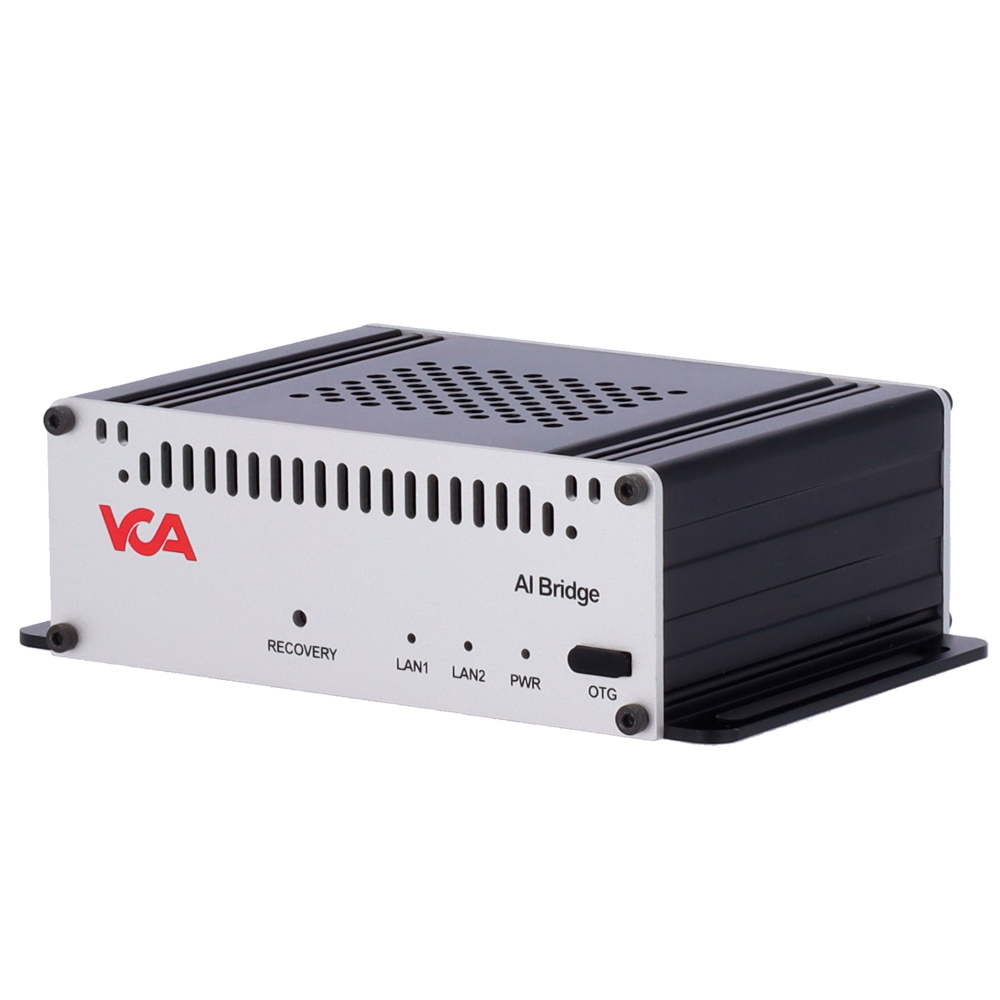

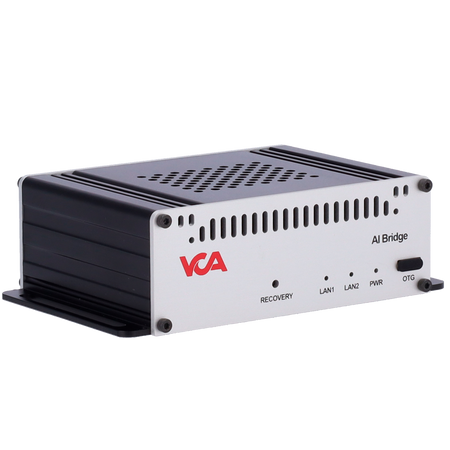

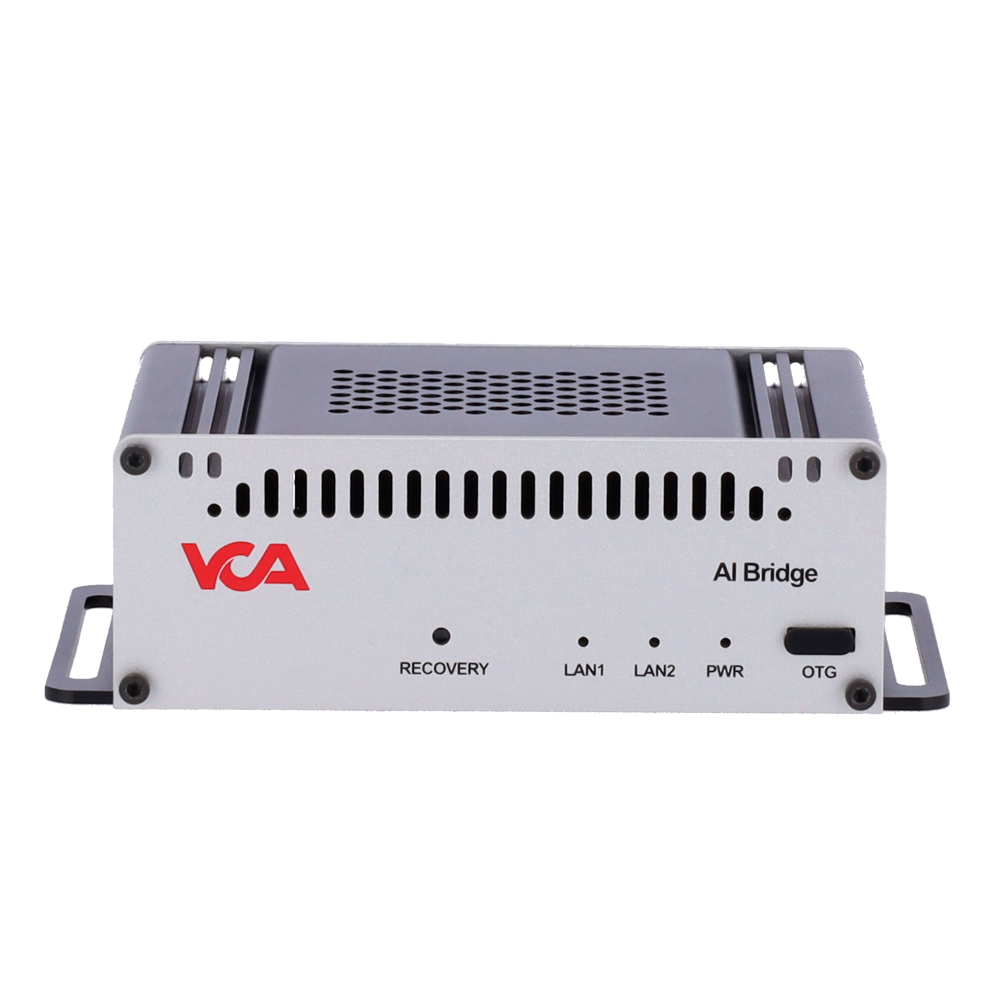

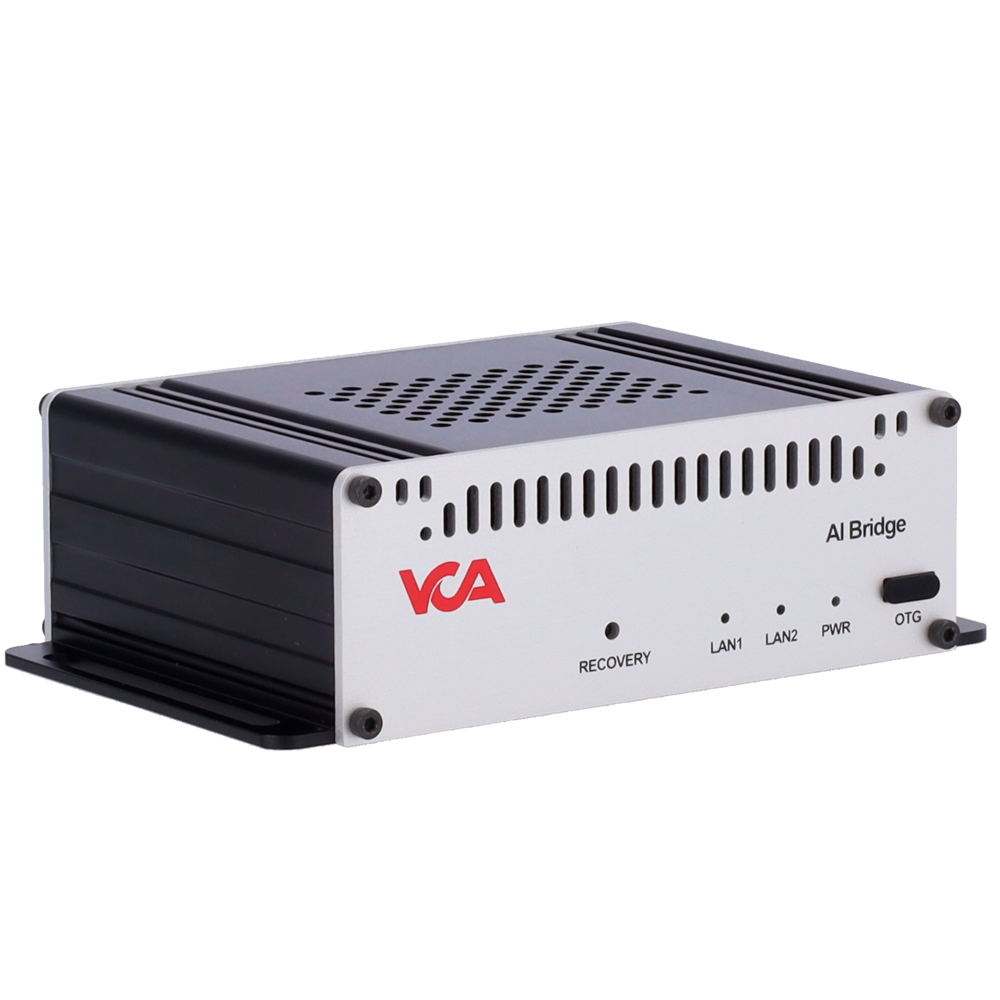

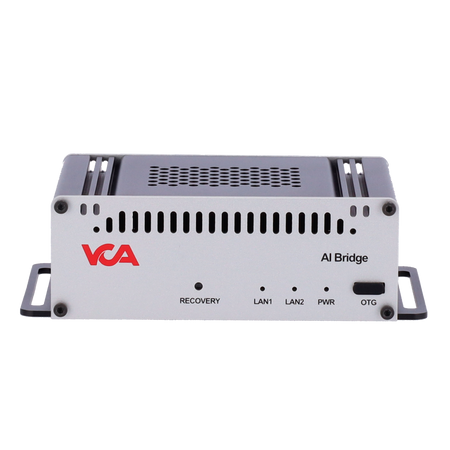

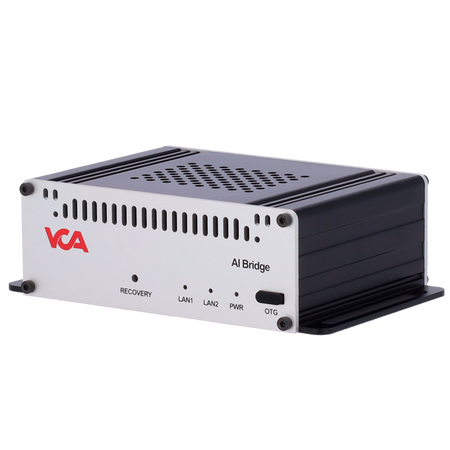

VCA Technology VCAserver AI Bridge - Model VCA-ABP302 - Nvidia Jetson Orin Nano 8GB - 250GB M.2 NVMe - OS Linux Ubuntu 22.04 LTS - Licenses not included
📋 SPECIFICATIONS:
• Brand: VCA Technology
• Range: VCA AI Bridge
• Model: VCA-ABP302
• Core module: NVIDIA Jetson Orin Nano 8GB
• GPU module: 1024-core NVIDIA Ampere with 32 Tensor cores
• Storage: 250GB M.2 NVMe
• Operating system: Linux Ubuntu 22.04 LTS

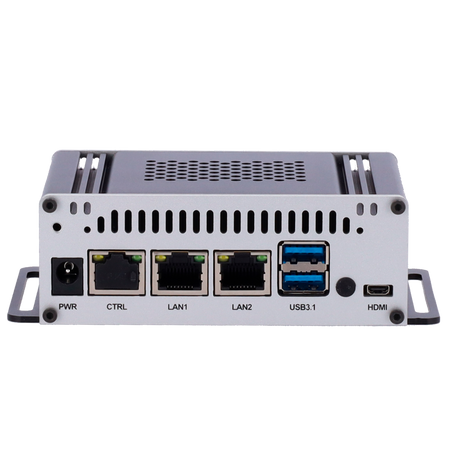

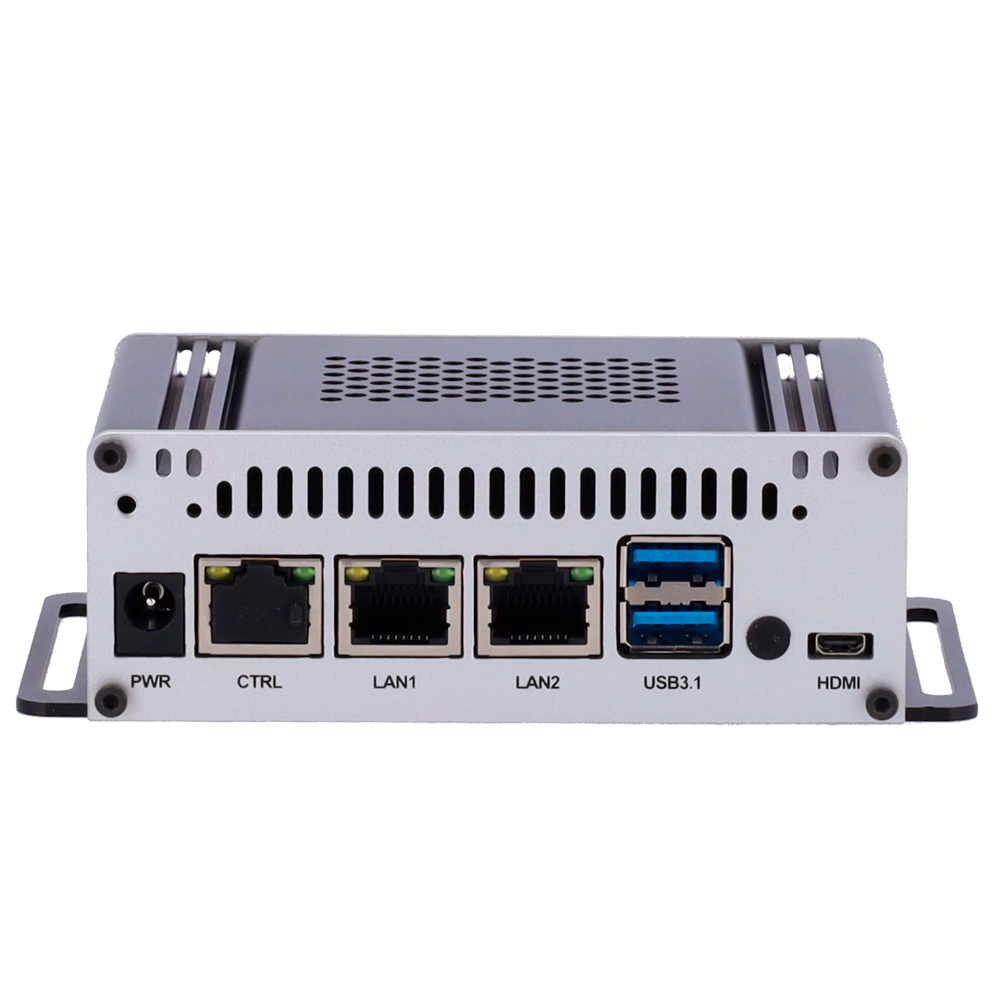

• Video (GPU): micro HDMI
• USB ports: 2 x USB 3.1 Gen (Type A)
• Ethernet: 2 x 1 RJ45 Gigabit
• Integrated VCA events: Intrusion, tamper, zone entry/exit, appearance/disappearance in zone, loitering, dwell time, direction, people counting, abandoned object, removed object, zone passage and line crossing, speed, logic rules
• Supported DL video analytics; (licenses not included): VCA stream (12fps@640x480); DL Object Tracker: 8 channels; DL People Tracker: 8 channels; DL Skeleton Tracker: 8 channels; DL Fisheye Tracker: 6 channels; HOIT: 8 channels; Fall detection: 4 channels; Aggression detection: 4 channels
• VMS integration: Integrated with Network Optix (events/objects/plugins)
• Housing: Industrial PC
• Construction material: Metal, silver and black color
• Consumption: DC12V/5A, maximum 1.5A (18Watt)
• Power supply: DC12V/5A
• Operating conditions: Humidity 20% ~ 85% RH (non-condensing); 0°C ~ 50°C
• Standards: FCC, CE
• Dimensions: 128.5mm x 39.1mm x 79mm
• Weight: 0.350 kg
• Warranty: 3 years
• VMS integration: Integrated with Network Optix (events/objects/plugins)
📦 INCLUDED:

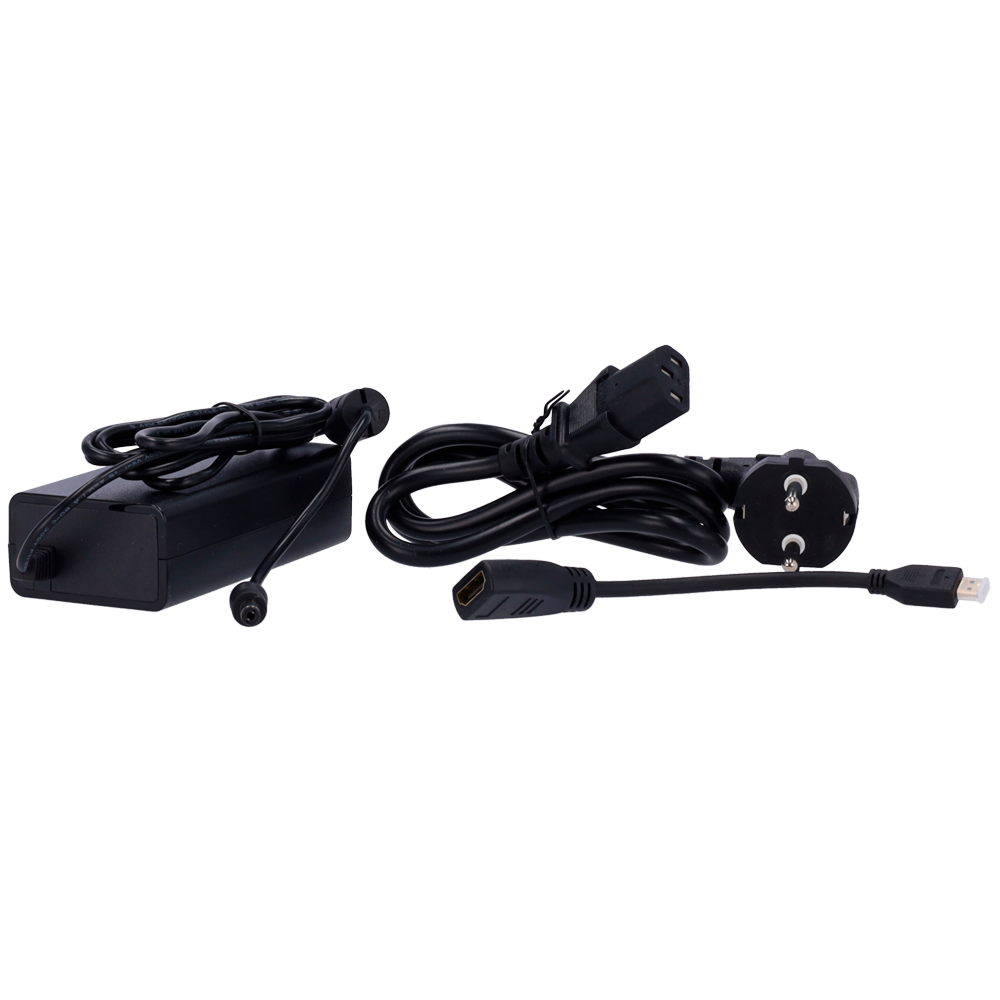

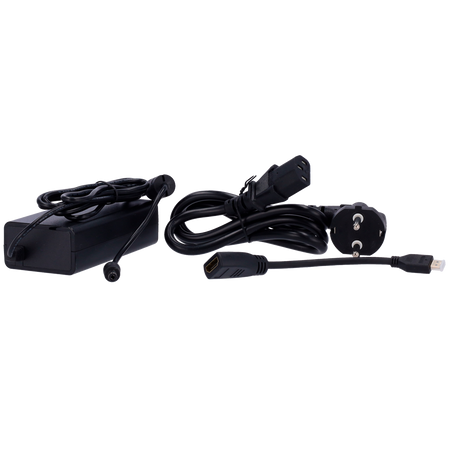

• VCA-ABP302 device• Installation manual and quick start guide• Cables and power supply
| Range | VCA AI Bridge |
|---|---|
| Model | VCA-ABP302 |
| Core module | NVIDIA Jetson Orin Nano 8GB |
| GPU module | 1024-core NVIDIA Ampere with 32 Tensor cores |
| Storage | 250GB M.2 NVMe |
| Operating system | Linux Ubuntu 22.04 LTS |
| Video (GPU) | micro HDMI |
| USB ports | 2 x USB 3.1 Gen (Type A) |
| Ethernet | 2 x 1 RJ45 Gigabit |
| Integrated VCA events | Intrusion, tamper, zone entry/exit, zone presence/absence, loitering, dwell time, direction, people counting, abandoned object, removed object, zone passage and line crossing, speed, logic rules |
| Supported DL video analytics (licenses not included) | VCA stream (12fps@640x480) DL Object Tracker: 8 channels DL People Tracker: 8 channels DL Skeleton Tracker: 8 channels DL Fisheye Tracker: 6 channels HOIT: 8 channels Fall detection: 4 channels Anti-aggression detection: 4 channels |
| VMS integration | Integrated with Network Optix (events/objects/plugins) |
| Housing | Industrial PC |
| Construction material | Metal, silver and black |
| Power consumption | DC12V/5A, maximum 1.5A (18Watt) |
| Power supply | DC12V/5A |
| Operating conditions | Humidity 20% ~ 85% RH (non-condensing) 0°C ~ 50°C |
| Standards | FCC, CE |
| Dimensions | 128.5mm x 39.1mm x 79mm |
| Weight | 0.350 kg |
| Warranty | 3 years |
| VMS integration | Integrated with Network Optix (events/objects/plugins) |
