VCA-ABP100
VCA-ABP100

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

VCA TECHNOLOGY

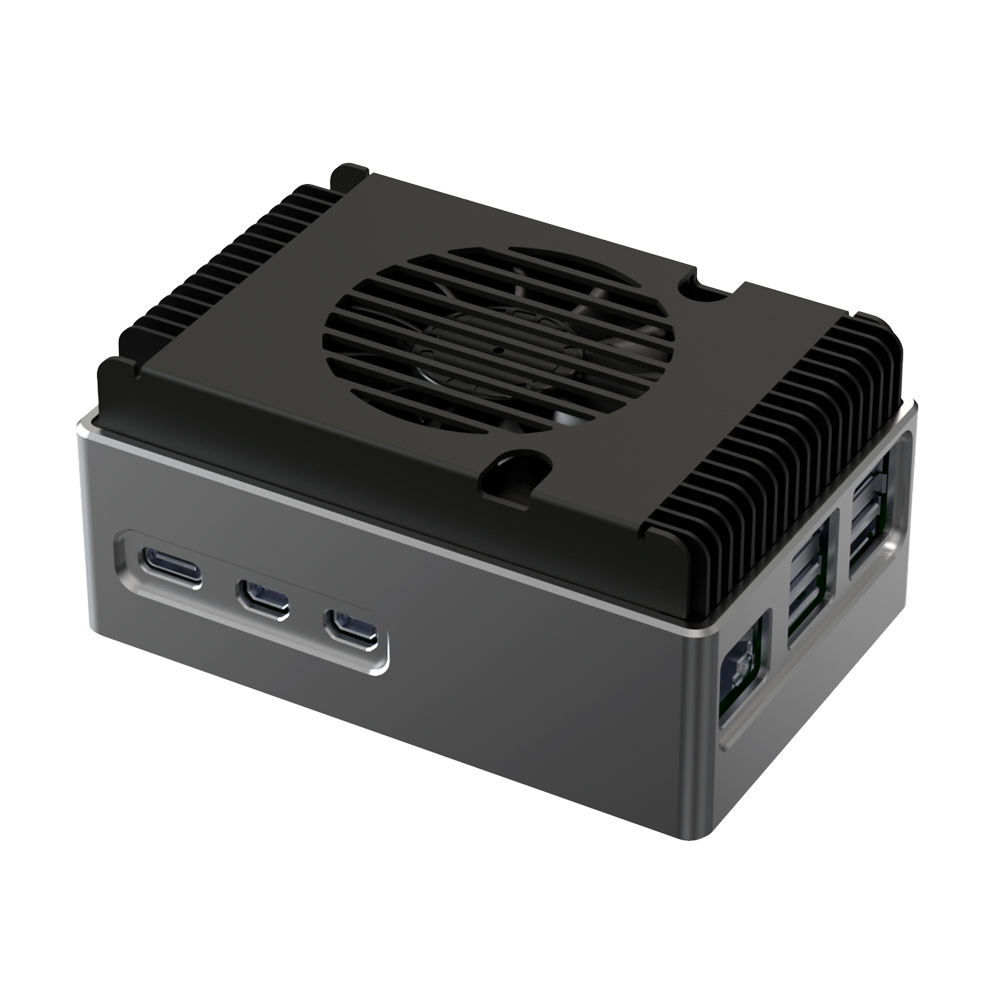

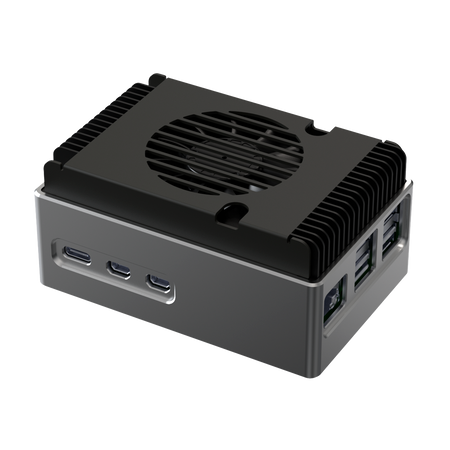

VCA Technology VCAserver AI Bridge - Model - ABP100

SKU: VCA-ABP100
(0)
In stock
Usually shipped within 24 hours
€1.934,56 Final price
-8% €2.096,00 €1.934,56 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

VCA Technology VCAserver AI Bridge - Model VCA-ABP100 - Broadcom BCM2712 - Hailo-8 - 64GB SD Card - Ubuntu 22.04 LTS OS - Includes 8 ProAi licenses

📋 SPECIFICATIONS:
• Brand: VCA Technology
• Range: VCA AI Bridge
• Model: VCA-ABP100
• Core module: Broadcom BCM2712 / Quad-core Cortex-A76@2.4GHz
• GPU module: Hailo-8 M.2 HM218
• Storage: 64GB SD Card
• Operating system: Linux Ubuntu 22.04 LTS
• Video (GPU): 2 x micro HDMI
• USB ports: 2 x USB 3
• Ethernet: 1 x 1 RJ45 Gigabit
• Licenses: 8 ProAI licenses included
• Integrated VCA events: Intrusion, tamper, entry/exit from area, appear/disappear in area, dwell in area, loitering, direction, counting, passing through areas and line crossing, speed, tailgating, logic rules
• Supported DL video analytics (licenses not included): VCA stream (12fps@640x480); DL Object Tracker: 6 channels; DL People Tracker: 8 channels; DL Thermal Tracker: 8 channels
• VMS integration: Integrated with Network Optix (events/objects/plugins)
• Housing: Industrial mini PC
• Construction material: Metal, silver and black
• Power supply: 5VDC / 5A power supply via USB-C (up to 27W)
• Operating conditions: Humidity 10% ~ 95% RH (non-condensing); 0°C ~ 40°C
• Standards: FCC, CE
• Dimensions: 95mm x 46mm x 63mm
• Weight: 0.250 kg

📦 INCLUDED:
• VCA-ABP100 device• Installation manual and quick guide• Cables and power supply
Range VCA AI Bridge
Model VCA-ABP100
Core module Broadcom BCM2712 / Quad-core Cortex-A76@2.4GHz
GPU module Hailo-8 M.2 HM218
Storage 64GB SD Card
Operating system Linux Ubuntu 22.04 LTS
Video (GPU) 2 x micro HDMI
USB ports 2 x USB 3
Ethernet 1 x 1 RJ45 Gigabit
Licenses 8 ProAI licenses included
Integrated VCA events Intrusion, tamper, enter/exit area, appear/disappear from area, loitering, dwell time, direction, counting, area crossing and line crossing, speed, tailgating, logic rules
Supported DL video analytics (licenses not included) VCA stream (12fps@640x480) DL Object Tracker: 6 channels DL People Tracker: 8 channels DL Thermal Tracker: 8 channels
VMS integration Integrated with Network Optix (events/objects/plugins)
Housing Industrial mini PC
Construction material Metal, silver and black color
Power supply 5VDC / 5A power supply via USB-C (up to 27W)
Operating conditions Humidity 10% ~ 95% RH (non-condensing) 0°C ~ 40°C
Standards FCC, CE
Dimensions 95mm x 46mm x 63mm
Weight 0.250 kg
