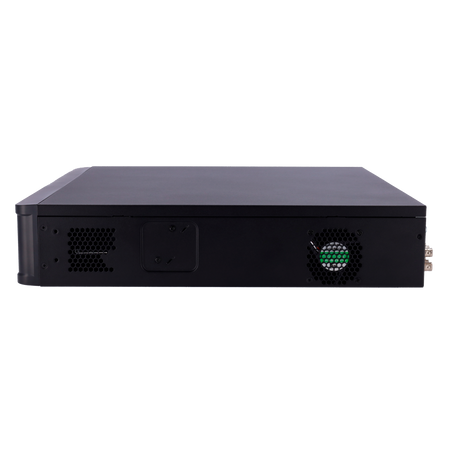

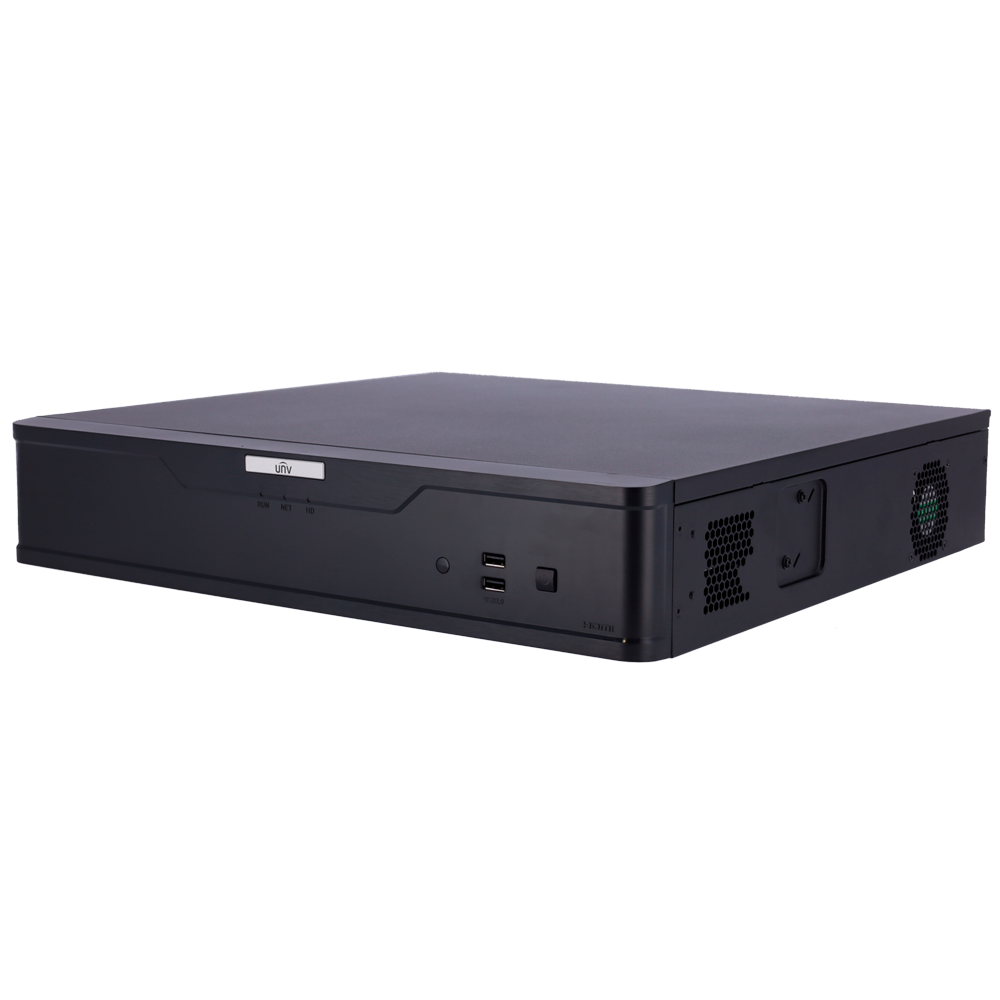

Uniview 5-in-1 Video Recorder Easy Series - Supports 8 HDDs up to 16 TB

Uniview 5-in-1 Video Recorder Easy Series - 32 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP - Recording resolution 8MP Lite - AI: UMD and VCA, face search - Audio 1I/1O | Alarms 16I/6O - Supports 8 HDDs up to 16 TB

📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Easy
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 32 CH BNC
• Hybrid configuration: 4 IP channels; Up to 36 IP channels by replacing all BNC channels

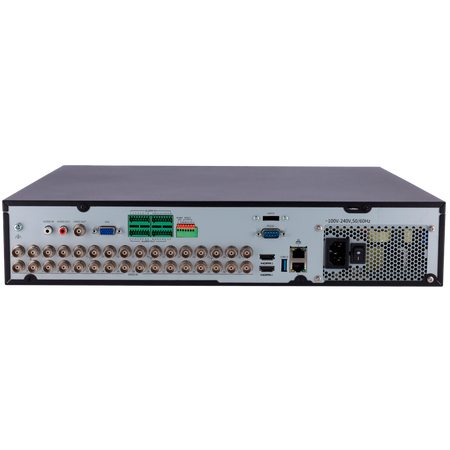

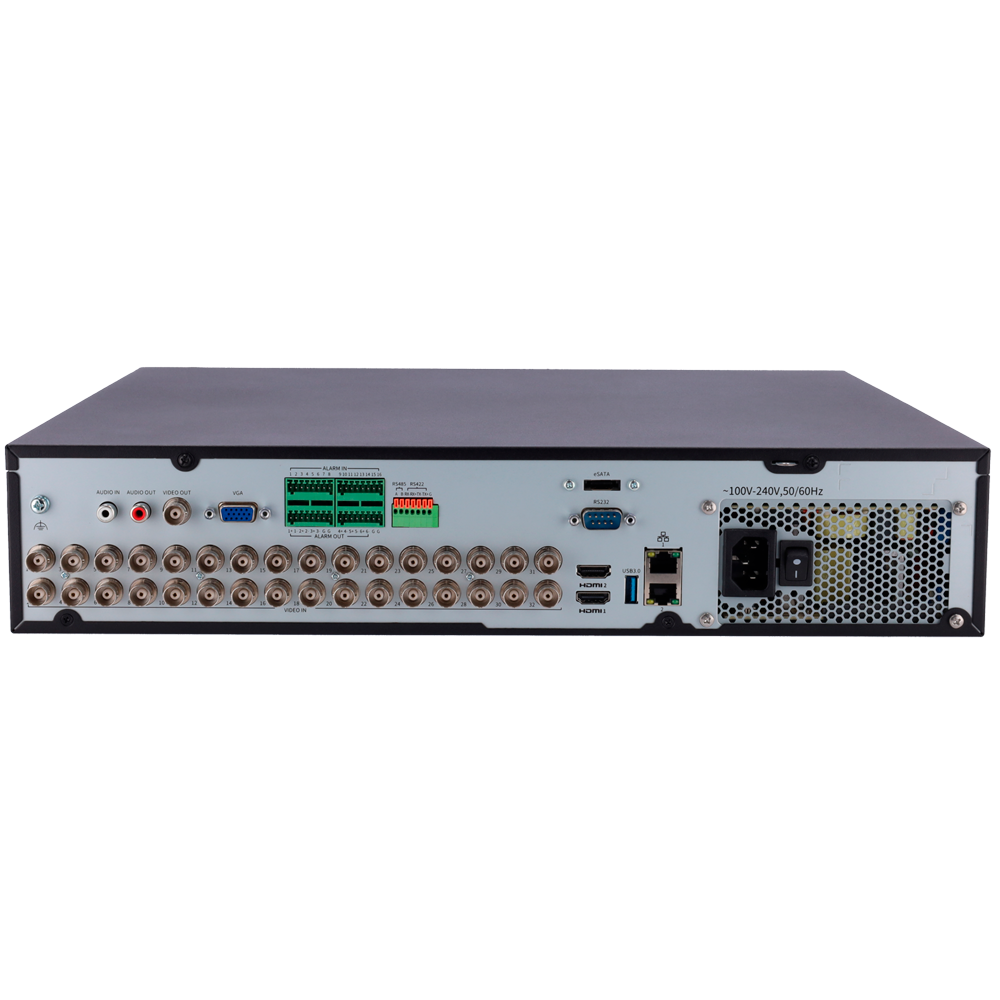

• Video output: HDMI1: 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz; HDMI2: 4K(3840x2160)@30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz; VGA: 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz; Outputs: 1 x CVBS, 1 x VGA, 2 x HDMI, HDMI2 output up to 4K(3840 x 2160), simultaneous HDMI1 and VGA output, independent HDMI2 and HDMI1/VGA output
• Supported analog cameras: TVI / AHD: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps; CVI: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps; *For proper live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specified values, and under no circumstances higher.
• Maximum IP recording resolution: 4K
• Main Stream recording encoding: 8MPLite@8FPS; 5MPLite@12fps; 4MPLite@15FPS; 1080P@15FPS; 720P@30FPS
• Extra Stream recording encoding: D1@8fps; D1@12fps; D1@15fps, D1@15fps, D1@30fps
• Decoding capability: Analog: 32 x 8MP Lite@8fps, 32 x 5MP Lite@12fps, 32 x 4MP Lite@15fps, 32 x 1080P@25fps, 32 x 720@30fps; IP: 2 x 8MP@30fps, 4 x 4MP@30fps, 8 x 1080P@30fps, 16 x 720P@30fps, 36 x D1, 16 x 720P@30fps
• Intelligence via XVR: Ultra Motion Detection (UMD); VCA (Intrusion detection, Line crossing detection, Area entry, Area exit); UMD 16 CH - VCA 8 CH
• Intelligence via IPC: Face detection; VCA (Intrusion detection, Line crossing detection, Area entry, Area exit); Blur detection; Object removed; Object abandoned; Autotracking; VCA 8 CH
• Smart search: Face and behavior search
• Alarms: 16 inputs / 6 outputs
• Alerts: Motion; IP conflict; Network offline; Hard disk offline; Hard disk abnormal; Unauthorized access; Low hard disk space; Hard disk full; Recording/snapshot abnormal.
• Audio inputs: 1 RCA Channel
• Audio outputs: 1 RCA Channel
• Two-way audio: Reusing the audio input/output
• Incoming bandwidth: 160 Mbps (up to 224 Mbps after converting all analog channels)
• Outgoing bandwidth: 160 Mbps
• Recording method: Manual, scheduled, motion detection
• Internal storage: 8 SATA 3.5" HDDs up to 16 TB (not included)
• External interface: 3 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485
• Remote access: Web Browser, CMS Software (EZStation), Smartphone (UNV-LINK/UNV-LINK PRO)
• Power supply: DC 12 V / 45 W
• Dimensions / Weight: 88.6 (H) x 442 (W) x 435.9 (D) mm (2U) / 6 kg

📦 INCLUDED:
• Uniview 5-in-1 video recorder• Mouse• Power adapter
