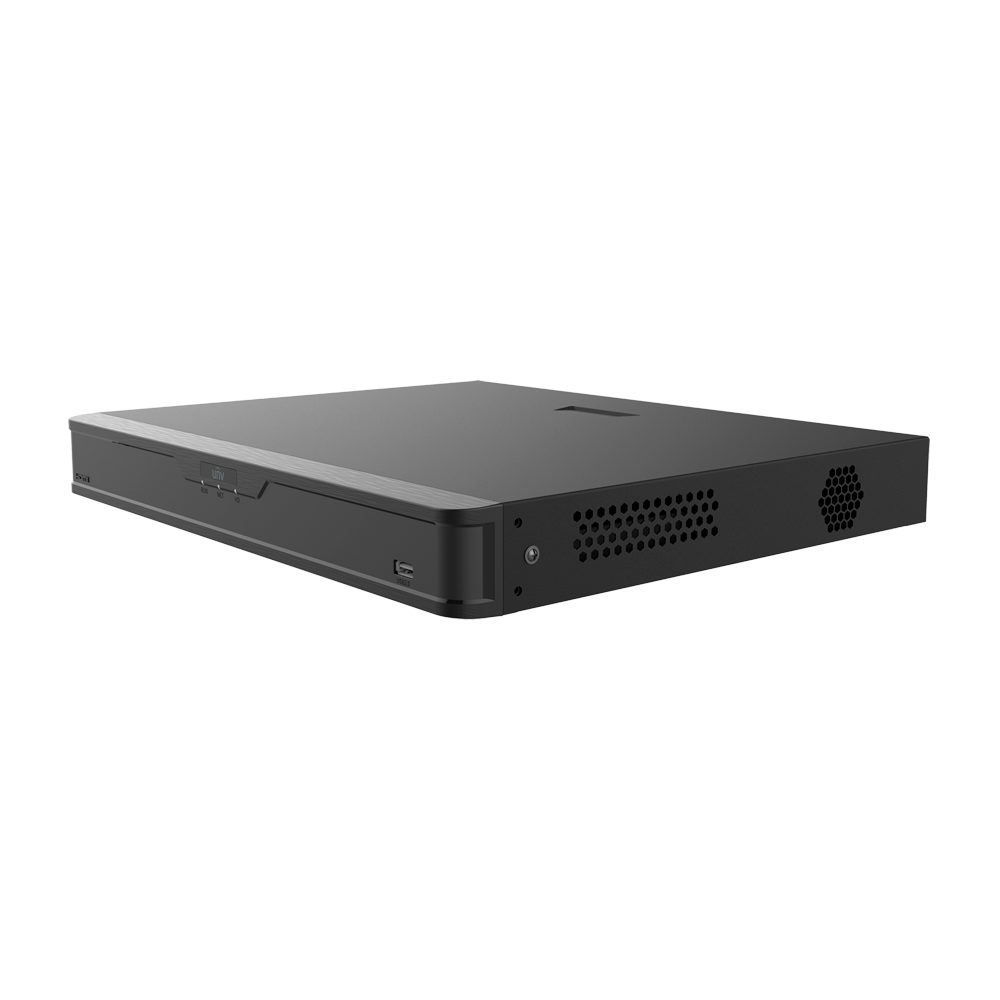

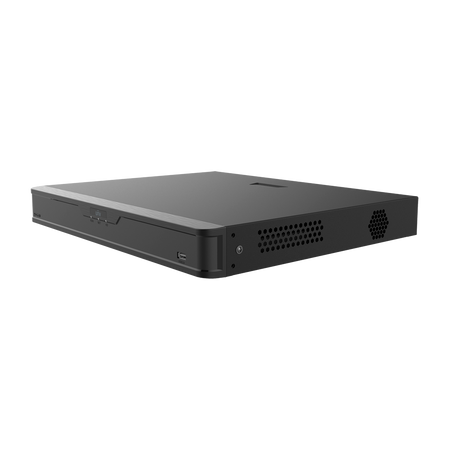

Uniview 5-in-1 Video Recorder - Easy Series - 32 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP
Uniview 5-in-1 Video Recorder - Easy Series - 32 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP
Regular price
€615,18
Final price
Regular price
-11%
€689,00
Sale price
€615,18
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview 5-in-1 Video Recorder - Easy Series - 32 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP - Audio over coaxial (UNV CVI cameras ONLY) - Supports 2 hard drives | Ultra Motion Detection
📋 SPECIFICATIONS:
• Brand: Uniview
• Range: Easy
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 32 CH BNC
• Hybrid configuration: 4 IP channels (up to 36 channels IP only) replacing all BNC channels
• Video output: 1 HDMI, 1 VGA (1920x1080p)
• Bidirectional audio: Reusing the audio input/output
• Maximum IP recording resolution: 4K
• Supported analog cameras: TVI / AHD: 8MP@12FPS (ch1-ch16); 5MP@20FPS; 4MP@30FPS; 3MP@30FPS (ch1-ch16); 1080P@30FPS; 720P@60FPS; CVI: 8MP@15FPS (ch1-ch16); 4MP@30FPS; 1080P@30FPS; 720P@60FPS; *For correct live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the indicated specifications, but in no case higher.
• Main Stream recording encoding: 32 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@305MPLite@12fps; 4MPLite@15FPS; 3MP@15FPS(ch1-ch16); 2MP@15FPS; 720P@30FPS
• Extra Stream recording encoding: D1@30FPS
• Recording method: Manual, scheduled, motion detection
• Internal memory: 2 SATA 3.5" HDD up to 8TB (not included)
• External interface: 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 12 V / 12 W
• Dimensions / Weight: 380mm ×326mm× 53mm / 2.6 kg
• VCA detection: Ultra Motion Detection (UMD) Maximum 16-ch
📦 INCLUDED:
• Uniview 5-in-1 video recorder• Mouse• Adapter
| Range | Easy |
|---|---|
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 32 CH BNC |
| Hybrid configuration | 4 IP channels (IP only up to 36 channels) which replace all BNC channels |
| Video output | 1 HDMI, 1 VGA (1920x1080p) |
| Two-way audio | Reusing the audio input/output |
| Maximum IP recording resolution | 4K |
| Supported analog cameras | TVI / AHD: 8MP@12FPS (ch1-ch16); 5MP@20FPS; 4MP@30FPS; 3MP@30FPS (ch1-ch16); 1080P@30FPS; 720P@60FPS CVI: 8MP@15FPS (ch1-ch16); 4MP@30FPS; 1080P@30FPS; 720P@60FPS *For proper live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specified values, but in no case higher. |
| Main Stream recording encoding | 32 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30, 5MPLite@12fps; 4MPLite@15FPS; 3MP@15FPS (ch1-ch16); 2MP@15FPS; 720P@30FPS |
| Extra Stream recording encoding | D1@30FPS |
| Recording method | Manual, scheduled, motion detection |
| Internal storage | 2 HDD SATA 3.5" up to 8TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | DC 12 V / 12 W |
| Dimensions / Weight | 380mm ×326mm× 53mm / 2.6 kg |
| VCA Detection | Ultra Motion Detection (UMD) Maximum 16-ch |
