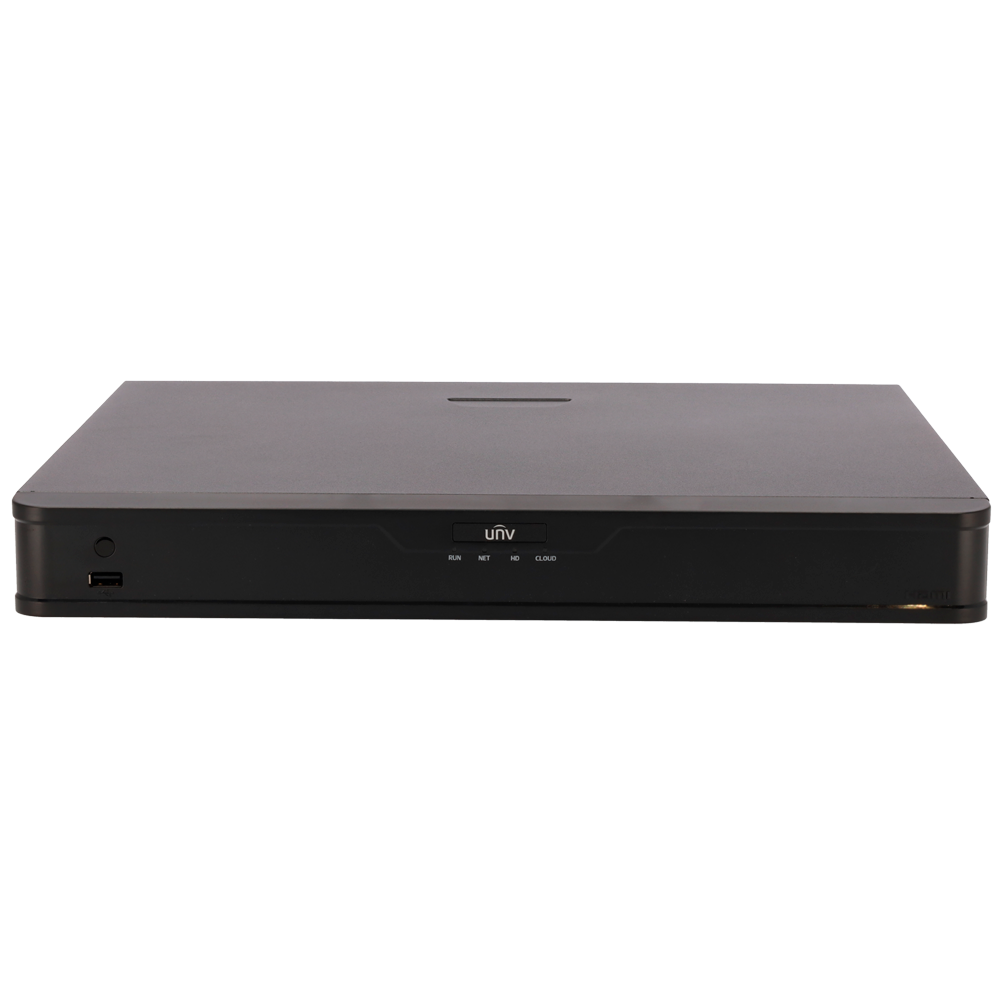

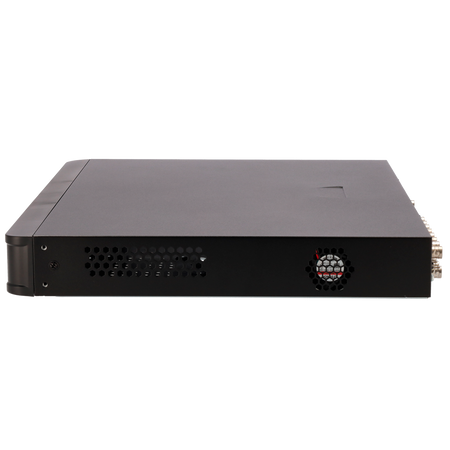

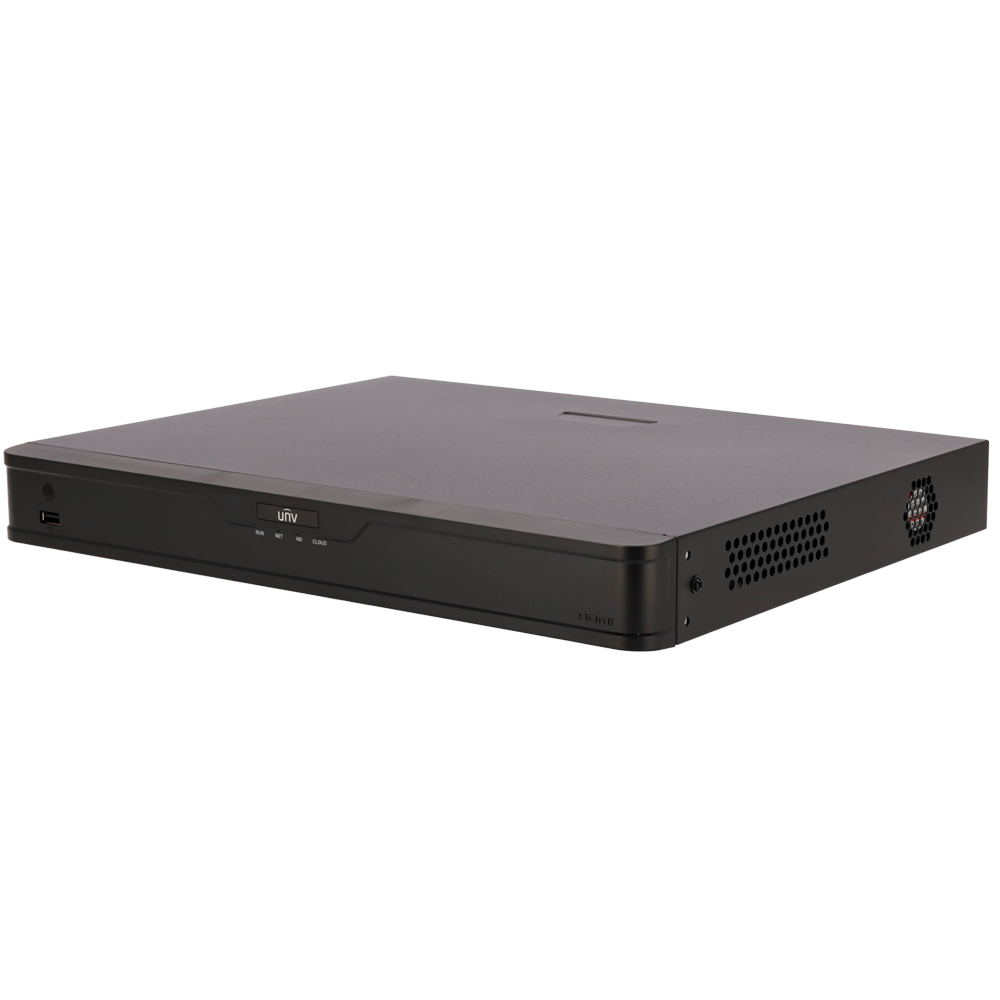

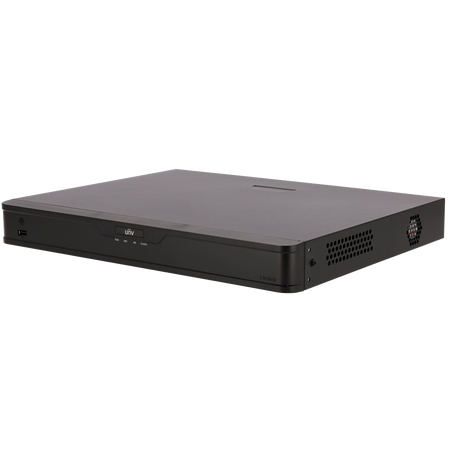

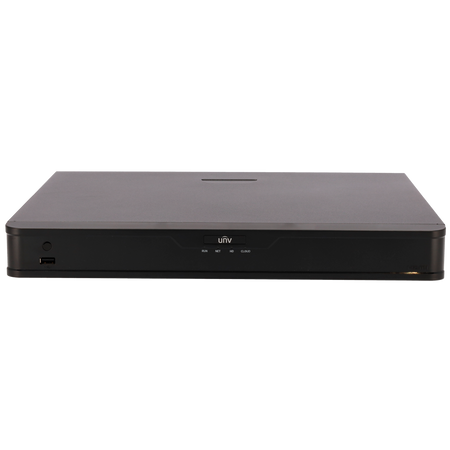

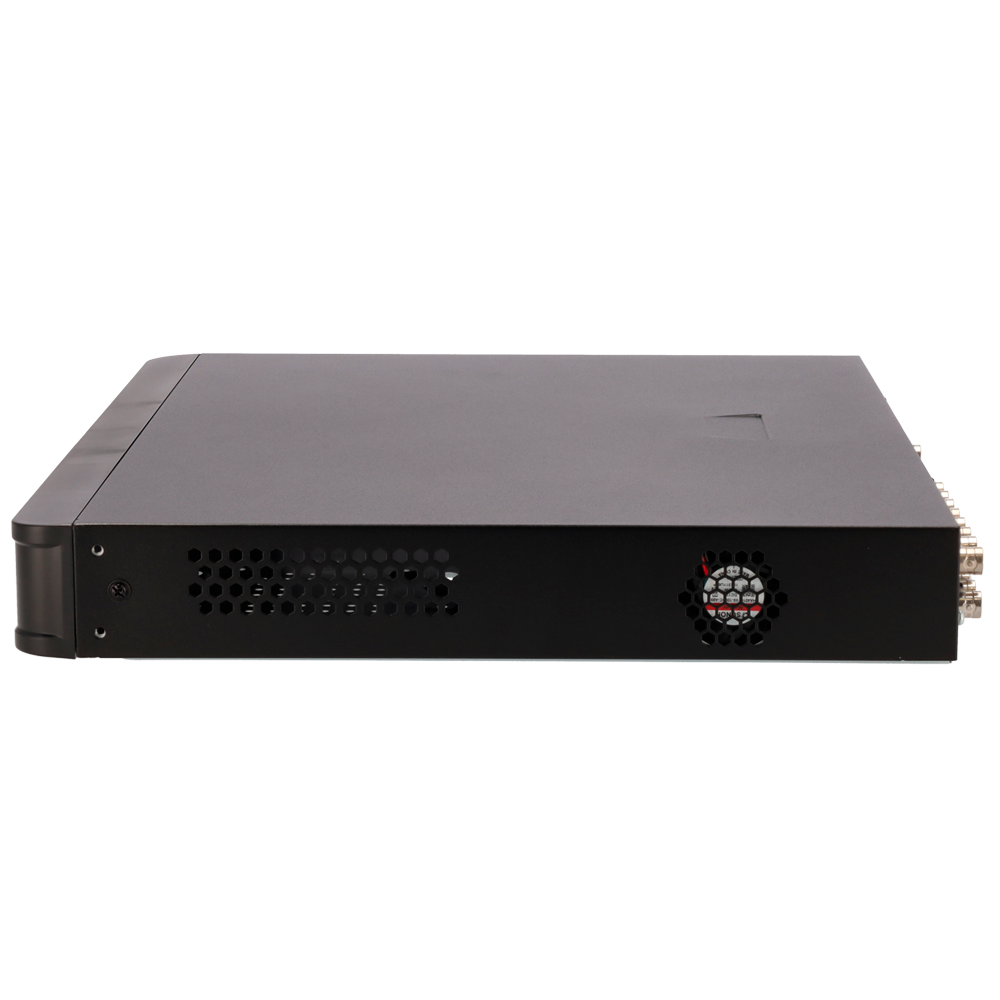

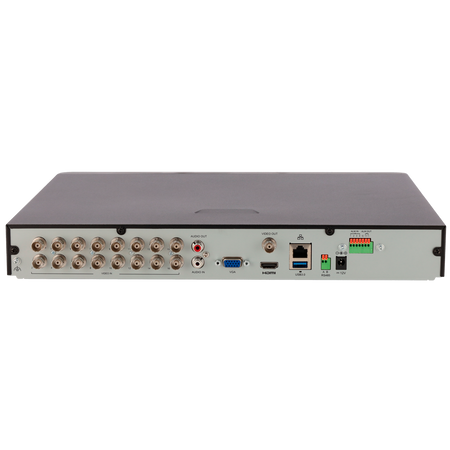

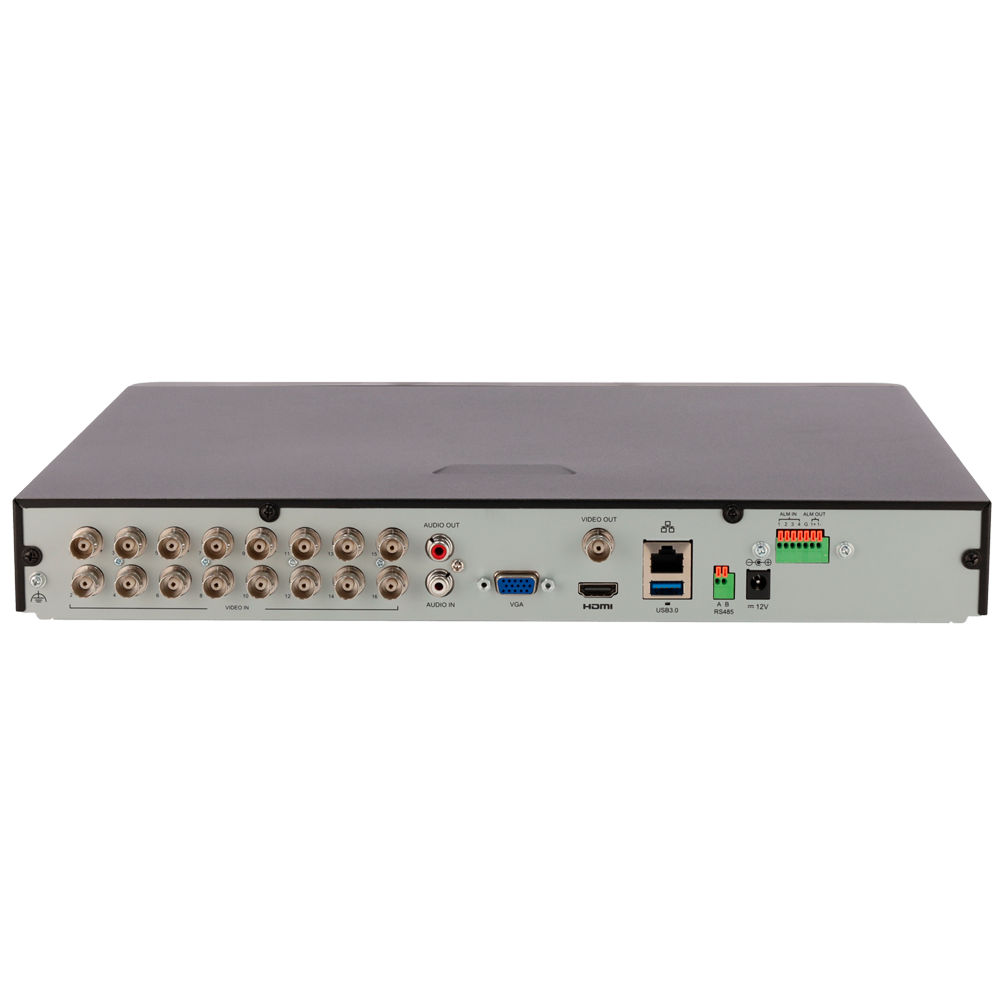

Uniview 5-in-1 Video Recorder - Easy Series - 16 CH HDTVI / HDCVI / AHD / CVBS + 8 extra IP - Audio - XVRs - 4K
Uniview 5-in-1 Video Recorder - Easy Series - 16 CH HDTVI / HDCVI / AHD / CVBS + 8 extra IP - Audio - XVRs - 4K
Regular price
€432,57
Final price
Regular price
-8%
€469,00
Sale price
€432,57
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview 5-in-1 Video Recorder - Easy Series - 16 CH HDTVI / HDCVI / AHD / CVBS + 8 extra IP - Audio - Supports 2 hard drives
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Easy
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16CH BNC
• Hybrid configuration: 8 IP channels (IP only up to 24 channels) replacing all BNC channels
• Video output: 1 HDMI, 4K (3840 × 2160) 1 VGA (1920x1080p)
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Maximum IP recording resolution: 4K
• Supported analog cameras: TVI / AHD: 8MP@12FPS (ch1-ch16); 5MP@20FPS; 4MP@30FPS; 3MP@30FPS (ch1-ch16); 1080P@30FPS; 720P@60FPS; CVI: 8MP@15FPS(ch1-ch16); 4MP@30FPS; 1080P@30FPS; 720P@60FPS; *For correct live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the indicated specifications, but in no case higher.
• Main Stream recording encoding: 8MPLite@8FPS (ch1-ch16); 5MPLite@12fps; 4MPLite@15FPS; 3MP@15FPS(ch1-ch16); 2MP@15FPS; 720P@30FPS
• Extra Stream recording encoding: D1@30FPS
• Recording method: Manual, scheduled, motion detection
• Internal memory: 2 HDD SATA 3.5" up to 8TB (not included)
• External interface: 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 12 V / 12 W
• Dimensions / Weight: 380mm ×326mm× 53mm / 1.9 kg
📦 INCLUDED:
• Uniview 5-in-1 video recorder• Mouse• Adapter
| Series | Easy |
|---|---|
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16CH BNC |
| Hybrid configuration | 8 IP channels (up to 24 channels IP only) replacing all BNC channels |
| Video output | 1 HDMI, 4K (3840 × 2160) 1 VGA (1920x1080p) |
| Audio inputs | 1 RCA Channel |
| Audio outputs | 1 RCA Channel |
| Two-way audio | Reusing audio input/output |
| Maximum IP recording resolution | 4K |
| Supported analog cameras | TVI / AHD: 8MP@12FPS (ch1-ch16); 5MP@20FPS; 4MP@30FPS; 3MP@30FPS (ch1-ch16); 1080P@30FPS; 720P@60FPS CVI: 8MP@15FPS (ch1-ch16); 4MP@30FPS; 1080P@30FPS; 720P@60FPS *For proper live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specified values, and under no circumstances higher. |
| Main Stream recording encoding | 8MPLite@8FPS (ch1-ch16); 5MPLite@12fps; 4MPLite@15FPS; 3MP@15FPS (ch1-ch16); 2MP@15FPS; 720P@30FPS |
| Extra Stream recording encoding | D1@30FPS |
| Recording method | Manual, scheduled, motion detection |
| Internal memory | 2 HDD SATA 3.5" up to 8TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | DC 12 V / 12 W |
| Dimensions / Weight | 380mm × 326mm × 53mm / 1.9 kg |
