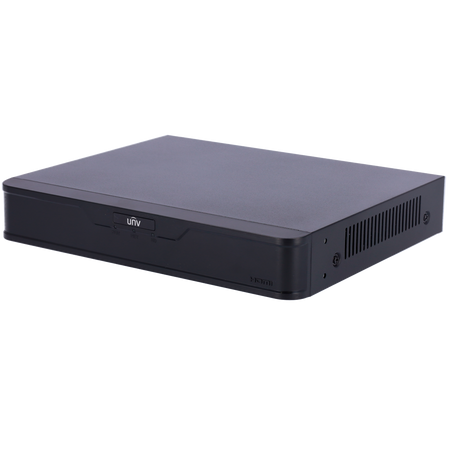

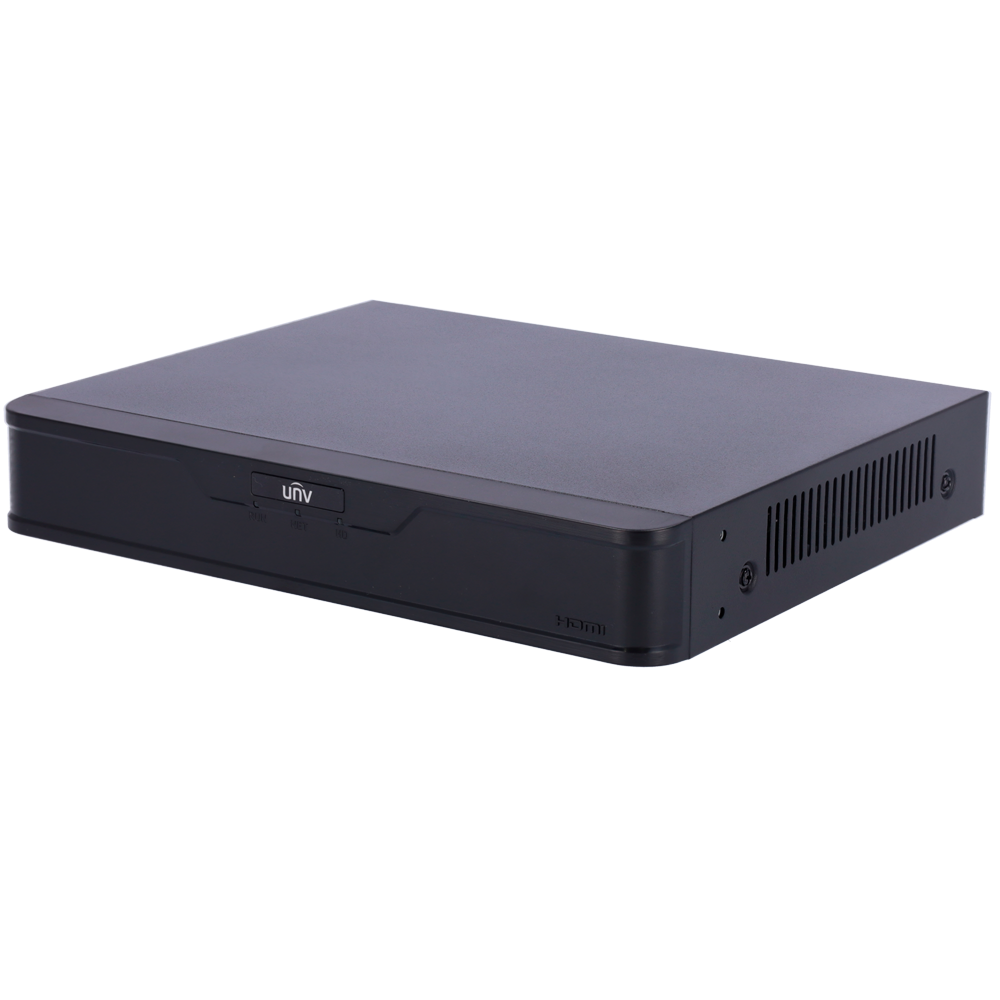

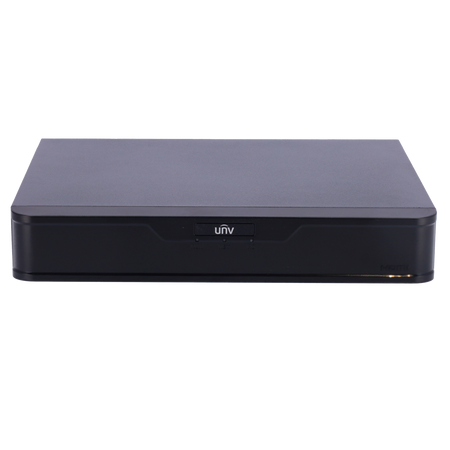

Uniview 5-in-1 Video Recorder - Easy Series - 16 CH HDTVI / HDCVI / AHD / CVBS + 8 extra IP - Audio - Supports 1 hard disk
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Easy
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16CH BNC
• Hybrid configuration: Up to 16 IP channels (8Mpx) by replacing all BNC channels
• Video output: 1 Full HD HDMI, 1 VGA
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing the audio input/output
• Display resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
• Maximum IP recording resolution: 8 Mpx
• Supported analog cameras: TVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720@30FPS; CVI: 1080P@30FPS; 720P@30FPS; *For correct live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or less than the specified values, and in no case higher.
• Main stream recording encoding: TVI/CVI/AHD 5MPLite@6FPS; 4MPLite@15fps; 720P@15FPS
• Extra stream recording encoding: D1@6FPS; D1@8FPS; D1@10FPS
• Recording method: Manual, scheduled, motion detection
• Internal memory: 1 SATA 3.5" HDD up to 8 TB (not included)

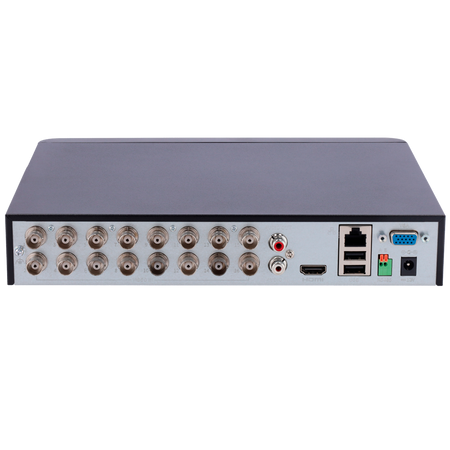

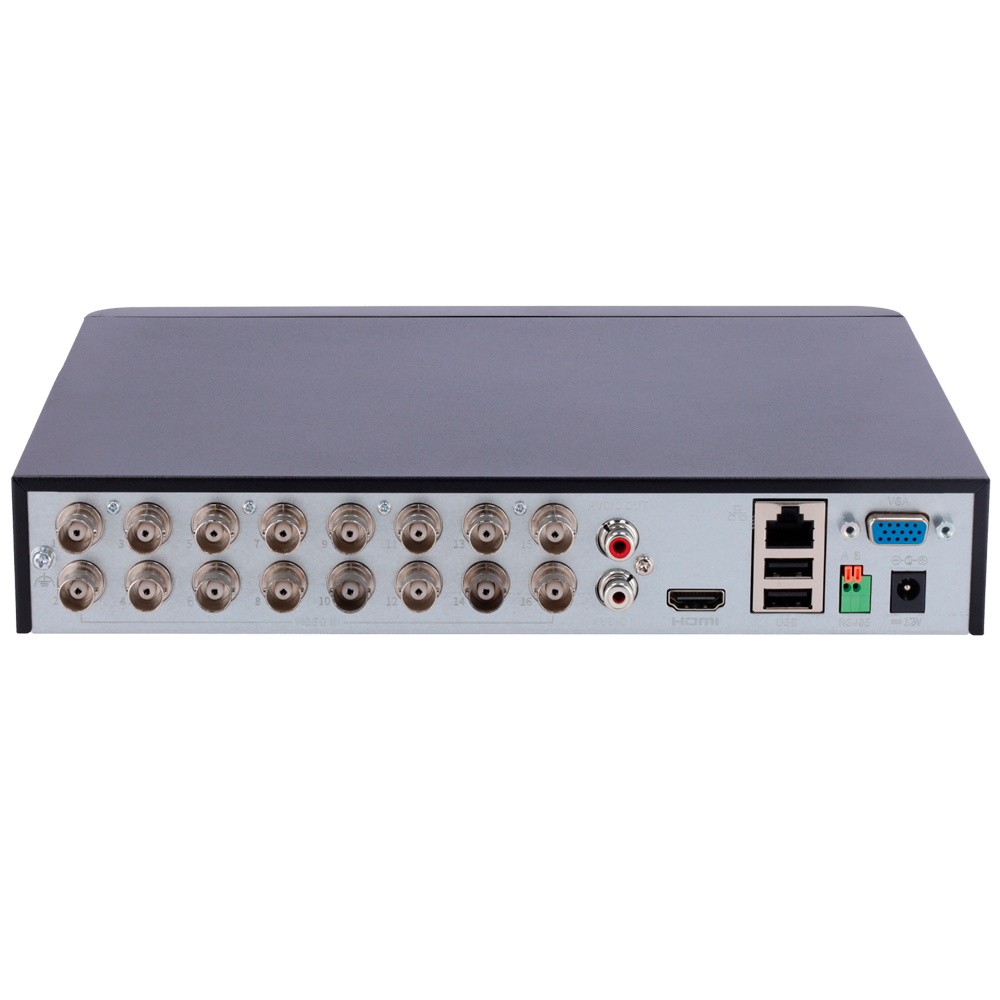

• External interface: 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 12 V / 10 W
• Dimensions / Weight: 260mm ×240mm× 46mm / 1.1 kg
📦 INCLUDED:
• Uniview 5-in-1 video recorder• Mouse• Adapter
| Range | Easy |
|---|---|
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16CH BNC |
| Hybrid configuration | Up to 16 IP Channels (8Mpx) replacing all BNC channels |
| Video output | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA Channel |
| Audio outputs | 1 RCA Channel |
| Two-way audio | Reusing audio input/output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 8 Mpx |
| Supported analog cameras | TVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720@30FPS CVI: 1080P@30FPS; 720P@30FPS *For correct live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the indicated specifications, but under no circumstances higher. |
| Main Stream recording encoding | TVI/CVI/AHD 5MPLite@6FPS; 4MPLite@15fps; 720P@15FPS |
| Extra Stream recording encoding | D1@6FPS; D1@8FPS; D1@10FPS |
| Recording method | Manual, scheduled, motion detection |
| Internal storage | 1 SATA 3.5" HDD up to 8 TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | DC 12 V / 10 W |
| Dimensions / Weight | 260mm × 240mm × 46mm / 1.1 kg |
