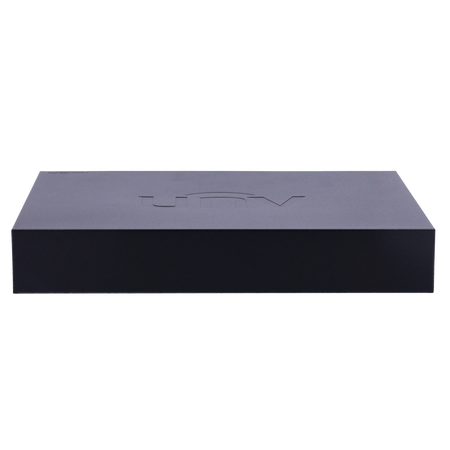

Uniview 5-in-1 video recorder - 16 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP
Uniview 5-in-1 video recorder - 16 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP
Regular price
€165,09
Final price
Regular price
-8%
€179,00
Sale price
€165,09
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

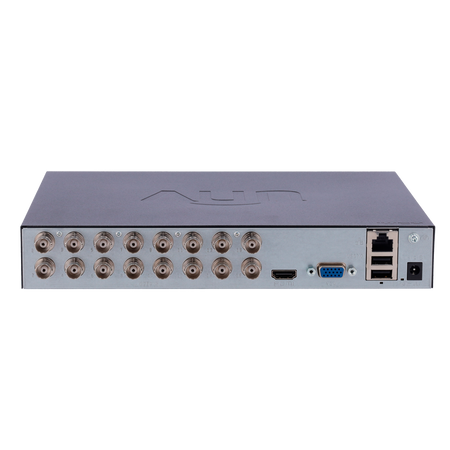

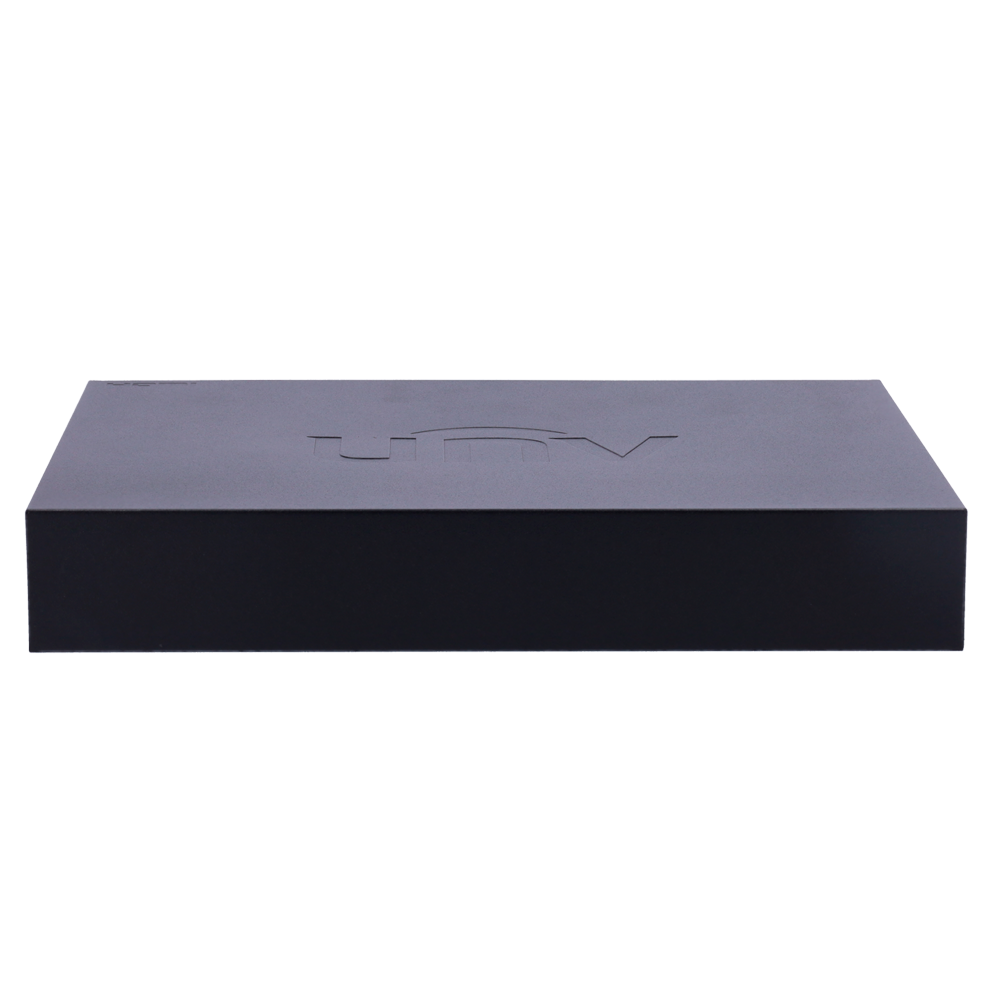

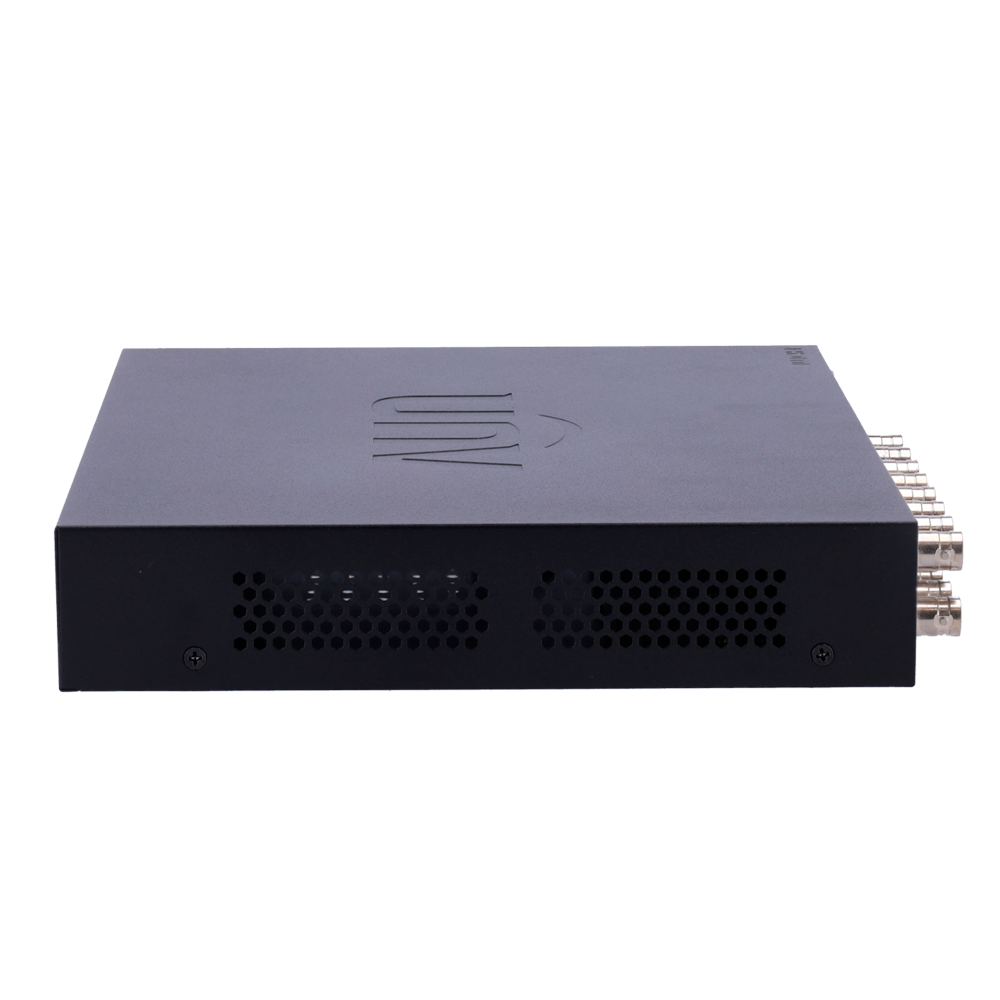

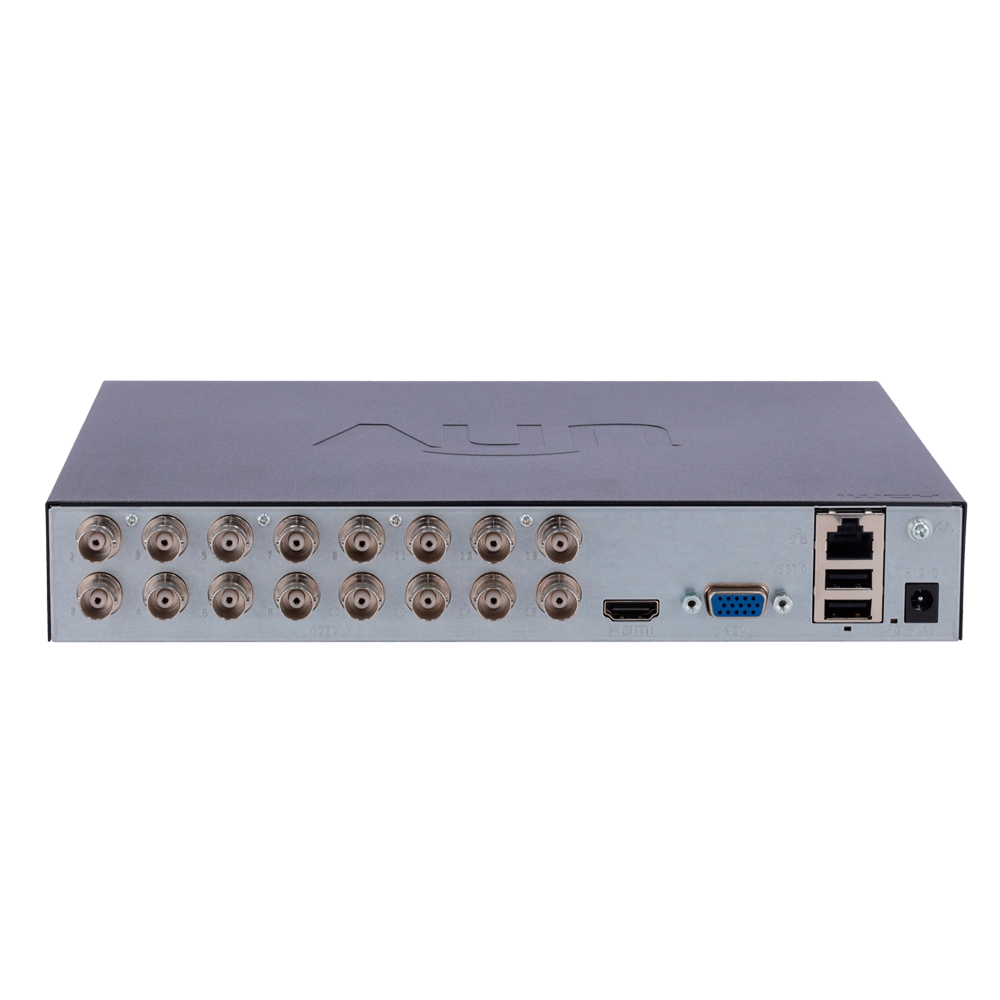

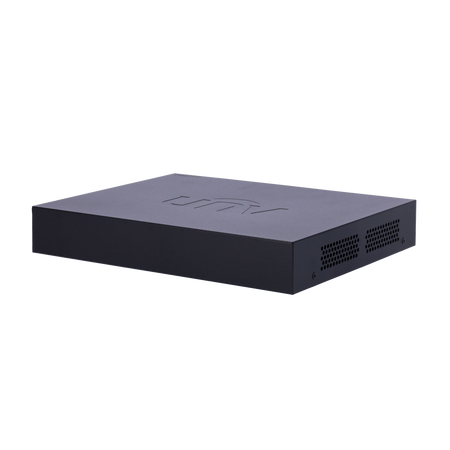

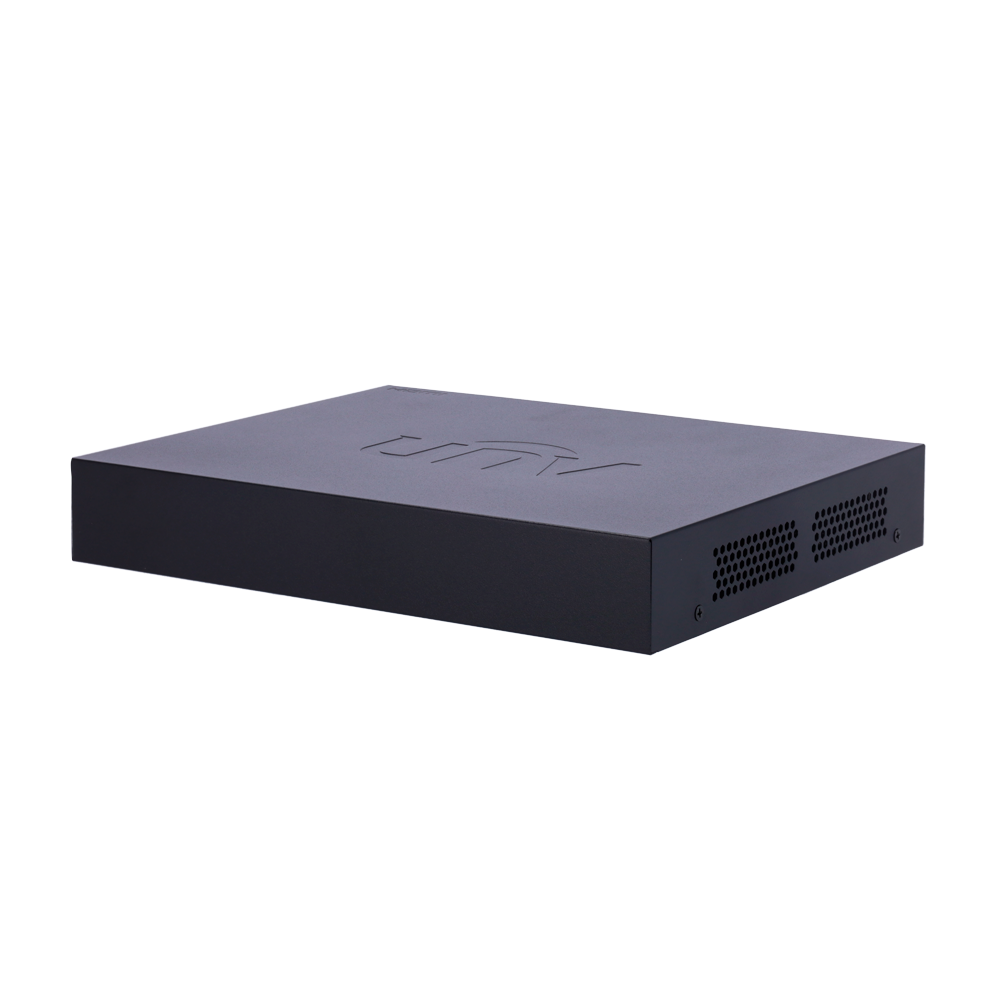

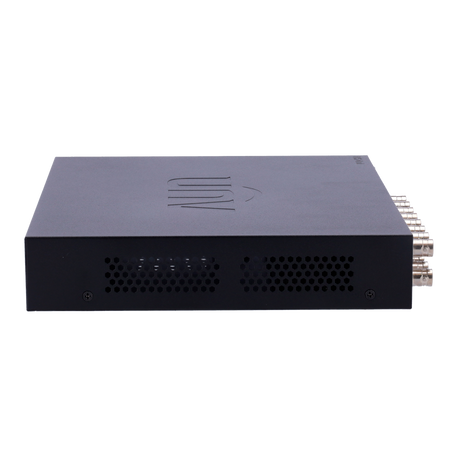

5-in-1 Video Recorder - Uniview - 16 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP - Audio - Supports 1 hard drive
📋 SPECIFICATIONS:
• Brand: Uniview
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16CH BNC
• Hybrid configuration: Up to 6 IP channels (8Mpx) replacing all BNC channels
• Video output: 1 HDMI Full HD, 1 VGA
• Audio Bit Rate: 64Kbps per channel
• Display resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
• Maximum IP recording resolution: 8 Mpx
• Analog recording resolution: TVI/AHD: 1080P@30fps ,720P@30fps; CVI:1080P@30fps ,720P@30fps; Supports CVBS
• Main Stream recording encoding: 1080P Lite @25fps; 720P@30fps
• Extra Stream recording encoding: D1@25FPS,D1@30FPS
• Intelligent function: Ultra Motion Detection (UMD) for analog: 8 channels
• Recording method: Manual, scheduled, motion detection
• Internal memory: 1 HDD SATA 3.5" up to 6TB (not included)
• External interface: 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
• Remote access: Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 12 V / 10 W
• Dimensions / Weight: 253mm × 212mm × 42mm / 0.85 kg
📦 INCLUDED:
• Uniview 5-in-1 Video Recorder• Mouse• Adapter
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 16CH BNC |
| Hybrid configuration | Up to 6 IP channels (8Mpx) by replacing all BNC channels |
| Video output | 1 HDMI Full HD, 1 VGA |
| Audio bit rate | 64Kbps per channel |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 8 Mpx |
| Analog recording resolution | TVI/AHD: 1080P@30fps ,720P@30fps CVI:1080P@30fps ,720P@30fps Supports CVBS |
| Main stream recording encoding | 1080P Lite @25fps; 720P@30fps |
| Extra stream recording encoding | D1@25FPS,D1@30FPS |
| Smart function | Ultra Motion Detection (UMD) for analog: 8 channels |
| Recording method | Manual, scheduled, motion detection |
| Internal memory | 1 HDD SATA 3.5" up to 6TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) |
| Remote access | Web browser, CMS software (EZStation), smartphone (EZView/EZLive) |
| Power supply | DC 12 V / 10 W |
| Dimensions / Weight | 253mm × 212mm × 42mm / 0.85 kg |
