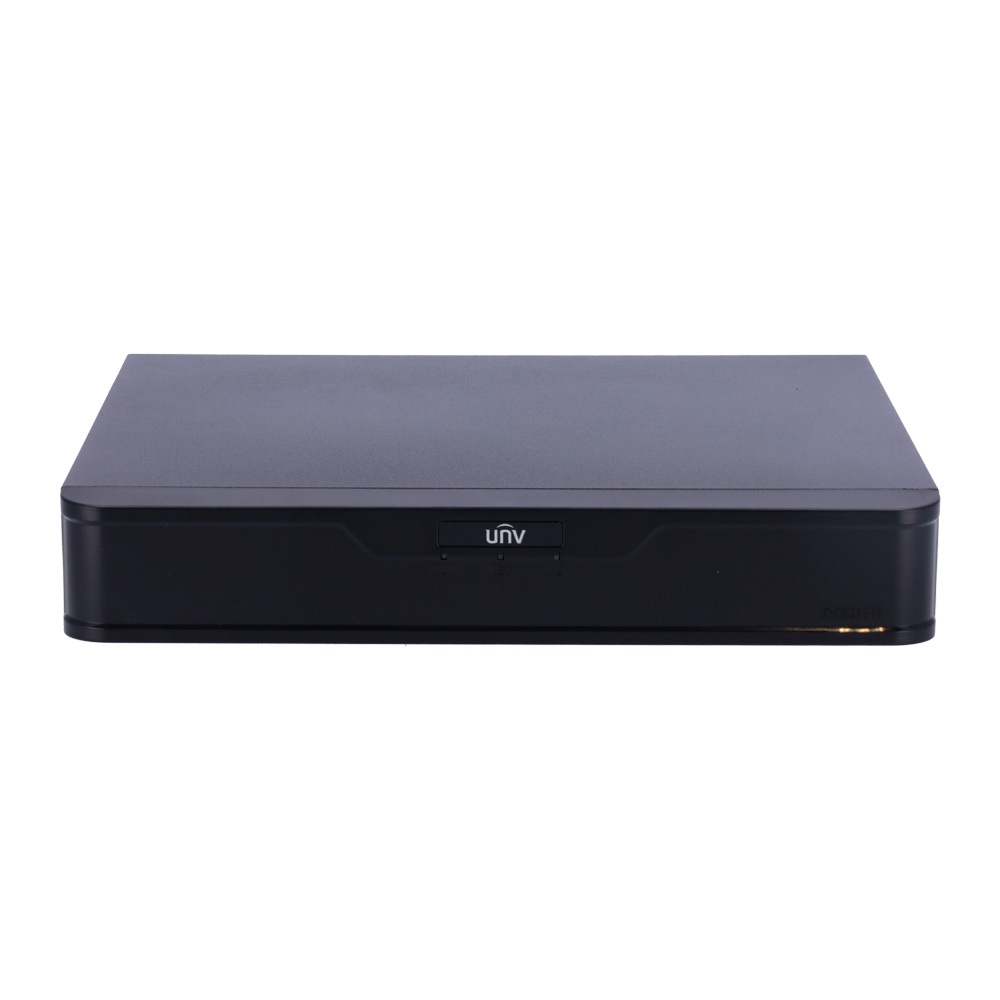

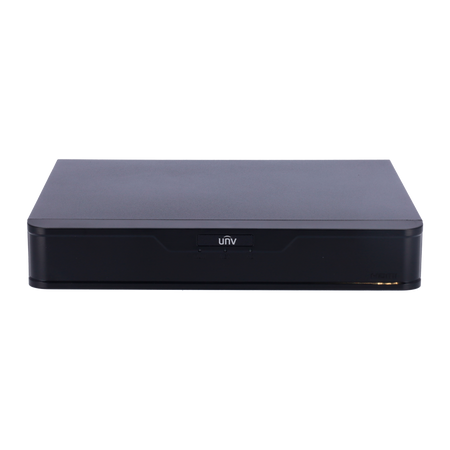

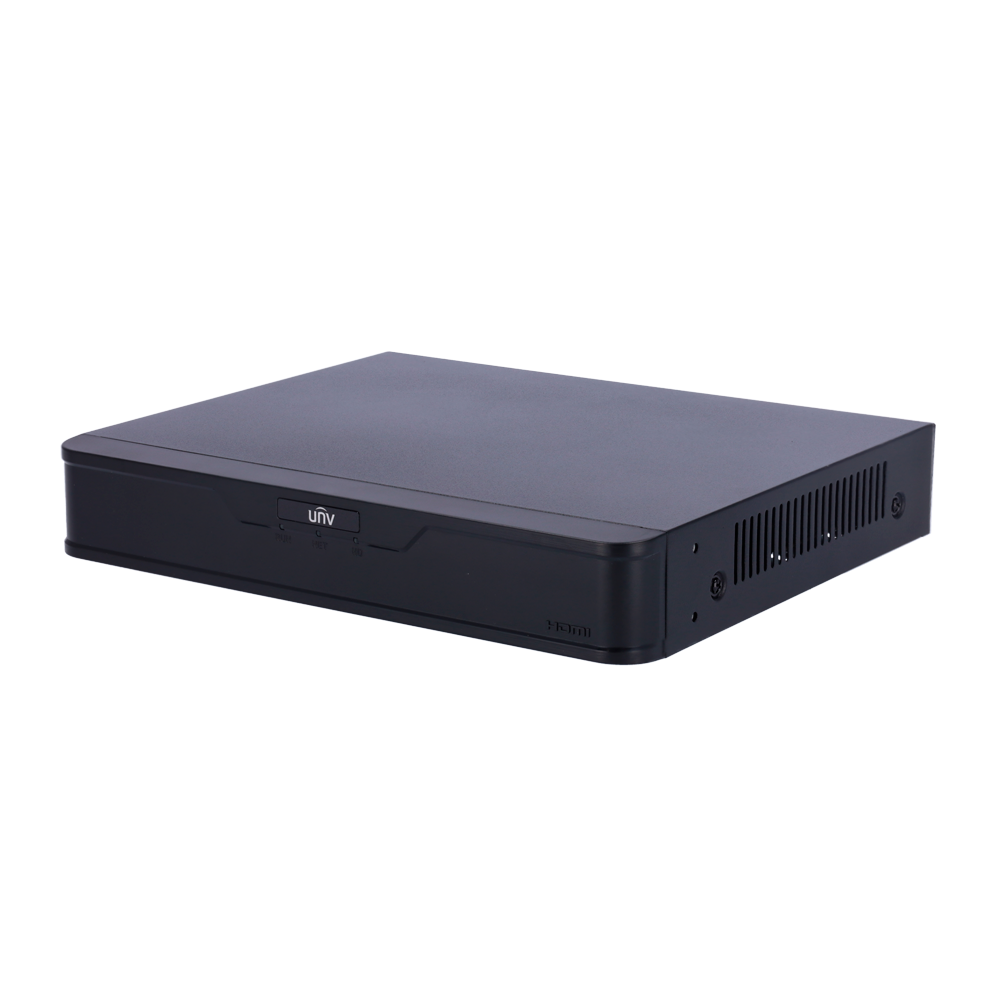

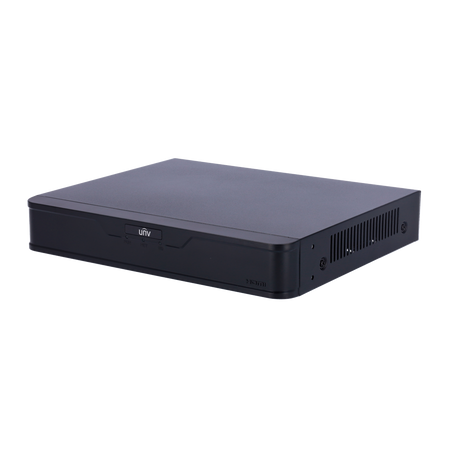

Uniview 5-in-1 video recorder - 8 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP
Uniview 5-in-1 video recorder - 8 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP
Regular price
€118,98
Final price
Regular price
-8%
€129,00
Sale price
€118,98
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
5-in-1 Video Recorder - Uniview - 8 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP - Audio - Supports 1 hard drive
📋 SPECIFICATIONS:
• Brand: Uniview
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8CH BNC
• Hybrid configuration: Up to 8 IP channels (4Mpx) by replacing all BNC channels
• Video output: 1 Full HD HDMI, 1 VGA
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing the audio input/output
• Display resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
• Maximum IP recording resolution: 4 Mpx
• Analog recording resolution: TVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720FPS; CVI: 4MP@15FPS; 1080P@30FPS; 720P@30FPS; *For correct live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the indicated specifications, but in no case higher.
• Main Stream recording encoding: 5MPLite@6fps; 4MPLite@8fps; 1080PLite@15fps; 1080P@8FPS; 720P@15FPS
• Extra Stream recording encoding: D1@15FPS(max)
• Recording method: Manual, scheduled, motion detection
• Internal memory: 1 SATA 3.5" HDD up to 6TB (not included)

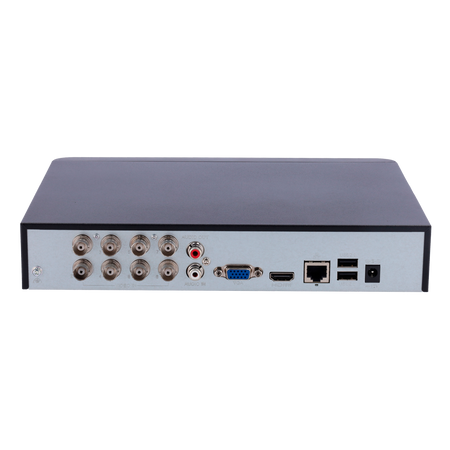

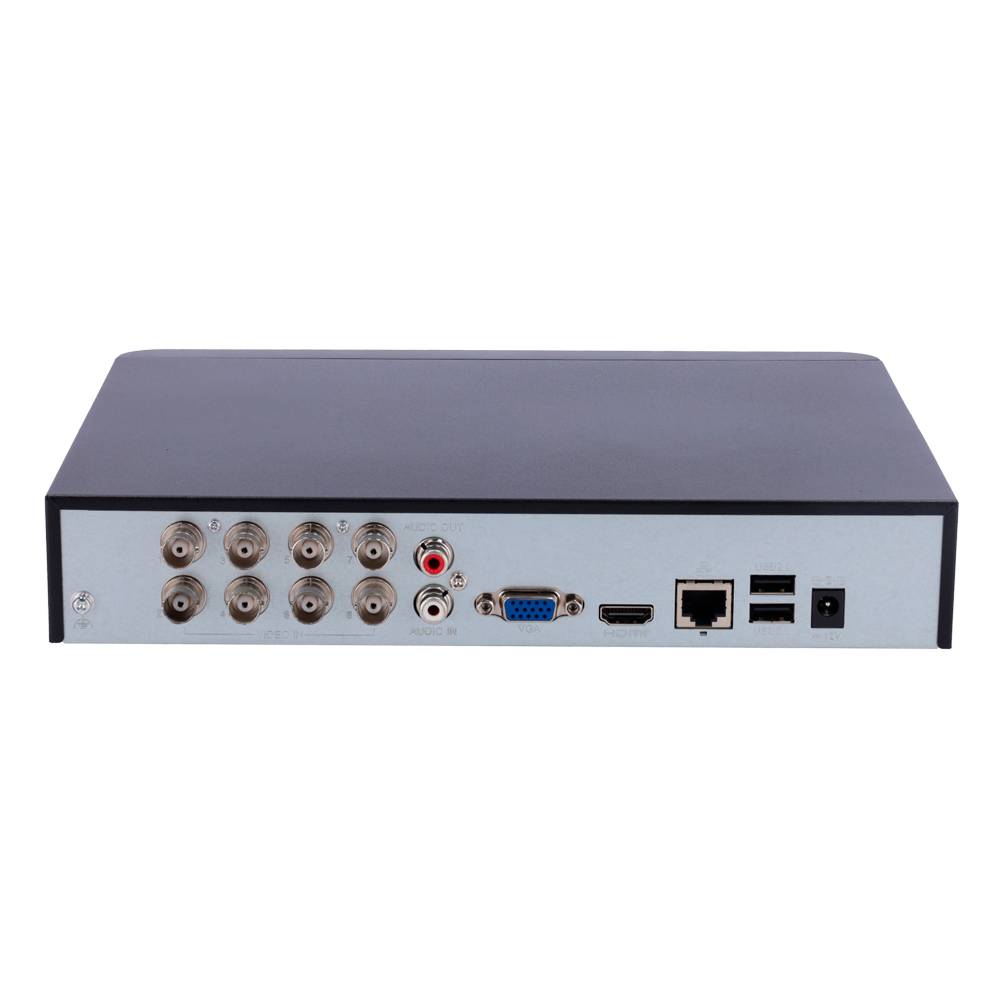

• External interface: 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 12 V / 8 W
• Dimensions / Weight: 46 (H) x 260 (W) x 243 (D) mm / 1 kg
📦 INCLUDED:
• Uniview 5-in-1 video recorder• Mouse• Adapter
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 8CH BNC |
| Hybrid configuration | Up to 8 IP channels (4Mpx) replacing all BNC channels |
| Video output | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing the audio input/output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 4 Mpx |
| Analog recording resolution | TVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720P@30FPS CVI: 4MP@15FPS; 1080P@30FPS; 720P@30FPS *For proper live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the indicated specifications, but in no case higher. |
| Main Stream recording encoding | 5MPLite@6fps; 4MPLite@8fps; 1080PLite@15fps; 1080P@8FPS; 720P@15FPS |
| Extra Stream recording encoding | D1@15FPS(max) |
| Recording method | Manual, scheduled, motion detection |
| Internal memory | 1 HDD SATA 3.5" up to 6TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) |
| Remote access | Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | DC 12 V / 8 W |
| Dimensions / Weight | 46 (H) x 260 (W) x 243 (D) mm / 1 kg |
