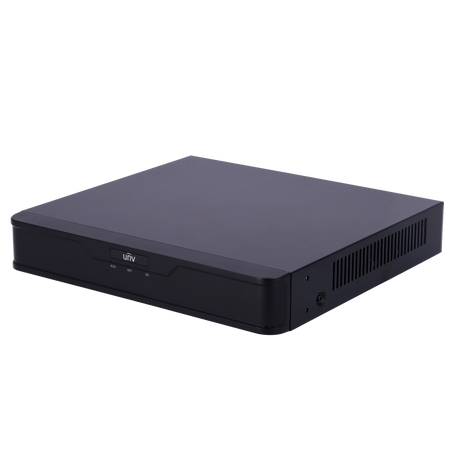

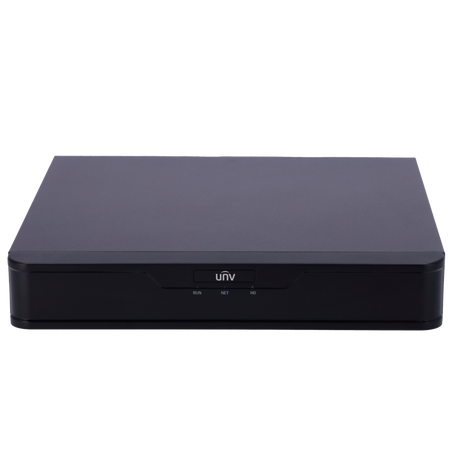

Uniview 5-in-1 video recorder - 4 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP - 4CH BNC
Uniview 5-in-1 video recorder - 4 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP - 4CH BNC
Regular price
€109,76
Final price
Regular price
-8%
€119,00
Sale price
€109,76
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
5-in-1 Video Recorder - Uniview - 4 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP - Audio - Supports 1 hard disk
📋 SPECIFICATIONS:
• Brand: Uniview
• Video inputs: 4CH BNC
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Bandwidth: 48Mbps
• Hybrid configuration: Up to 6 IP Channels (4Mpx) by replacing all BNC channels

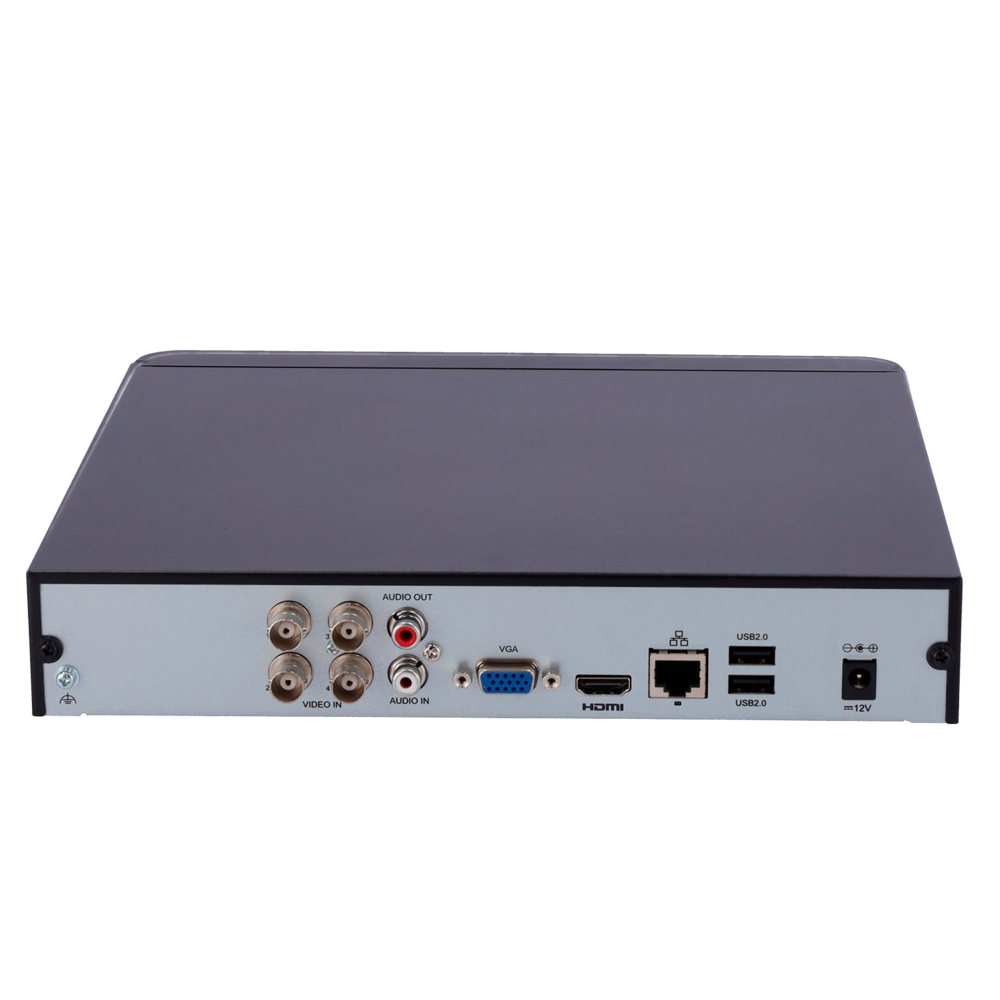

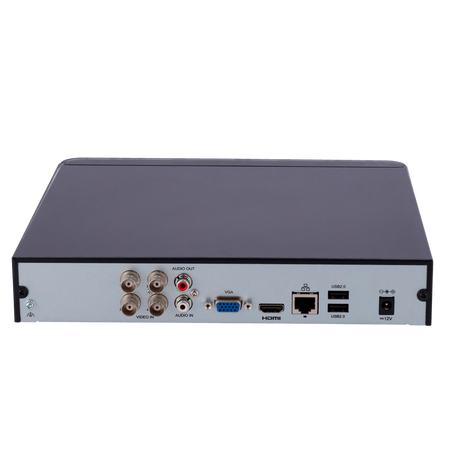

• Video output: 1 HDMI Full HD, 1 VGA
• Audio inputs: 1 RCA Channel
• Audio outputs: 1 RCA Channel
• Two-way audio: Reusing the audio input/output
• Display resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
• Maximum IP recording resolution: 4 Mpx
• Analog recording resolution: TVI/AHD: 5MP@20FPS (first channel); 5MP@12fps; 4MP@30fps (first channel); 4MP@15fps; 1080P@30fps; 720P@60fps; CVI: 5MP@20fps (first channel); 4MP@30fps (first channel); 4MP@15fps; 1080P@30fps; 720P@30fps; Supports CVBS; *For correct live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the indicated specifications, but under no circumstances higher.
• Main Stream recording encoding: 5MP Lite@12fps; 4MP Lite@15fps; 1080P Lite@15fps; 1080P@15fps; 720P@30fps
• Extra Stream recording encoding: D1@30FPS(max)
• Recording method: Manual, scheduled, motion detection
• Internal memory: 1 SATA 3.5" HDD up to 8TB (not included)
• External interface: 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
• Remote access: Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 12 V / 8 W
• Dimensions / Weight: 46 (H) x 260 (W) x 240 (D) mm / 1.1 kg
📦 INCLUDED:
• 5-in-1 Uniview video recorder• Mouse• Adapter
| Video inputs | 4CH BNC |
|---|---|
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Bandwidth | 48Mbps |
| Hybrid configuration | Up to 6 IP Channels (4Mpx) by replacing all BNC channels |
| Video output | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing the audio input/output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 4 Mpx |
| Analog recording resolution | TVI/AHD: 5MP@20FPS (first channel); 5MP@12fps; 4MP@30fps (first channel); 4MP@15fps; 1080P@30fps; 720P@60fps CVI:5MP@20fps (first channel); 4MP@30fps (first channel); 4MP@15fps; 1080P@30fps; 720P@30fps Supports CVBS *For proper live viewing, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specified specifications, and in no case higher. |
| Main Stream recording encoding | 5MP Lite@12fps; 4MP Lite@15fps; 1080P Lite@15fps; 1080P@15fps; 720P@30fps |
| Extra Stream recording encoding | D1@30FPS (max) |
| Recording method | Manual, scheduled, motion detection |
| Internal storage | 1 HDD SATA 3.5" up to 8TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) |
| Remote access | Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | DC 12 V / 8 W |
| Dimensions / Weight | 46 (H) x 260 (W) x 240 (D) mm / 1.1 kg |
