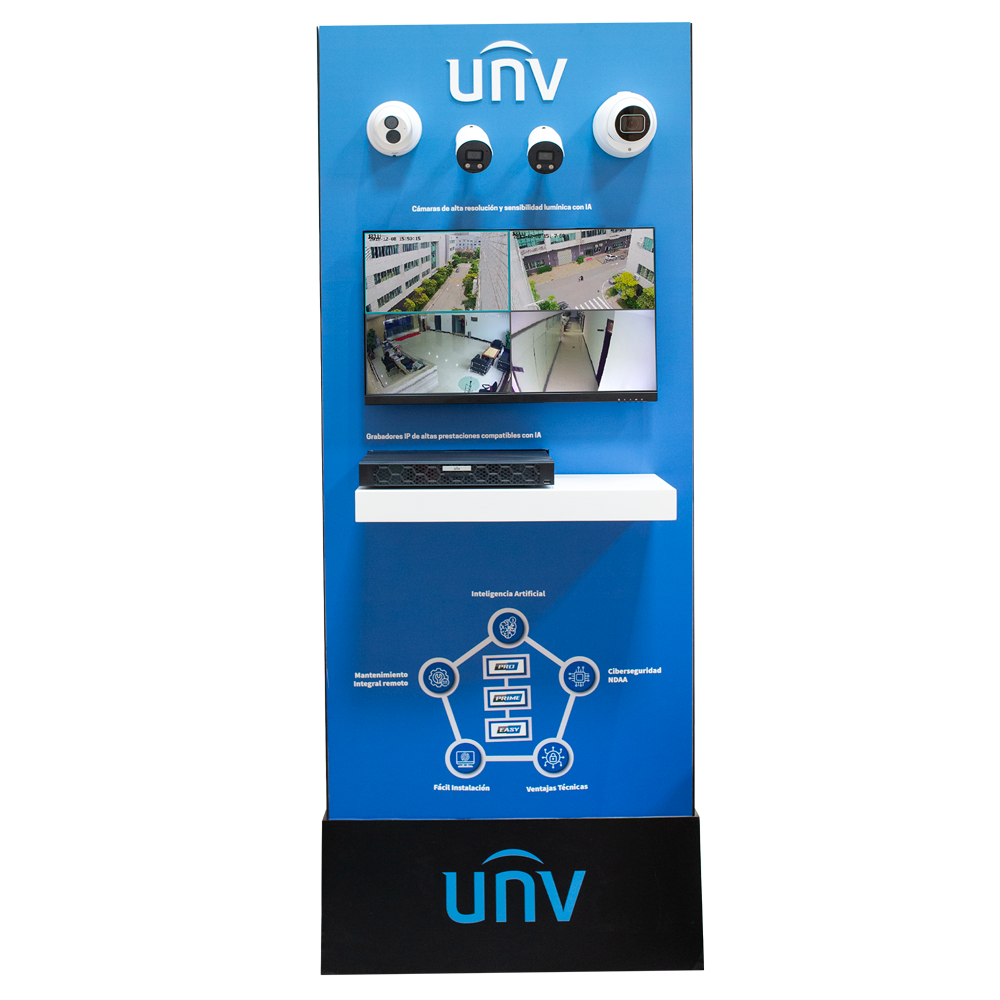

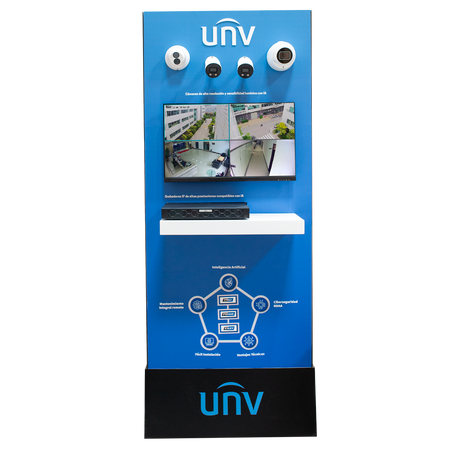

Uniview display panel
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Uniview display panel - 4K CCTV - Most advanced technologies - Internet-connected switch - Plug & Play - Stand included
📋 SPECIFICATIONS:
• Dimensions: Height: 202 cm; Width: 81 cm; Depth: 15 cm (40 cm with shelf)
• Brand: Uniview
• Series: Prime
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Maximum resolution: 8 Megapixel (3840x2160)
• Main Stream frame rate: 20 fps (3840x2160) 30 fps (3072x1728, 2560 x 1440, 1920 x 1080)
• Sub Stream frame rate: 2nd:1080p (1 ~ 30 FPS), 3rd:D1 (1 ~ 30 FPS)
• Compression: Ultra265/H.265/H.264
• Lens: 2.8 mm
• Minimum illumination: 0.01Lux (F2.0, AGC ON)
• Infrared range: 30 m
• Image enhancement: WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR
• UMD: Yes (Advanced motion detection with human and vehicle classification)
• SIP (Smart Intrusion Prevention): Intelligent intrusion prevention. Accurate detection of humans and vehicles to avoid false alarms. Event triggered by line crossing, area intrusion, or entering/exiting a predefined area
• Smart functions: Motion detection, audio detection, tampering alarm
• Day / Night: ICR mechanical filter
• Internal memory: MicroSD card, Max 256 GB
• Video backup: ANR video recovery technology by installing a Micro SD card
• Audio: Built-in microphone; Built-in speaker
• Network interface: Ethernet 10/100 BaseT
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF
• Power supply: DC 12 V / 10.5 W; PoE IEEE802.3af
• Operating temp.: -30º C ~ 60º C
• Protection rating: Waterproof IP67; 4000 V surge protection
• Dimensions: 191× 75 × 74mm
• Weight: 410 g
• Brand: Uniview
• Series: EasyStar
• Optical sensor: 1/3” Progressive Scan CMOS Starlight
• Maximum resolution: 4 Megapixel (2688x1520)
• Main Stream frame rate: 4MP (2688*1520)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps;
• Sub Stream frame rate: 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps;
• Viewing angle: Horizontal: 112.9º; Vertical: 59.1º; Diagonal: 121.2º
• DORI: Detection: 63 m; Observation: 25.2 m; Recognition: 12.6 m; Identification: 6.3 m
• Compression: Ultra265/H.265/H.264
• Lens: 2.8 mm
• Minimum illumination: 0.003Lux (F1.6 AGC ON)
• Infrared range: 30 m
• White Light range: 30 m
• Image enhancement: WDR (120dB), 2D/3D-NR, ROI, Privacy Mask, Smart IR
• Smart functions: Motion detection, UMD, Audio detection, Tampering alarm
• UMD: Supported; Motion detection based on human body detection
• Day / Night: ICR mechanical filter
• Internal memory: MicroSD card, Max 128 GB
• Video backup: ANR video recovery technology by installing a Micro SD card
• Corridor mode: Yes
• Audio: Built-in microphone; Built-in speaker; G.711
• Network interface: Ethernet 10/100 BaseT
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF
• Power supply: DC 12 V / 9 W; PoE IEEE802.3af
• Operating temp.: -30º C ~ 60º C
• Protection rating: Waterproof IP67; 4000 V surge protection
• Dimensions: 191(D) × 75(W) × 74 (H) mm
• Weight: 410 g
• Brand: Uniview
• Series: EasyStar
• Optical sensor: 1/2.7" Progressive Scan CMOS Starlight
• Maximum resolution: 8 Megapixel (3840*2160)
• Main Stream frame rate: 8MP (3840*2160)@20fps; 5MP (3072*1728)@30fps; 4MP (2560*1440)@30fps; 1080P(1920*1080)@30fps;
• Sub Stream frame rate: 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps
• Compression: Ultra265/H.265/H.264
• Lens: 2.8 mm
• Minimum illumination: 0.005 Lux (Color)
• Infrared range: 30 m
• Image enhancement: WDR 120dB, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR
• Day / Night: Automatic and configurable
• Internal memory: microSD card slot up to 256GB
• Alarms: No
• Audio: Built-in microphone | G.711
• Network interface: Ethernet 10/100 BaseT
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF
• Power supply: DC 12 V / 4.5 W, PoE IEEE802.3af
• Operating temp.: -30°C ~ 60°C
• Protection rating: IP67
• Dimensions: Φ118 x 95mm
• Weight: 360 g
• Brand: Uniview
• Series: Prime
• Channels: 16 channels
• Compatible IP cameras: UNIVIEW, ONVIF
• Video output: 1 HDMI 4K, 1 VGA
• Video compression format: Ultra H.265 / H.265 / H.264
• Network interface: 2 RJ-45 10M / 100M / 1000M
• Display resolution: 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
• Total bandwidth: 320 Mbps incoming / 160 Mbps outgoing
• Main Stream recording: 16Mpx / 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF
• Two-way audio: 1 input / 1 output RCA
• Smart functions per camera: 8 channels
• VCA detection per camera: Intrusion detection, Line crossing detection, Area entry, Area exit, Blur detection, Scene change detection, Abandoned object, Removed object, Autotracking, UMD (Ultra Motion Detection)
• Recording mode: Manual, scheduled, motion detection
• External backup: USB memory / USB HDD
• Internal memory: 2 HDD SATA 3.5" up to 8 TB (not included)
• Alarms: 8 Inputs / 2 Outputs
• Communication: 2 x USB 2.0 / 2 x RJ45 (Ethernet)
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: 12 V DC/3.3 A ≤ 20 W (without HD)
• Dimensions / Weight: 380mm × 315mm × 53mm / 2 Kg
• Brand: Uniview
• Series: Prime
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Maximum resolution: 5 Megapixel (2880 x 1620)
• Lens: 2.7~13.5 mm motorized varifocal (H: 106.3~32.5°; V: 53.5~18.0°; D: 126.0~38.5°)
• Main Stream frame rate: 5 MP (2880x1620), Max 30fps; 4MP (2688x1520), Max 30fps;; 4MP (2560x1440), Max 30fps;; 3MP (2304x1296), Max 30fps;; 1080P (1920x1080), Max 30fps;
• Sub Stream frame rate: 1080P (1920x1080), Max 30fps;; 720P (1280x720), Max 30fps;; D1 (720x576), Max 30fps;; 640x360, Max 30fps;; 2CIF(704x288), Max 30fps;; CIF(352x288), Max 30fps;
• Third stream frame rate: D1 (720x576), Max 30fps;; 640x360, Max 30fps;; 2CIF(704x288), Max 30fps;; CIF(352x288), Max 30fps;
• Compression: Ultra265/H.265/H.264
• Minimum illumination: Color: 0.002 Lux (F1.2, AGC ON); 0 lux with IR on
• Infrared range: 40 m
• Image enhancement: WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR
• Intelligent intrusion prevention: False alarm filter support: line crossing detection, intrusion detection, area entry detection, area exit detection
• Color Retrieval: Color metadata detection on humans, vehicles, and two-wheelers.
• Analysis: People counting, support for people flow counting and crowd density monitoring
• Face detection: Supported
• UMD: Integrates Ultra Motion Detection
• Automatic Scene Match (ASM): Supported (WDR only)
• 9:16 Corridor mode: Supported
• Day / Night: ICR mechanical filter
• Internal memory: MicroSD card, Max 256 GB
• Video backup: ANR video recovery technology by installing a Micro SD card
• Alarms: 1 input / 1 relay
• Audio: 1 input / 1 output / Built-in microphone
• Network interface: Ethernet 10/100 BaseT
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Interoperability: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Power supply: Input DC 12 V / 6.5 W, PoE IEEE802.3af; Output DC 12 V, 0.1 A, 1.2 W
• Operating temp.: -40º C ~ 60º C
• Material: Metal
• Protection rating: Waterproof IP67
• Dimensions: Φ111 x 83mm
• Weight: 420 g
📦 INCLUDED:
• Vinyl stand with Switch and Power strip• Video recorder UV-NVR502-16B• UV-IPC2124LE-ADF28KMC-WL• UV-IPC3618LE-ADF28K-G• UV-IPC3635SS-ADZK-I1• UV-IPC2128SB-ADF28KMC-I0• 6-port PoE switch• 27" 4K Monitor
| Dimensions | Height: 202 cm Width: 81 cm Depth: 15 cm (40 cm with shelf) |
|---|---|
| Series | Prime |
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream frame rate | 20 fps (3840x2160) 30 fps (3072x1728, 2560 x 1440, 1920 x 1080) |
| Sub Stream frame rate | 2nd: 1080p (1 ~ 30 FPS), 3rd: D1 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.01Lux (F2.0, AGC ON) |
| Infrared range | 30 m |
| Image enhancement | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| UMD | Yes (Advanced motion detection with human and vehicle classification) |
| SIP (Smart Intrusion Prevention) | Smart intrusion prevention. Accurate detection of people and vehicles to avoid false alarms. Event triggered by line crossing, area intrusion, or entering/exiting a predefined area |
| Smart functions | Motion detection, Audio detection, Tamper protection |
| Day / Night | ICR mechanical filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Built-in microphone Built-in speaker |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power supply | DC 12 V / 10.5 W PoE IEEE802.3af |
| Operating temp. | -30º C ~ 60º C |
| Protection rating | Waterproof IP67 Surge protection 4000 V |
| Dimensions | 191 × 75 × 74 mm |
| Weight | 410 g |
| Series | EasyStar |
| Optical sensor | 1/3” Progressive Scan CMOS Starlight |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream frame rate | 4MP (2688*1520)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; |
| Sub Stream frame rate | 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; |
| Viewing angle | Horizontal: 112.9º Vertical: 59.1º Diagonal: 121.2º |
| DORI | Detect: 63 m Observe: 25.2 m Recognize: 12.6 m Identify: 6.3 m |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.003Lux (F1.6 AGC ON) |
| Infrared range | 30 m |
| White light range | 30 m |
| Image enhancement | WDR (120dB) 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Smart functions | Motion detection, UMD, Audio detection, Tamper protection |
| UMD | Supports motion detection based on human body detection |
| Day / Night | ICR mechanical filter |
| Internal memory | MicroSD card, Max 128 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Corridor mode | Yes |
| Audio | Built-in microphone Built-in speaker G.711 |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power supply | DC 12 V / 9 W PoE IEEE802.3af |
| Operating temp. | -30º C ~ 60º C |
| Protection rating | Waterproof IP67 Surge protection 4000 V |
| Dimensions | 191 (Depth) × 75 (Width) × 74 (Height) mm |
| Weight | 410 g |
| Series | EasyStar |
| Optical sensor | 1/2.7" Progressive Scan CMOS Starlight |
| Maximum resolution | 8 Megapixel (3840*2160) |
| Main Stream frame rate | 8MP (3840*2160)@20fps; 5MP (3072*1728)@30fps; 4MP (2560*1440)@30fps; 1080P(1920*1080)@30fps; |
| Sub Stream frame rate | 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps; |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.005 Lux (Color) |
| Infrared range | 30 m |
| Image enhancement | WDR 120dB, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Day / Night | Automatic and configurable |
| Internal memory | MicroSD card slot up to 256GB |
| Alarms | No |
| Audio | Built-in microphone | G.711 |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power supply | DC 12 V / 4.5 W, PoE IEEE802.3af |
| Operating temp. | -30°C ~ 60°C |
| Protection rating | IP67 |
| Dimensions | Φ118 x 95 mm |
| Weight | 360 g |
| Series | Prime |
| Channels | 16 channels |
| Compatible IP cameras | UNIVIEW, ONVIF |
| Video output | 1 HDMI 4K, 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Network interface | 2 RJ-45 10M / 100M / 1000M |
| Display resolution | 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 320 Mbps incoming / 160 Mbps outgoing |
| Main Stream recording | 16Mpx / 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF |
| Two-way audio | 1 input / 1 output RCA |
| Smart functions per camera | 8 channels |
| VCA detection per camera | Intrusion detection, Line crossing detection, Area entry, Area exit, Blur detection, Scene change detection, Abandoned object, Removed object, Autotracking, UMD (Ultra Motion Detection) |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD |
| Internal memory | 2 HDD SATA 3.5" up to 8 TB (not included) |
| Alarms | 8 Inputs / 2 Outputs |
| Communication | 2 x USB 2.0 / 2 x RJ45 (Ethernet) |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | 12 V DC/3.3 A ≤ 20 W (without HD) |
| Dimensions / Weight | 380mm × 315mm × 53mm / 2 Kg |
| Series | Prime |
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880 x 1620) |
| Lens | 2.7~13.5 mm Motorized Varifocal (H: 106.3~32.5°; V: 53.5~18.0°; D: 126.0~38.5°) |
| Main Stream frame rate | 5 MP (2880x1620), Max 30fps 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; |
| Sub Stream frame rate | 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Third Stream frame rate | D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Compression | Ultra265/H.265/H.264 |
| Minimum illumination | Color: 0.002Lux (F1.2, AGC ON) 0 lux with IR on |
| Infrared range | 40 m |
| Image enhancement | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Smart Intrusion Prevention | False alarm filter support: line crossing detection, intrusion detection, area entry detection, area exit detection |
| Color Retrieval | Color metadata detection for people, vehicles, and two-wheelers. |
| Analysis | People counting, crowd flow counting support, and crowd density monitoring |
| Face capture | Supported |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| 9:16 Corridor mode | Supported |
| Day / Night | ICR mechanical filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Alarms | 1 input / 1 relay |
| Audio | 1 Input / 1 Output / Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power supply | Input DC 12 V / 6.5 W, PoE IEEE802.3af Output DC 12 V, 0.1 A, 1.2 W |
| Operating temp. | -40º C ~ 60º C |
| Material | Metal |
| Protection rating | Waterproof IP67 |
| Dimensions | Φ111 x 83 mm |
| Weight | 420 g |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
