Uniview IP dual-optic positioning system
Regular price
€30.435,64
Final price
Regular price
-8%
€32.999,00
Sale price
€30.435,64
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

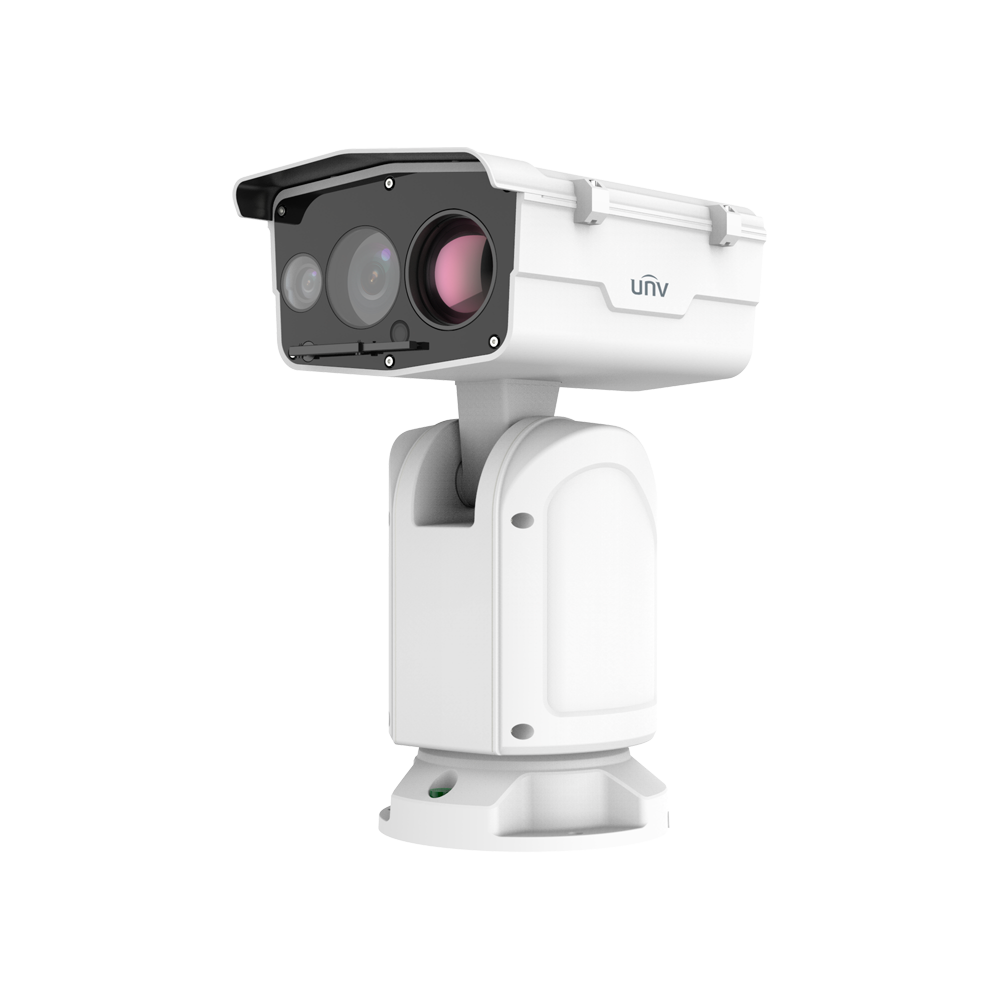

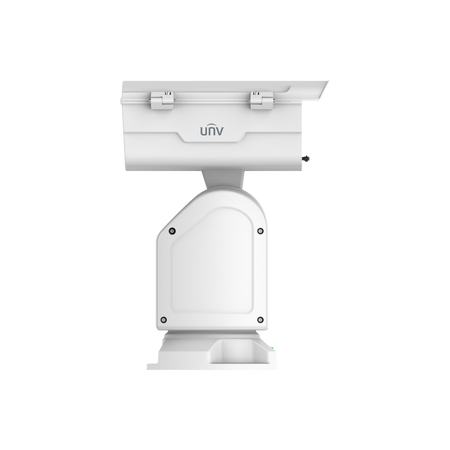

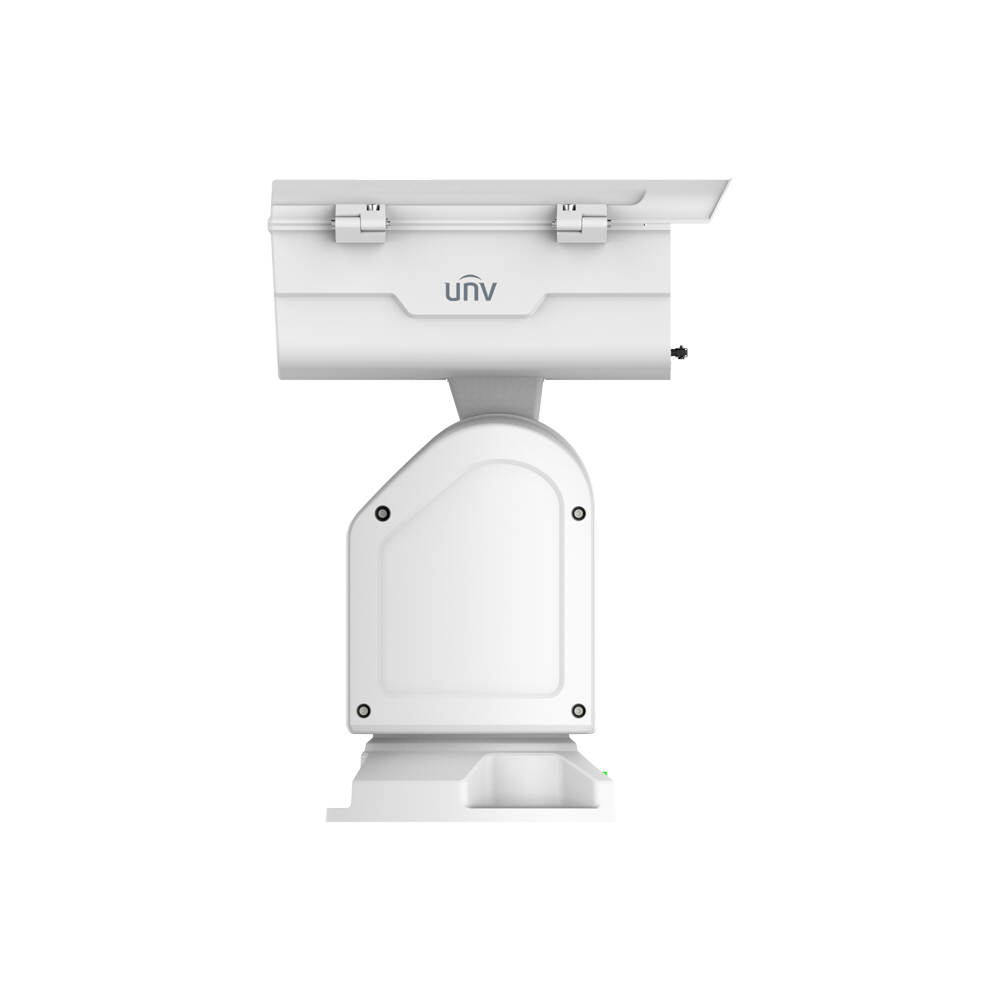

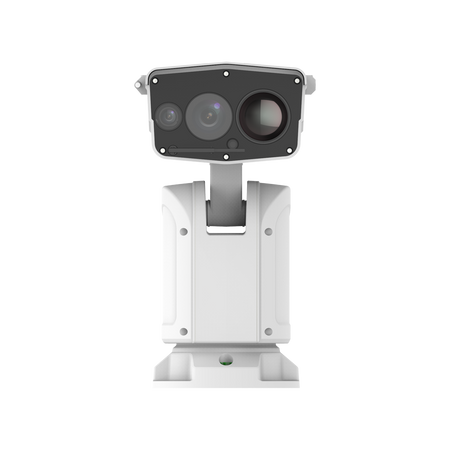

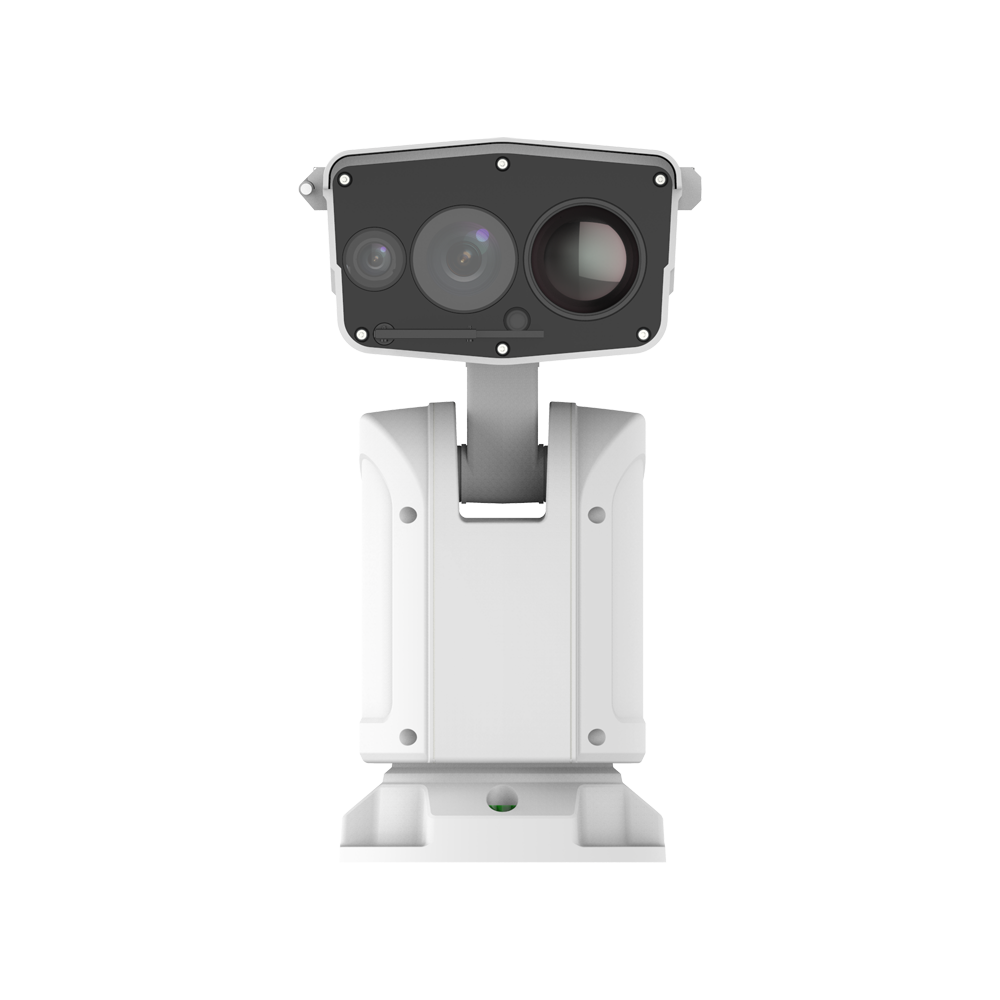

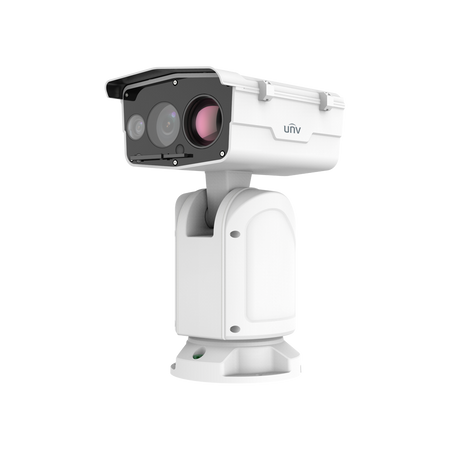

Uniview IP dual-lens positioning system - Thermal: 640x512 | 75 mm lens - Optical: 4 MP | 6~336 mm lens (56X) - SIP | Fire detection | Smoke detection | UMD - Audio | Alarm | IP66 | Wiper - Temperature measurement range -20~150ºC / ± 8ºC
📋 SPECIFICATIONS:
• Brand: Uniview
• Thermal sensor: 640x512 Vanadium oxide
• Optical sensor: 1/1.8” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Thermal 1080P (1920x1080)@30fps; Optical 4MP(2688x1520)@30fps
• Compression: Ultra265 / H.265 / H.264 / MJPEG
• Lens: 75 mm (Thermal) / 6 ~ 336 mm (Optical)
• FOV - Thermal: Horizontal: 6.1º; Vertical: 4.8º; Diagonal: 7.2º
• FOV - Optical: Horizontal: 57.9 ~ 1.6º; Vertical: 34.6 ~ 0.9º; Diagonal: 71.2 ~ 1.9º
• DRI - Thermal: Detection: 3248 m; Recognition: 812 m; Identification: 541 m
• DORI - Optical: Detection: 155.5 ~ 4829.4 m; Observation: 62.2 ~ 1931.8 m; Recognition: 31.1 ~ 965.9 m; Identification: 15.5 ~ 482.9 m
• Fire Detection: Supports detection of fire outbreaks in the environment and can detect up to 10
• Smoke Detection: Detects the presence of smoke in the area and links alarms
• SIP: Detection of motor vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit
• Thermal sensitivity: ≤40mk @F1.0 @25°C
• Thermal measurement range: -20 ~150 ºC / ± 8 ºC
• Spectral range: 12μm
• Audio: 1 Input; 1 Output
• Alarm: 7 Inputs; 2 Outputs
• Internal storage: Micro SD card up to 512 GB
• Network interface: Ethernet 10/100/1000 BaseTX
• Interoperability: ONVIF
• Power supply: DC 48V; DC 24V; AC 24V; Maximum 135W
• Operating temp.: -40º C ~ +70º C
• Protection rating: Waterproof IP66
• Dimensions: Φ 366 (D) x 509 (W) x 283 (H) mm
• Weight: 17.98 Kg
📦 INCLUDED:
• Uniview IP thermal camera• Installation material• User instructions• Connection box included
| Thermal sensor | 640x512 Vanadium Oxide |
|---|---|
| Optical sensor | 1/1.8” Progressive Scan CMOS 4 Megapixel |
| Main Stream frame rate | Thermal 1080P (1920x1080)@30fps Optical 4MP (2688x1520)@30fps |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Lens | 75 mm (Therm) / 6 ~ 336 mm (Opt) |
| FOV - Thermal | Horizontal: 6.1º Vertical: 4.8º Diagonal: 7.2º |
| FOV - Optical | Horizontal: 57.9 ~ 1.6º Vertical: 34.6 ~ 0.9º Diagonal: 71.2 ~ 1.9º |
| DRI - Thermal | Detect: 3248 m Recognize: 812 m Identify: 541 m |
| DORI - Optical | Detect: 155.5 ~ 4829.4 m Observe: 62.2 ~ 1931.8 m Recognize: 31.1 ~ 965.9 m Identify: 15.5 ~ 482.9 m |
| Fire Detection | Supports fire outbreak detection in the environment and can detect up to 10 |
| Smoking detection | Detects the presence of smokers in the area and links alarms |
| SIP | Detection of motorized vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit |
| Thermal sensitivity | ≤40mk @F1.0 @25°C |
| Thermal measurement range | -20 ~150 ºC / ± 8 ºC |
| Spectral range | 12μm |
| Audio | 1 Input 1 Output |
| Alarm | 7 Inputs 2 Outputs |
| Internal memory | Micro SD card up to 512 GB |
| Network interface | Ethernet 10/100/1000 BaseTX |
| Interoperability | ONVIF |
| Power supply | DC 48V DC 24V AC 24V Maximum 135W |
| Operating temp. | -40ºC ~ +70ºC |
| Protection rating | Waterproof IP66 |
| Dimensions | Φ 366 (D) x 509 (W) x 283 (H) mm |
| Weight | 17.98 Kg |
