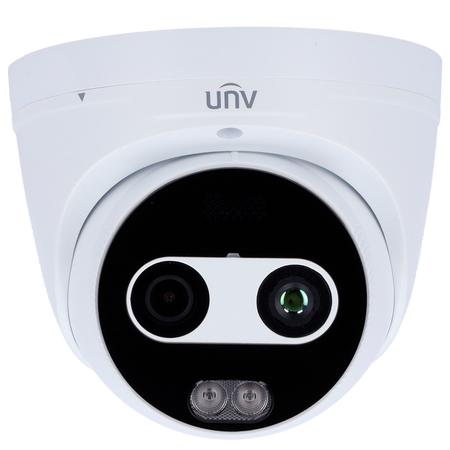

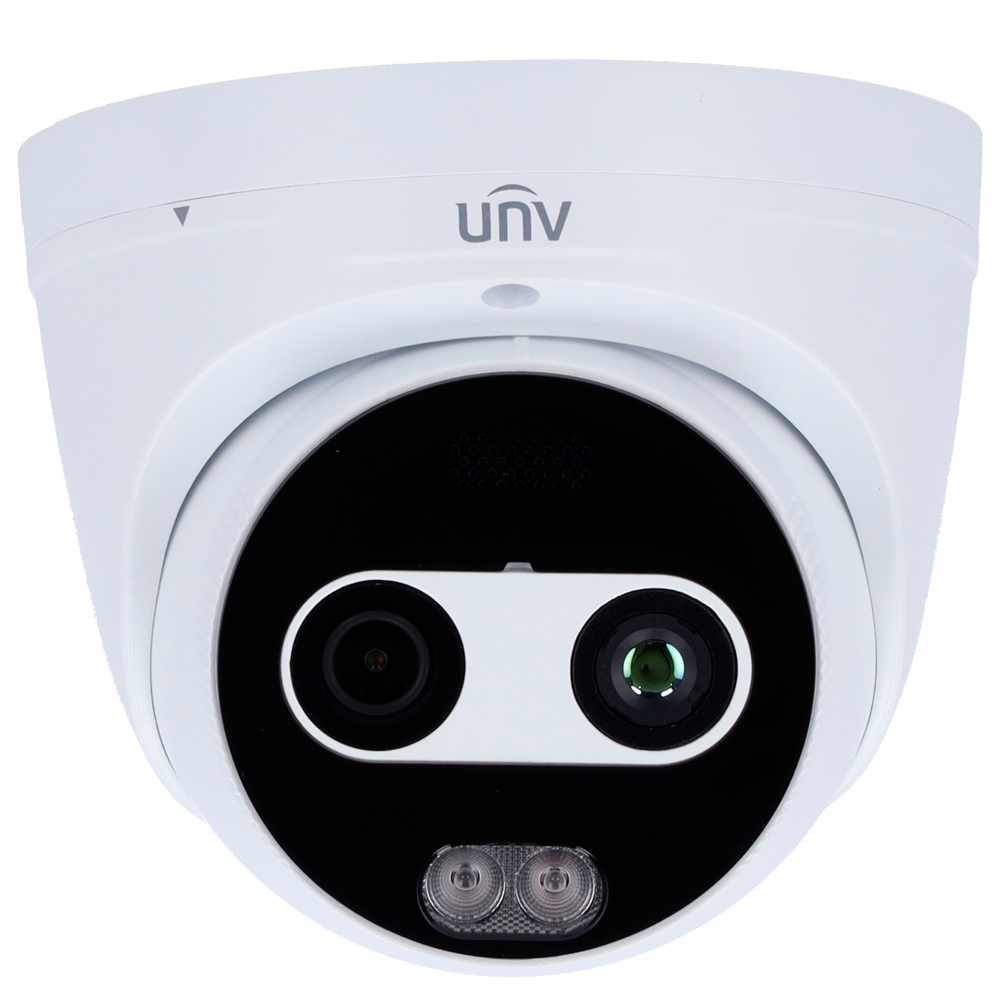

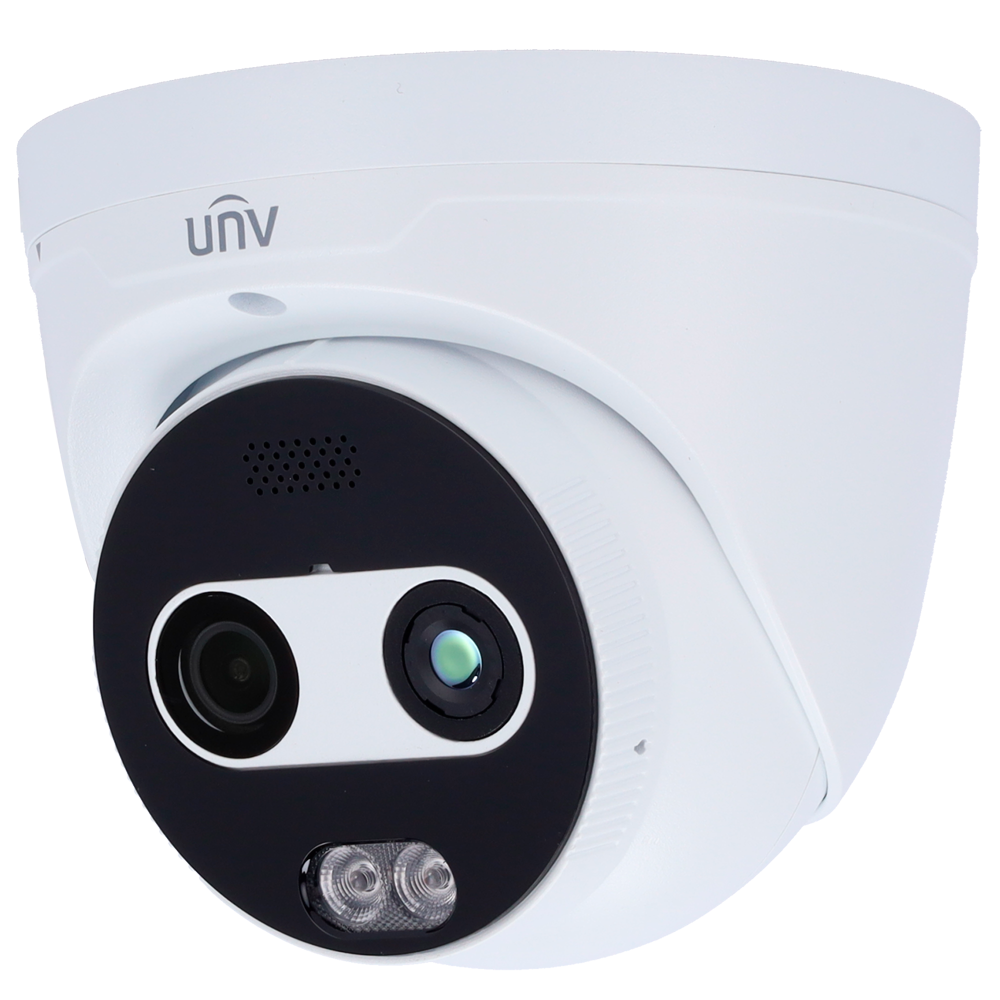

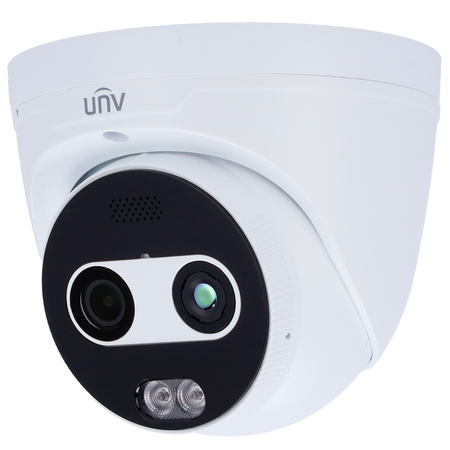

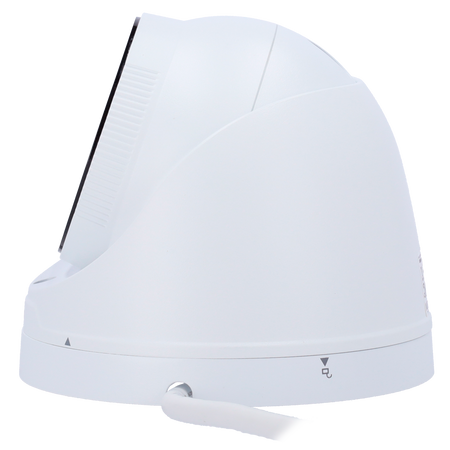

Uniview Dual-Lens IP Thermal Camera - Thermal: 256x192 | 3 mm Lens
Uniview Dual-Lens IP Thermal Camera - Thermal: 256x192 | 3 mm Lens
Regular price
€1.290,33
Final price
Regular price
-8%
€1.399,00
Sale price
€1.290,33
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview IP Dual-Optic Thermal Camera - Thermal: 256x192 | 3 mm Lens - Optical: 4 MP | 4 mm Lens - Microphone | Speaker | Alarms - VCA | Fire Detection | Smoke Detection | PoE - Temperature measurement range -20~550ºC / ± 8ºC
📋 SPECIFICATIONS:
• Brand: Uniview
• Thermal sensor: 256x192 Vanadium oxide
• Optical sensor: 1/2.8” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Thermal 960P(1280*960)@30fps; Optical 4MP(2688*1520)@30fps
• Compression: Ultra265 / H.265 / H.264 / MJPEG
• Lens: 3 mm (Therm) / 4 mm (Opt)
• FOV - Thermal: Horizontal: 17.5º; Vertical: 13.2º; Diagonal: 21.5º
• FOV - Optical: Horizontal: 41.2º; Vertical: 23.6º; Diagonal: 50.7º
• DRI - Thermal: Detect: 119 m; Recognize: 30 m; Identify: 17 m
• DORI - Optical: Detect: 180 m; Observe: 72 m; Recognize: 36 m; Identify: 18 m
• Fire Detection: Supports fire spot detection and can detect up to 10 fire spots up to 13 m away
• Smoke detection: Detects smokers in the area and triggers alarms up to 3m away
• VCA: Detection of motor vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit
• Viewing angle: 57°×42° (Therm) / 84°×43.1° (Opt)
• Thermal sensitivity: ≤55mk @f/1.0 @25°C
• Thermal measurement range: -20 ~150ºC and from 100ºC ~ 550ºC / ± 8ºC
• Spectral range: 12μm
• Audio In/Out: 1 Input / 1 Output
• Alarm In/Out: 2 Inputs / 2 Outputs
• Internal memory: Micro SD card up to 512 GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: 12VDC, max.12W; PoE IEEE802.3af,
• Operating temp.: -40ºC ~ +70ºC
• Protection degree: Waterproof IP67
• Dimensions: Φ129mm*114mm
• Weight: 0.72 Kg
📦 INCLUDED:

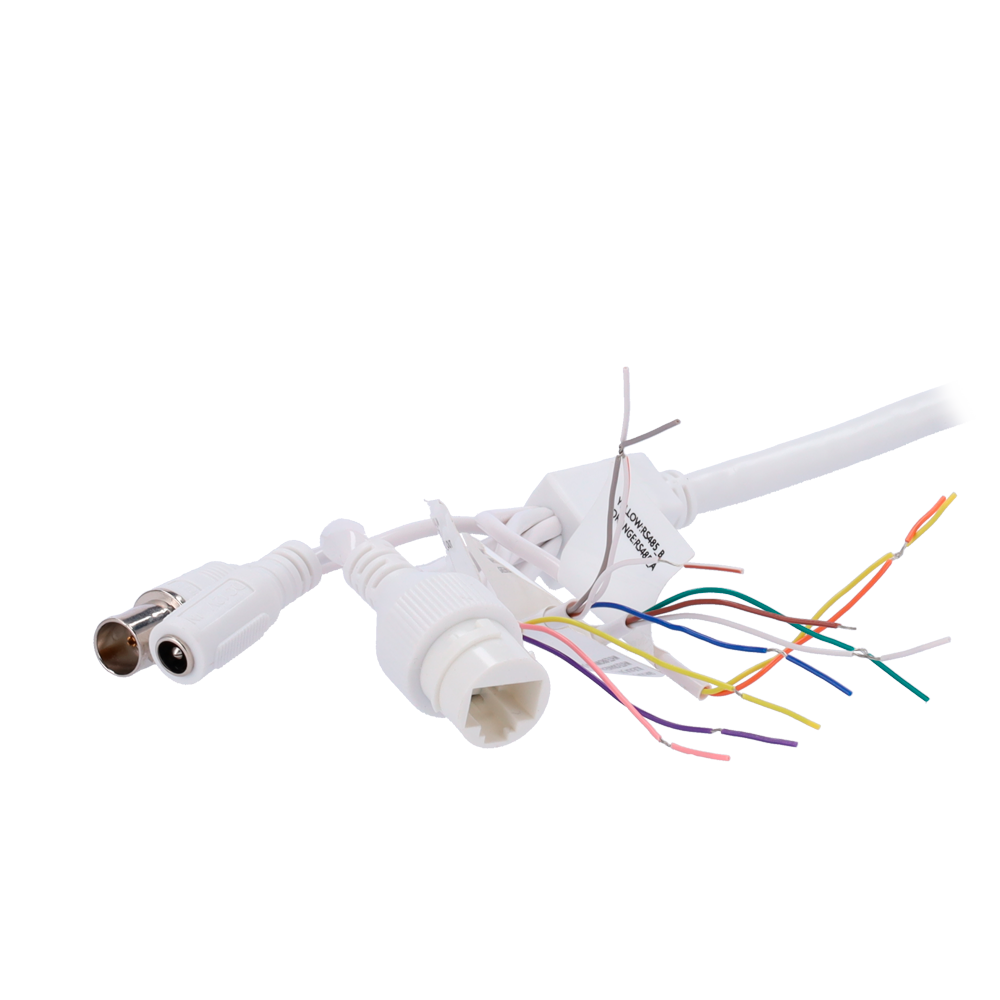

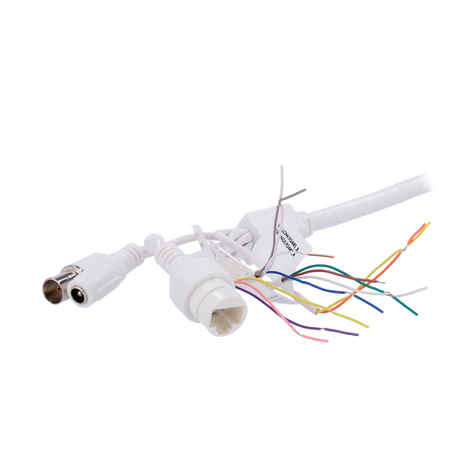

• Uniview IP thermal camera• Installation hardware• User instructions• Connection box included
| Thermal sensor | 256x192 Vanadium oxide |
|---|---|
| Optical sensor | 1/2.8” Progressive Scan CMOS 4 Megapixel |
| Main Stream frame rate | Thermal 960P(1280*960)@30fps Optical 4MP(2688*1520)@30fps |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Lens | 3 mm (Therm) / 4 mm (Opt) |
| FOV - Thermal | Horizontal: 17.5º Vertical: 13.2º Diagonal: 21.5º |
| FOV - Optical | Horizontal: 41.2º Vertical: 23.6º Diagonal: 50.7º |
| DRI - Thermal | Detect: 119 m Recognize: 30 m Identify: 17 m |
| DORI - Optical | Detect: 180 m Observe: 72 m Recognize: 36 m Identify: 18 m |
| Fire Detection | Supports fire spot detection and can detect up to 10 fire spots at a distance of up to 13 m |
| Smoking Detection | Detects smokers in the area and links alarms up to 3m away |
| SIP | Detection of motor vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit |
| Angle of view | 57°×42° (Therm) / 84°×43.1° (Opt) |
| Thermal sensitivity | ≤55mk @f/1.0 @25°C |
| Thermal measurement range | -20 ~150 ºC and 100ºC ~ 550ºC / ± 8 ºC |
| Spectral range | 12μm |
| Audio In/Out | 1 Input / 1 Output |
| Alarm In/Out | 2 Inputs / 2 Outputs |
| Internal memory | Micro SD card up to 512 GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC, max.12W; PoE IEEE802.3af, |
| Operating temp. | -40ºC ~ +70ºC |
| Protection rating | Waterproof IP67 |
| Dimensions | Φ129mm*114mm |
| Weight | 0.72 Kg |
