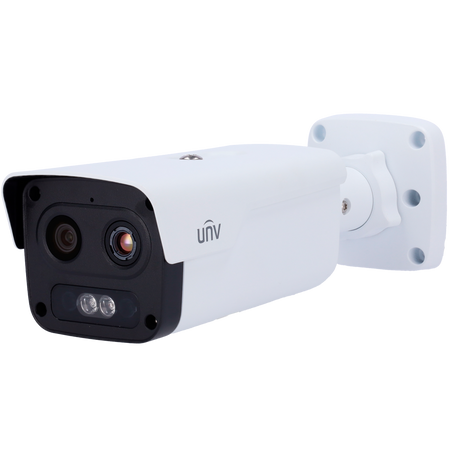

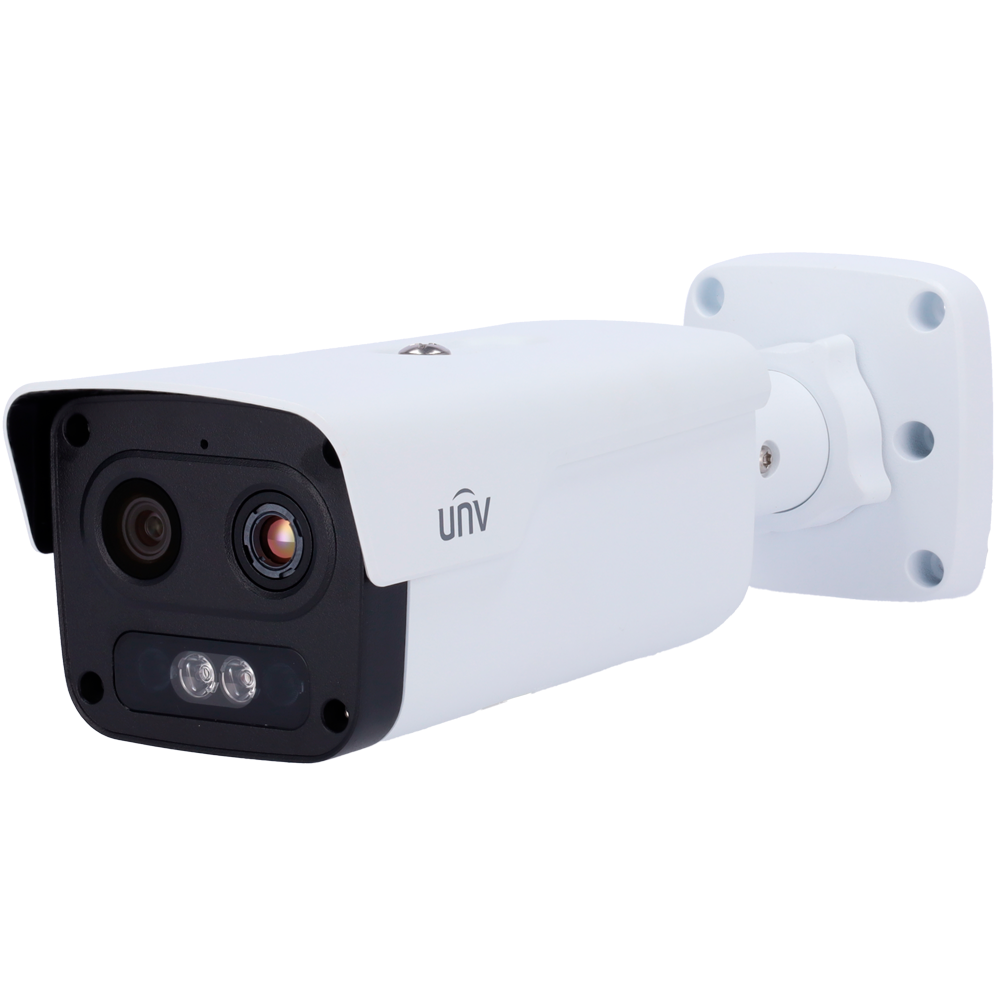

Uniview IP Dual-Lens Thermal Camera - Thermal: 256x192 | 10mm Lens
Uniview IP Dual-Lens Thermal Camera - Thermal: 256x192 | 10mm Lens
Regular price
€1.382,56
Final price
Regular price
-8%
€1.499,00
Sale price
€1.382,56
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

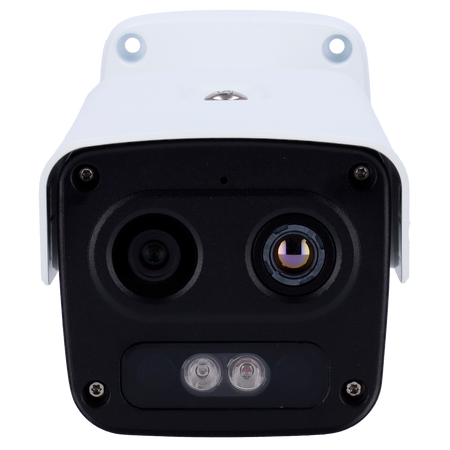

Uniview Dual-Lens IP Thermal Camera - Thermal: 256x192 | 10mm Lens - Optical: 4 MP | 8mm Lens - Microphone | Speaker | Alarms - SIP | Fire Detection | Smoke Detection | PoE - Temperature measurement range -20~150ºC / ± 8ºC
📋 SPECIFICATIONS:
• Brand: Uniview
• Thermal sensor: 256x192 Vanadium oxide
• Optical sensor: 1/2.8” Progressive Scan 4 Megapixel CMOS
• Main Stream frame rate: Thermal 960P(1280*960)@30fps; Optical 4MP(2688*1520)@30fps
• Compression: Ultra265 / H.265 / H.264 / MJPEG

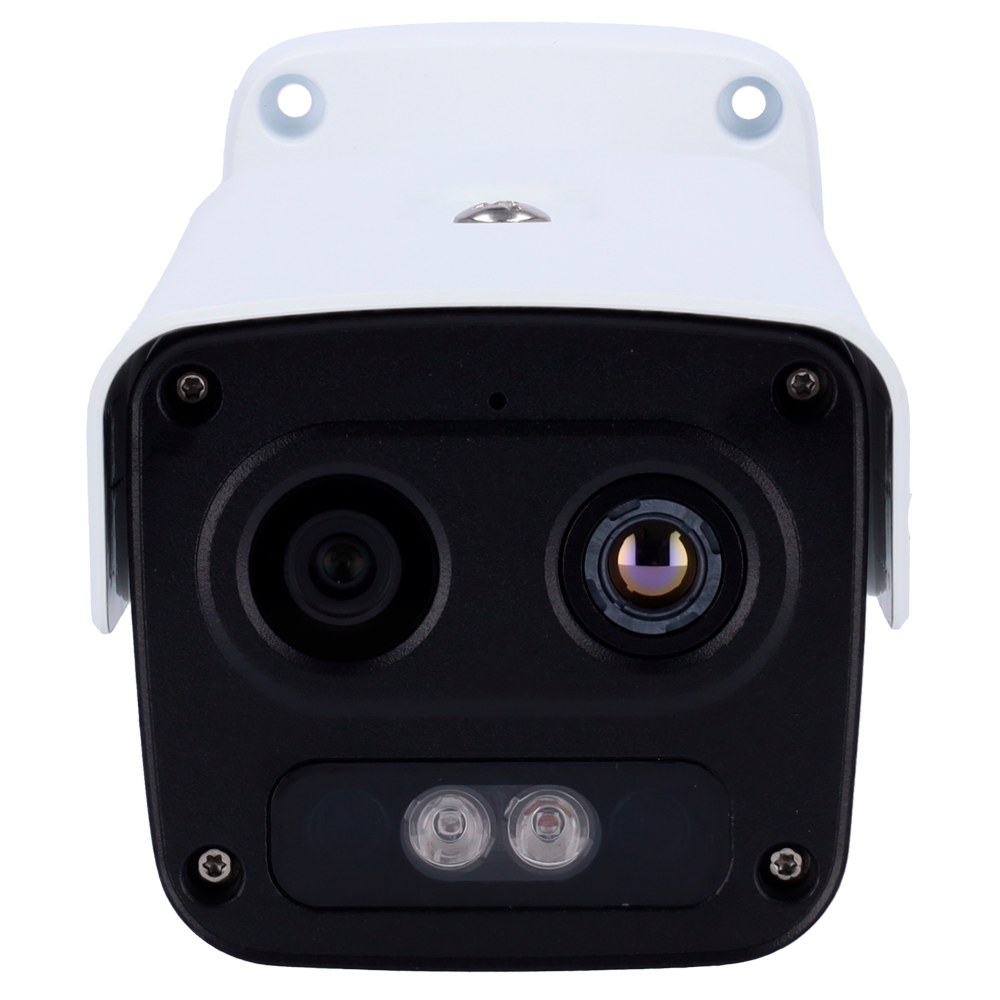

• Lens: Optical: 8 mm; Thermal: 10 mm
• FOV - Thermal: Horizontal: 17.5º; Vertical: 13.2º; Diagonal: 21.5º
• FOV - Optical: Horizontal: 41.2º; Vertical: 23.6º; Diagonal: 50.7º
• DRI - Thermal: Detect: 395 m; Recognize: 99 m; Identify: 56 m
• DORI - Optical: Detect: 180 m; Observe: 72 m; Recognize: 36 m; Identify: 18 m
• Fire Detection: Supports detection of fire outbreaks in the environment and can detect up to 10
• Smoke Detection: Detects the presence of smokers in the area and triggers alarms
• SIP: Detection of motor vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit
• Viewing angle: 57°×42° (Therm) / 84° × 43.1° (Opt)
• Thermal sensitivity: ≤55mk @f/1.0 @25°C
• Thermal measurement range: -20 ~ 150 ºC / ± 8 ºC
• Spectral range: 12μm
• Audio In/Out: 1/ 1
• Alarm In/Out: 2/2 Relay

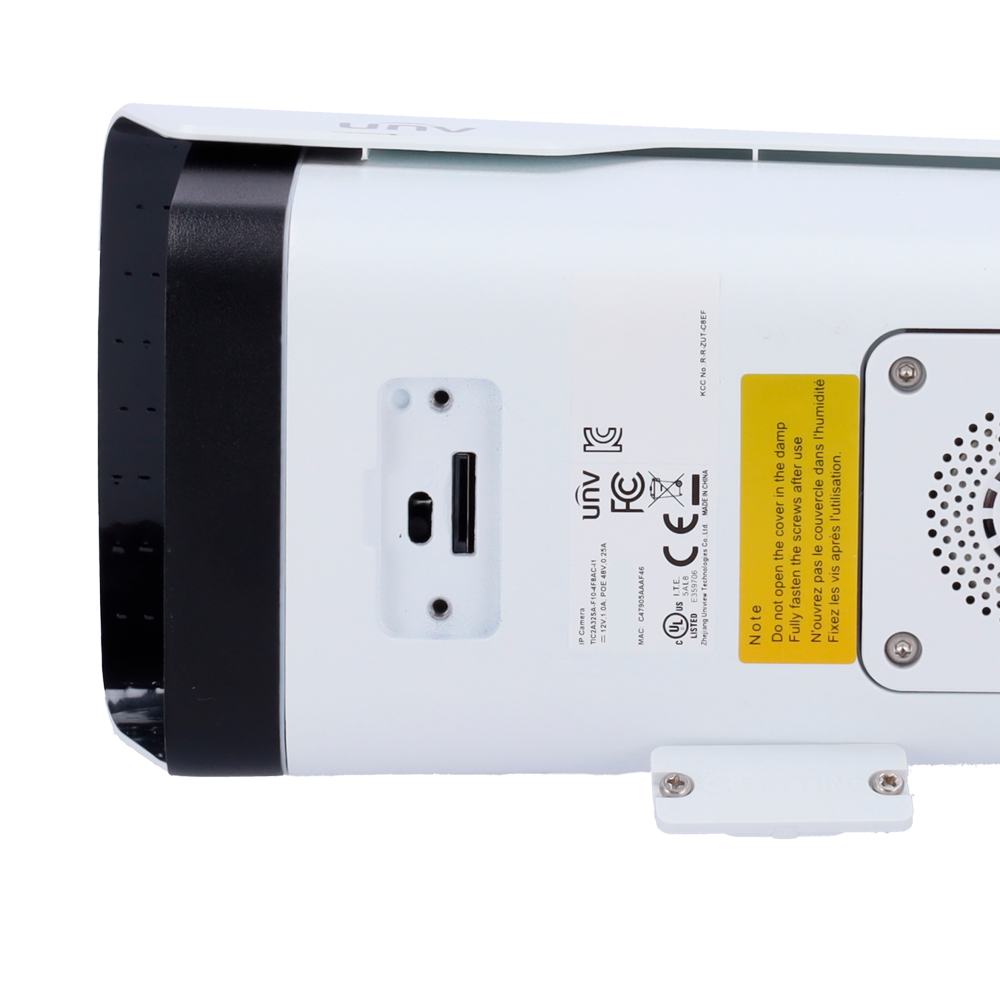

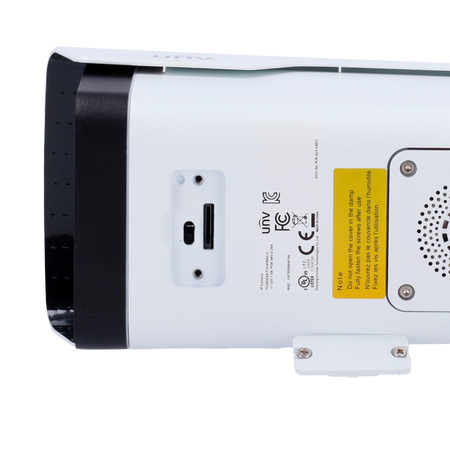

• Internal memory: Micro SD card up to 512 GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: 12VDC, max.12W; PoE IEEE802.3af,
• Operating temp.: -40ºC ~ +70ºC
• Protection rating: Waterproof IP67
• Dimensions: 269.1 mm (D) x 83 (H) x 95.7 (W) mm
• Weight: 0.95 kg
📦 INCLUDED:

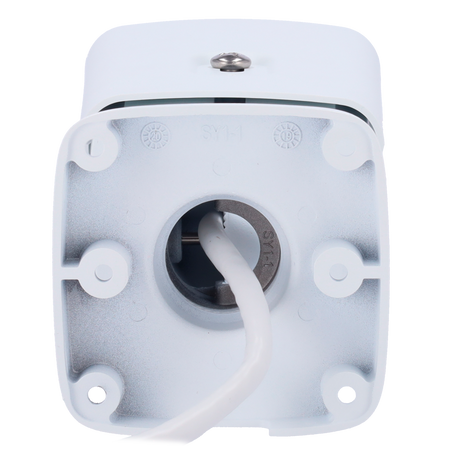

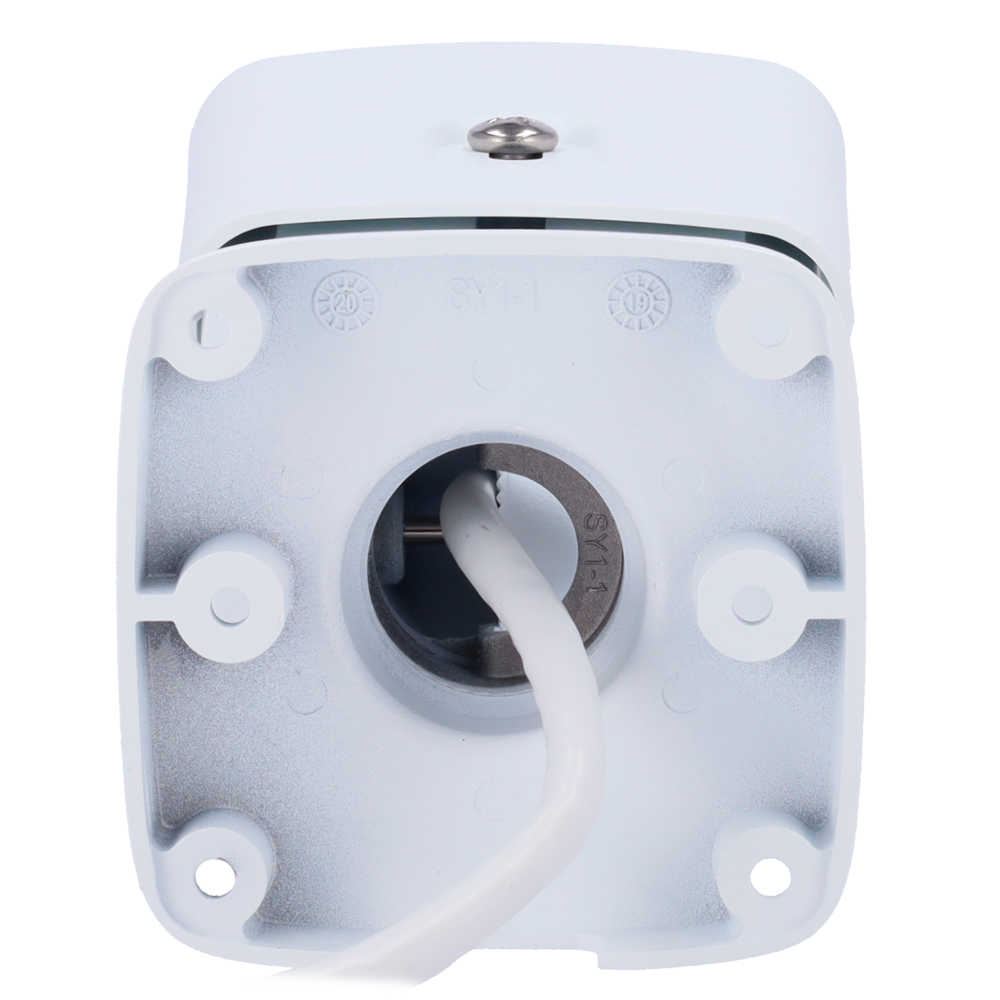

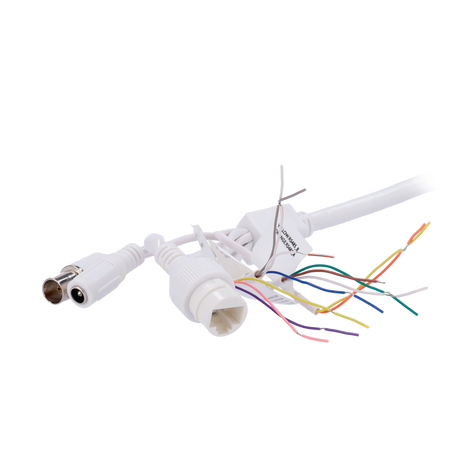

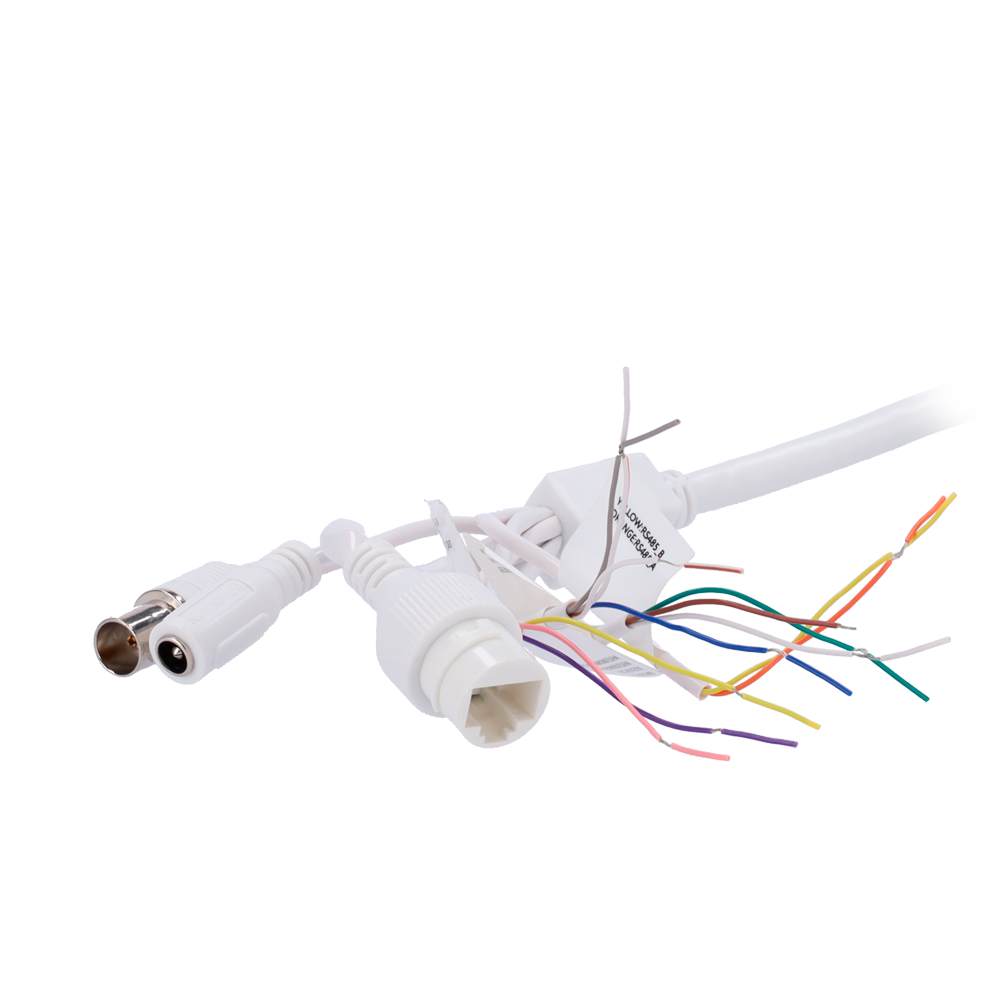

• Uniview IP Thermal Camera• Installation hardware• User instructions• Connection box included
| Thermal sensor | 256x192 Vanadium oxide |
|---|---|
| Optical sensor | 1/2.8” Progressive Scan CMOS 4 Megapixel |
| Main Stream frame rate | Thermal 960P(1280*960)@30fps Optical 4MP(2688*1520)@30fps |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Lens | Optical: 8 mm Thermal: 10 mm |
| FOV - Thermal | Horizontal: 17.5º Vertical: 13.2º Diagonal: 21.5º |
| FOV - Optical | Horizontal: 41.2º Vertical: 23.6º Diagonal: 50.7º |
| DRI - Thermal | Detect: 395 m Recognize: 99 m Identify: 56 m |
| DORI - Optical | Detect: 180 m Observe: 72 m Recognize: 36 m Identify: 18 m |
| Fire detection | Supports detection of fire hotspots in the environment and can detect up to 10 |
| Smoking detection | Detects the presence of smokers in the area and links alarms |
| SIP | Detection of motor vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit |
| Angle of view | 57°×42° (Therm) / 84° × 43.1° (Opt) |
| Thermal sensitivity | ≤55mk @f/1.0 @25°C |
| Thermal measurement range | -20 ~150 ºC / ± 8 ºC |
| Spectral range | 12μm |
| Audio In/Out | 1/ 1 |
| Alarm In/Out | 2/2 Relay |
| Internal memory | Micro SD card up to 512 GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC, max.12W; PoE IEEE802.3af, |
| Operating temp. | -40ºC ~ +70ºC |
| Protection rating | Waterproof IP67 |
| Dimensions | 269.1 mm (D) x 83 (H) x 95.7 (W) mm |
| Weight | 0.95 Kg |
