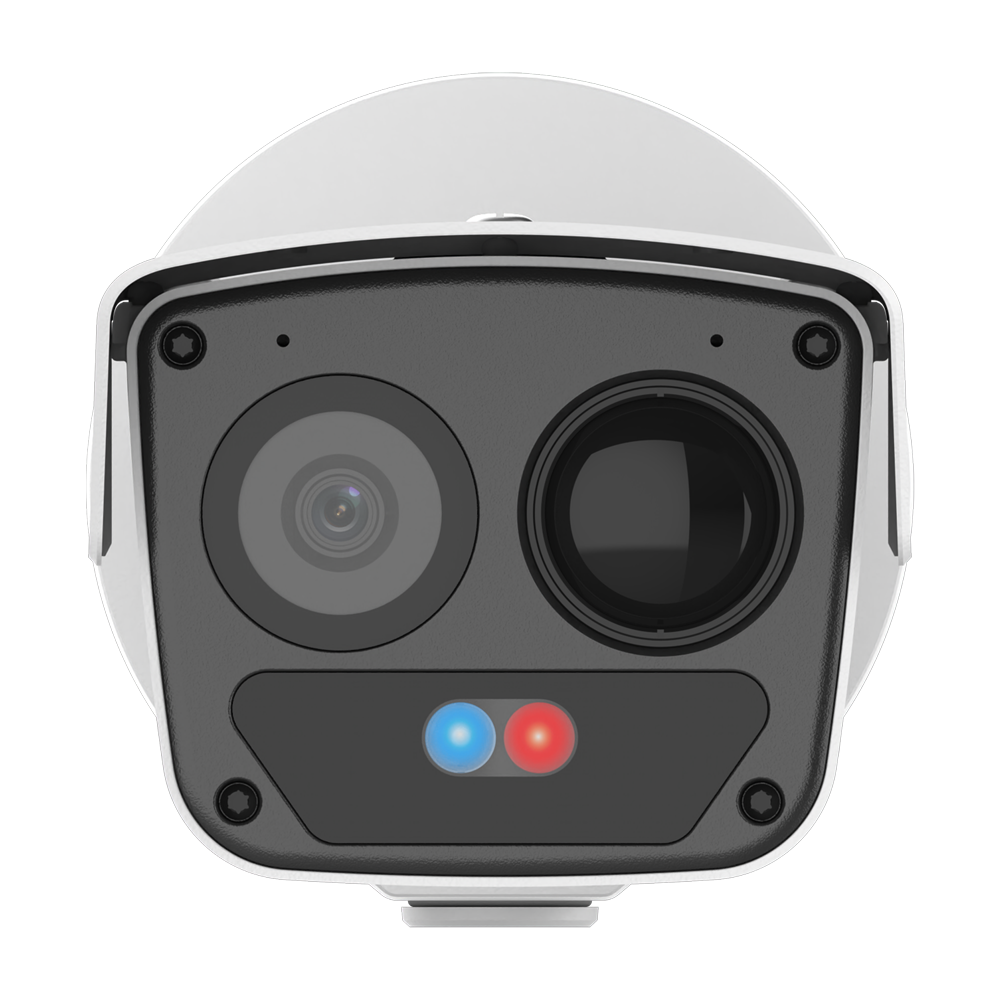

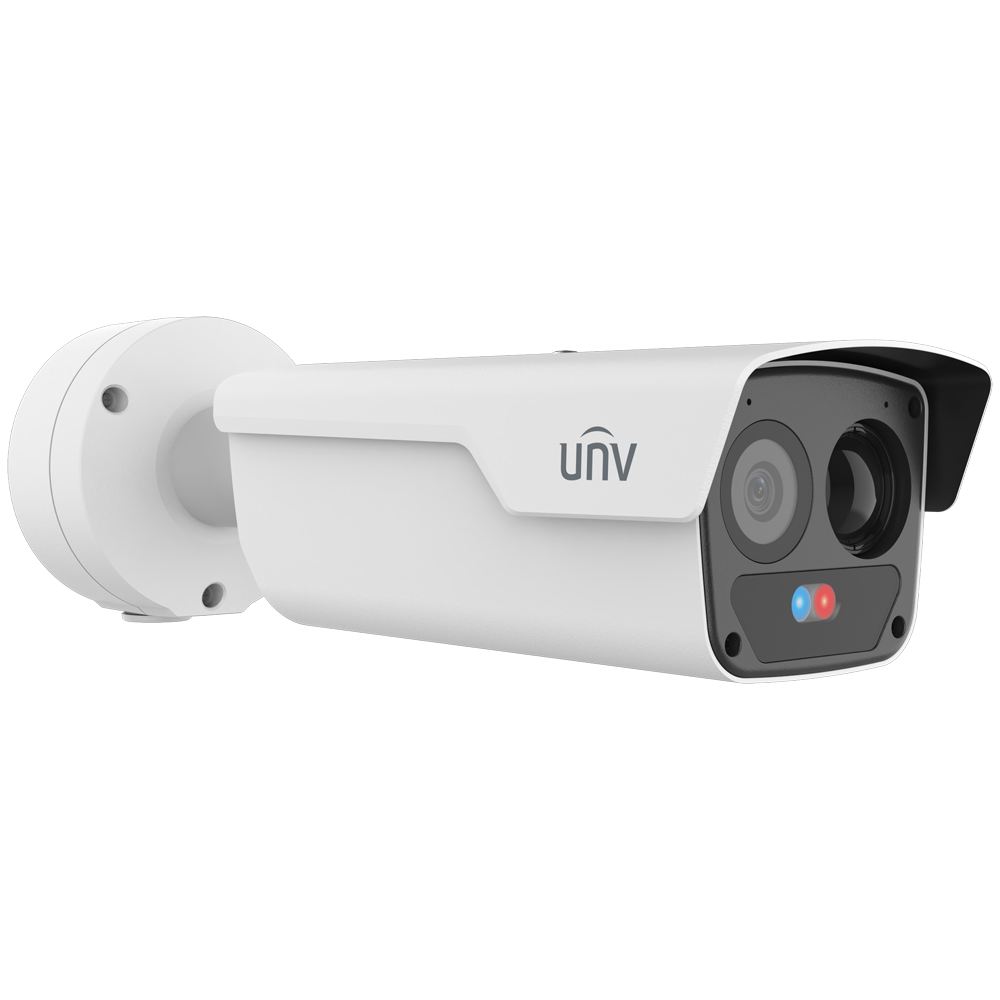

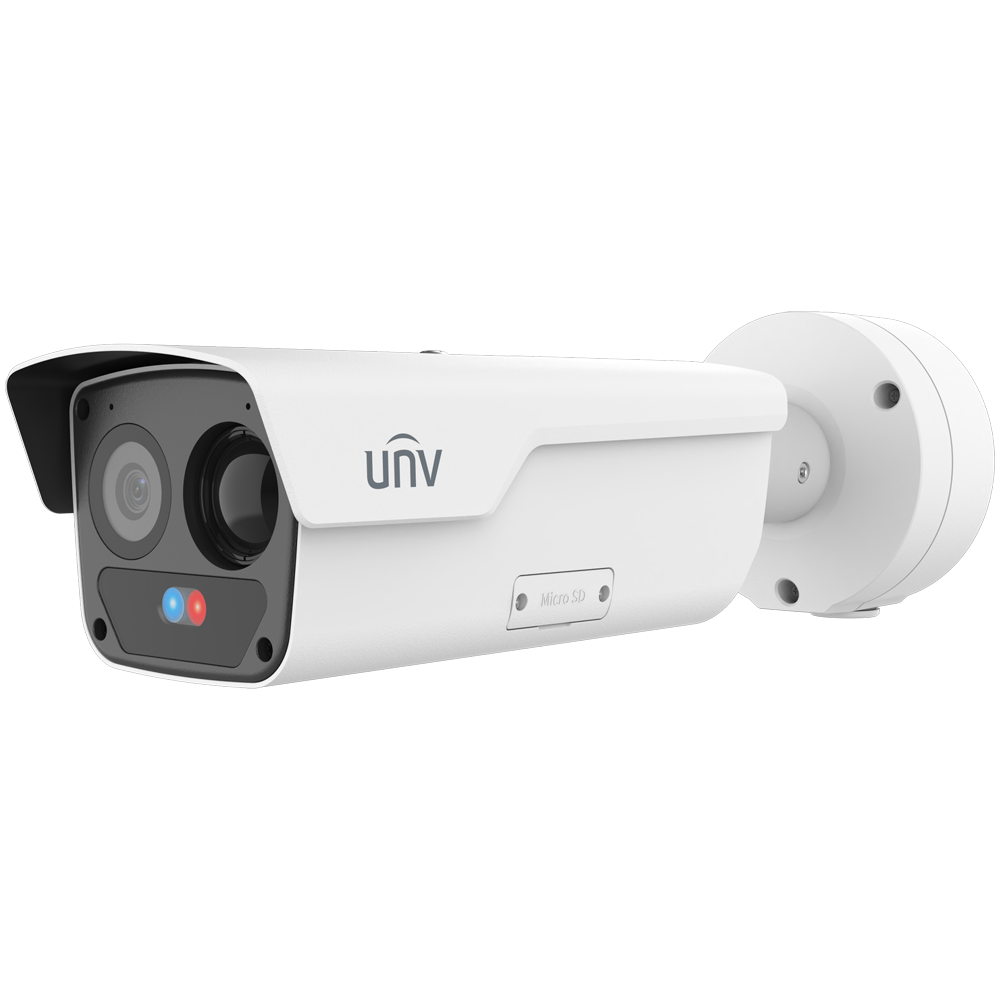

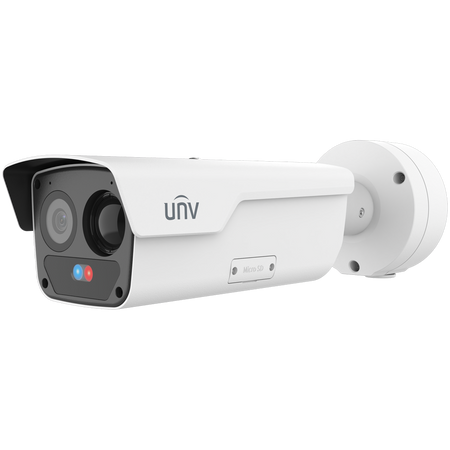

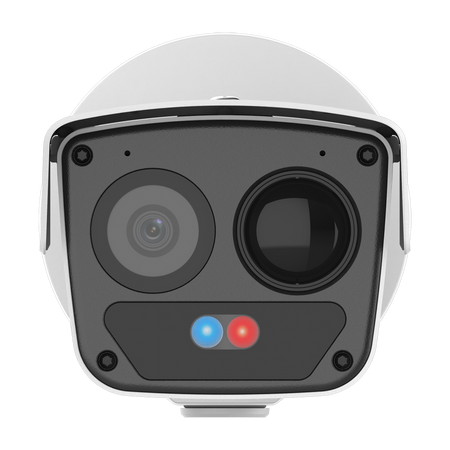

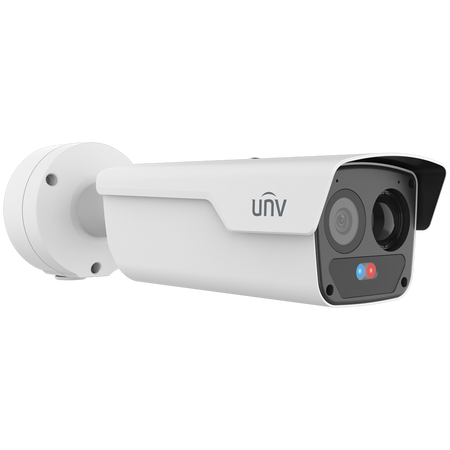

Uniview Dual-Lens IP Thermal Camera - Thermal: 640x512 | Optical: 35mm
Uniview Dual-Lens IP Thermal Camera - Thermal: 640x512 | Optical: 35mm
Regular price
€5.646,44
Final price
Regular price
-10%
€6.303,20
Sale price
€5.646,44
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview Dual Lens IP Thermal Camera - Thermal: 640x512 | 35mm lens - Optical: 4 MP | 12mm lens - Microphone | Speaker | Alarms - VCA | Fire Detection | Smoke Detection | PoE - Temperature measurement range -20~150ºC / ± 8ºC
📋 SPECIFICATIONS:
• Brand: Uniview
• Thermal sensor: 640x512 Vanadium oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Thermal 1080P(1920x1080)@30fps; Optical 4MP(2688x1520)@30fps
• Compression: Ultra265 / H.265 / H.264 / MJPEG
• Lens: Optical: 12 mm; Thermal: 35 mm
• FOV - Thermal: Horizontal: 12.2º; Vertical: 8.5º; Diagonal: 15º
• FOV - Optical: Horizontal: 24.5º; Vertical: 13.9º; Diagonal: 30.1º
• DRI - Thermal: Detect: 1250 m; Recognize: 340 m; Identify: 230 m
• DORI - Optical: Detect: 270 m; Observe: 108 m; Recognize: 54 m; Identify: 27 m
• Fire Detection: Supports detection of fire hotspots in the environment and can detect up to 10
• Smoke Detection: Detects the presence of smoke in the area and triggers alarms
• VCA: Vehicle detection, Pedestrian detection, Line crossing, Intrusion detection, Area entry and Area exit
• Thermal sensitivity: ≤30mk @F1.0 @25°C
• Thermal measurement range: -20 ~150 ºC / ± 8 ºC
• Spectral range: 12μm
• Audio: Integrated microphone / speaker; 2 Inputs; 1 Output
• Alarms: 3 Inputs; 2 Outputs
• Internal storage: Micro SD card up to 512 GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: 12VDC, max.22.4W; PoE IEEE802.3at
• Operating temp: -40º C ~ +70º C
• Protection rating: Waterproof IP67
• Dimensions: 406 mm (D) x 130 (H) x 130 (W) mm
• Weight: 2180 g
📦 INCLUDED:
• Uniview IP Thermal Camera• Installation material• User manual• Connection box included
| Thermal sensor | 640x512 Vanadium Oxide |
|---|---|
| Optical sensor | 1/2.7” 4 Megapixel Progressive Scan CMOS |
| Main Stream frame rate | Thermal 1080P(1920x1080)@30fps Optical 4MP(2688x1520)@30fps |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Lens | Optical: 12 mm Thermal: 35 mm |
| FOV - Thermal | Horizontal: 12.2º Vertical: 8.5º Diagonal: 15º |
| FOV - Optical | Horizontal: 24.5º Vertical: 13.9º Diagonal: 30.1º |
| DRI - Thermal | Detect: 1250 m Recognize: 340 m Identify: 230 m |
| DORI - Optical | Detect: 270 m Observe: 108 m Recognize: 54 m Identify: 27 m |
| Fire Detection | Supports fire spot detection in the environment and can detect up to 10 |
| Smoking Detection | Detects the presence of smokers in the area and links alarms |
| VCA | Motor vehicle detection, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit |
| Thermal sensitivity | ≤30mk @F1.0 @25°C |
| Thermal measurement range | -20 ~150 º C / ± 8 º C |
| Spectral range | 12μm |
| Audio | Built-in microphone / speaker 2 Inputs 1 Output |
| Alarms | 3 Inputs 2 Outputs |
| Internal memory | Micro SD card up to 512 GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC, max.22.4W; PoE IEEE802.3at |
| Operating temp. | -40º C ~ +70º C |
| Protection rating | Waterproof IP67 |
| Dimensions | 406 mm (D) x 130 (H) x 130 (W) mm |
| Weight | 2180 g |
