UNIVIEW

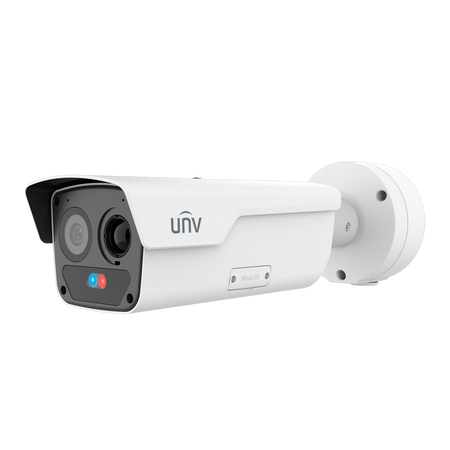

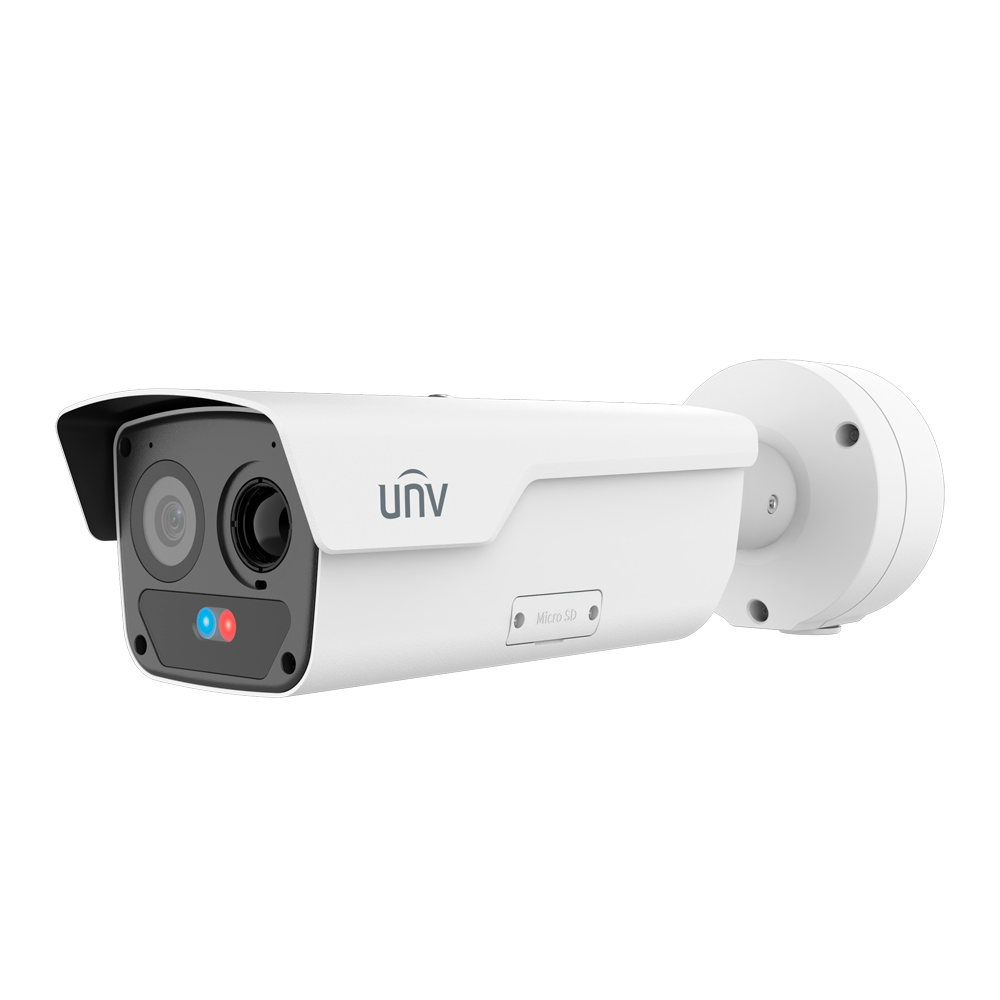

Uniview IP Dual Lens Thermal Camera - Thermal: 640x512 | 25mm Lens

SKU: UV-TIC2626S-F25-4F8AC-I3
(0)
Out of stock
€5.354,63 Final price
-8% €5.805,60 €5.354,63 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Uniview IP Dual Lens Thermal Camera - Thermal: 640x512 | 25mm Lens - Optical: 4 MP | 8 mm Lens - Microphone | Speaker | Alarms - SIP | Fire Detection | Smoke Detection | PoE - Temperature measurement range -20~150ºC / ± 8ºC

📋 SPECIFICATIONS:
• Brand: Uniview
• Thermal sensor: 640x512 Vanadium oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Thermal 1080P(1920x1080)@30fps; Optical 4MP(2688x1520)@30fps
• Compression: Ultra265 / H.265 / H.264 / MJPEG
• Lens: Optical: 8 mm; Thermal: 25 mm
• FOV - Thermal: Horizontal: 17.4º; Vertical: 14º; Diagonal: 21.4º
• FOV - Optical: Horizontal: 38.3º; Vertical: 21.8º; Diagonal: 47.1º
• DRI - Thermal: Detect: 370 m; Recognize: 100 m; Identify: 60 m
• DORI - Optical: Detect: 180 m; Observe: 72 m; Recognize: 36 m; Identify: 18 m
• Fire Detection: Supports detection of fire outbreaks in the environment and can detect up to 10
• Smoke Detection: Detects the presence of smokers in the area and connects alarms
• SIP: Detection of motor vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit
• Thermal sensitivity: ≤30mk @F1.0 @25°C
• Thermal measurement range: -20 ~150 º C / ± 8 º C
• Spectral range: 12μm
• Audio: Integrated microphone / speaker; 2 Inputs; 1 Output
• Alarms: 3 Inputs; 2 Outputs
• Internal memory: Micro SD card up to 512 GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: 12VDC, max.22.4W; PoE IEEE802.3at
• Operating temp.: -40º C ~ +70º C
• Protection rating: Waterproof IP67
• Dimensions: 406 mm (D) x 130 (H) x 130 (W) mm
• Weight: 2180 g

📦 INCLUDED:
• Uniview IP Thermal Camera• Installation material• User instructions• Connection box included
Thermal sensor 640x512 Vanadium Oxide
Optical sensor 1/2.7” Progressive Scan CMOS 4 Megapixel
Main Stream frame rate Thermal 1080P(1920x1080)@30fps Optical 4MP(2688x1520)@30fps
Compression Ultra265 / H.265 / H.264 / MJPEG
Lens Optical: 8 mm Thermal: 25 mm
FOV - Thermal Horizontal: 17.4º Vertical: 14º Diagonal: 21.4º
FOV - Optical Horizontal: 38.3º Vertical: 21.8º Diagonal: 47.1º
DRI - Thermal Detect: 370 m Recognize: 100 m Identify: 60 m
DORI - Optical Detect: 180 m Observe: 72 m Recognize: 36 m Identify: 18 m
Fire detection Supports detection of fire outbreaks in the environment and can detect up to 10
Smoking detection Detects the presence of smokers in the area and links alarms
VCA Detection of motorized vehicles, Pedestrians, Line crossing, Intrusion detection, Area entry and Area exit
Thermal sensitivity ≤30mk @F1.0 @25°C
Thermal measurement range -20 ~150 º C / ± 8 º C
Spectral range 12μm
Audio Built-in microphone / speaker 2 Inputs 1 Output
Alarms 3 Inputs 2 Outputs
Internal memory Micro SD card up to 512 GB
Network interface Ethernet 10/100 BaseT
Remote access WEB interface, CMS (DSS/PSS), Smartphone and NVR
Interoperability ONVIF
Power supply 12VDC, max.22.4W; PoE IEEE802.3at
Operating temp. -40º C ~ +70º C
Protection rating Waterproof IP67
Dimensions 406 mm (D) x 130 (H) x 130 (W) mm
Weight 2180 g
