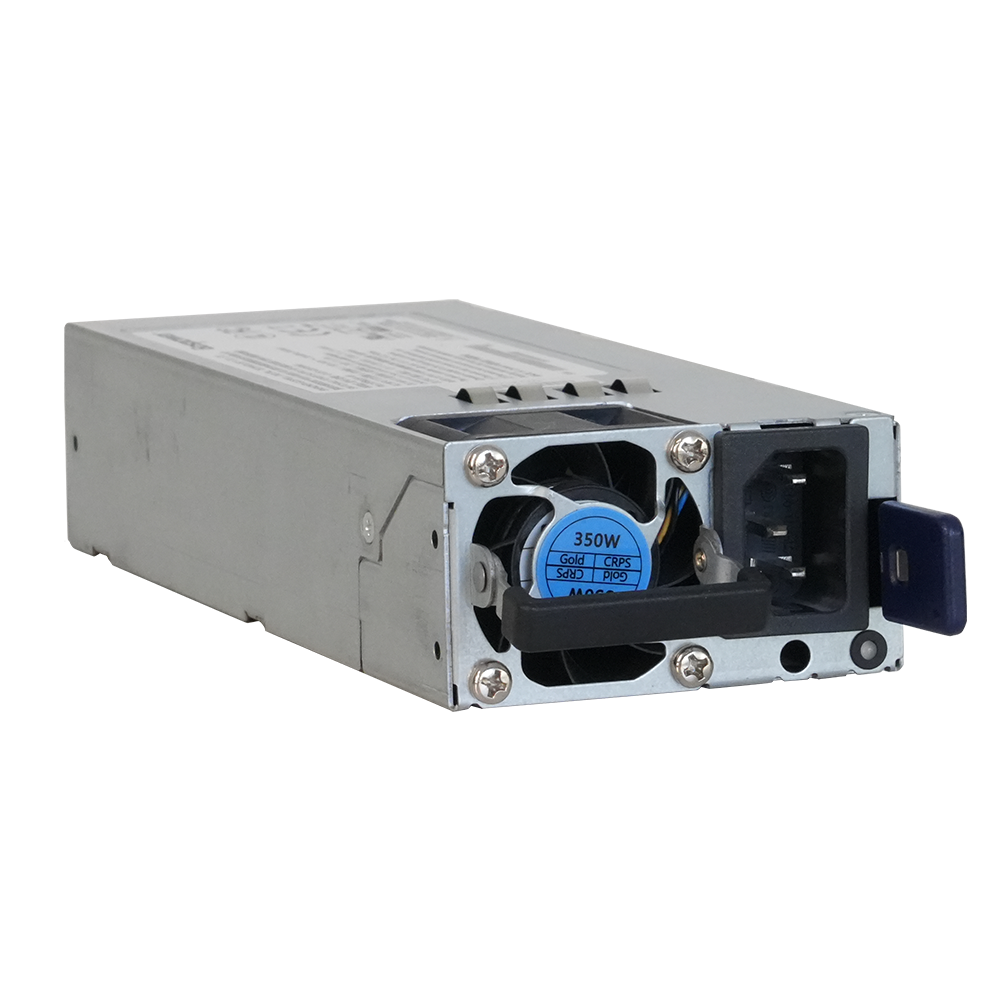

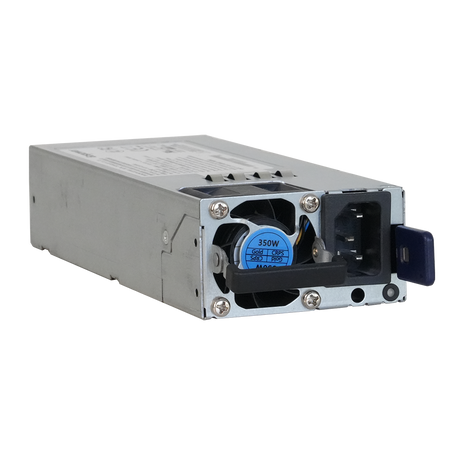

Uniview power supply 12 V DC output 29 A / 350 W
Regular price
€484,22
Final price
Regular price
-3%
€500,00
Sale price
€484,22
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview power supply - 12 V DC / 29 A / 350 W output - Input voltage 90 ~ 264VAC - 185 x 40 x 73.5 mm - Compatible with UV-NVR516-E-R Series
📋 SPECIFICATIONS:
• Power input: AC 90~269 V (47~63 Hz)
• Frequency: 47 ~ 63 Hz
• Power factor: ≥0.95
• Input current: ≤ 6.3 A @100-240VAC
• Input protection: Input undervoltage, input overvoltage
• Power output: +12VDC / 29A; +12V Standby / 2.1A
• Maximum output power: 350 W
• Output efficiency: ≥89%, 220V AC/29A
• Line regulation: ±5%
• Load regulation: ±5%
• Regulated voltage accuracy: ±5%
• Dynamic response overshoot: ±5%
• Current sharing ratio: ±5%
• Output protection: Short circuit, overload, and overvoltage
• Indicator light: Normal: green; Abnormal: yellow
• Temperature range: 0 ~ 50℃
• Heat dissipation: Ventilated, heat exhaust at the rear
• Dimensions: 185 (D) x 40 (W) x 73.5 (H) mm
• Approved standards: CB, FCC, UL
📦 INCLUDED:
• Power supply
| Power input | AC 90~269 V (47~63 Hz) |
|---|---|
| Frequency | 47 ~ 63 Hz |
| Power factor | ≥0.95 |
| Input current | ≤ 6.3 A @100-240VAC |
| Input protection | Input undervoltage, input overvoltage |
| Power output | +12VDC / 29A +12V Standby / 2.1A |
| Maximum output power | 350 W |
| Output efficiency | ≥89%, 220V AC/29A |
| Line regulation | ±5% |
| Load regulation | ±5% |
| Regulated voltage accuracy | ±5% |
| Dynamic response overshoot | ±5% |
| Current sharing ratio | ±5% |
| Output protection | Short circuit, overload, and overvoltage |
| Indicator light | Normal: green Abnormal: yellow |
| Temperature range | 0 ~ 50℃ |
| Heat dissipation | Ventilated, rear heat exhaust |
| Dimensions | 185 (D) x 40 (W) x 73.5 (H) mm |
| Approved standards | CB, FCC, UL |
