Uniarch video surveillance kit - 8-channel IP NVR | 1 TB HDD - 4 IP67 Turret cameras - Plug & Play | UMD | PoE - Human and Vehicle Detection - WEB Interface, CMS, Smartphone and NVR
📋 SPECIFICATIONS:

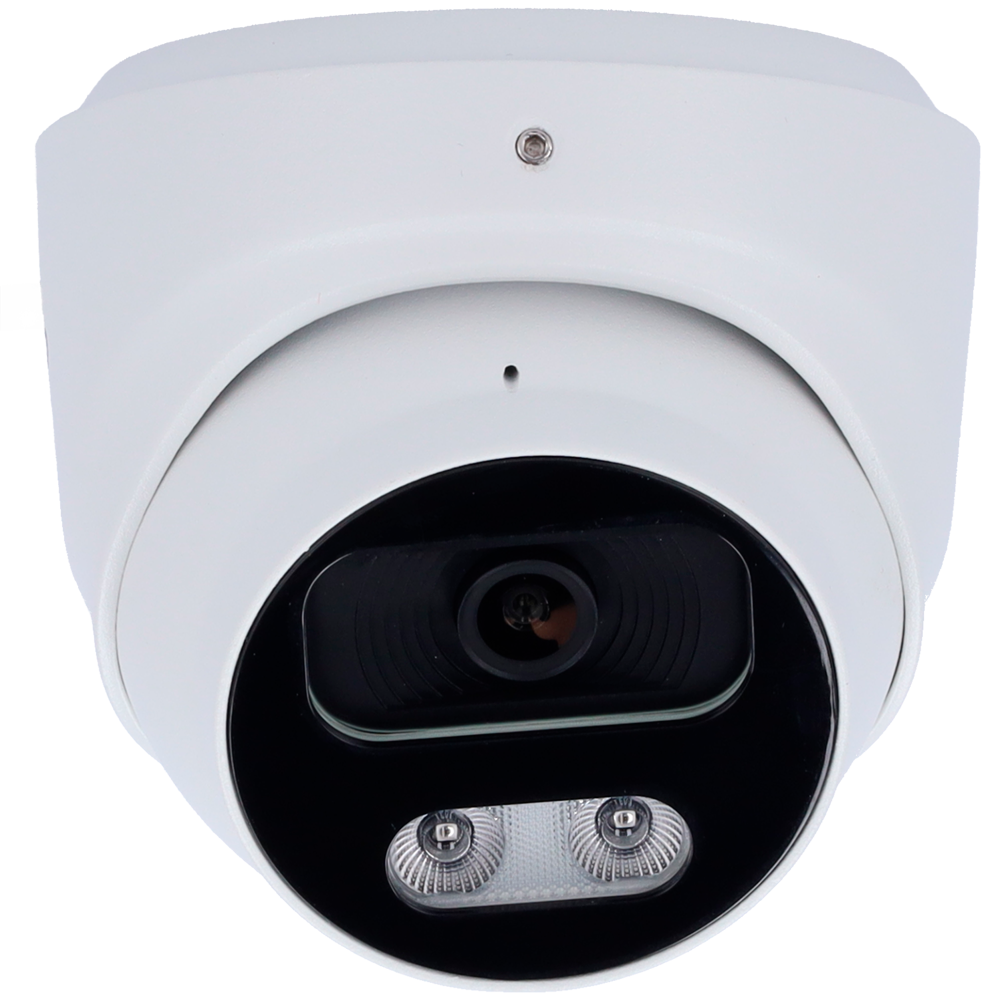

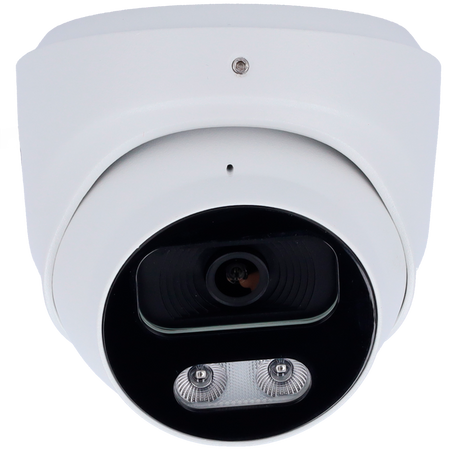

• Model: EP‐IPT220A‐4
• Optical sensor: 1/3” 4 Megapixel Progressive Scan Sensor
• Resolution: 4 Megapixel (2688*1512)
• IR: 25 m range
• Transfer rate: Max 30 FPS
• Compression: Ultra H.265 / / H.265 / Ultra H.264/ H.264 [%VAR%]
• Lens: 2.8 mm
• Minimum illumination: Color: 0.03 Lux / 0 Lux B/W
• Network interface: 10/100 BaseT Ethernet
• Plug&Play access: Automatic camera detection and addition
• Image enhancements: 3D-NR, HLC, BLC, OSD, OSD, PM, ROI, MD
• Use: Suitable for outdoor use IP67
• Power supply: DC 12 V / 9 W max. / PoE
• Dimensions / Weight: 70 x 67.5 x 169 mm / 600 g

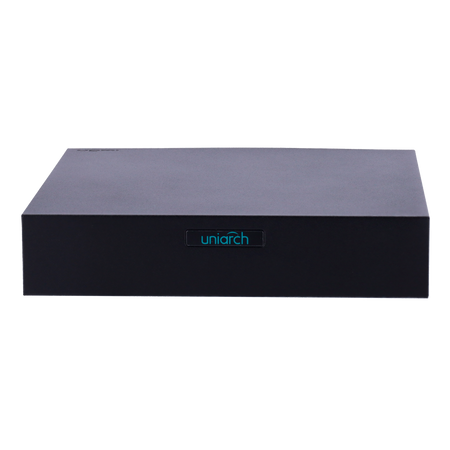

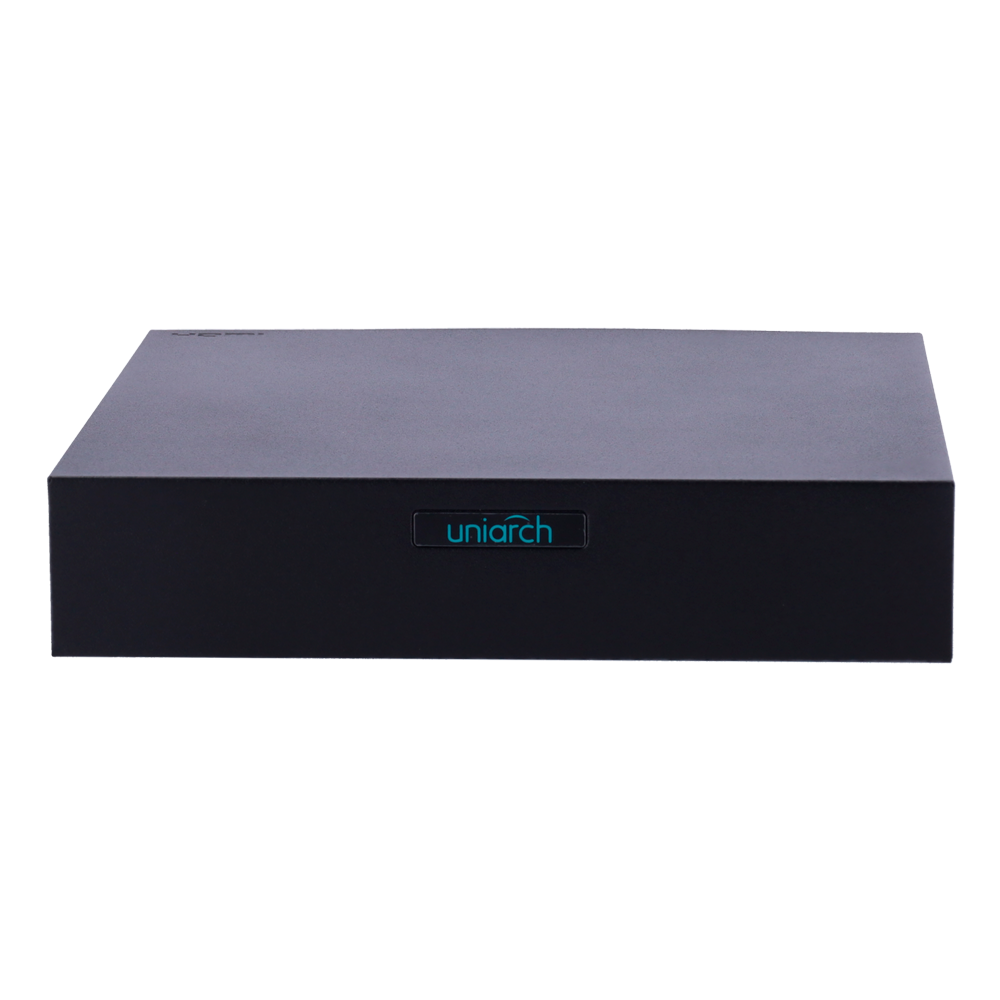

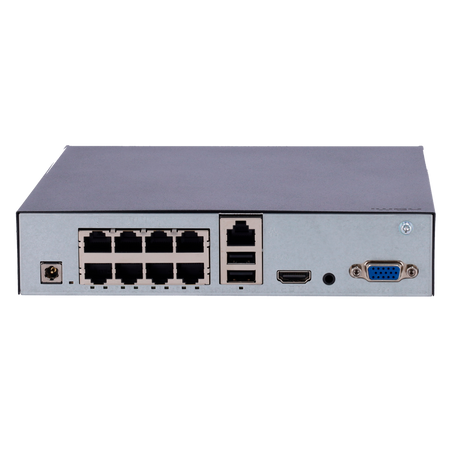

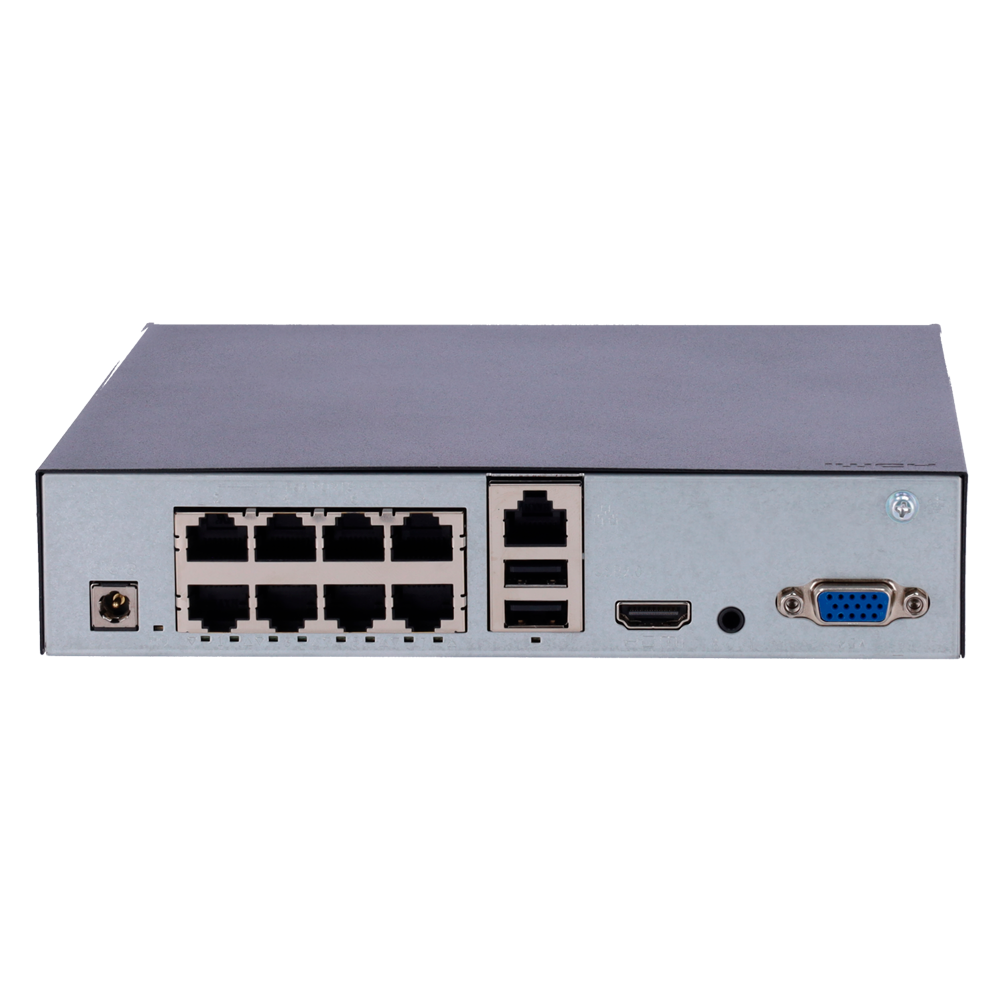

• Model: UV-NVR-108S3-P8-ECO
• IP camera inputs: LAN port up to 8 channels
• PoE: 8 PoE ports; IEEE 802.3at, IEEE 802.3af
• Video output: 1 4K HDMI / 1 VGA
• Video compression format: Ultra H.265 / H.265 / H.264
• Bandwidth: 64 Mbps incoming / 48 Mbps outgoing
• Display resolution: 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
• Recording resolution: 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 960p / 720p / D1 / 2CIF / CIF
• Recording method: Manual, scheduled, motion detection
• Internal memory: 1 SATA 3.5" HDD up to 6 TB; 1 TB HDD included.
• Communication: 2xUSB (Mouse and backup) / RJ45 (Ethernet)
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 52 V / 9 W
• Dimensions: 190mm × 195mm × 46mm / 1000 g

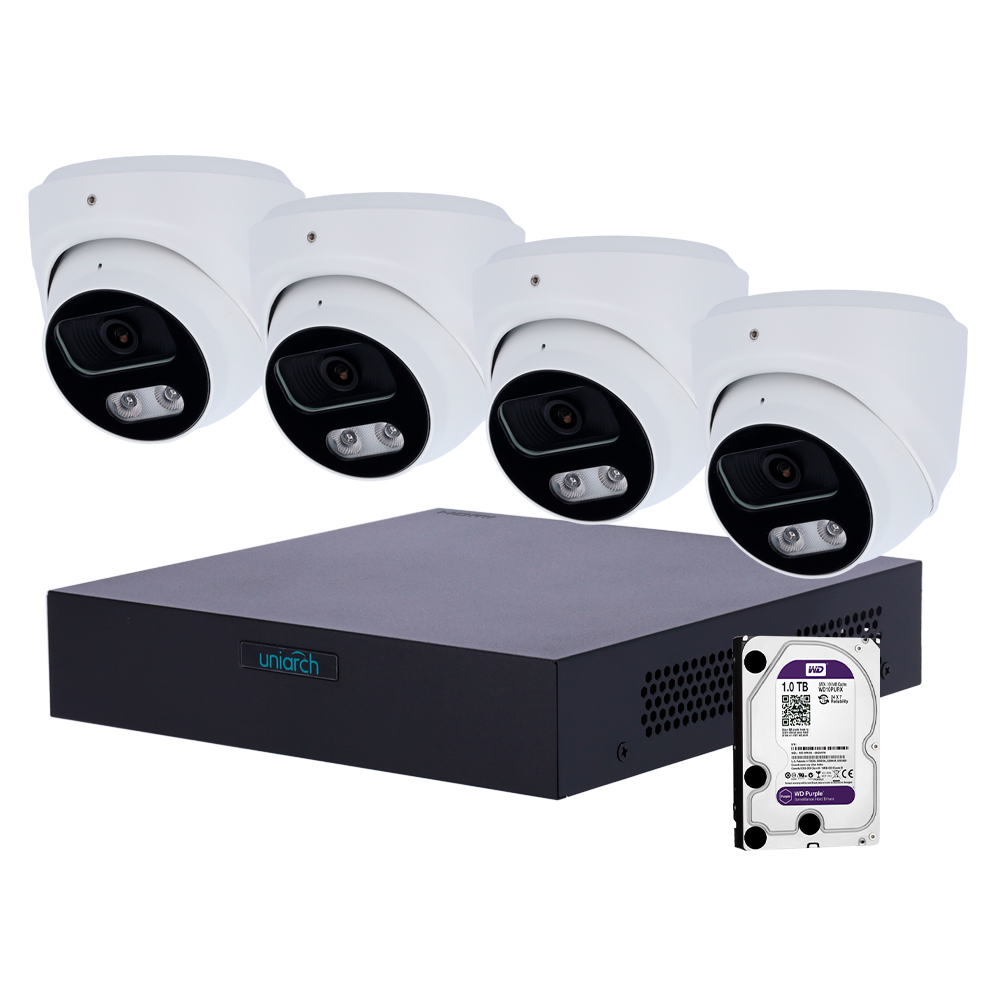

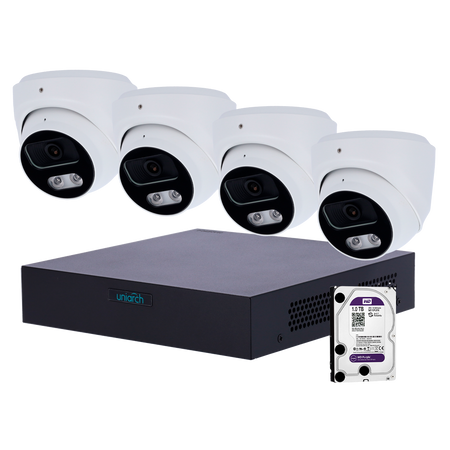

📦 INCLUDED:
• 8-channel PoE IP NVR video recorder• 4 Bullet cameras• 1 TB HDD• USB mouse• User instructions
| Model | EP‐IPT220A‐4 |
|---|---|
| Optical sensor | 1/3” 4 Megapixel Progressive Scan Sensor |
| Resolution | 4 Megapixel (2688*1512) |
| IR | Distance 25 m |
| Transfer rate | Max 30 FPS |
| Compression | Ultra H.265 / H.265 / Ultra H.264 / H.264 [%VAR%] |
| Lens | 2.8 mm |
| Minimum illumination | Color: 0.03 Lux / 0 Lux B/W |
| Network interface | Ethernet 10/100 BaseT |
| Plug&Play access | Automatic camera detection and addition |
| Image enhancements | 3D-NR, HLC, BLC, OSD, OSD, PM, ROI, MD |
| Usage | Suitable for outdoor use IP67 |
| Power supply | DC 12 V / 9 W max. / PoE |
| Dimensions / Weight | 70 x 67.5 x 169 mm / 600 g |
| Model | UV-NVR-108S3-P8-ECO |
| IP camera inputs | LAN port up to 8 channels |
| PoE | 8 PoE Ports IEEE 802.3at, IEEE 802.3af |
| Video output | 1 HDMI 4K / 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Bandwidth | 64 Mbps incoming / 48 Mbps outgoing |
| Display resolution | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Recording method | Manual, scheduled, motion detection |
| Internal memory | 1 HDD SATA 3.5" up to 6 TB, 1 TB HDD included |
| Communication | 2xUSB (Mouse and backup) / RJ45 (Ethernet) |
| Remote access | Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | DC 52 V / 9 W |
| Dimensions | 190mm × 195mm × 46mm / 1000 g |
