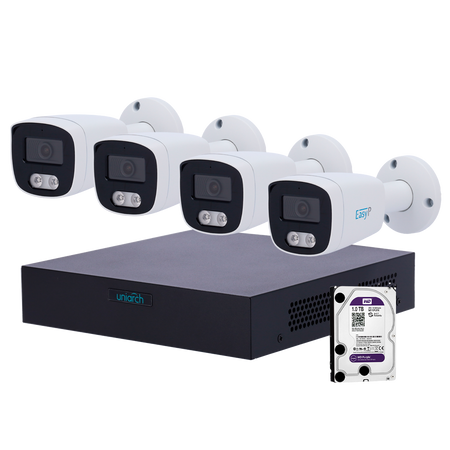

Uniarch Video Surveillance Kit - 8-channel IP NVR | 1TB HDD - 4 IP67 Bullet Cameras
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Uniarch video surveillance kit - 8-channel IP NVR | 1 TB HDD - 4 IP67 bullet cameras - Plug & Play | UMD | PoE - Human and Vehicle Detection - WEB Interface, CMS, Smartphone and NVR
📋 SPECIFICATIONS:

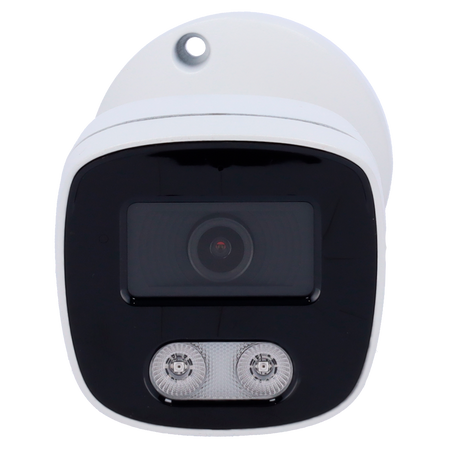

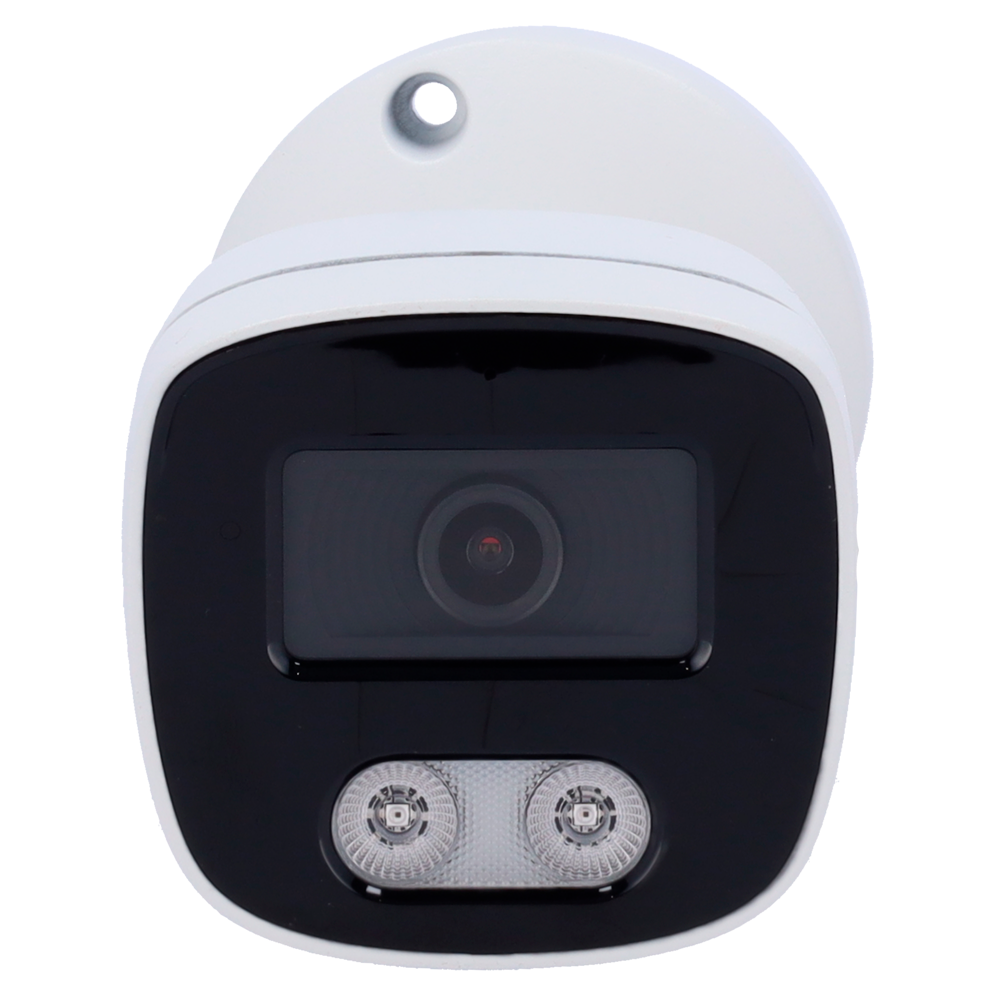

• Model: EP-IPB120A-4
• Optical sensor: 1/3” 4 Megapixel Progressive Scan Sensor
• Resolution: 4 Megapixel (2688*1512)
• IR: 25 m distance
• Transfer rate: Max 30 FPS
• Compression: Ultra H.265 / / H.265 / Ultra H.264/ H.264 [%VAR%]
• Lens: 2.8 mm
• Minimum illumination: Color: 0.03 Lux / 0 Lux B/W
• Network interface: Ethernet 10/100 BaseT
• Plug&Play Access: Automatic camera detection and addition
• Image enhancements: 3D-NR, HLC, BLC, OSD, OSD, PM, ROI, MD
• Use: Suitable for outdoor use IP67
• Power supply: DC 12 V / 9 W max. / PoE
• Dimensions / Weight: 70 x 67.5 x 169 mm / 600 g

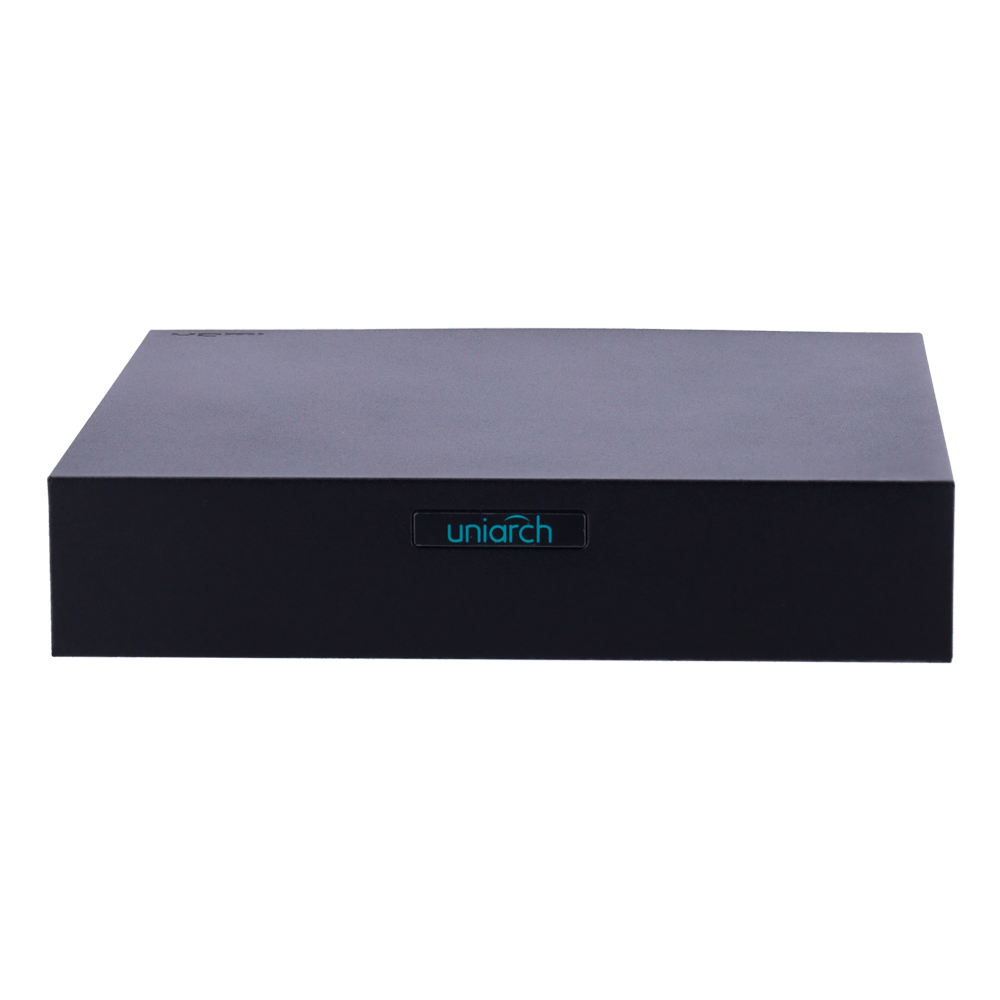

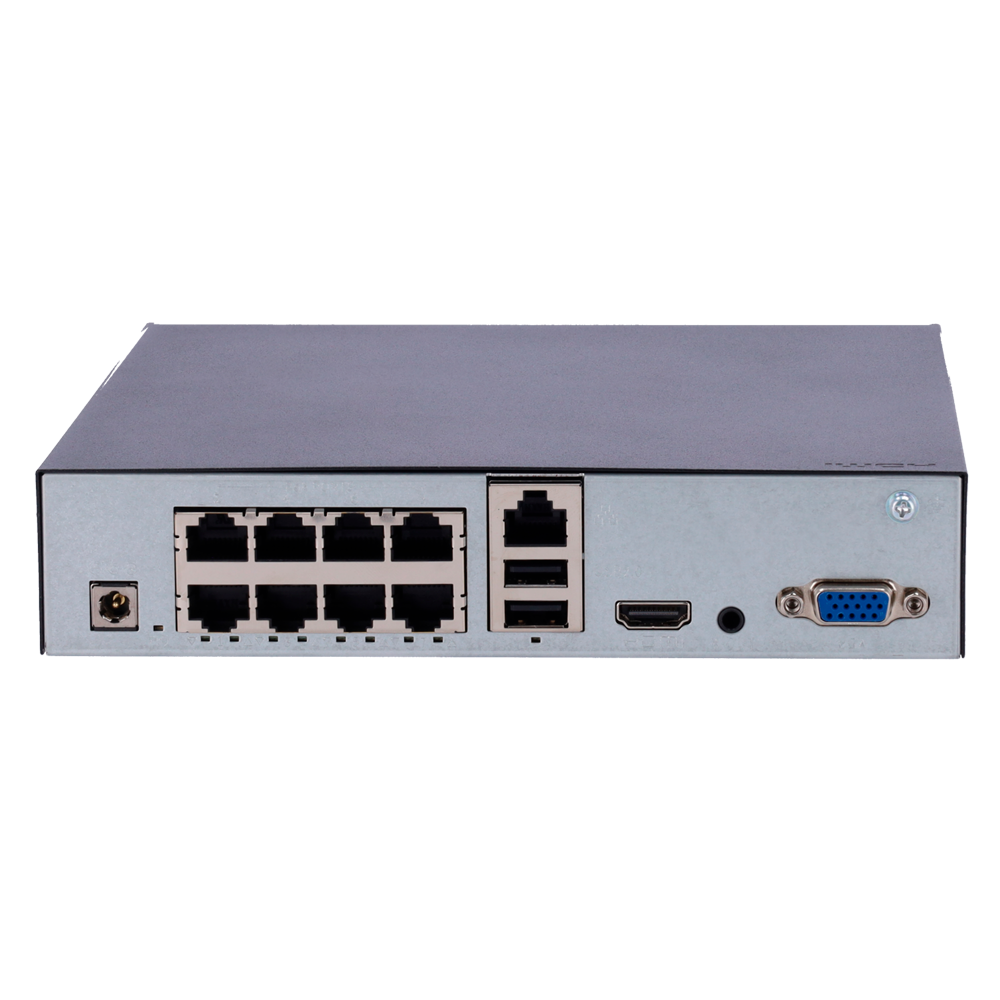

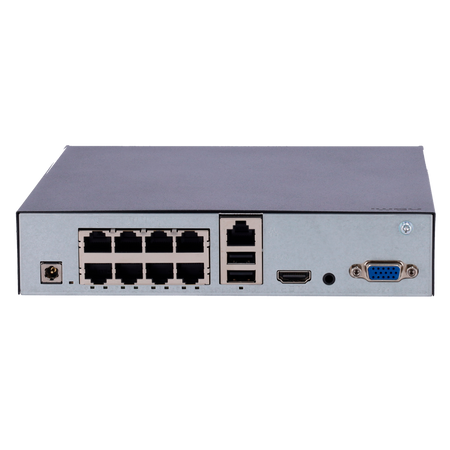

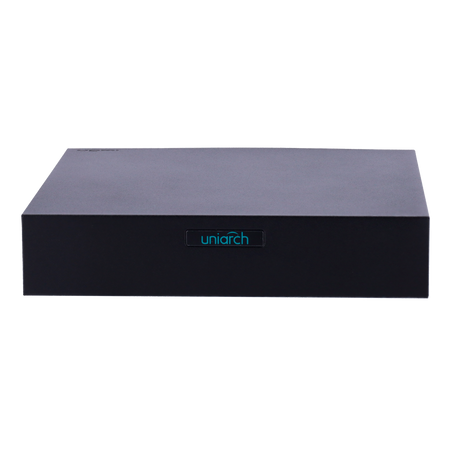

• Model: UV-NVR-108S3-P8-ECO
• IP camera inputs: LAN port up to 8 channels
• PoE: 8 PoE ports; IEEE 802.3at, IEEE 802.3af
• Video output: 1 HDMI 4K / 1 VGA
• Video compression format: Ultra H.265 / H.265 / H.264
• Bandwidth: 64 Mbps incoming / 48 Mbps outgoing
• Display resolution: 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
• Recording resolution: 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 960p / 720p / D1 / 2CIF / CIF
• Recording method: Manual, scheduled, motion detection
• Internal storage: 1 SATA 3.5" HDD up to 6 TB; 1 TB HDD included.
• Communication: 2xUSB (Mouse and backup) / RJ45 (Ethernet)
• Remote access: Web browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
• Power supply: DC 52 V / 9 W
• Dimensions: 190mm × 195mm × 46mm / 1000 g

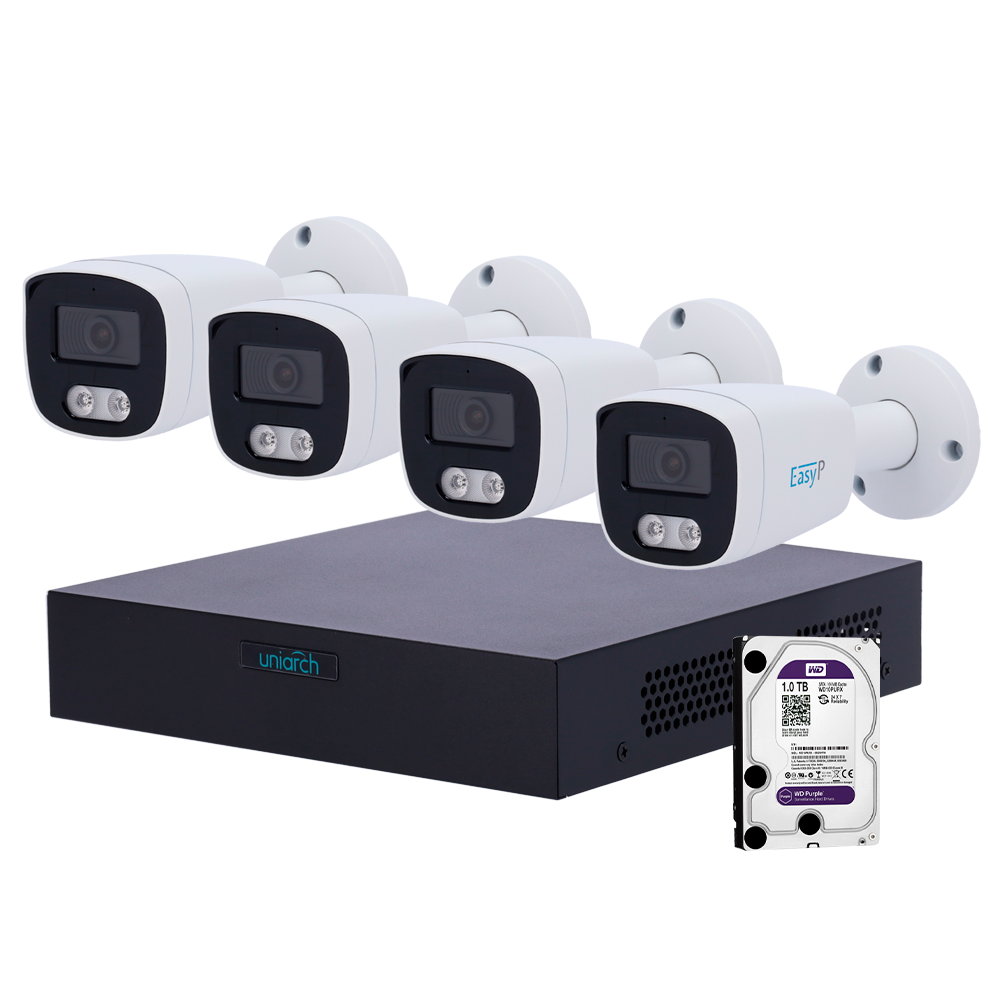

📦 INCLUDED:
• 8-channel PoE IP NVR video recorder• 4 Bullet cameras• 1 TB HDD• USB mouse• User instructions
| Model | EP-IPB120A-4 |
|---|---|
| Optical sensor | 1/3” 4 Megapixel Progressive Scan Sensor |
| Resolution | 4 Megapixel (2688*1512) |
| IR | Distance 25 m |
| Transfer rate | Max 30 FPS |
| Compression | Ultra H.265 / H.265 / Ultra H.264 / H.264 [%VAR%] |
| Lens | 2.8 mm |
| Minimum illumination | Color: 0.03 Lux / 0 Lux B/W |
| Network interface | Ethernet 10/100 BaseT |
| Plug&Play | Automatic camera detection and addition |
| Image enhancements | 3D-NR, HLC, BLC, OSD, PM, ROI, MD |
| Usage | Suitable for outdoor use IP67 |
| Power supply | DC 12 V / 9 W max. / PoE |
| Dimensions / Weight | 70 x 67.5 x 169 mm / 600 g |
| Model | UV-NVR-108S3-P8-ECO |
| IP camera inputs | LAN port up to 8 channels |
| PoE | 8 PoE ports IEEE 802.3at, IEEE 802.3af |
| Video output | 1 HDMI 4K / 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Bandwidth | 64 Mbps incoming / 48 Mbps outgoing |
| Display resolution | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Recording method | Manual, scheduled, motion detection |
| Internal storage | 1 HDD SATA 3.5" up to 6 TB, 1 TB HDD included. |
| Communication | 2xUSB (Mouse and backup) / RJ45 (Ethernet) |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | DC 52 V / 9 W |
| Dimensions | 190mm × 195mm × 46mm / 1000 g |
