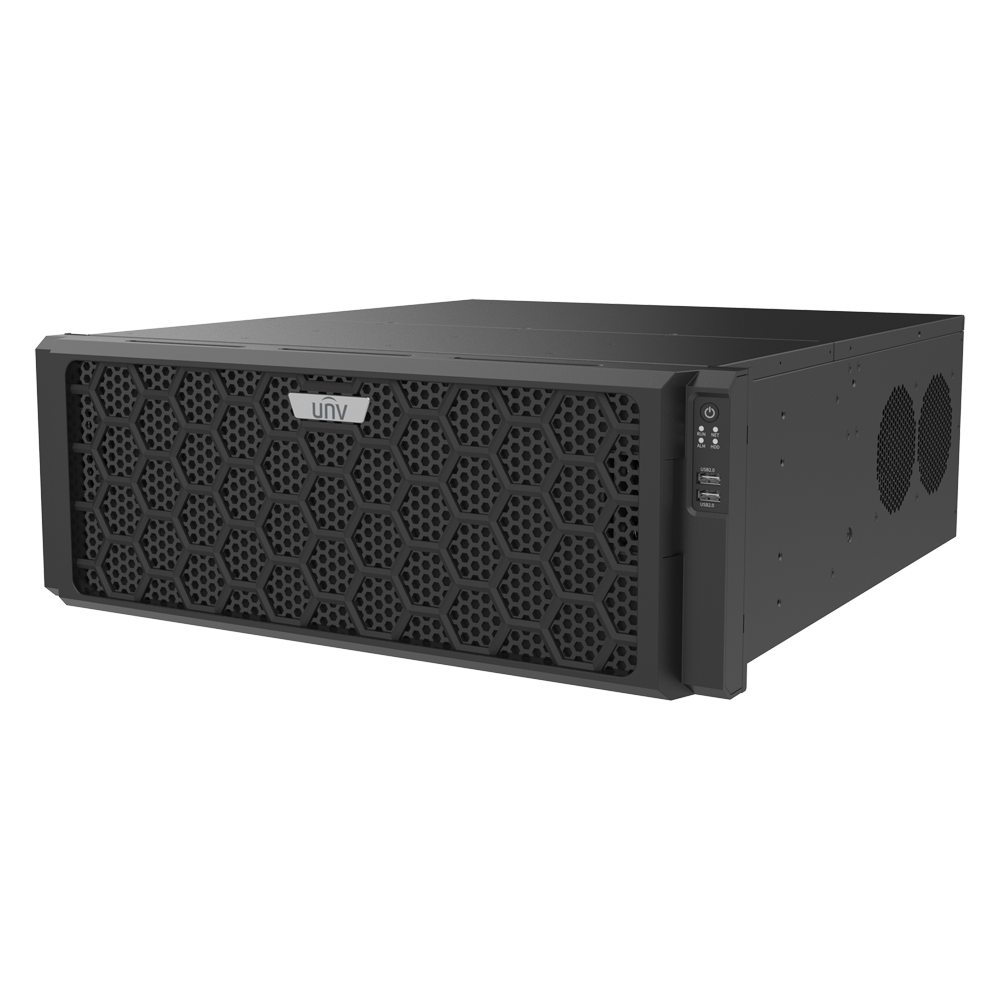

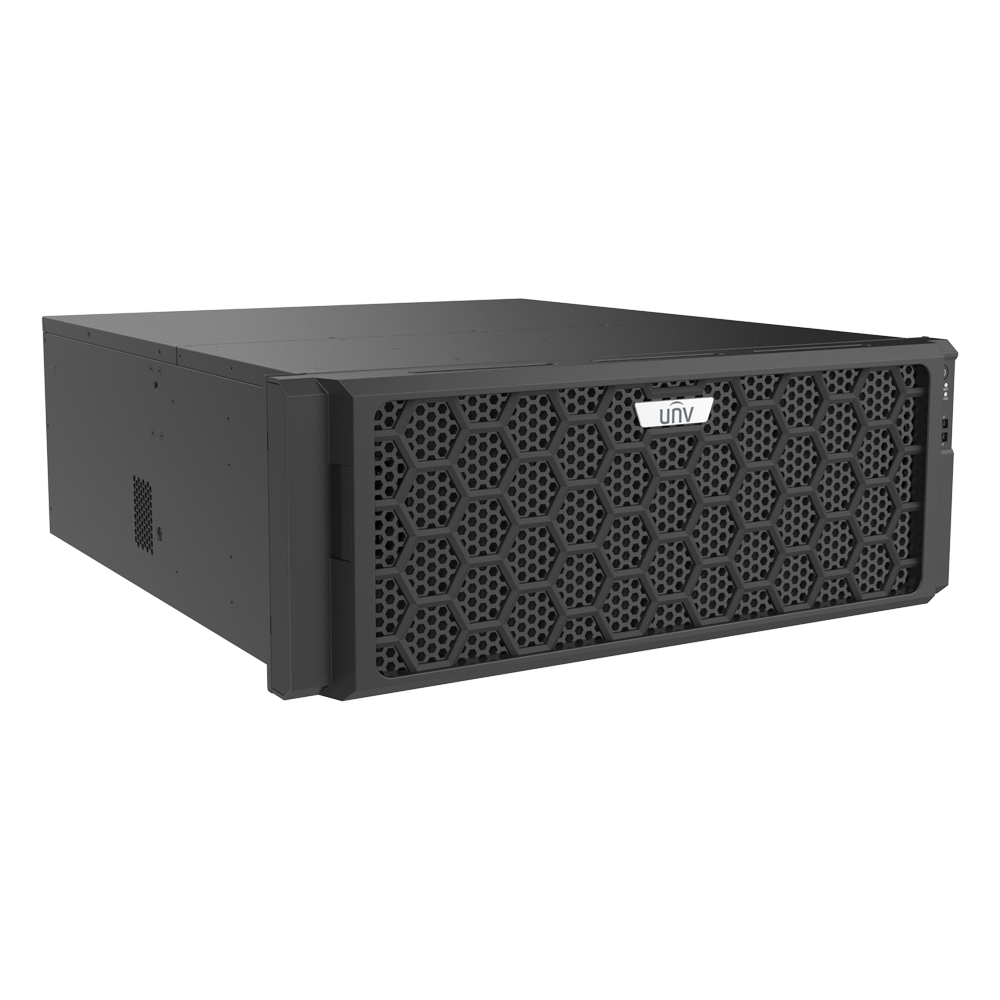

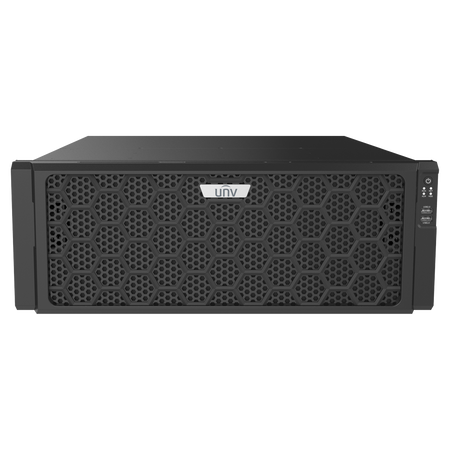

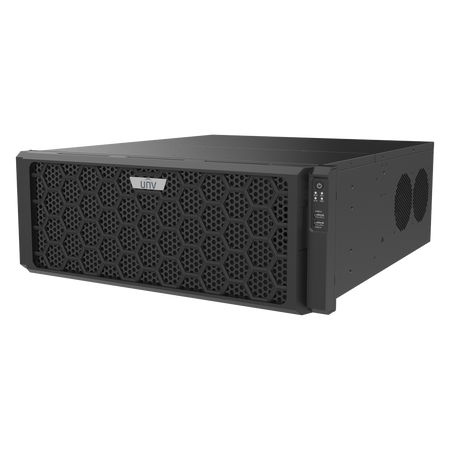

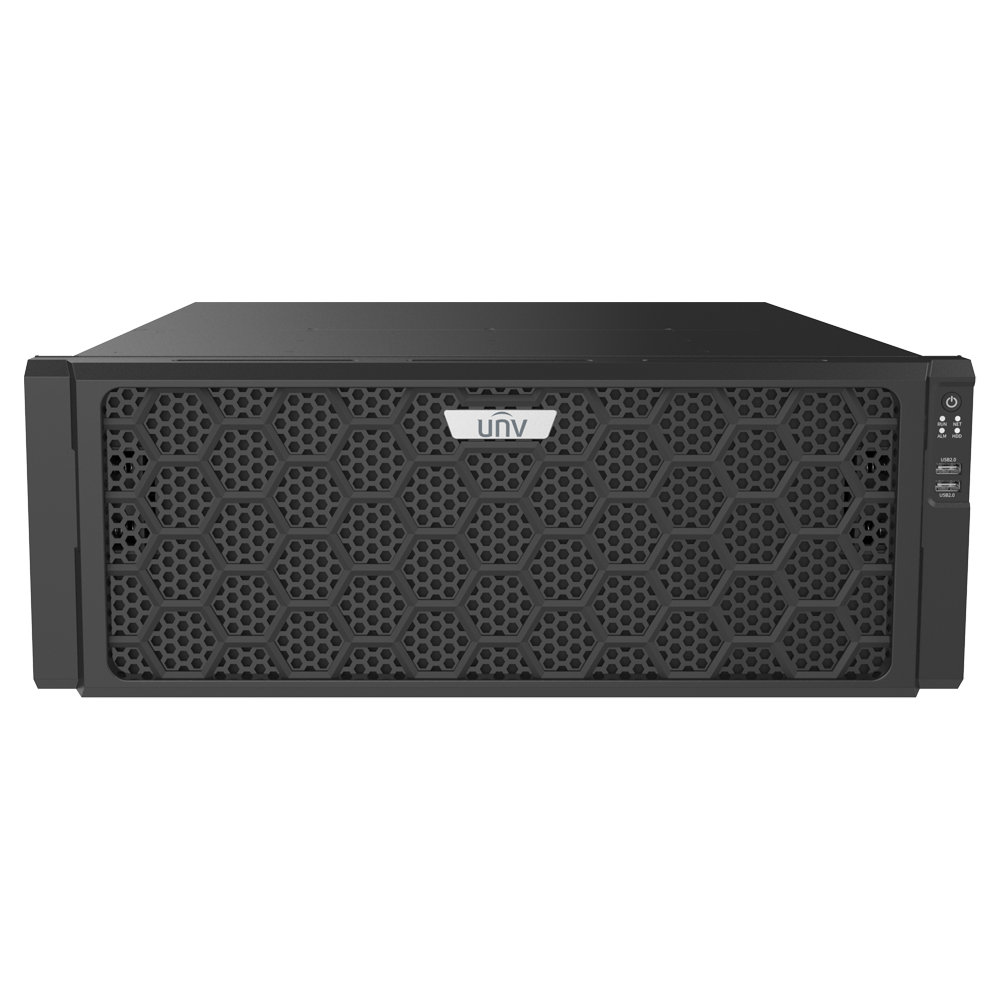

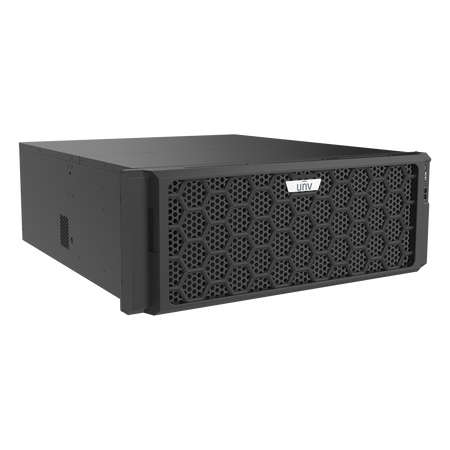

Uniview Pro 8K Series NVR Video Recorder for IP cameras - 32 256E R
Uniview Pro 8K Series NVR Video Recorder for IP cameras - 32 256E R
Regular price
€5.982,61
Final price
Regular price
-8%
€6.486,48
Sale price
€5.982,61
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Pro Series 8K NVR for IP cameras - 256 CH | 32 Mpx | 2 decoding boards - AI: SIP, people counting, face detection, audio - 32 HDD up to 16 T | RAID 0, 1, 5, 6, 10, 50, 60 - 640 Mbps bandwidth
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Pro
• IP camera inputs: LAN port up to 256 channels
• Compatible IP cameras: UNIVIEW, ONVIF
• Video output: HDMI1 8K, HDMI2 4K, VGA1/VGA2 1080P; HDMI1/VGA1 independent from HDMI2/VGA2
• Video compression format: Ultra265 / H.265 / H.264
• Resolution: HDMI1: 8K (7680x4320)@30Hz, 4K (3840x2160)@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz; HDMI2: 4K (3840x2160)@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz; VGA1 / VGA2: 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz
• Total bandwidth: 768 Mbps incoming / 768 Mbps outgoing
• Main Stream recording: 32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
• Two-way audio: 1 input / 1 output BNC
• Alarms: 16 Inputs / 10 Outputs
• Recording method: Manual, scheduled, motion detection
• VCA detection via IPC: SIP (intrusion detection, line crossing detection, area entry, area exit); Ultra Motion Detection (UMD); Temperature detection (fire detection, smoke detection, temperature measurement, smoke and fire detection); People counting (people flow counting, crowd density monitoring); Face detection, video metadata, traffic monitoring
• VCA search: Motor vehicle search, non-motor vehicle search, people search, general search, people counting report, heat map
• Intelligence via IPC: All channels (up to 64 in total); Face detection, vehicle detection, temperature detection, SIP, UMD, video metadata, traffic monitoring
• Internal storage: 32 SATA 3.5" HDDs up to 24 TB (not included)
• Storage technology: RAID 0/1/5/6/10/50/60 function; N+1 Hot Spare function
• Hot swap: Supported
• Communication: 2 x USB 2.0 / 2 x USB 3.0 / 2 x RJ45 (Ethernet) / 1 x RS232 / 1 x RS485
• Remote access: Web browser, CMS Software (EZStation), Smartphone (UniEase / UniTools Pro)
• Power supply: AC 220V | Output DC 12V 50W
• Dimensions: 175 (H) x 495 (D) x 484.6 (W) mm / ≤13.13 Kg (4U Rack)
• Weight: 10.8 Kg (4U Rack)
📦 INCLUDED:
• Uniview NVR recorder• Mouse• Power cable
| Range | Pro |
|---|---|
| IP camera inputs | LAN port up to 256 channels |
| Compatible IP cameras | UNIVIEW, ONVIF |
| Video output | HDMI1 8K, HDMI2 4K, VGA1/VGA2 1080P; HDMI1/VGA1 independent from HDMI2/VGA2 |
| Video compression format | Ultra265 / H.265 / H.264 |
| Resolution | HDMI1: 8K (7680x4320)@30Hz, 4K (3840x2160)@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz; HDMI2: 4K (3840x2160)@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz; VGA1 / VGA2: 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz |
| Total bandwidth | 768 Mbps incoming / 768 Mbps outgoing |
| Main Stream recording | 32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Two-way audio | 1 input / 1 output BNC |
| Alarms | 16 Inputs / 10 Outputs |
| Recording method | Manual, scheduled, motion detection |
| VCA detection via IPC | SIP (intrusion detection, cross line detection, area entry, area exit), Ultra Motion Detection (UMD), Temperature detection (fire detection, smoke detection, temperature measurement, smoke and fire detection), People counting (people flow counting, crowd density monitoring), Face detection, video metadata, traffic monitoring |
| VCA search | Motor vehicle search, non-motor vehicle search, people search, general search, people counting report, heat map |
| Intelligence via IPC | All channels (up to 64 in total), Face detection, vehicle detection, temperature detection, SIP, UMD, video metadata, traffic monitoring |
| Internal memory | 32 SATA 3.5" HDDs up to 24 TB (not included) | |
| Storage technology | RAID 0/1/5/6/10/50/60 function, N+1 Hot Spare function |
| Hot swap | Supported |
| Communication | 2 x USB 2.0 / 2 x USB 3.0 / 2 x RJ45 (Ethernet) / 1 x RS232 / 1 x RS485 |
| Remote access | Web browser, CMS software (EZStation), Smartphone (UniEase / UniTools Pro) |
| Power supply | AC 220V | Output DC 12V 50W |
| Dimensions | 175 (H) x 495 (D) x 484.6 (W) mm / ≤13.13 kg (4U Rack) |
| Weight | 10.8 kg (4U Rack) |
