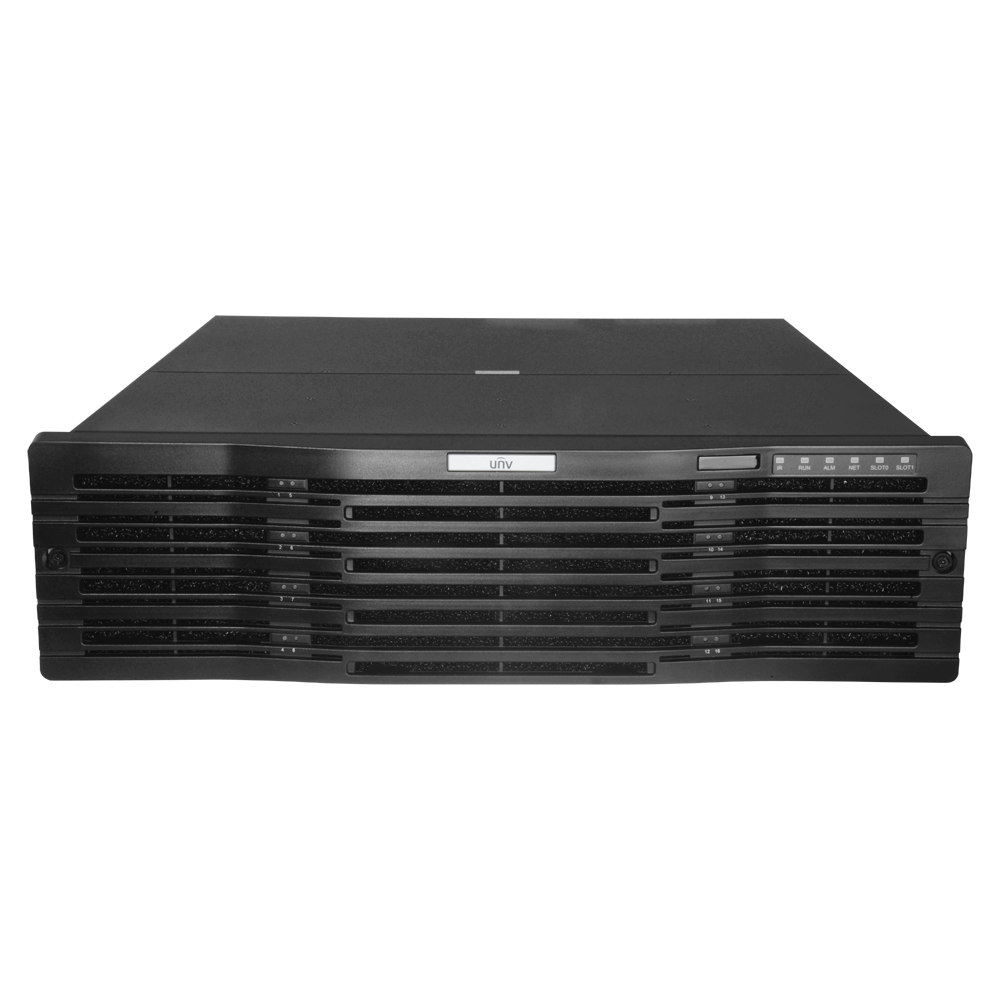

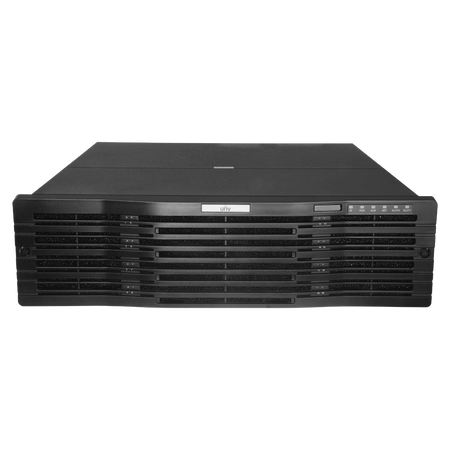

NVR video recorder for Uniview IP cameras - Pro Series - 64 video CH | 12 Mpx - 64O2
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
NVR video recorder for IP cameras - Pro Series - 64 CH video | 12 Mpx - Supports 2 decoding cards - 384 Mbps bandwidth - Supports 16 hard drives | RAID
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Pro
• IP camera inputs: LAN port up to 64 channels
• Compatible IP cameras: UNIVIEW, ONVIF
• Video output: 2 HDMI 4K, 1 VGA | Supports 2 decoding cards 6 x HDMI
• Video compression format: Ultra265 / H.265 / H.264
• Display resolution: 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
• Total bandwidth: 384 Mbps incoming / 384 Mbps outgoing
• Main Stream recording: 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF
• Two-way audio: 1 BNC input / 1 BNC output
• Alarms: 24 Inputs / 8 Relay
• Recording method: Manual, scheduled, motion detection
• Smart Intrusion Prevention: Available on 16 channels
• Intelligent functions: People counting, Face detection, Human body detection, Intrusion detection, Line crossing, Audio detection, Scene change, Defocus detection, Auto Tracking, Object removed, Object abandoned
• Face recognition channels: 16 channels
• LPR channels: 8 channels
• Internal storage: 16 HD SATA 3.5" up to 10 TB (not included) | 1 x eSATA | 2 x miniSAS
• Storage technology: RAID 0/1/5/6/10/50/60 function and N+1 Hot Spare function
• Communication: 4 x USB 3.0 / 4 x RJ45 (Ethernet) / 2 x 1000M SFP / 1 x RS232 / 1 x RS485
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: AC 100 ~ 240V (Optional redundant power supply) | DC 12V output
• Dimensions / Weight: 131 (W) x 477 (D) x 482 (H) mm / ≤10 Kg (19" 3U Rack)
📦 INCLUDED:
• Uniview NVR video recorder • Mouse • Power cable
| Range | Pro |
|---|---|
| IP camera inputs | LAN port up to 64 channels |
| Compatible IP cameras | UNIVIEW, ONVIF |
| Video output | 2 HDMI 4K, 1 VGA | Supports 2 decoding cards 6 x HDMI |
| Video compression format | Ultra265 / H.265 / H.264 |
| Display resolution | 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 384 Mbps incoming / 384 Mbps outgoing |
| Main Stream recording | 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF |
| Two-way audio | 1 input / 1 output BNC |
| Alarms | 24 Inputs / 8 Relay |
| Recording method | Manual, scheduled, motion detection |
| Smart Intrusion Prevention | Available on 16 channels |
| Smart functions | People counting, Face detection, Human body detection, Intrusion detection, Line crossing, Audio detection, Scene change, Defocus detection, Auto Tracking, Object removed, Object left behind |
| Face recognition channels | 16 channels |
| LPR channels | 8 channels |
| Internal storage | 16 HD SATA 3.5" up to 10 TB (not included) | 1 x eSATA | 2 x miniSAS |
| Storage technology | RAID 0/1/5/6/10/50/60 function and N+1 Hot Spare function |
| Communication | 4 x USB 3.0 / 4 x RJ45 (Ethernet) / 2 x 1000M SFP / 1 x RS232 / 1 x RS485 |
| Remote access | Web browser, CMS software (EZStation), Smartphone (EZView/EZLive) |
| Power supply | AC 100 ~ 240V (Optional redundant power supply) | Output DC 12V |
| Dimensions / Weight | 131 (W) x 477 (D) x 482 (H) mm / ≤10 Kg (19" Rack 3U) |
