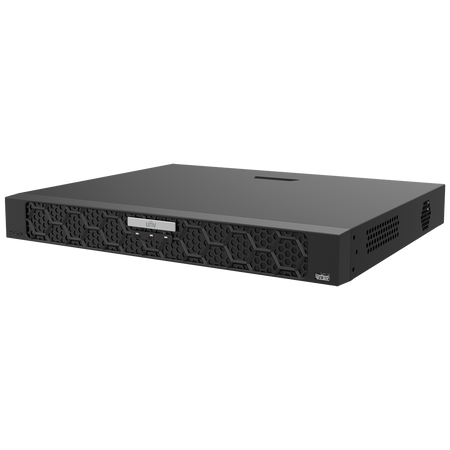

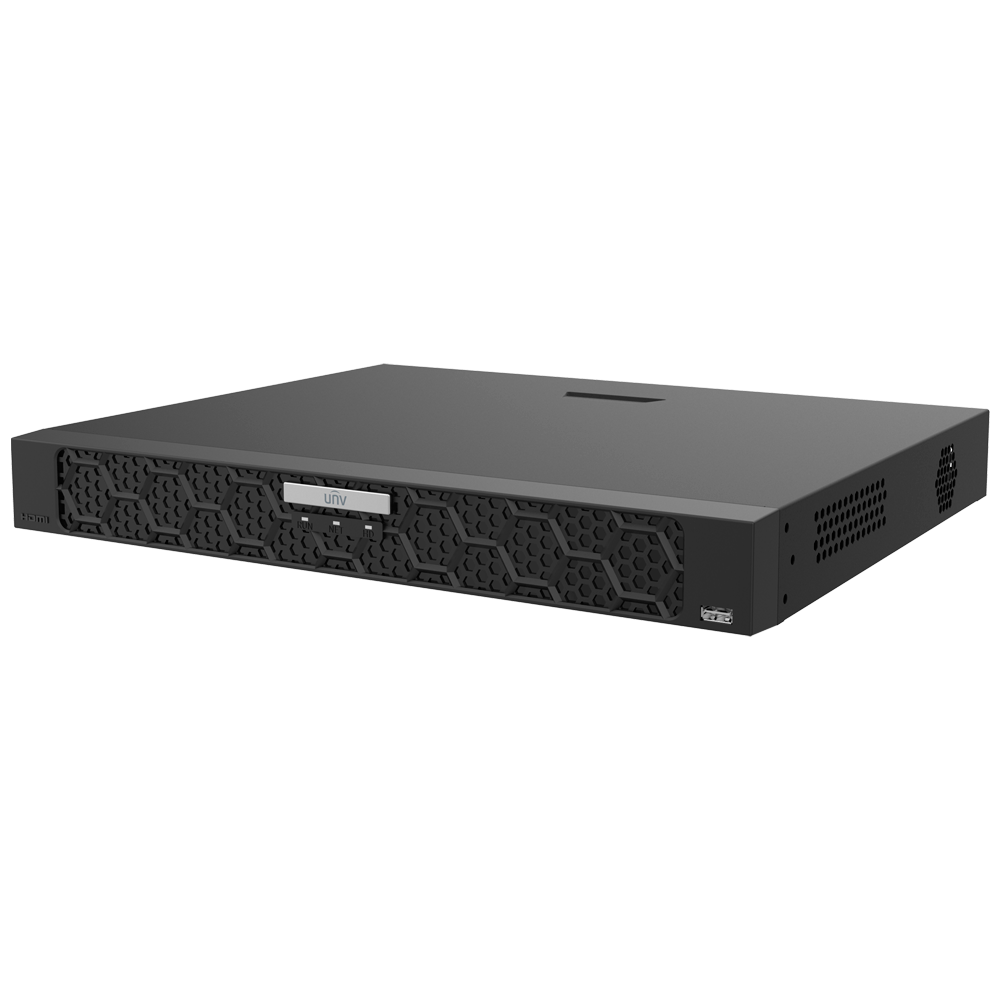

Uniview Prime Series NVR SeekFree - 32 CH | 16 MP | 192 Mbps

SKU: UV-NVR502-32E-IX-G
(0)
In stock
Usually shipped within 24 hours
€1.068,97 Final price
-8% €1.159,00 €1.068,97 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Uniview Prime Series NVR SeekFree - 32 CH | 16 MP | 192 Mbps - SeekFree | AcuSearch - 16 CH SIP | Metadata | People Counting - LPR | Behavior analysis - 2HDD | Alarms

📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Prime
• IP camera inputs: 32 channels
• Compatible IP cameras: UNIVIEW, ONVIF
• Two-way audio: 1 RCA input / 1 RCA output
• Video output: 2 HDMI 4K, 2 VGA
• Display resolution: HDMI: 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz; VGA: 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
• Video compression format: Ultra H.265 / H.265 / H.264
• Incoming bandwidth: 192Mbps
• Outgoing bandwidth: 192Mbps
• Main Stream recording: 32 MP /16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
• Recording method: Manual, scheduled, motion detection
• Smart features for each IP camera: SIP (Smart Intrusion Prevention): Detection of people/vehicles and two-wheeled vehicles in case of Line Crossing, Area Intrusion, Area Entry and Exit.; UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification.; Temperature detection: Fire detection, smoke detection, temperature measurement, cigarette smoke detection.; People counting: Capacity and people counting within an area; Other features: Video metadata and traffic monitoring with LPR cameras.
• Smart features for NVR: SIP: Up to 16CH
• SeekFree: Supported; Performs video searches using natural language.
• AcuSearch: Supported
• VCA search: Vehicle search, non-motorized vehicle search, people counting report, heatmap
• Vehicle lists: Up to 5 lists, totaling up to 25,000 images
• POS function: Supported
• General alarms: Blur detection, scene change, abandoned object, removed object, auto-tracking, tamper, video loss, audio alarm input
• Alarms: 16 Inputs / 4 Relay
• ANR function: YES
• External backup: USB memory / USB HDD
• Internal storage: 2 SATA 3.5" HDDs up to 16 TB (not included)
• Communication: Front panel: 1 x USB 2.0; Rear panel: 2 x USB 3.0 / 2 x RJ45 10/100/1000M (Ethernet)
• Power supply: DC 12V; Power consumption: ≤ 25W
• Dimensions: 380 (W) × 322.4 (D) × 53 (H)
• Weight: 1.87kg

📦 INCLUDED:
• Uniview NVR video recorder• Mouse• Power cable
Range Prime
IP camera inputs 32 channels
Compatible IP cameras UNIVIEW, ONVIF
Two-way audio 1 RCA input / 1 RCA output
Video output 2 HDMI 4K, 2 VGA
Display resolution HDMI: 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz VGA: 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
Video compression format Ultra H.265 / H.265 / H.264
Incoming bandwidth 192Mbps
Outgoing bandwidth 192Mbps
Main Stream recording 32 MP /16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Recording method Manual, scheduled, motion detection
Smart functions for each IP camera SIP (Smart Intrusion Prevention): Detection of people/vehicles and two-wheeled vehicles in case of Line crossing, Area intrusion, Entry and Exit from the area. UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification. Temperature detection: Fire detection, smoke detection, temperature measurement, cigarette smoke detection. People counting: Capacity and people counting within an area Other features: Video metadata and traffic monitoring with LPR cameras.
Smart functions for NVR SIP: Up to 16CH
SeekFree Supports searching for video using natural language.
AcuSearch Supports
VCA search Search for vehicles, non-motorized vehicles, people counting report, heatmap
Vehicle lists Up to 5 lists with a total of up to 25,000 images
POS function Supported
General alarms Blur detection, scene change, object left behind, object removed, auto-tracking, tamper, video loss, audio alarm input
Alarms 16 Inputs / 4 Relays
ANR function YES
External backup USB storage / USB HDD
Internal storage 2 SATA 3.5" HDDs up to 16 TB (not included)
Communication Front panel: 1 x USB 2.0 Rear panel: 2 x USB 3.0 / 2 x RJ45 10/100/1000M (Ethernet)
Power supply DC 12V Power consumption: ≤ 25W
Dimensions 380 (W) × 322.4 (D) × 53 (H)
Weight 1.87kg
