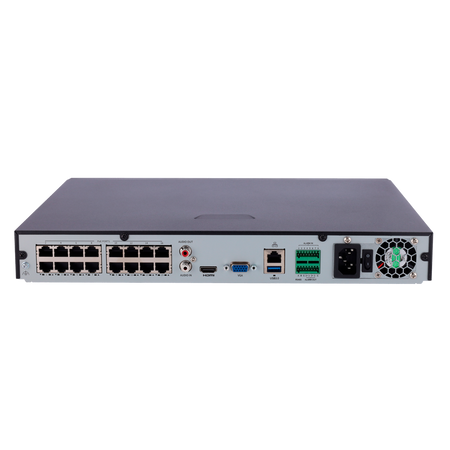

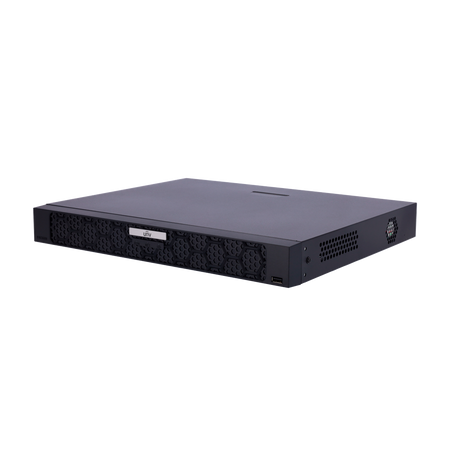

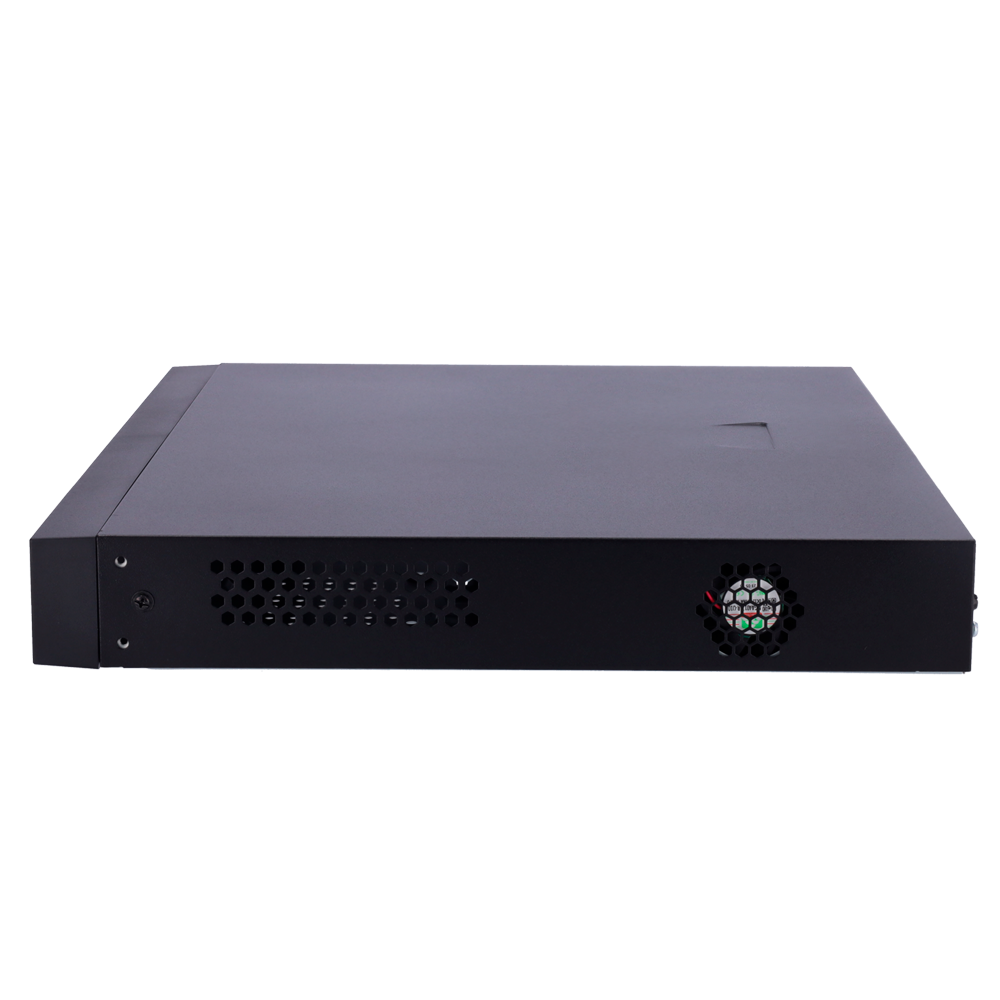

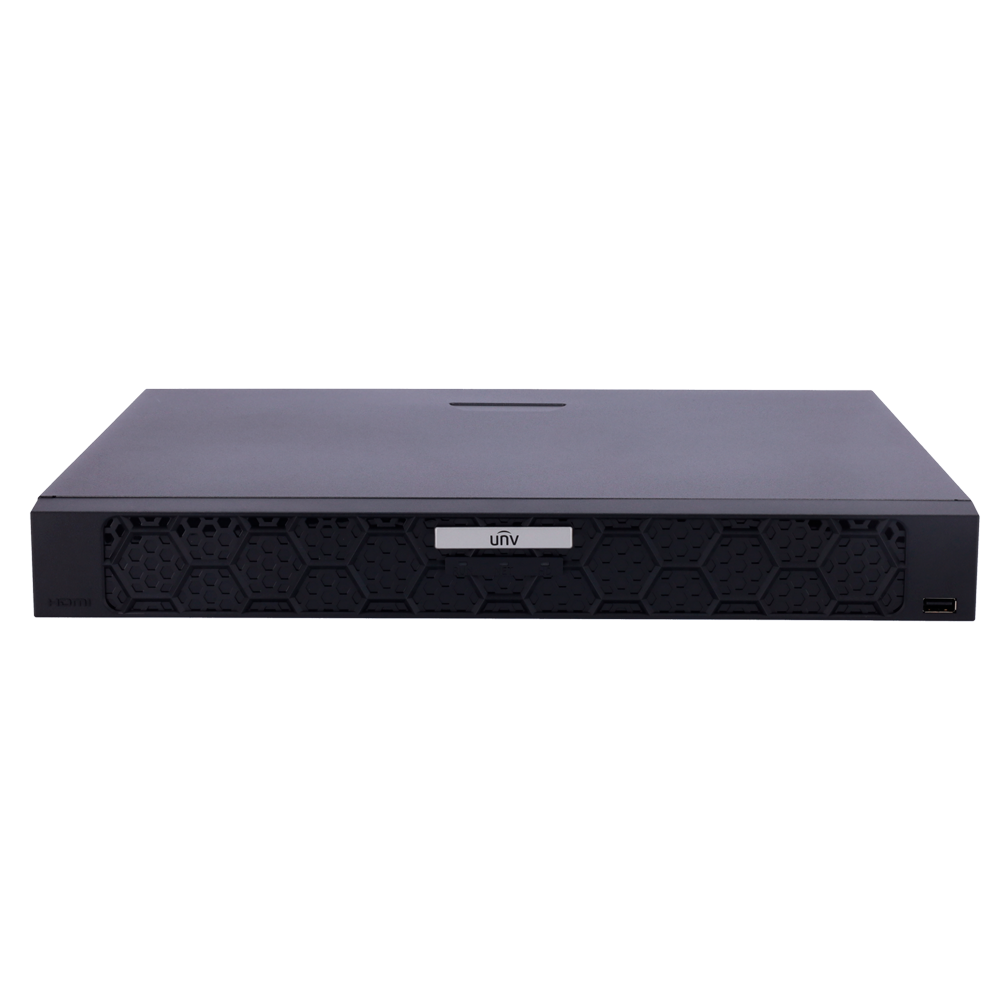

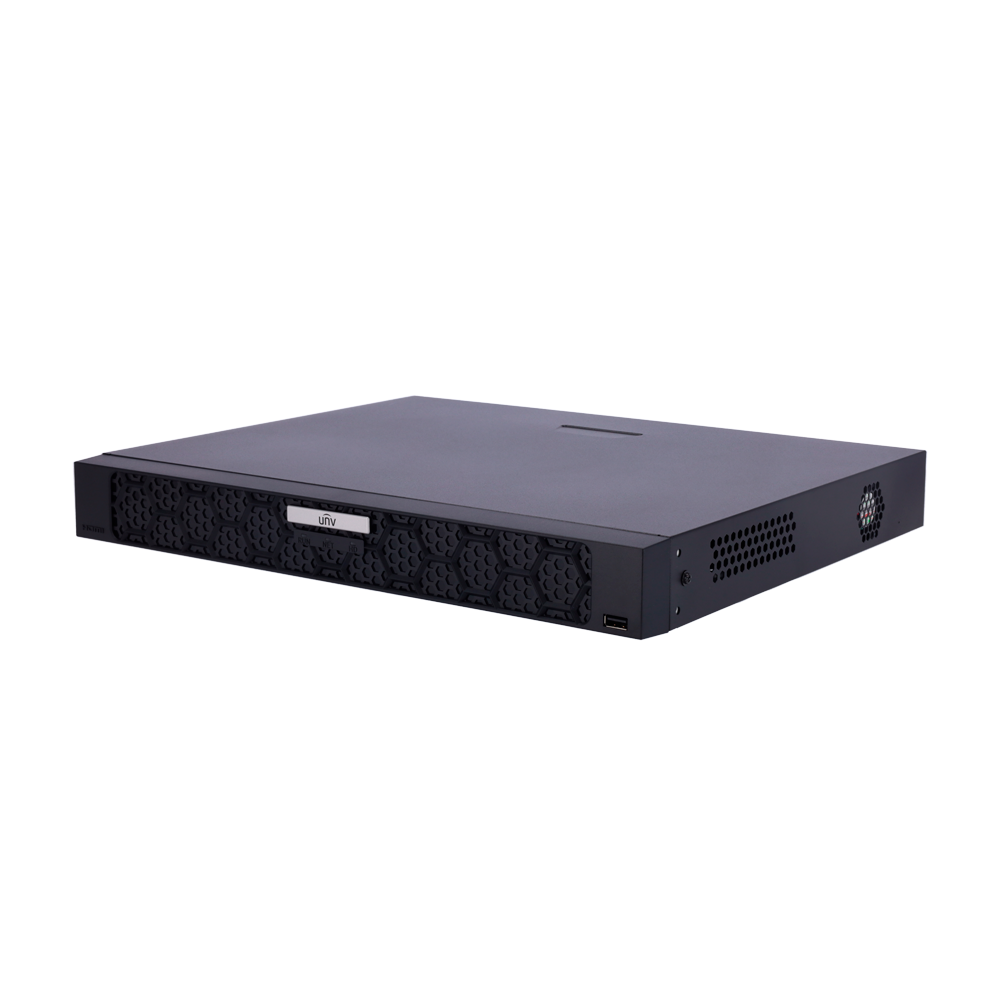

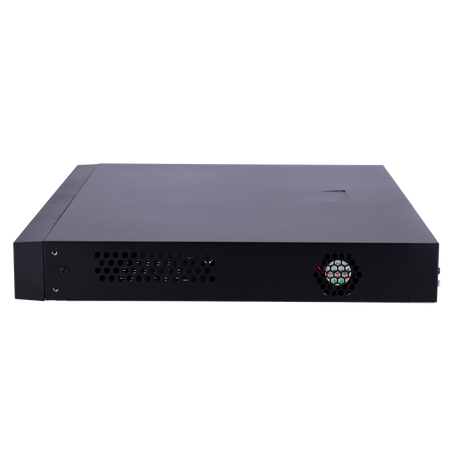

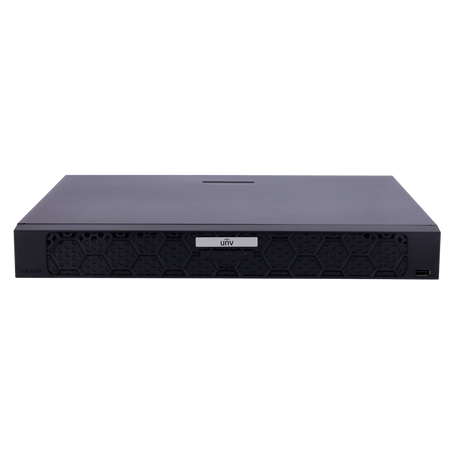

Uniview IP camera NVR video recorder - Prime Series - 32 video CH / 16 PoE ports - 12 V DC/3
Uniview IP camera NVR video recorder - Prime Series - 32 video CH / 16 PoE ports - 12 V DC/3
Regular price
€681,59
Final price
Regular price
-8%
€739,00
Sale price
€681,59
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
NVR video recorder for IP cameras - Prime Series - 32 CH video / 16 PoE ports - Maximum resolution 8Mpx - 320 Mbps bandwidth - Supports 2 hard drives
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Prime
• Channels: 32 channels
• PoE channels: 16 channels

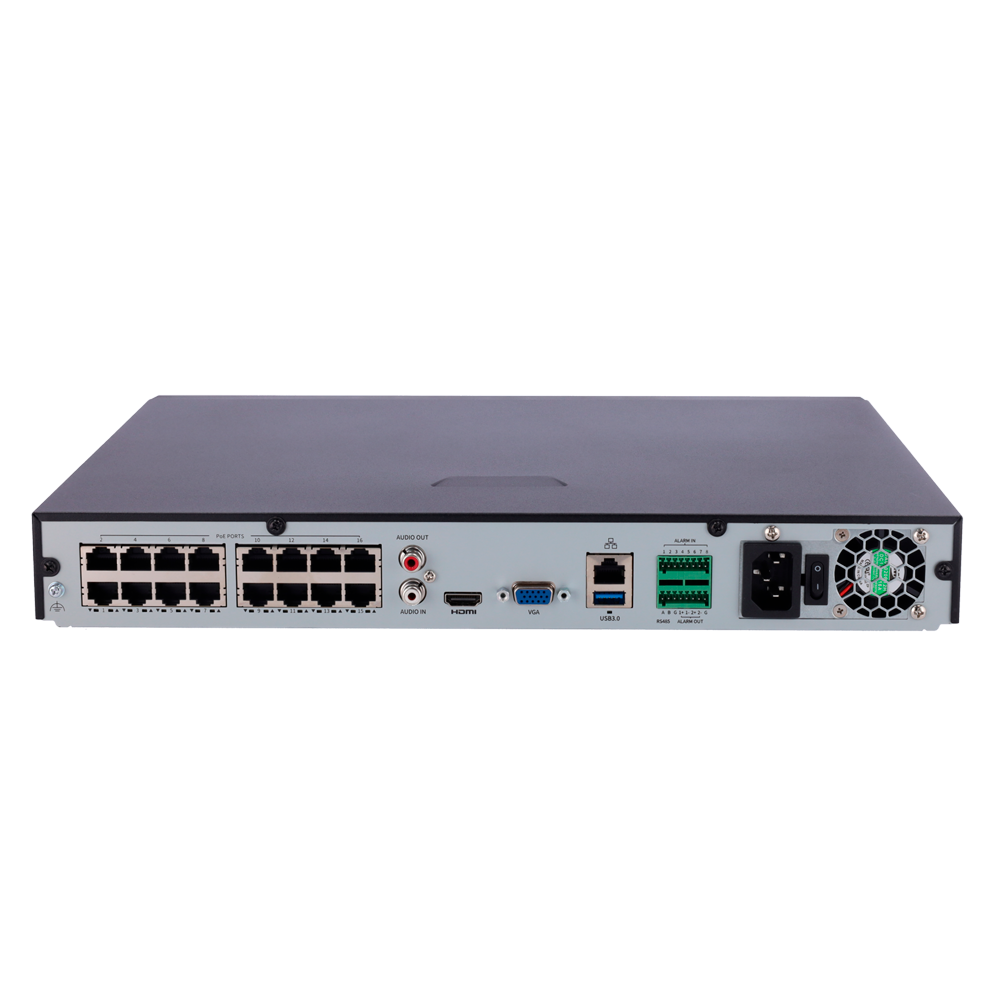

• PoE interface: 16 RJ-45 10M/100M self-adaptive Ethernet interfaces
• Maximum power: Max. 30 W per single port; Max. 240 W total
• Compatible IP cameras: UNIVIEW, ONVIF
• Video output: 1 HDMI 4K, 1 VGA
• Video compression format: Ultra H.265 / H.265 / H.264
• Network interface: 2 RJ-45 10M / 100M / 1000M
• Display resolution: 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
• Total bandwidth: 320 Mbps incoming / 160 Mbps outgoing
• Main Stream recording: 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF
• Two-way audio: 1 input / 1 output RCA
• Smart functions for camera: 8 channels
• VCA detection for camera: Intrusion detection, Line crossing detection, Area entry, Area exit, Blur detection, Scene change detection, Abandoned object, Removed object, Autotracking, UMD (Ultra Motion Detection)
• People counting: People flow counting, crowd density monitoring
• Recording method: Manual, scheduled, motion detection
• External backup: USB memory / USB HDD
• Internal memory: 2 SATA 3.5" HDD up to 8 TB (not included)
• Alarms: 8 Inputs / 2 Outputs
• Communication: 2 x USB 2.0 / 2 x RJ45 (Ethernet)
• Remote access: Web browser, CMS software (EZStation), Smartphone (EZView/EZLive)
• Power supply: 12 V DC/3.3 A ≤ 20 W (without HD)
• Dimensions / Weight: 380mm × 315mm × 53mm / 2.6 Kg
📦 INCLUDED:
• Uniview NVR video recorder • Mouse • Power cable
| Range | Prime |
|---|---|
| Channels | 32 channels |
| PoE Channels | 16 channels |
| PoE Interface | 16 x 10M/100M RJ-45 self-adaptive Ethernet interfaces |
| Maximum Power | Max. 30 W for a single port, Max. 240 W total |
| Compatible IP Cameras | UNIVIEW, ONVIF |
| Video Output | 1 x 4K HDMI, 1 x VGA |
| Video Compression Format | Ultra H.265 / H.265 / H.264 |
| Network Interface | 2 x 10M/100M/1000M RJ-45 |
| Display Resolution | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Total Bandwidth | 320 Mbps incoming / 160 Mbps outgoing |
| Main Stream Recording | 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF |
| Two-way Audio | 1 input / 1 output RCA |
| Smart Camera Functions | 8 channels |
| VCA Detection per camera | Intrusion detection, Line crossing detection, Enter area, Leave area, Blur detection, Scene change detection, Abandoned object, Removed object, Autotracking, UMD (Ultra Motion Detection) |
| People Counting | People flow counting, crowd density monitoring |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB memory / USB HDD |
| Internal Storage | 2 x 3.5" SATA HDD up to 8 TB (not included) |
| Alarms | 8 Inputs / 2 Outputs |
| Communication | 2 x USB 2.0 / 2 x RJ45 (Ethernet) |
| Remote Access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power Supply | 12 V DC/3.3 A ≤ 20 W (without HDD) |
| Dimensions / Weight | 380mm × 315mm × 53mm / 2.6 kg |
