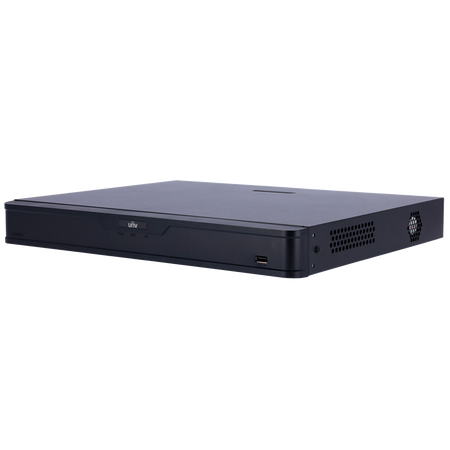

Uniview Gamma Easy NVR Video Recorder for IP cameras - 16CH video / Ultra265 compression / 16CH PoE
Uniview Gamma Easy NVR Video Recorder for IP cameras - 16CH video / Ultra265 compression / 16CH PoE
Regular price
€543,24
Final price
Regular price
-8%
€589,00
Sale price
€543,24
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

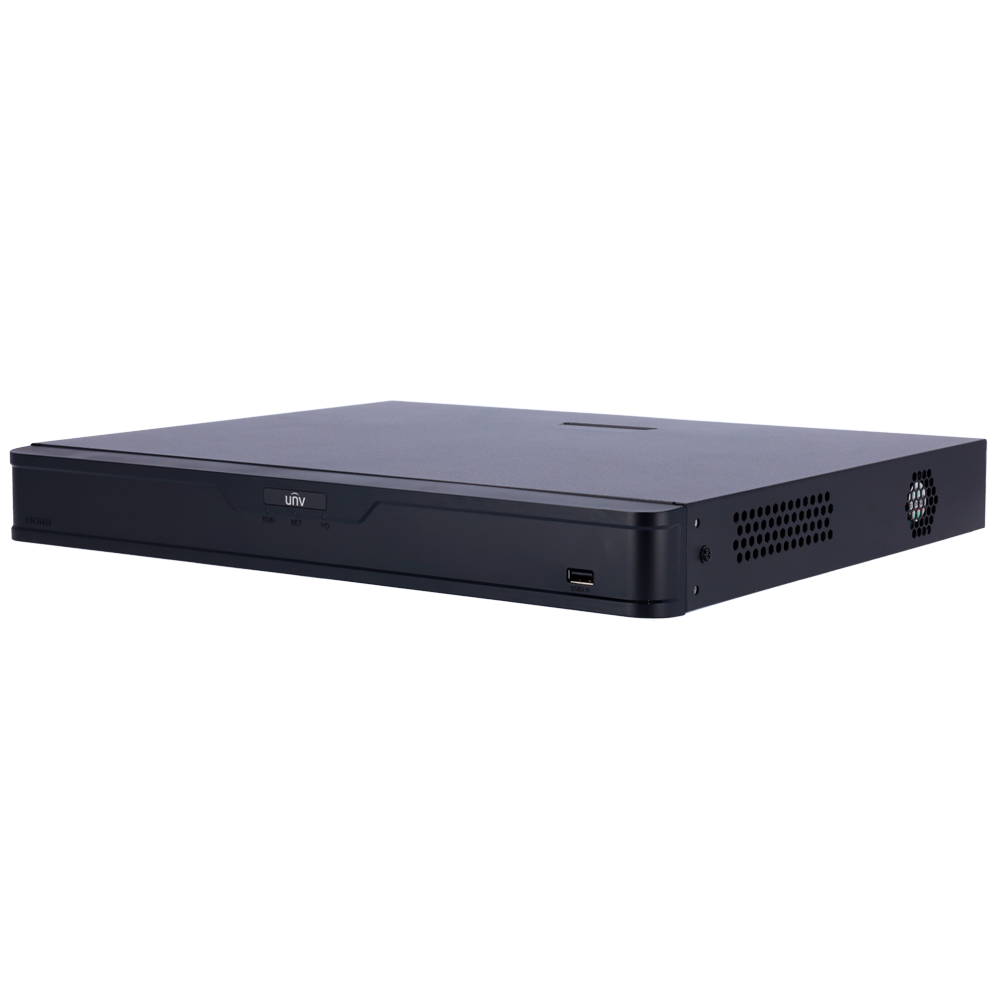

Uniview Gamma Easy - NVR video recorder for IP cameras - Resolution up to 12Mpx - 16CH video / Ultra265 compression / 16CH PoE - 160Mbps bandwidth | Supports 2HDD - SIP up to 2CH | AcuSearch
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Easy
• IP camera inputs: 16 channels
• PoE power: 16 CH PoE switch IEEE 802.3at, IEEE 802.3af. Max 30 W on a single channel. Max 240 W total.
• Compatible IP cameras: UNIVIEW, ONVIF (Profile S, Profile G, Profile T), RTSP
• Two-way audio: 1 input / 1 output RCA
• Video output: 1 HDMI 4K, 1 VGA
• Display resolution: HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Video compression format: Ultra H.265 / H.265 / H.264
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 128 Mbps
• Main Stream recording: 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
• Corridor mode: 3/4/5/7/9/10/12/16
• Decoding capacity: Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30; Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
• Recording mode: Manual, scheduled, motion detection
• Intelligent functions for each IP camera: SIP (Smart Intrusion Prevention): Detection of people/vehicles and two-wheeled vehicles in case of Line Crossing, Area Intrusion, Area Entry and Exit.; UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification.; People counting: Capacity and people counting within an area
• Intelligent functions for NVR: SIP: Up to 2CH; UMD: Up to 4CH
• VCA search: Vehicle search, non-motorized vehicle search, people counting report, heatmap
• Vehicle photo library: Up to 5 libraries, with a maximum of 25,000 vehicle photos in total.
• General alarms: Blur detection, scene change, abandoned object, removed object, autotracking, motion detection, tamper, video loss, alarm input or audio
• AcuSearch: Advanced search for specific targets, by selecting the desired one on the live image itself.
• ANR function: Yes
• Internal memory: 2 SATA HDDs up to 10 TB (not included)

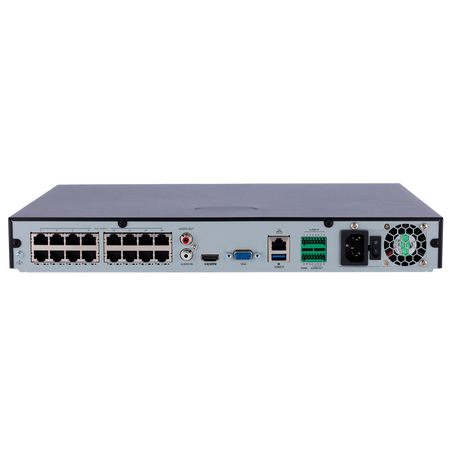

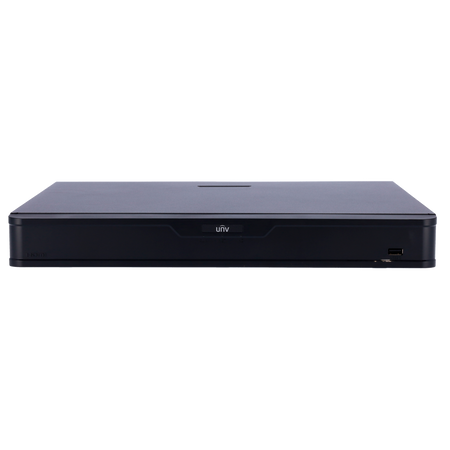

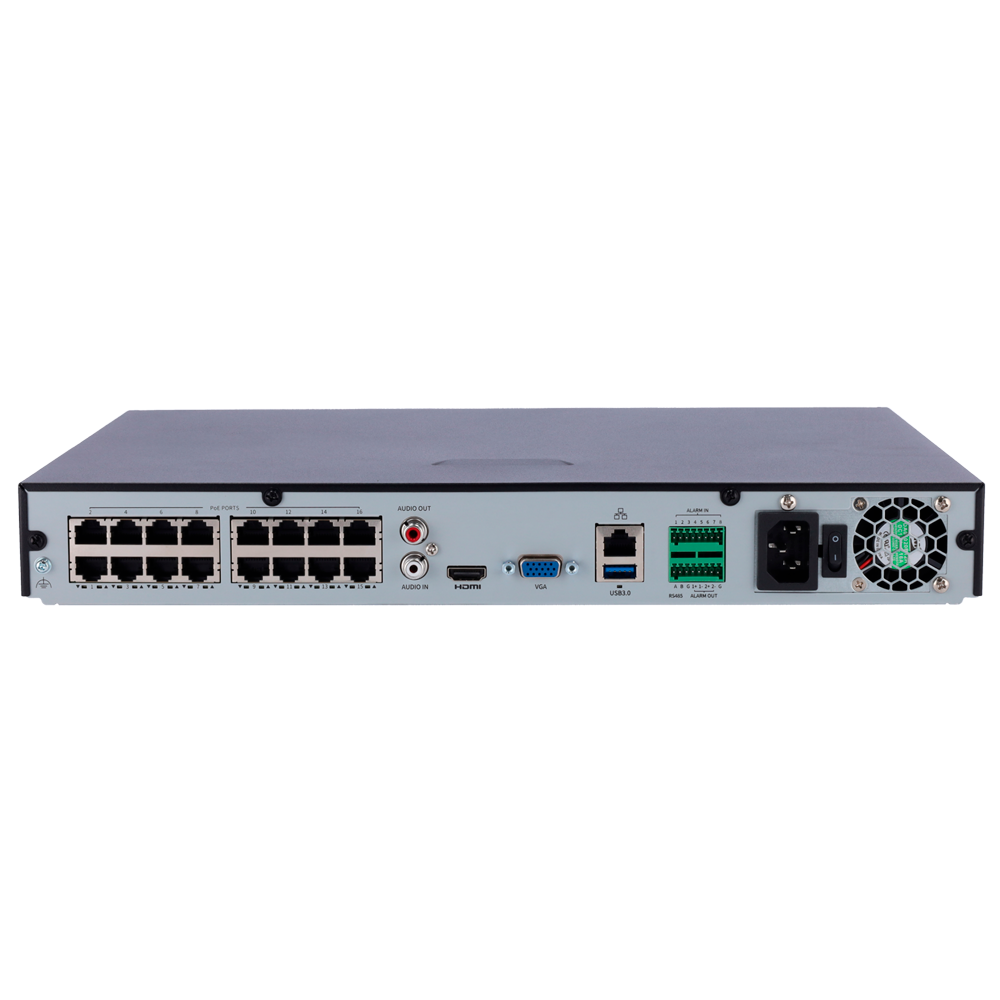

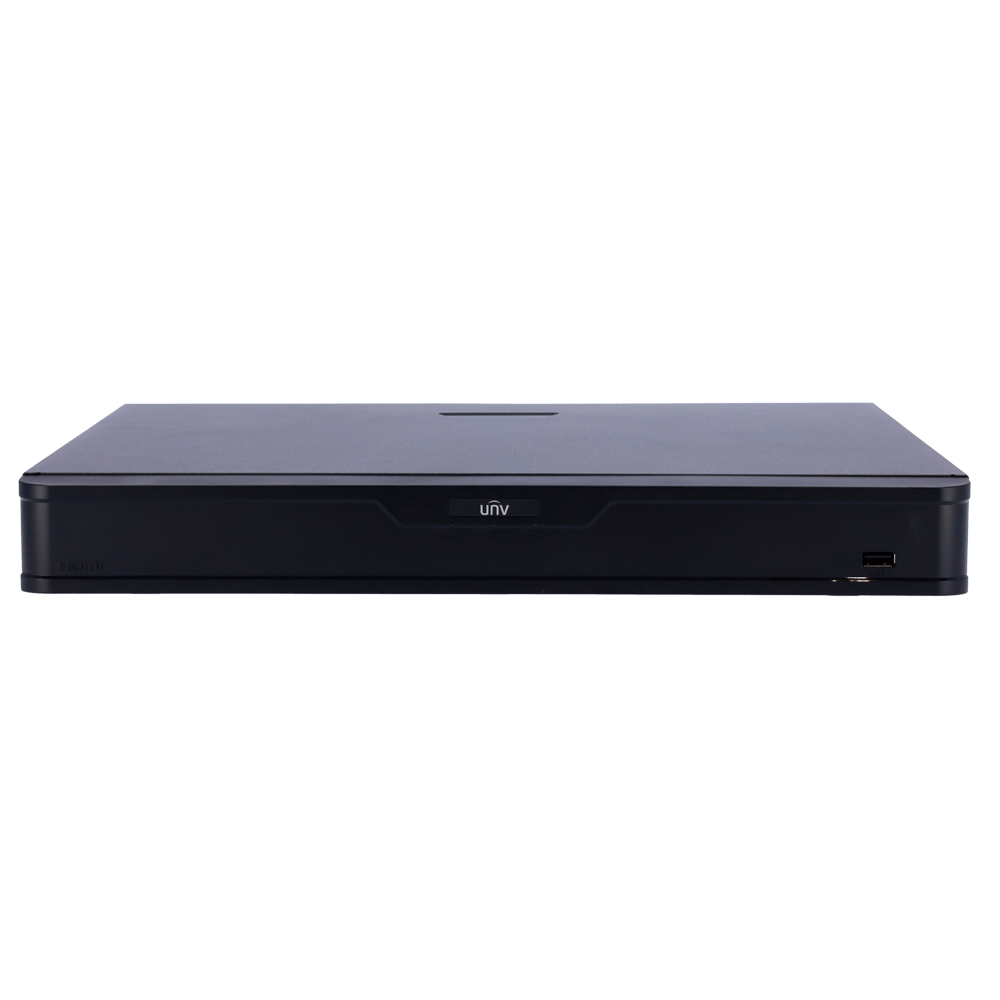

• Communication: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0 / 1 x RJ45 10/100M (Ethernet)
• Power supply: AC 100-200 V, ≤ 12W (without HD)
• Operating temperature: -10 °C ~ +55 °C, Humidity ≤ 90% HR (non-condensing)
• Dimensions / Weight: 380 (W) × 322 (D) × 53 (H) mm / 2.7 Kg
📦 INCLUDED:
• Uniview NVR video recorder • Mouse • Power cable
| Series | Easy |
|---|---|
| IP camera inputs | 16 channels |
| PoE power supply | 16-channel PoE switch IEEE 802.3at, IEEE 802.3af. Maximum 30 W per single channel. Maximum 240 W total. |
| Compatible IP cameras | UNIVIEW, ONVIF (Profile S, Profile G, Profile T), RTSP |
| Two-way audio | 1 RCA input / 1 RCA output |
| Video output | 1 4K HDMI, 1 VGA |
| Display resolution | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Incoming bandwidth | 160 Mbps |
| Outgoing bandwidth | 128 Mbps |
| Main Stream recording | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Corridor mode | 3/4/5/7/9/10/12/16 |
| Decoding capability | Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Recording method | Manual, scheduled, motion detection |
| Intelligent functions for each IP camera | SIP (Smart Intrusion Prevention): Detection of people/vehicles and two-wheeled vehicles in case of Line Crossing, Area Intrusion, Entry and Exit from the area. UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification. People counting: Capacity and people counting within an area |
| Intelligent functions for NVR | SIP: Up to 2CH UMD: Up to 4CH |
| VCA search | Search for vehicles, non-motorized vehicles, people counting reports, heatmap |
| Vehicle photo library | Up to 5 libraries, with a maximum of 25,000 vehicle photos in total. |
| General alarms | Blur detection, scene change, object abandoned, object removed, autotracking, motion detection, tamper, video loss, alarm or audio input |
| AcuSearch | Advanced search for specific targets by selecting the desired one on the live image itself. |
| ANR function | Yes |
| Internal memory | 2 SATA HDDs up to 10 TB (not included) |
| Communication | Front panel: 1 x USB 2.0 Rear panel: 1 x USB 3.0 / 1 x RJ45 10/100M (Ethernet) |
| Power supply | AC 100-200 V, ≤ 12W (without HDD) |
| Operating temperature | -10 °C ~ +55 °C, Humidity ≤ 90% RH (non-condensing) |
| Dimensions / Weight | 380 (W) × 322 (D) × 53 (H) mm / 2.7 kg |
