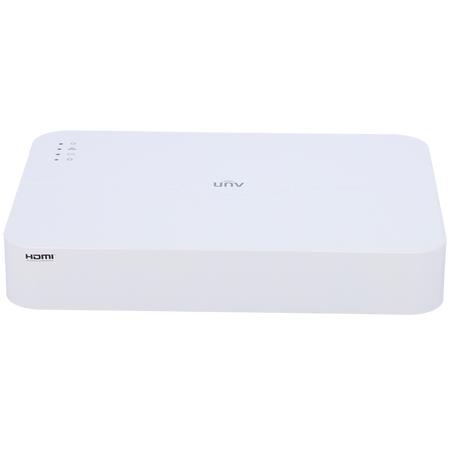

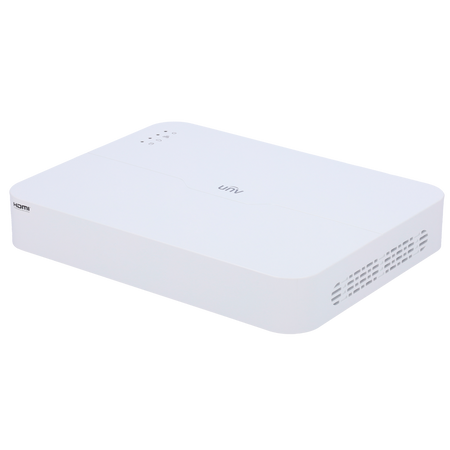

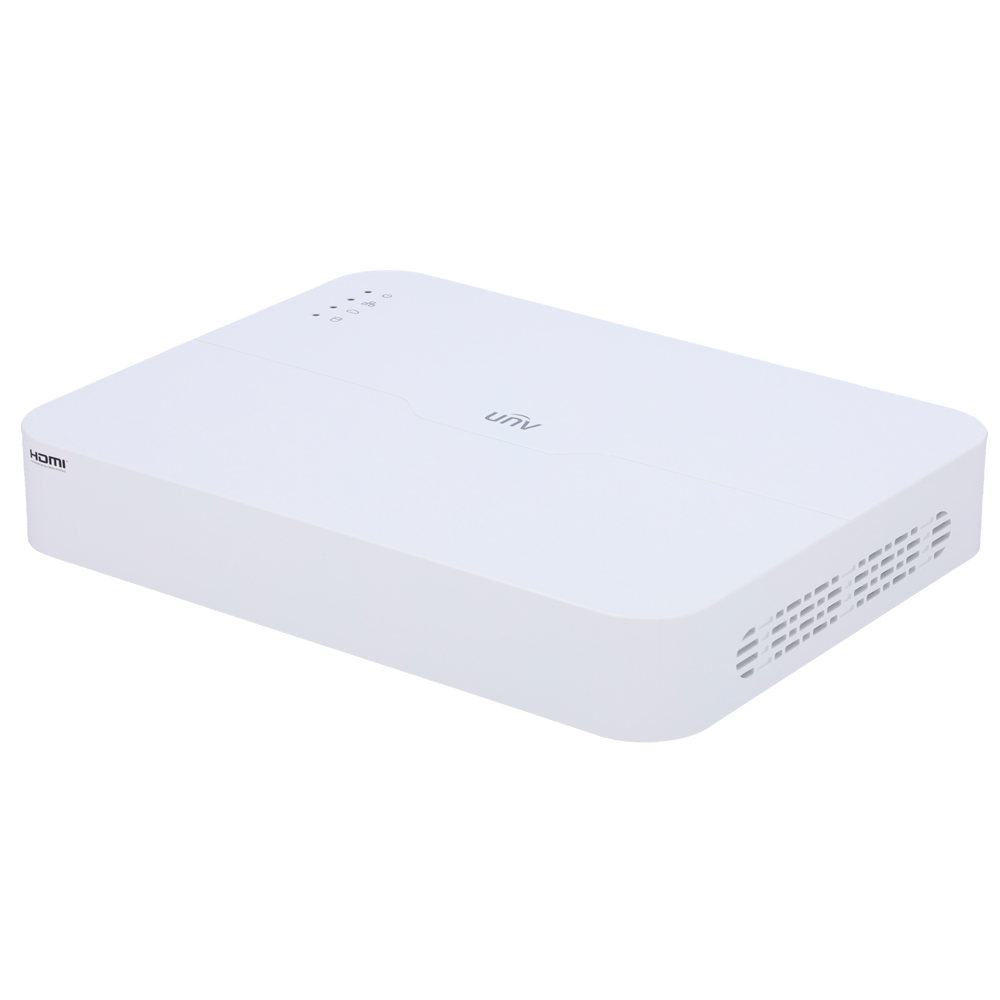

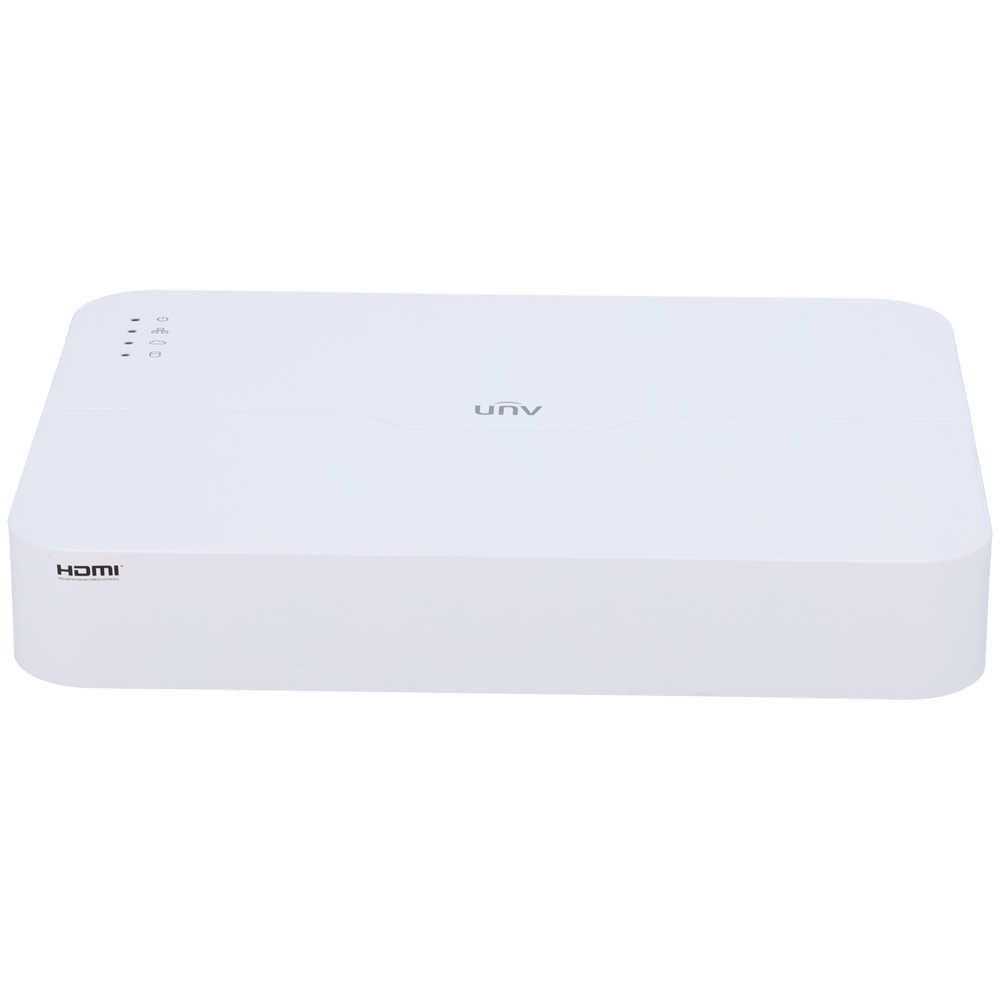

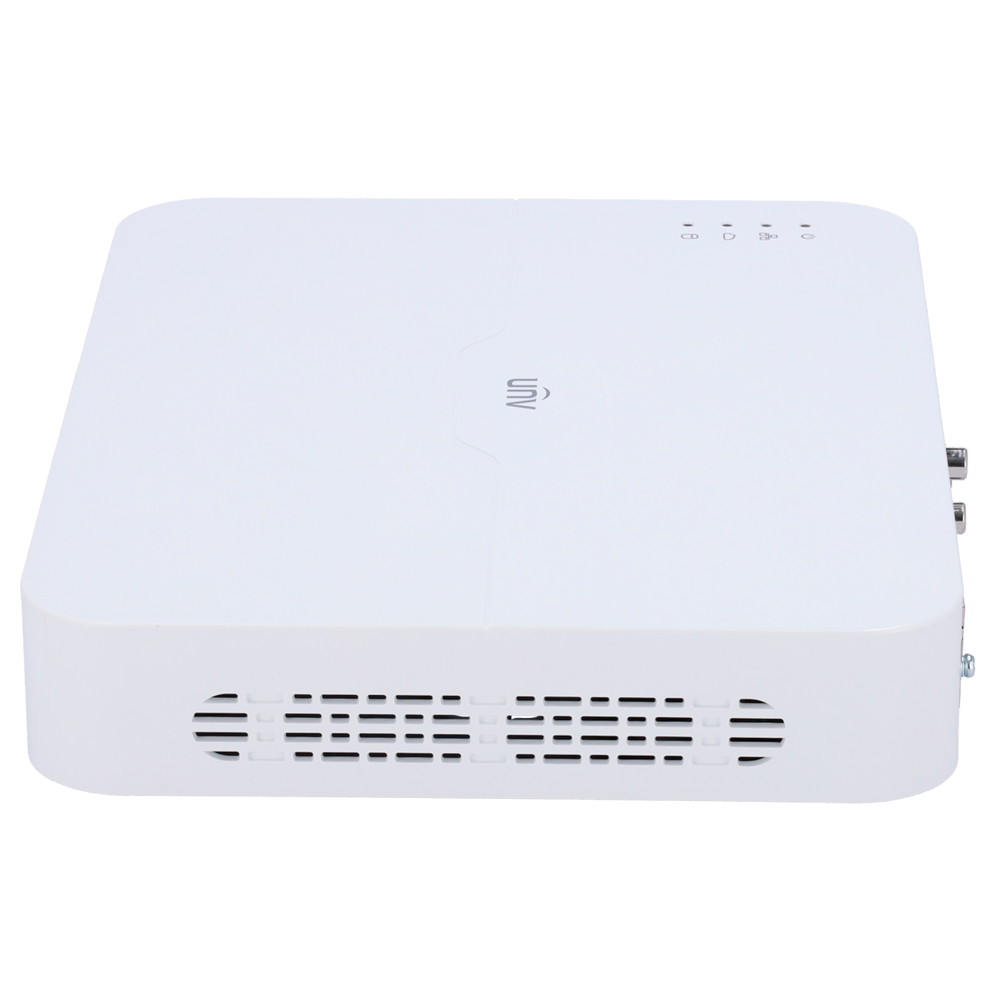

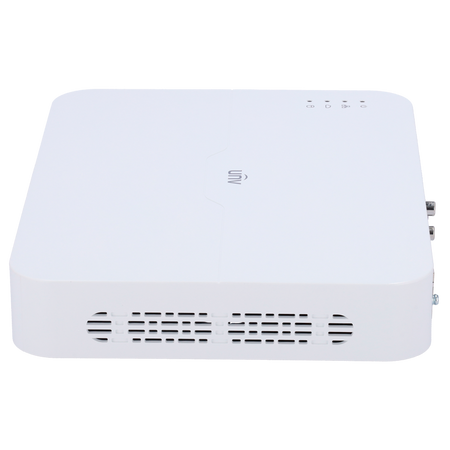

Uniview Easy Series 8-CH NVR - 1 HDMI 4K video
Uniview Easy Series 8-CH NVR - 1 HDMI 4K video
Regular price
€266,54
Final price
Regular price
-8%
€289,00
Sale price
€266,54
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview Easy Series NVR - 8 CH video | 12MP | 80 Mbps - Face detection | Vehicle detection - SIP | UMD | AcuSearch - People counting | Traffic monitoring - Supports 1 hard drive up to 10 TB
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Easy
• IP camera inputs: 8 channels
• PoE power supply: 8 CH PoE Switch IEEE 802.3at, IEEE 802.3af. Maximum 30 W on a single channel. Maximum 75 W total.
• Compatible IP cameras: UNIVIEW, ONVIF (Profile S, Profile G, Profile T), RTSP
• Two-way audio: 1 input / 1 output RCA
• Video output: 1 HDMI 4K, 1 VGA
• Display resolution: HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Video compression format: Ultra H.265 / H.265 / H.264
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• Main Stream recording: 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
• Corridor mode: 3/4/5/7/9
• Decoding capacity: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30; Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30
• Recording method: Manual, scheduled, motion detection
• Smart functions per IP camera: SIP (Smart Intrusion Prevention): Person/vehicle and two-wheeler detection for Line Crossing, Area Intrusion, and Entry/Exit into an area; UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification; People counting: Capacity and people counting within an area
• Smart functions for NVR: SIP: Up to 2CH; UMD: Up to 4CH
• VCA search: Vehicle search, non-motorized vehicle search, people counting reports, heatmap
• General alarms: Blur detection, scene change, abandoned object, removed object, auto-tracking, motion detection, tampering, video loss, alarm input or audio
• AcuSearch: Advanced search for specific targets by selecting the desired one on the live image itself.
• ANR function: Yes
• Internal memory: 1 SATA HDD up to 10 TB (not included)

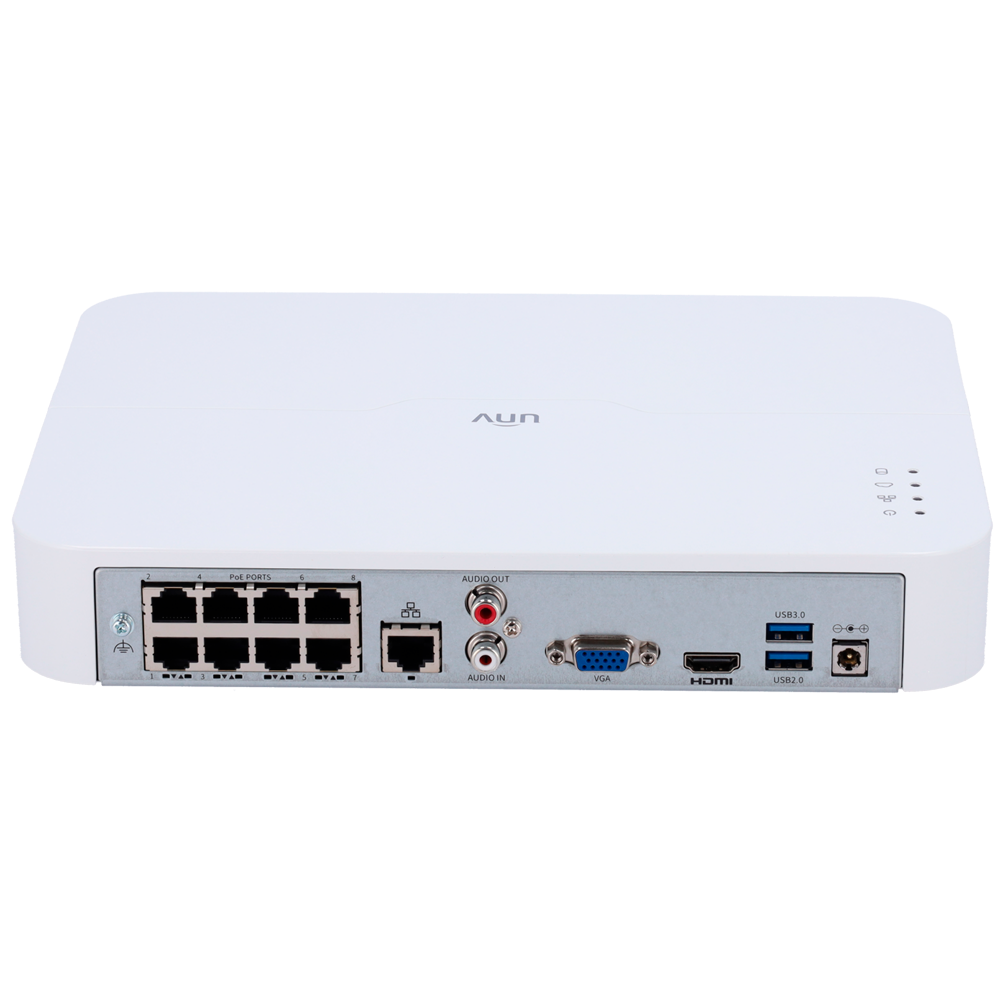

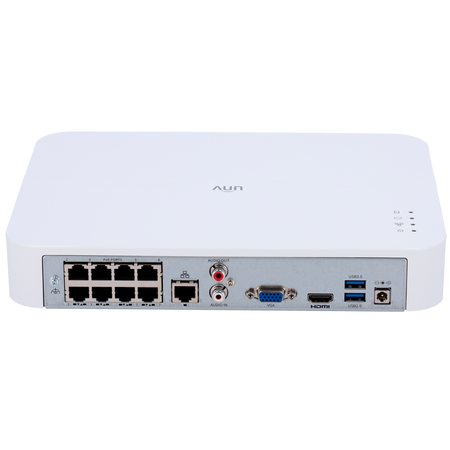

• Communication: Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100M (Ethernet)
• Power supply: DC 52 V / 1.8 A, ≤ 12W (without HDD)
• Operating temperature: -10 °C ~ +55 °C, Humidity ≤ 90% RH (non-condensing)
• Dimensions / Weight: 270 (W) × 212 (D) × 46 (H) mm / 4 kg
📦 INCLUDED:
• Uniview NVR video recorder • Mouse • Power cable
| Range | Easy |
|---|---|
| IP camera inputs | 8 channels |
| PoE supply | 8-channel PoE switch IEEE 802.3at, IEEE 802.3af. Maximum 30 W on a single channel. Maximum 75 W total. |
| Compatible IP cameras | UNIVIEW, ONVIF (Profile S, Profile G, Profile T), RTSP |
| Two-way audio | 1 RCA input / 1 RCA output |
| Video output | 1 HDMI 4K, 1 VGA |
| Display resolution | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Main Stream recording | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Corridor mode | 3/4/5/7/9 |
| Decoding capacity | Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 |
| Recording method | Manual, scheduled, motion detection |
| Smart functions for each IP camera | SIP (Smart Intrusion Prevention): Detection of people/vehicles and two-wheeled vehicles for Line Crossing, Area Intrusion, and Area Entry and Exit. UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification. People counting: Capacity and people counting within an area |
| Smart functions for NVR | SIP: Up to 2CH UMD: Up to 4CH |
| VCA search | Search for vehicles, non-motorized vehicles, people counting reports, heatmaps |
| General alarms | Defocus detection, scene change, abandoned object, removed object, autotracking, motion detection, tampering, video loss, alarm or audio input |
| AcuSearch | Advanced search for specific targets by selecting the desired one directly on the live image. |
| ANR function | Yes |
| Internal memory | 1 SATA HDD up to 10 TB (not included) |
| Communication | Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power supply | DC 52 V / 1.8 A, ≤ 12W (without HDD) |
| Operating temperature | -10 °C ~ +55 °C, Humidity ≤ 90% RH (non-condensing) |
| Dimensions / Weight | 270 (W) × 212 (D) × 46 (H) mm / 4 kg |
