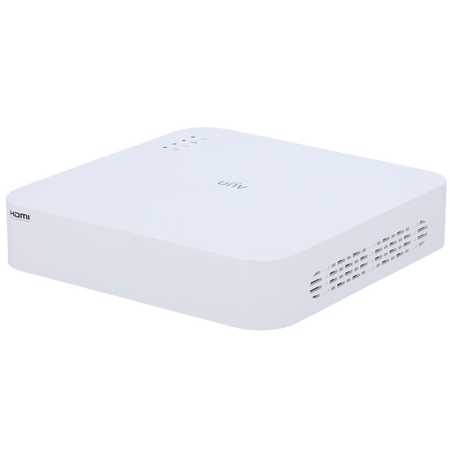

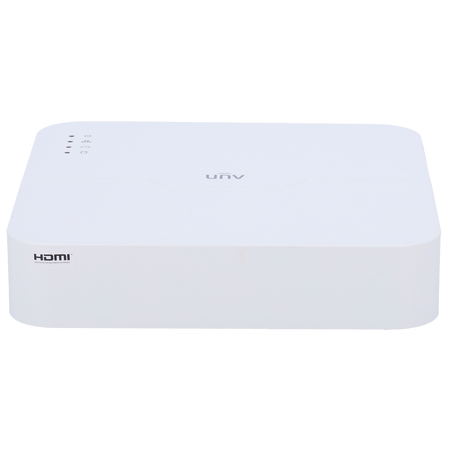

Uniview Easy Series 4-Channel NVR
Regular price
€211,21
Final price
Regular price
-8%
€229,00
Sale price
€211,21
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview Easy Series NVR - 4 CH video | 12MP | 80 Mbps - Face detection | Vehicle detection - SIP | UMD | AcuSearch - People counting | Traffic monitoring - Supports 1 hard drive up to 10 TB
📋 SPECIFICATIONS:
• Brand: Uniview
• Series: Easy
• IP camera inputs: 4 CH
• PoE power supply: 4 CH; IEEE 802.3at, IEEE 802.3af. Max 30 W on a single channel. Max 50 W total.
• Compatible IP cameras: UNIVIEW, ONVIF (Profile S, Profile G, Profile T), RTSP
• Two-way audio: 1 input / 1 output RCA
• Video output: 1 HDMI 4K, 1 VGA
• Display resolution: HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Video compression format: Ultra H.265 / H.265 / H.264
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• Main Stream recording: 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
• Corridor mode: 3/4
• Decoding capacity: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30; Smart On: 2 x 4K@30, 4 x 4MP@30
• Recording mode: Manual, scheduled, motion detection
• Intelligent functions for each IP camera: SIP (Smart Intrusion Prevention): Detection of people/vehicles and two-wheeled vehicles in case of Line crossing, Area intrusion, Entry and Exit from the area; UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification; People counting: Capacity and counting of people within an area
• Intelligent functions for NVR: SIP: Up to 2CH; UMD: Up to 4CH
• VCA search: Vehicle search, non-motorized vehicle search, people counting report, heatmap
• General alarms: Blur detection, scene change, object left behind, object removed, autotracking, motion detection, tampering, video loss, alarm or audio input
• AcuSearch: Advanced search for specific targets by selecting the desired one on the live image itself.
• ANR function: Yes
• Internal storage: 1 SATA HDD up to 10 TB (not included)

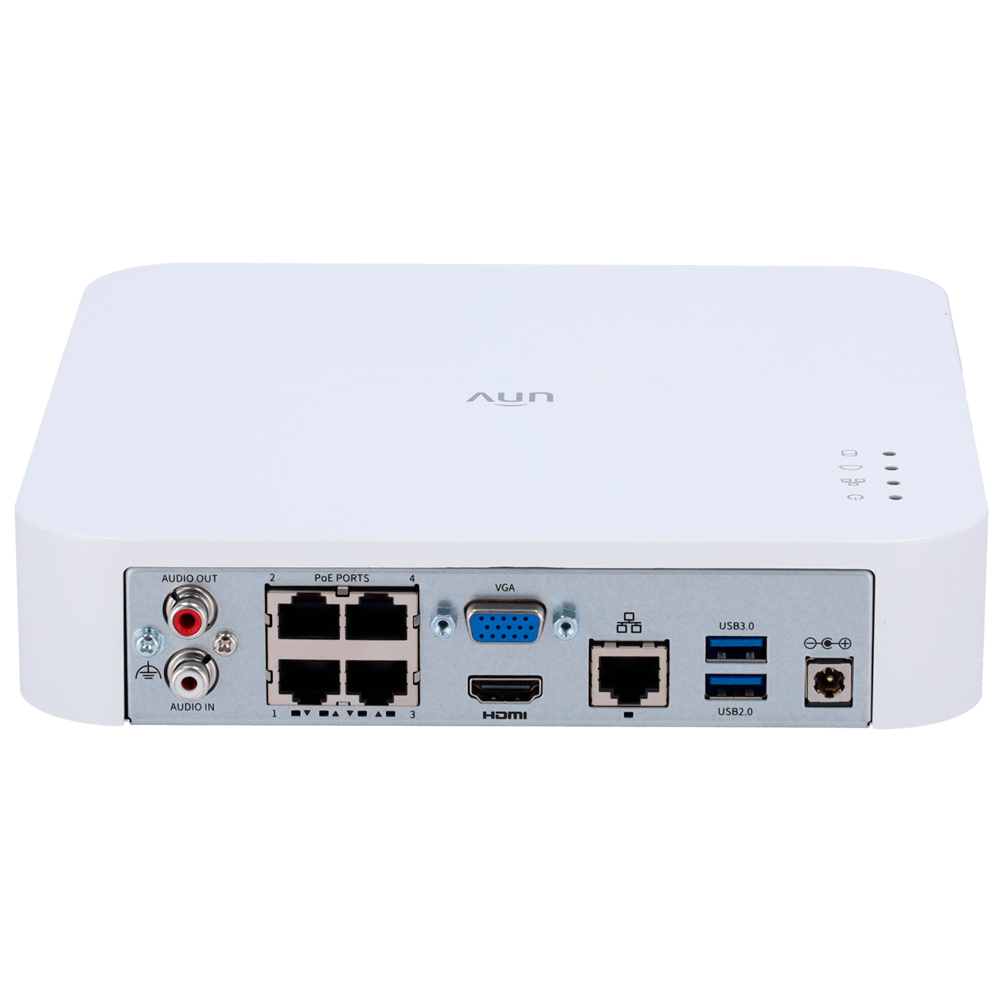

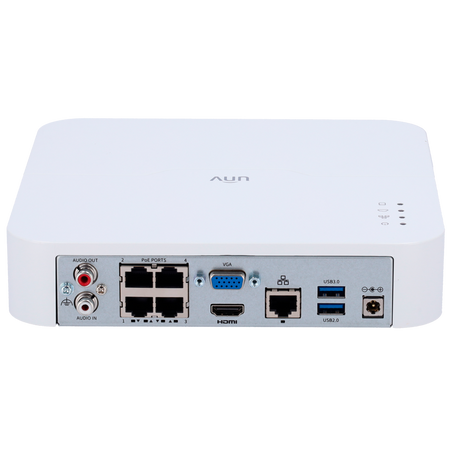

• Communication: Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100M (Ethernet)
• Power supply: DC 48 V / 1.35 A, ≤ 12W (without HDD)
• Operating temperature: -10 °C ~ +55 °C, Humidity ≤ 90% RH (non-condensing)
• Dimensions / Weight: 205 (W) × 212 (D) × 46 (H) mm / 2.7 Kg
📦 INCLUDED:
• Uniview NVR video recorder • Mouse • Power cable
| Range | Easy |
|---|---|
| IP camera inputs | 4 CH |
| PoE power supply | 4 CH IEEE 802.3at, IEEE 802.3af. Max 30 W on a single channel. Max 50 W total. |
| Compatible IP cameras | UNIVIEW, ONVIF (Profile S, Profile G, Profile T), RTSP |
| Two-way audio | 1 input / 1 output RCA |
| Video output | 1 HDMI 4K, 1 VGA |
| Display resolution | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Main Stream recording | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Corridor mode | 3/4 |
| Decoding capacity | Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On: 2 x 4K@30, 4 x 4MP@30 |
| Recording method | Manual, scheduled, motion detection |
| Smart functions for each IP camera | SIP (Smart Intrusion Prevention): Detection of people/vehicles and two-wheeled vehicles in case of Line crossing, Area intrusion, Entry and Exit from area. UMD (Ultra Motion Detection): Advanced motion detection based on human-vehicle classification. People counting: Capacity and people counting within an area |
| Smart functions for NVR | SIP: Up to 2CH UMD: Up to 4CH |
| VCA search | Search for vehicles, non-motorized vehicles, people counting report, heatmap |
| General alarms | Blur detection, scene change, abandoned object, removed object, autotracking, motion detection, tamper, video loss, alarm or audio input |
| AcuSearch | Advanced search for specific targets by selecting the desired one on the live image itself. |
| ANR function | Yes |
| Internal storage | 1 SATA HDD up to 10 TB (not included) |
| Communication | Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power supply | DC 48 V / 1.35 A, ≤ 12W (without HDD) |
| Operating temperature | -10 °C ~ +55 °C, Humidity ≤ 90% RH (non-condensing) |
| Dimensions / Weight | 205 (W) × 212 (D) × 46 (H) mm / 2.7 Kg |
