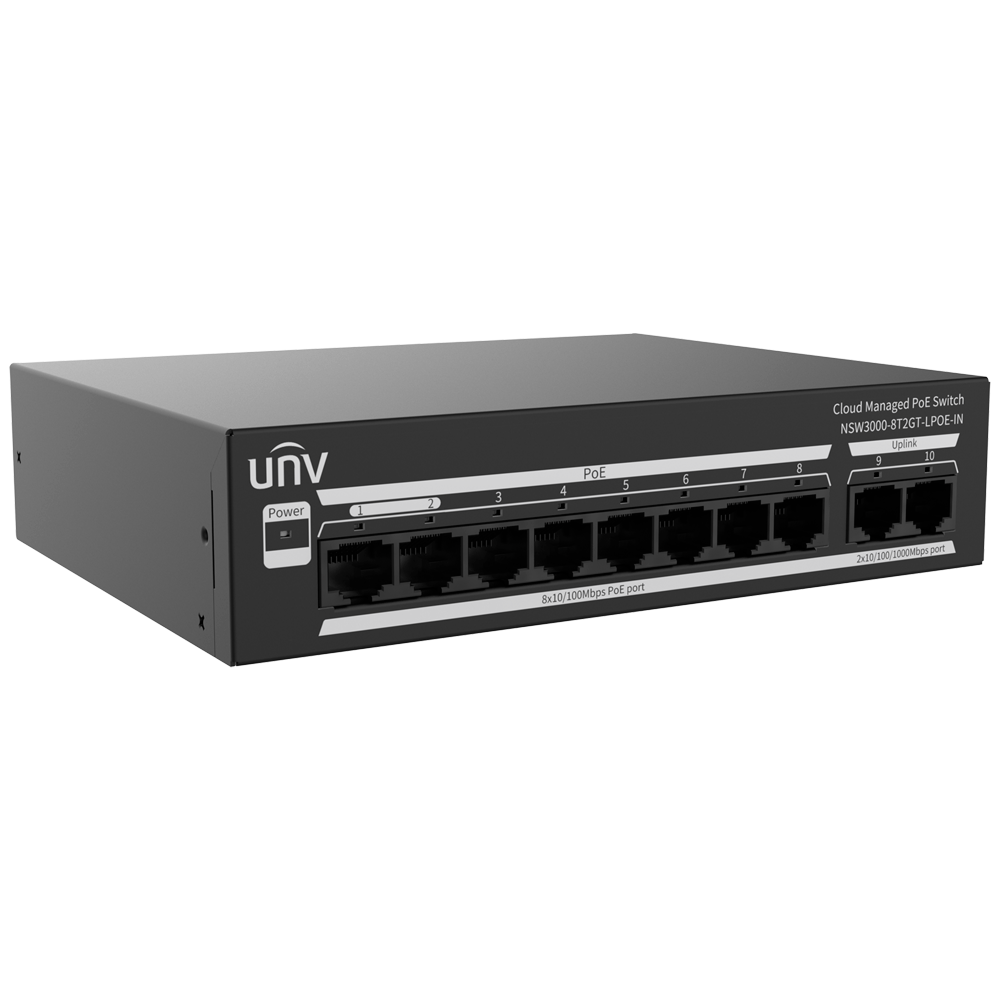

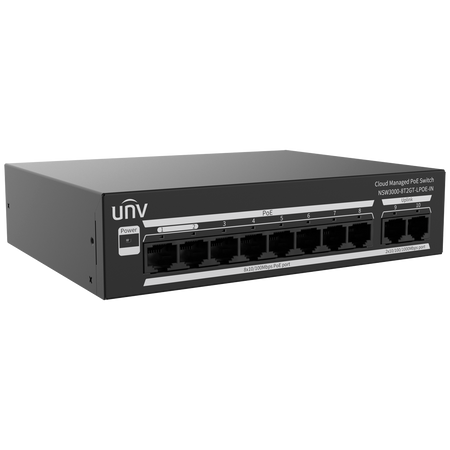

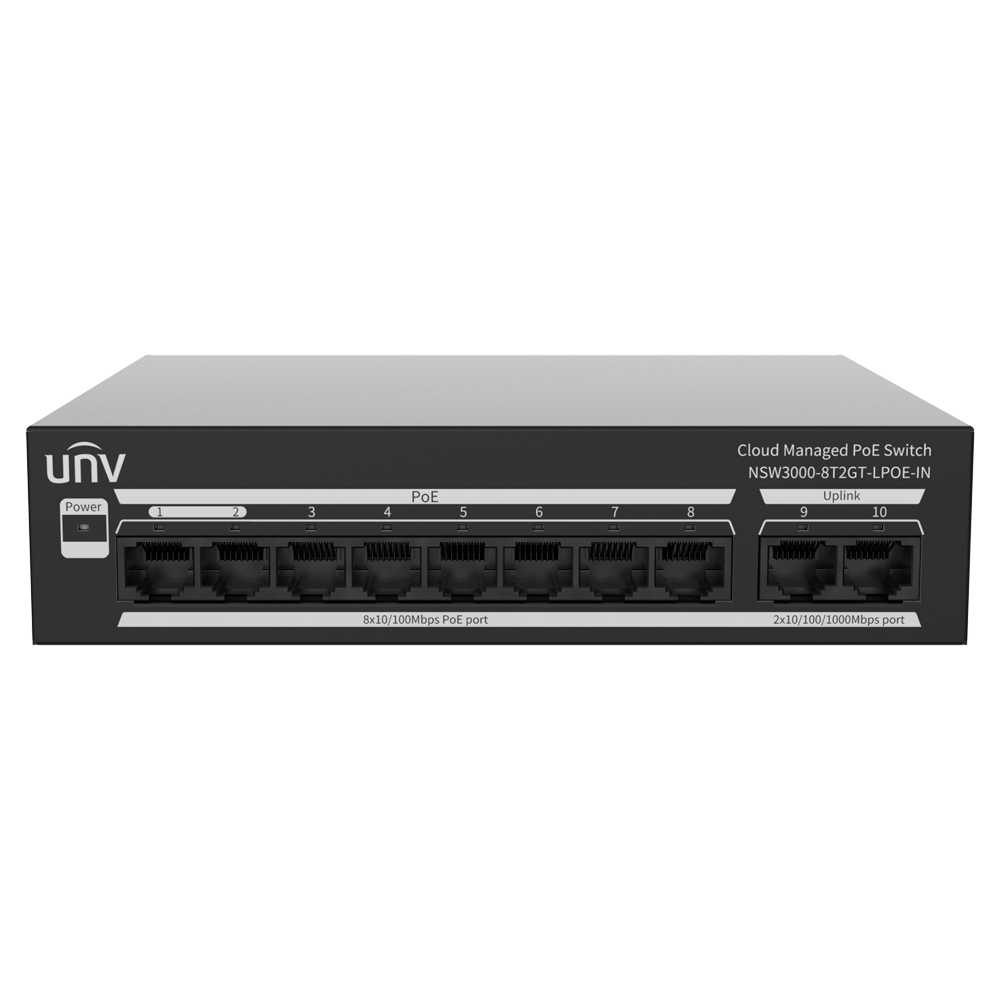

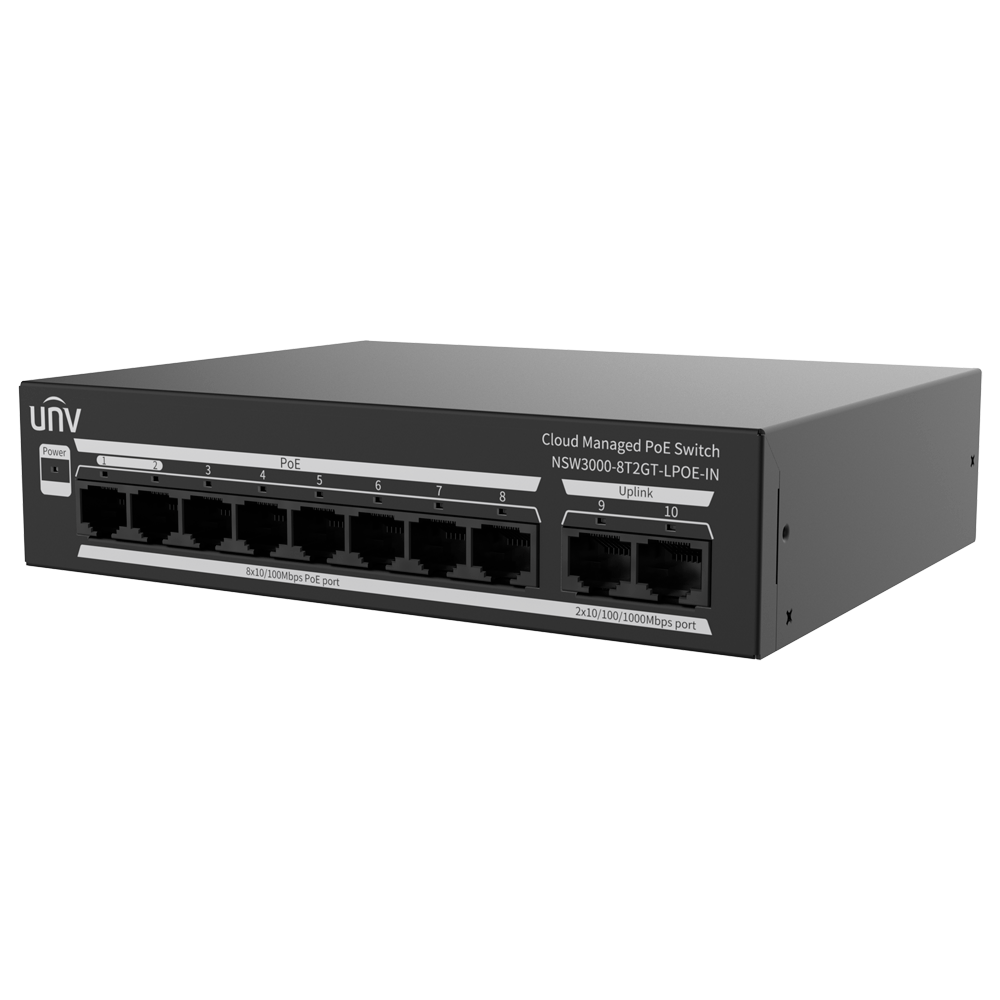

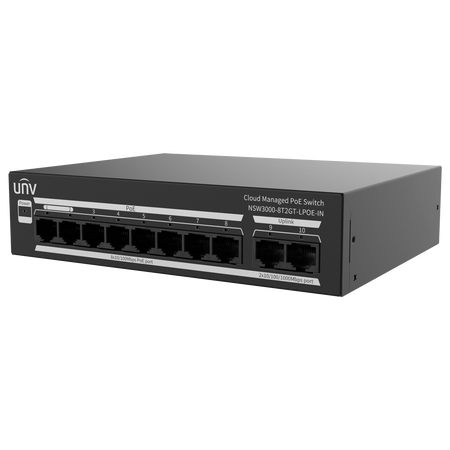

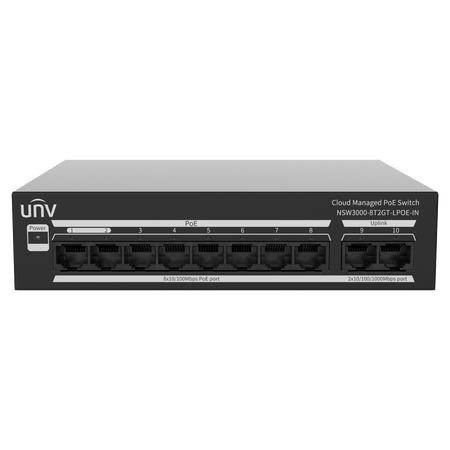

Uniview Cloud Managed PoE L2 Switch - 8 Port 10/100M PoE + 2 Gigabit uplinks - LPOE
Uniview Cloud Managed PoE L2 Switch - 8 Port 10/100M PoE + 2 Gigabit uplinks - LPOE
Regular price
€69,17
Final price
Regular price
-37%
€109,00
Sale price
€69,17
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview Cloud Managed PoE L2 Switch - 8 x 10/100M PoE ports + 2 Gigabit uplinks - 30W power per port / 65W max - Long-range transmission up to 250m - Cloud management and PoE reboot via app - Strictly NDAA compliant
📋 SPECIFICATIONS:
• Brand: Uniview
• Device type: Cloud Managed Ethernet Switch (PoE)
• Regulatory compliance: NDAA Compliant
• Interfaces: 8 × 10/100 Mbps PoE, 2 × Gigabit RJ45 (Uplink)
• PoE standard: IEEE 802.3af, IEEE 802.3at
• PoE pin mode: Mode A (1236), Mode B (4578)
• PoE assigned ports: Ports 1 to 8
• PoE power per port: Up to 30 W per port
• Total PoE budget: 65 W
• Transmission distance: Up to 250 m in extend mode (10 Mbps auto-speed)
• Power management: PoE enable/disable per port, real-time consumption viewing, and remote PoE reboot via app
• Port priority: Priority ports 1 and 2 (forwarding priority in case of data saturation and power-on priority in case of PoE saturation)
• Switching capacity: 5.6 Gbps
• Packet forwarding rate: 4.17 Mpps
• Internal data cache: 2 Mbits
• MAC address table: 4 K (Supports filtering and clearing of dynamic addresses)
• VLAN configuration: Supports Access and Trunk modes, Max. 32 VLANs (ID 1-4095)
• Access security: Access IP address blocking (up to 64 addresses), User authentication, Changeable password
• Port security: Port isolation (downlink ports only), Broadcast storm control
• Quality of Service (QoS): Rate limiting per port, Priority-based flow control, Traffic statistics
• Link aggregation: Supports aggregation group 1 (consisting of the two uplink ports)
• Cloud and smart features: Cloud access via QR code, automatic detection of video devices and real-time network topology via Web/App
• System alerts: Real-time notification and reporting of alarms regarding port anomalies
• Network maintenance: Loop detection, N:1 Port Mirroring, Cloning, import/export of settings and logs
• Intelligent LED diagnostics: Yellow alarm on the power LED when PoE consumption exceeds 85% of device capacity
• Housing material: All metal casing
• Cooling system: Passive, fanless (0 dB / Silent design)
• Installation type: Desk-Mounted
• Power supply: Internal AC 100 to 240 V, 50/60 Hz
• Power consumption: Max. 75 W (at full PoE load)
• Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Operating humidity: 5% to 90% RH (non-condensing)
• Dimensions (W × D × H): 169 mm × 132 mm × 40 mm
• Net weight: 0.67 kg (1.47 lb)
📦 INCLUDED:
• 1x Smart Managed Switch UV-NSW3000-8T2GT-LPOE-IN
• 1x AC power cable
• 1x Instruction manual and user guide
| Device Type | Cloud Managed Ethernet Switch (PoE) |
|---|---|
| Regulatory Compliance | NDAA Compliant |
| Interfaces | 8 × 10/100 Mbps PoE, 2 × Gigabit RJ45 (Uplink) |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| PoE Pin Assignment | Mode A (1236), Mode B (4578) |
| PoE Ports | Ports 1 to 8 |
| PoE Power per Port | Up to 30 W per port |
| Total PoE Budget | 65 W |
| Transmission Distance | Up to 250 m in Extend mode (10 Mbps automatic speed) |
| Power Management | PoE enable/disable per port, real-time power consumption display, and remote PoE reboot via app |
| Port Priority | Priority ports 1 and 2 (forwarding priority during data saturation and power-up priority during PoE saturation) |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Internal Data Cache | 2 Mbits |
| MAC Address Table | 4 K (Supports dynamic address filtering and aging) |
| VLAN Configuration | Supports Access and Trunk modes, Max. 32 VLANs (ID 1-4095) |
| Access Security | Access IP address blocking (up to 64 addresses), User authentication, Changeable password |
| Port Security | Port isolation (downlink ports only), Broadcast storm control |
| Quality of Service (QoS) | Rate limiting per port, Priority-based flow control, Traffic statistics |
| Link Aggregation | Supports aggregation group 1 (consisting of the two uplink ports) |
| Cloud and Intelligent Functions | Cloud access via QR code, automatic video device detection and real-time network topology on Web/App |
| System Alerts | Real-time notification and reporting of port anomaly alarms |
| Network Maintenance | Loop detection, N:1 Port Mirroring, Cloning, setting/log import/export |
| Intelligent LED Diagnosis | Yellow alarm on power LED when PoE consumption exceeds 85% of device capacity |
| Housing Material | All-metal casing |
| Cooling System | Passive, fanless (0 dB / silent design) |
| Installation Type | Desk-Mounted |
| Power Supply | Internal AC 100 to 240 V, 50/60 Hz |
| Power Consumption | Max. 75 W (at full PoE load) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 5% to 90% RH (non-condensing) |
| Dimensions (W × D × H) | 169 mm × 132 mm × 40 mm |
| Net Weight | 0.67 kg (1.47 lb) |
