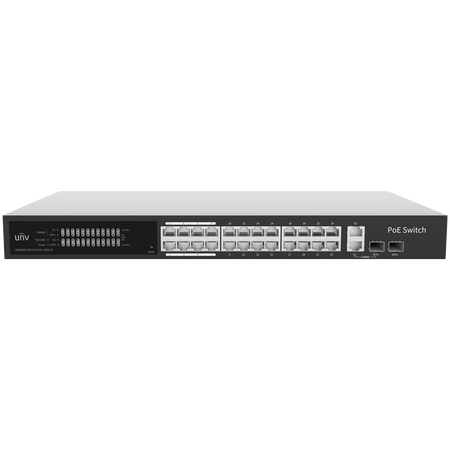

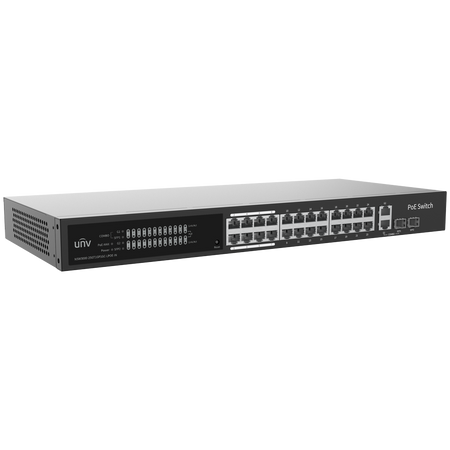

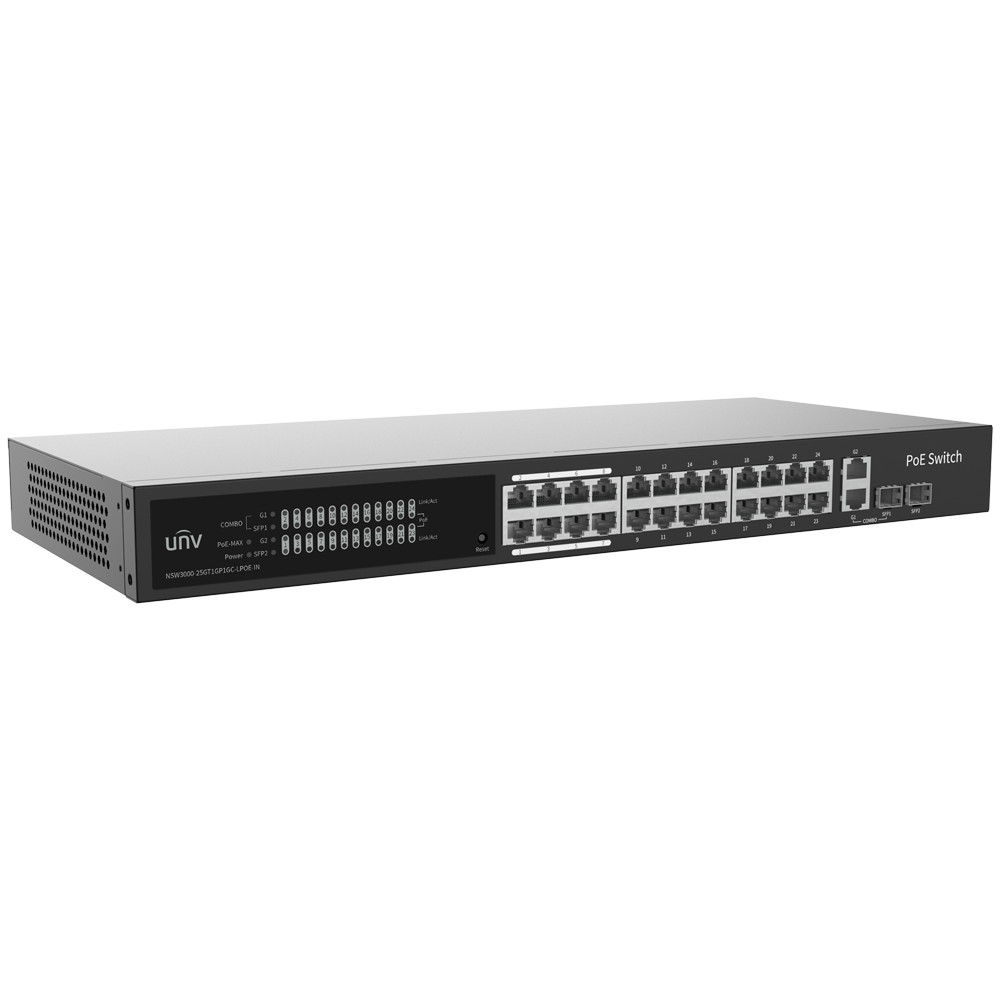

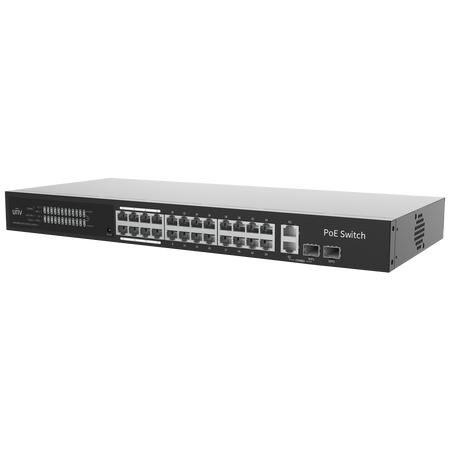

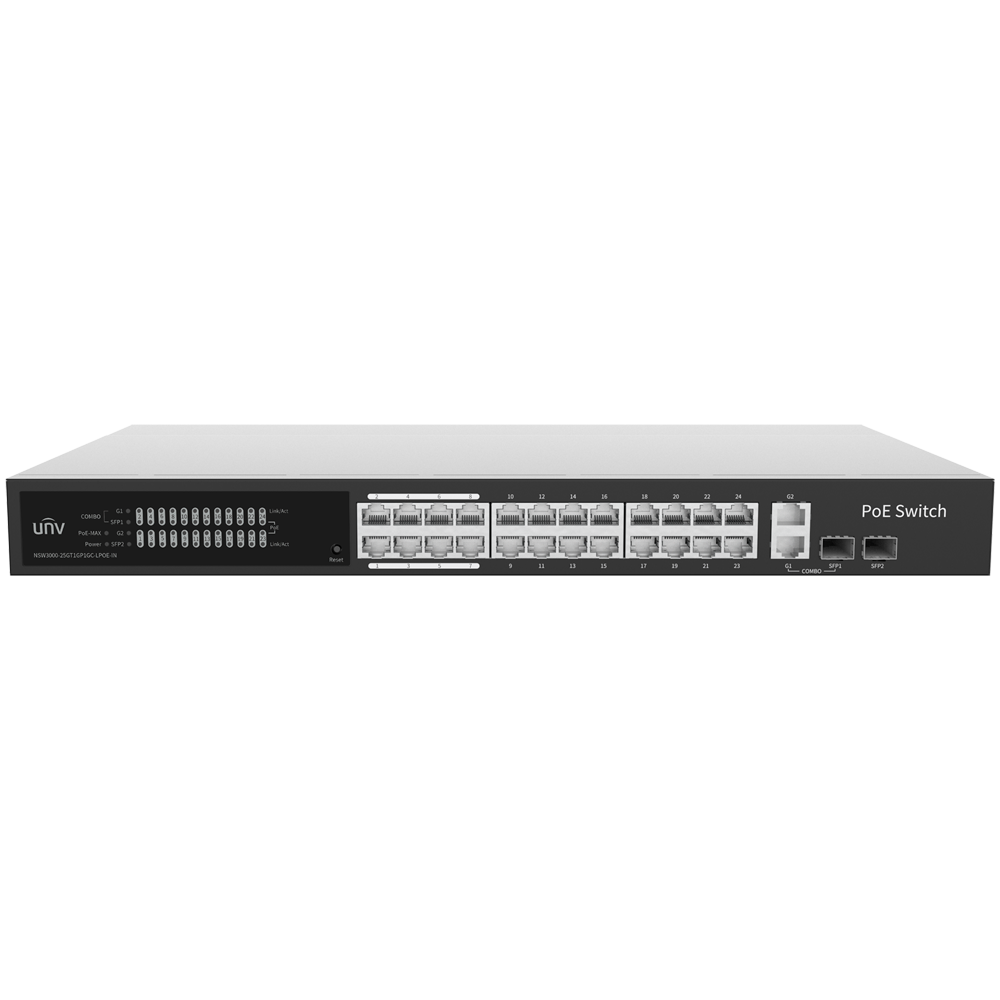

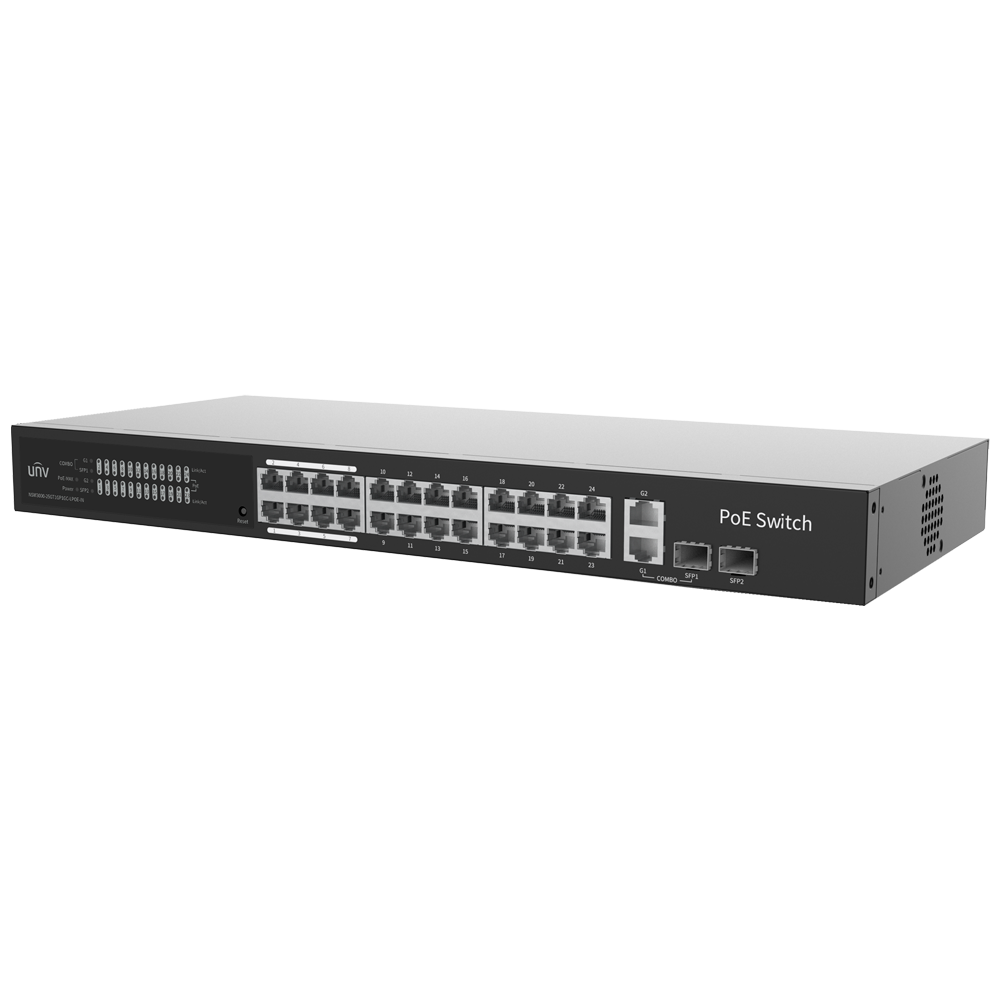

Uniview Cloud Managed PoE Gigabit Switch - 24 x GE PoE ports + 3 x GE uplink ports - 250 W
Uniview Cloud Managed PoE Gigabit Switch - 24 x GE PoE ports + 3 x GE uplink ports - 250 W
Regular price
€288,23
Final price
Regular price
-37%
€459,00
Sale price
€288,23
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview Cloud Managed PoE Full Gigabit Switch - 24 PoE GE ports + 3 GE uplink links - One SFP port, one RJ45 and one Gigabit Combo - 30W power per port / 250W maximum - Long-range transmission up to 250m - Strict compliance with NDAA regulations
📋 SPECIFICATIONS:
• Brand: Uniview
• Device type: Gigabit Cloud Management PoE Switch
• Regulatory compliance: NDAA Compliant
• Interfaces: 24 × 10/100/1000 Mbps PoE, 1 × 10/100/1000 Mbps RJ45, 1 × Gigabit SFP, 1 × Gigabit Combo
• PoE standards: IEEE 802.3af, IEEE 802.3at
• Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
• PoE pin modes: Mode A (1236), Mode B (4578)
• Assigned PoE ports: Ports 1 to 24
• PoE power per port: Up to 30 W per port
• Total PoE budget: 250 W
• Transmission distance: Up to 250 m in extend mode (Extend mode with automatic 10 Mbps speed)
• Power management: PoE enable/disable per port, real-time power consumption display, and remote PoE reboot via app
• Port priority: Priority ports 1 to 8 (forwarding priority in case of data saturation and power-on priority in case of PoE saturation)
• Switching capacity: 54 Gbps
• Packet forwarding rate: 40.176 Mpps
• Internal data cache: 4 Mbits
• MAC address table: 8 K (Supports dynamic address filtering and deletion)
• VLAN configuration: Supports Access and Trunk modes, Max. 32 VLANs (ID 1-4094)
• Access security: Access IP address blocking (up to 64 addresses), User authentication, Changeable password
• Port security: Port isolation (downlink ports only), Broadcast storm control
• Quality of Service (QoS): Rate limiting per port, Priority-based flow control, Traffic statistics
• Link aggregation: Supports aggregation group 1 (consisting of the two uplink ports)
• Cloud and smart features: Cloud access via QR code, automatic video device detection and real-time network topology on Web/App
• System alerts: Real-time notification and reporting of alarms regarding port anomalies
• Network maintenance: Loop detection, N:1 Port Mirroring, Cloning, setting and log import/export
• Intelligent LED diagnostics: MAX indicator remains on if PoE consumption exceeds 85% of device capacity
• Housing material: All metal casing
• Cooling system: Active, includes 1 fan
• Installation type: Rack-mount (1U), Desktop
• Power supply: Internal power supply AC 100 to 240 V, 50/60 Hz
• Power consumption: Max. 260 W (with full PoE load)
• Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Operating humidity: 5% to 90% RH (non-condensing)
• Dimensions (W × D × H): 440 mm x 189.8 mm x 44 mm
• Net weight: 2.22 kg (4.89 lb)
📦 INCLUDED:
• 1x Cloud Managed Switch NSW3000-25GT1GP1GC-LPOE-IN
• 1x Rack-mount bracket kit (ears and screws)
• 1x AC power cable
• 1x Instruction manual and user guide
| Device type | Gigabit Cloud Management PoE Switch |
|---|---|
| Regulatory compliance | NDAA Compliant |
| Interfaces | 24 × 10/100/1000 Mbps PoE, 1 × 10/100/1000 Mbps RJ45, 1 × Gigabit SFP, 1 × Gigabit Combo |
| PoE standards | IEEE 802.3af, IEEE 802.3at |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| PoE pin modes | Mode A (1236), Mode B (4578) |
| PoE assigned ports | Ports 1 to 24 |
| PoE power per port | Up to 30 W per port |
| Total PoE budget | 250 W |
| Transmission distance | Up to 250 m in extend mode (Extend mode with 10 Mbps auto-speed) |
| Power management | PoE enable/disable per port, real-time power consumption display, and remote PoE reboot via app |
| Port priority | Priority ports 1 to 8 (forwarding priority in case of data saturation and power-on priority in case of PoE saturation) |
| Switching capacity | 54 Gbps |
| Packet forwarding rate | 40.176 Mpps |
| Internal data cache | 4 Mbits |
| MAC address table | 8 K (Supports filtering and clearing of dynamic addresses) |
| VLAN configuration | Supports Access and Trunk modes, Max. 32 VLANs (ID 1-4094) |
| Access security | Access IP address blocking (up to 64 addresses), user authentication, changeable password |
| Port security | Port isolation (downlink ports only), broadcast storm control |
| Quality of Service (QoS) | Rate limiting per port, priority-based flow control, traffic statistics |
| Link aggregation | Supports aggregation group 1 (consisting of the two uplink ports) |
| Cloud and smart features | Cloud access via QR code, automatic detection of video devices and real-time network topology on Web/App |
| System alerts | Real-time notification and reporting of port anomaly alarms |
| Network maintenance | Loop detection, N:1 Port Mirroring, cloning, import/export of settings and logs |
| Smart LED diagnosis | MAX indicator remains lit if PoE consumption exceeds 85% of device capacity |
| Housing material | All-metal casing |
| Cooling system | Active, includes 1 fan (1 cooling fan) |
| Installation type | Rack mount (1U), Desktop |
| Power supply | Internal power supply AC 100 to 240 V, 50/60 Hz |
| Power consumption | Max. 260 W (with full PoE load) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating humidity | 5% to 90% RH (non-condensing) |
| Dimensions (W × D × H) | 440 mm x 189.8 mm x 44 mm |
| Net weight | 2.22 kg (4.89 lb) |
