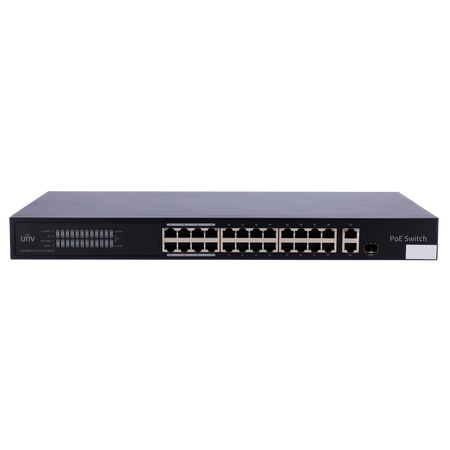

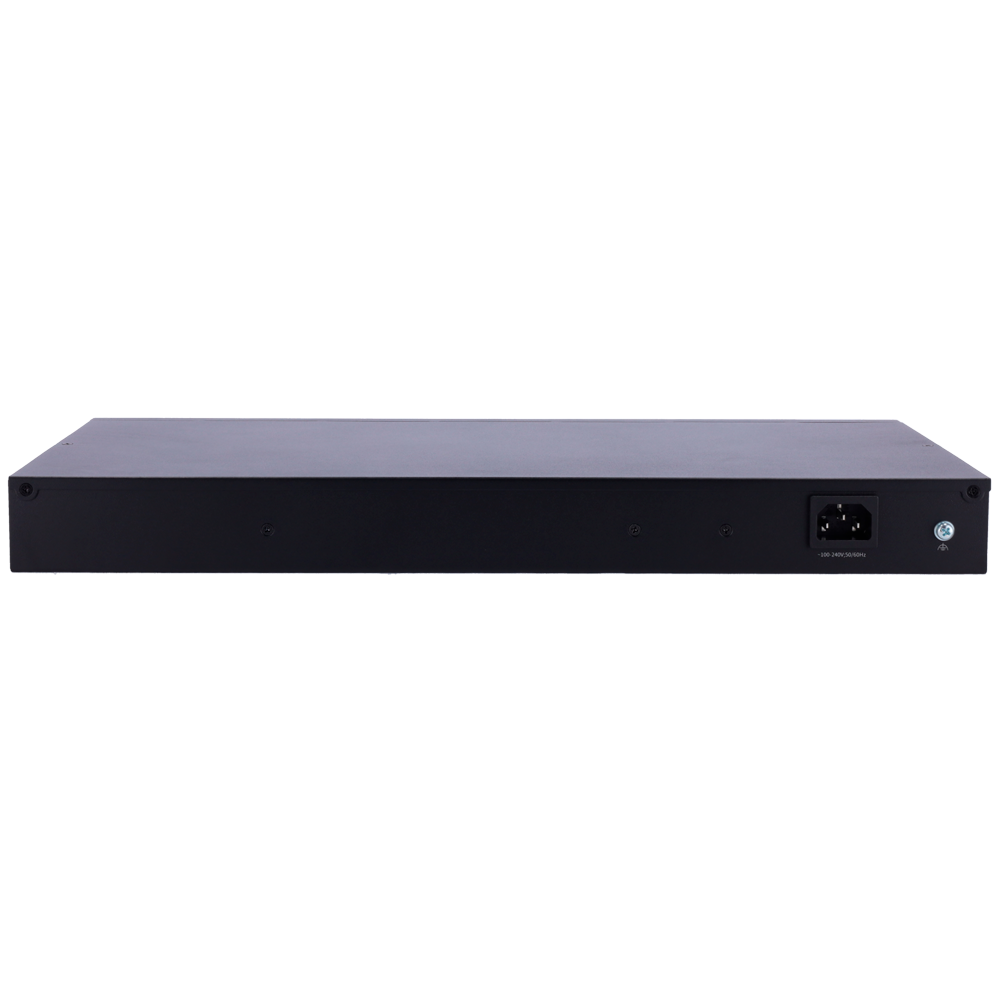

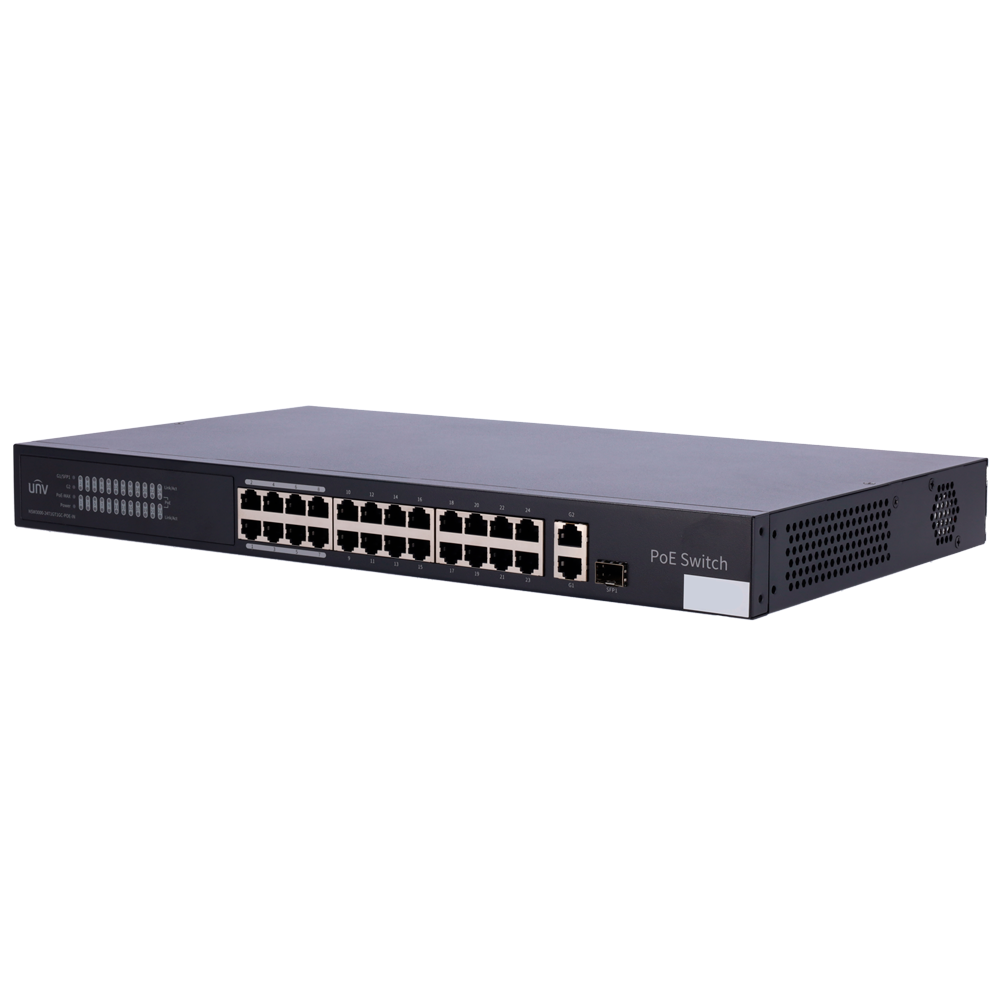

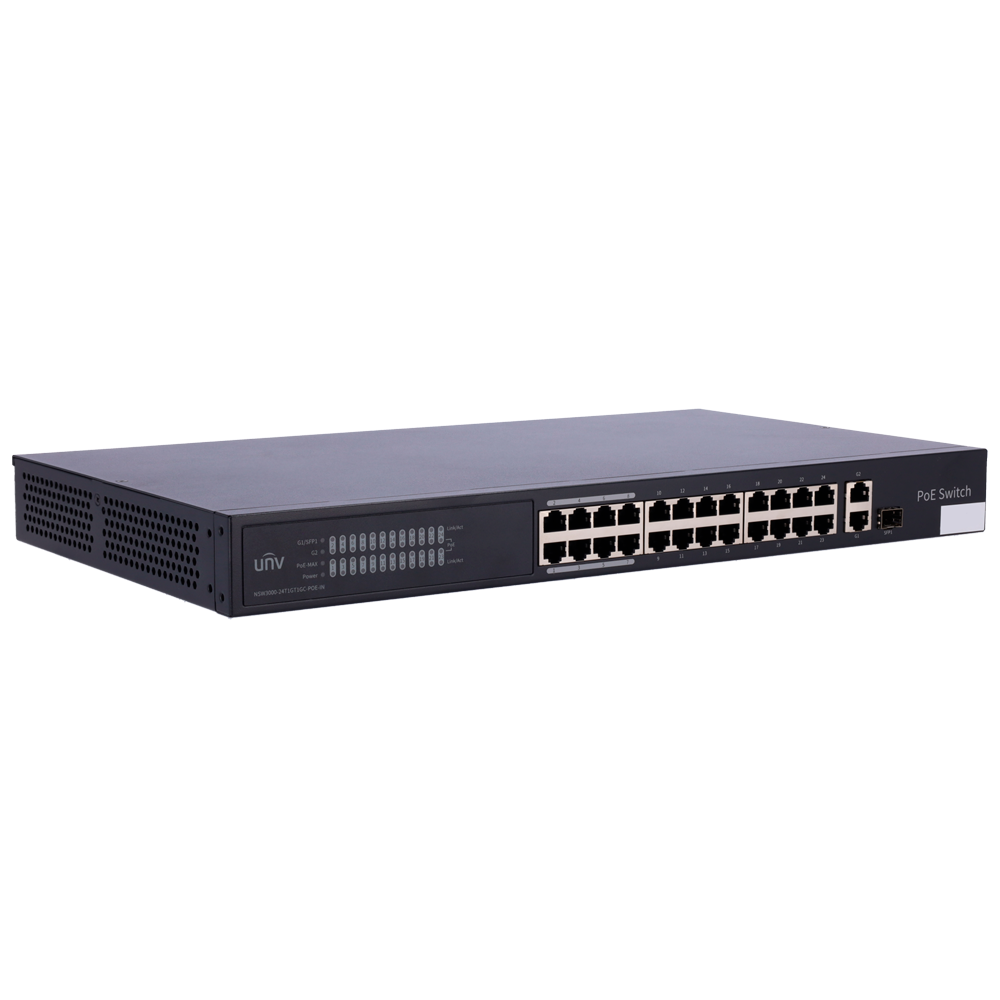

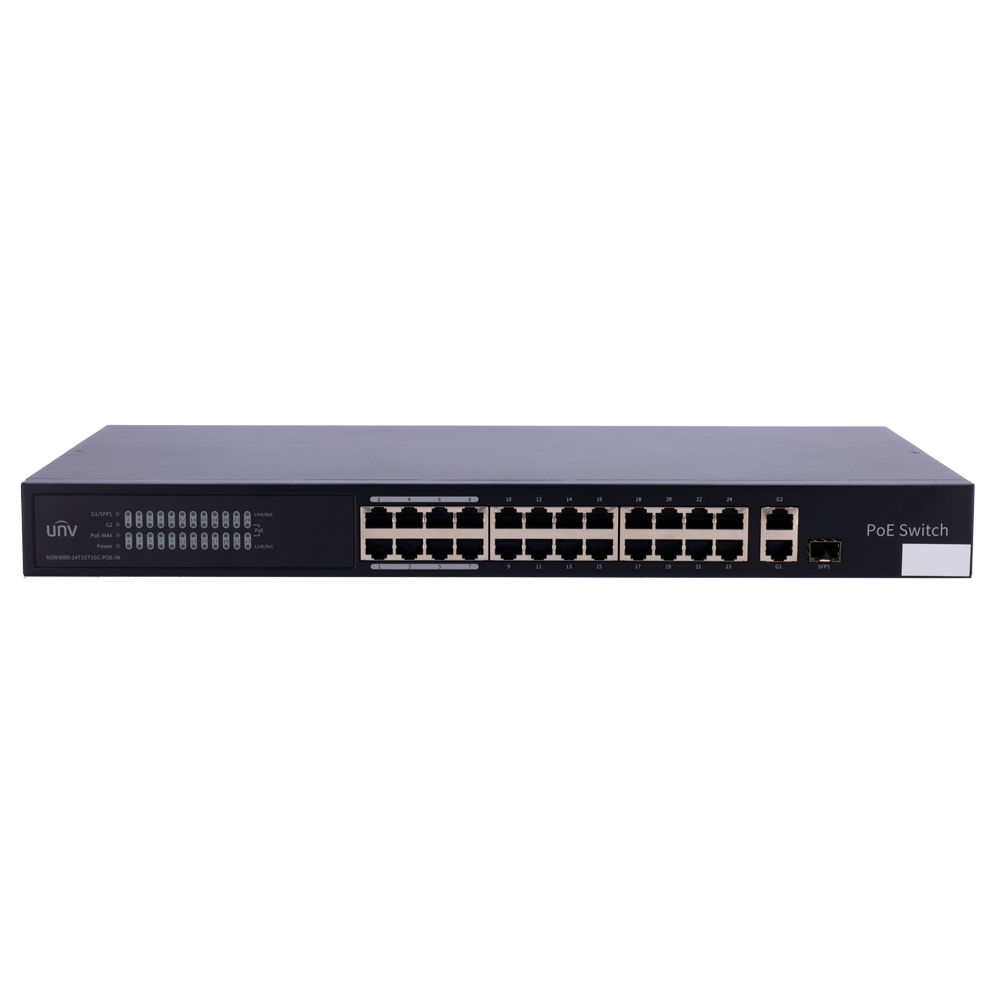

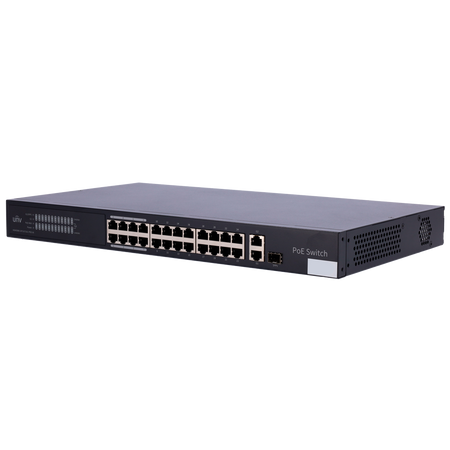

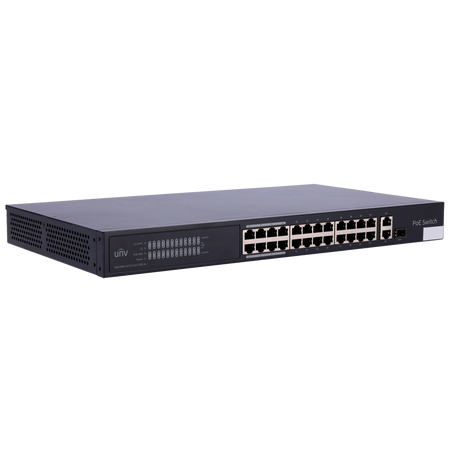

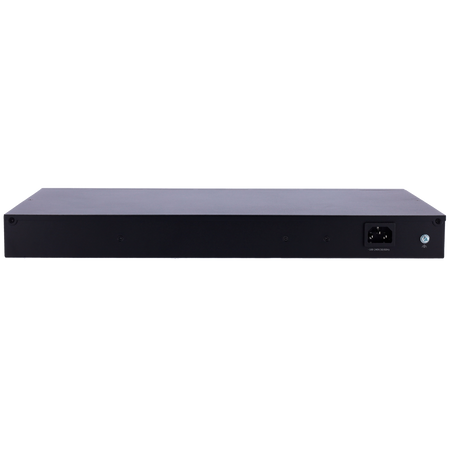

Uniview Cloud Managed PoE L2 Switch - 24 PoE 10/100M ports + 2 Gigabit uplinks - 370 W
Uniview Cloud Managed PoE L2 Switch - 24 PoE 10/100M ports + 2 Gigabit uplinks - 370 W
Regular price
€235,20
Final price
Regular price
-34%
€359,00
Sale price
€235,20
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Uniview Cloud Managed PoE L2 Switch - 24 PoE 10/100M ports + 2 Gigabit uplinks - One dedicated RJ45 port and one combo port - 30W power per port / 370W maximum - Long-range transmission up to 250m - Strictly compliant with NDAA regulations
📋 SPECIFICATIONS:
• Brand: Uniview
• Device type: Cloud Management Switch (PoE)
• Regulatory compliance: NDAA Compliant
• Interfaces: 24 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit Combo (RJ45/SFP)
• PoE standards: IEEE 802.3af, IEEE 802.3at
• Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
• PoE pin modes: Mode A (1236), Mode B (4578)
• PoE ports assigned: Ports 1 to 24
• PoE power per port: Up to 30 W per port
• Total PoE budget: 370 W
• Transmission distance: Up to 250 m in extend mode (10 Mbps full-duplex speed)
• Power management: Enable/disable PoE per port, real-time power consumption display, and remote PoE reboot via app
• Port priority: Priority ports 1 to 8 (forwarding priority in case of data saturation and power-on priority in case of PoE saturation)
• Switching capacity: 8.8 Gbps
• Packet forwarding rate: 6.55 Mpps
• Internal data cache: 4 Mbits
• MAC address table: 16 K (Supports filtering and clearing of dynamic addresses)
• VLAN configuration: Supports Access and Trunk modes, Max. 32 VLANs (ID 1-4095)
• Access security: Access IP address blocking (up to 64 addresses), User authentication, Changeable password
• Port security: Port isolation (downlink ports only), Broadcast storm control
• Quality of Service (QoS): Rate limiting per port, Priority-based flow control, Traffic statistics
• Link aggregation: Supports aggregation group 1 (consisting of the two uplink ports)
• Cloud and smart features: Cloud access via QR code, automatic detection of video devices and real-time network topology on Web/App
• System alerts: Real-time notification and reporting of port anomaly alarms
• Network maintenance: Loop detection, N:1 Port Mirroring, Cloning, setting and log import/export
• Time synchronization: Manual time setting and NTP support
• Intelligent LED diagnosis: MAX indicator remains on if PoE consumption exceeds 85% of device capacity
• Housing material: All metal casing
• Cooling system: Active, includes 1 fan (1 cooling fan)
• Installation type: Rack mount (1U), Desktop
• Power supply: Internal power supply AC 100 to 240 V, 50/60 Hz
• Power consumption: Max. 385 W (with full PoE load)
• Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Operating humidity: 5% to 90% RH (non-condensing)
• Dimensions (W × D × H): 440 mm x 244.8 mm x 44 mm
• Net weight: 2.9 kg (6.39 lb)
📦 INCLUDED:
• 1x Cloud Managed Switch NSW3000-24T1GT1GC-POE-IN
• 1x Rack mount bracket kit (ears and screws)
• 1x AC power cable
• 1x Instruction manual and user guide
| Device Type | Cloud Management Switch (PoE) |
|---|---|
| Regulatory Compliance | NDAA Compliant |
| Interfaces | 24 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit Combo (RJ45/SFP) |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| PoE Pin Assignment | Mode A (1236), Mode B (4578) |
| PoE Ports | Ports 1 to 24 |
| PoE Power per Port | Up to 30 W per port |
| Total PoE Budget | 370 W |
| Transmission Distance | Up to 250 m in extend mode (10 Mbps full-duplex) |
| Power Management | PoE enable/disable per port, real-time power consumption display, and remote PoE reboot via app |
| Port Priority | Priority ports 1 to 8 (forwarding priority during data congestion and power-on priority during PoE power saturation) |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Internal Data Cache | 4 Mbits |
| MAC Address Table | 16 K (Supports dynamic address filtering and deletion) |
| VLAN Configuration | Supports Access and Trunk modes, Max. 32 VLANs (ID 1-4095) |
| Access Security | Access IP address blocking (up to 64 addresses), user authentication, editable password |
| Port Security | Port isolation (downlink ports only), broadcast storm control |
| Quality of Service (QoS) | Rate limiting per port, priority-based flow control, traffic statistics |
| Link Aggregation | Supports aggregation group 1 (consisting of the two uplink ports) |
| Cloud and Smart Features | Cloud access via QR code, automatic video device detection and real-time network topology on Web/App |
| System Alerts | Real-time notification and reporting of alarms related to port anomalies |
| Network Maintenance | Loop detection, N:1 Port Mirroring, cloning, import/export of settings and logs |
| Time Synchronization | Manual time setting and NTP support |
| Smart LED Diagnosis | MAX indicator remains on if PoE consumption exceeds 85% of device capacity |
| Housing Material | All metal casing |
| Cooling System | Active, includes 1 cooling fan |
| Installation Type | Rack-mount (1U), Desktop |
| Power Supply | Internal power supply AC 100 to 240 V, 50/60 Hz |
| Power Consumption | Max. 385 W (with full PoE load) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 5% to 90% RH (non-condensing) |
| Dimensions (W × D × H) | 440 mm × 244.8 mm × 44 mm |
| Net Weight | 2.9 kg (6.39 lb) |
