2x2 videowall kit Includes Uniview monitors - 1,214 (W) x 684 (H) x 170 (D) mm
2x2 videowall kit Includes Uniview monitors - 1,214 (W) x 684 (H) x 170 (D) mm
Regular price
€6.730,52
Final price
Regular price
-2%
€6.869,00
Sale price
€6.730,52
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

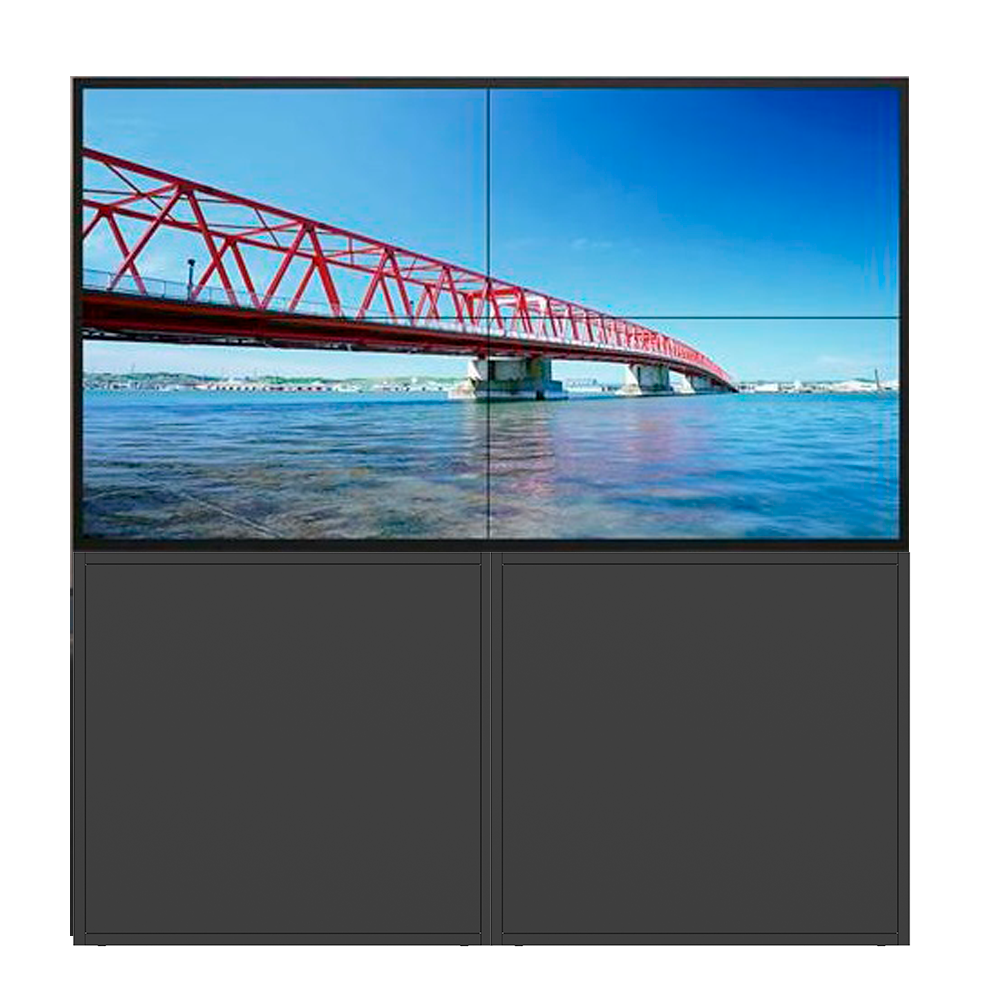

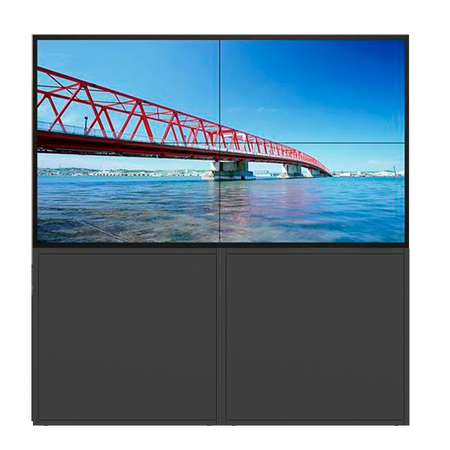

2x2 Videowall kit - Includes monitors - Includes floor stand - Daisy chain via HDMI
📋 SPECIFICATIONS:

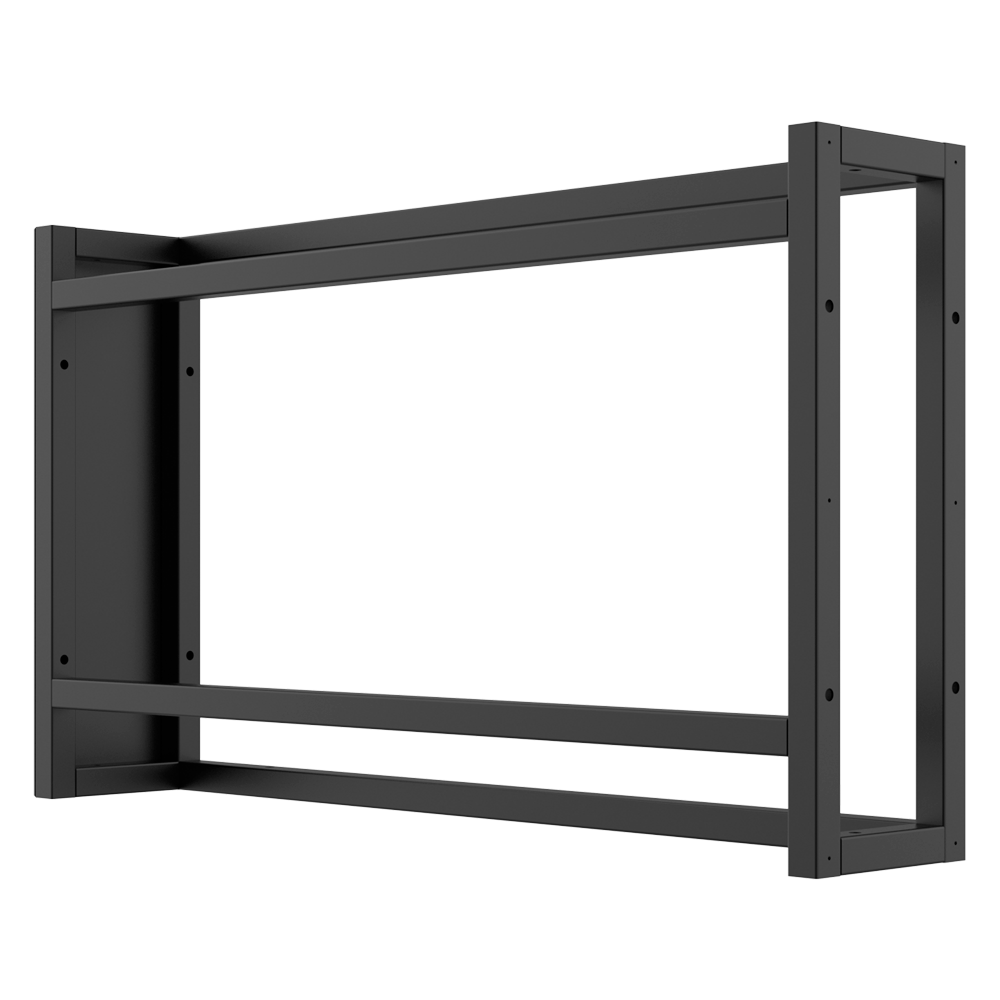

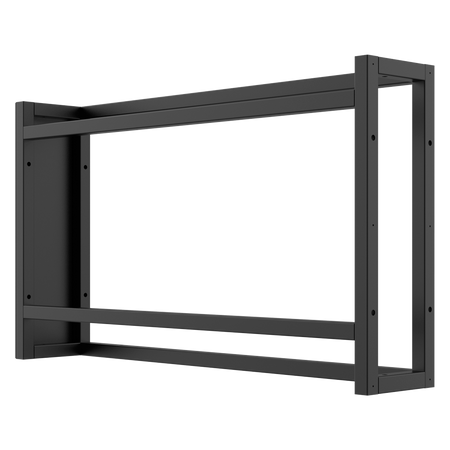

• Description: 55" videowall monitor mount (UV-MW-A55-B1-E)
• Material: Aluminum; Metal
• Color: Black
• Dimensions: 1,214 (H) x 684 (W) x 170 (D) mm
• Weight: 15.8 kg

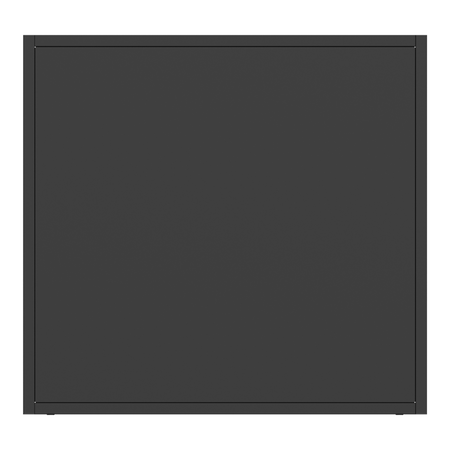

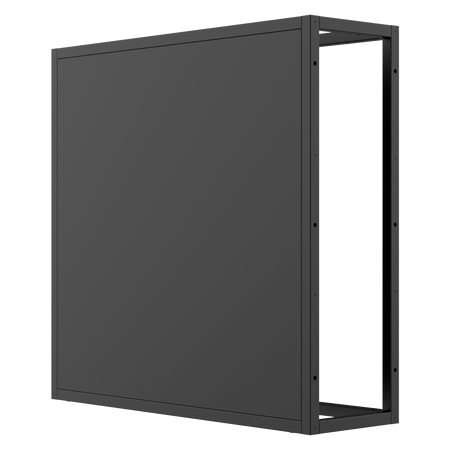

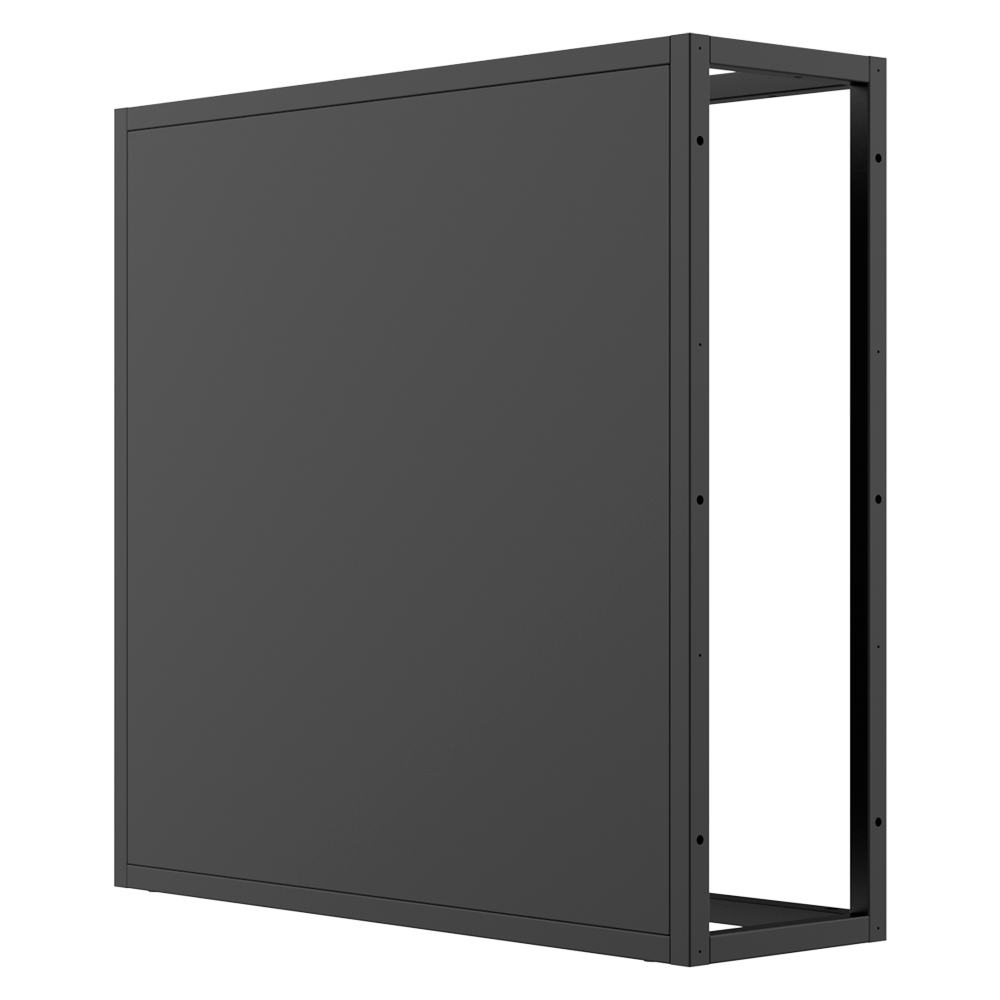

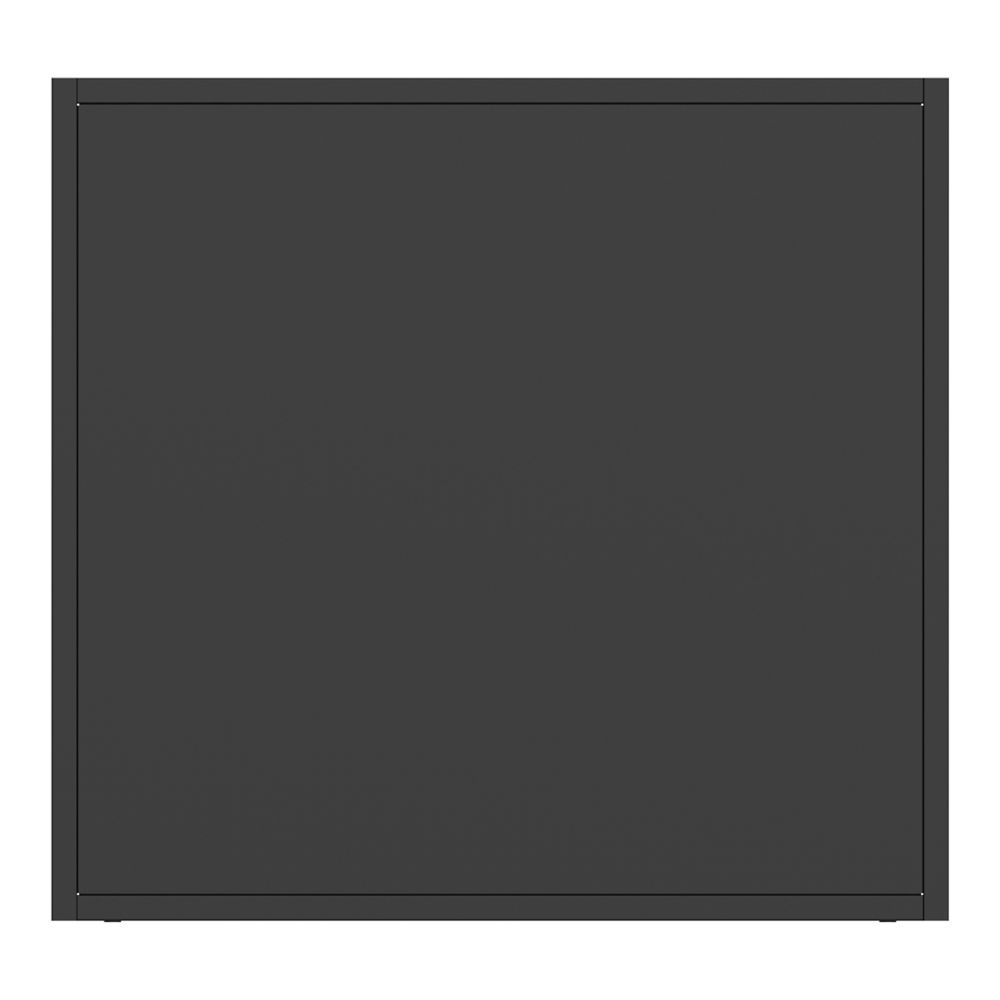

• Description: Floor stand base
• Material: Aluminum; Metal
• Color: Black
• Adjustable height: 100 ~ 110 cm
• Dimensions: 1,214 (H) x 960 (W) x 300 (D) mm
• Weight: 30.5 kg

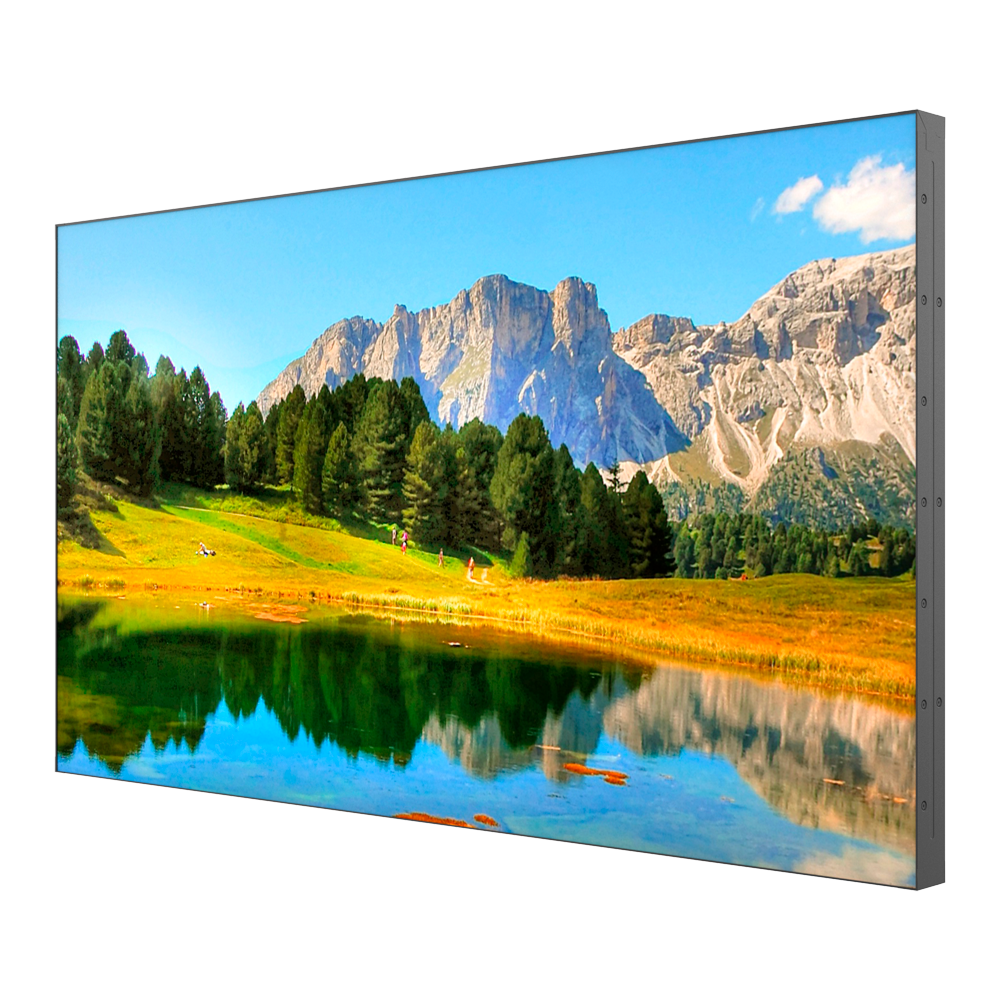

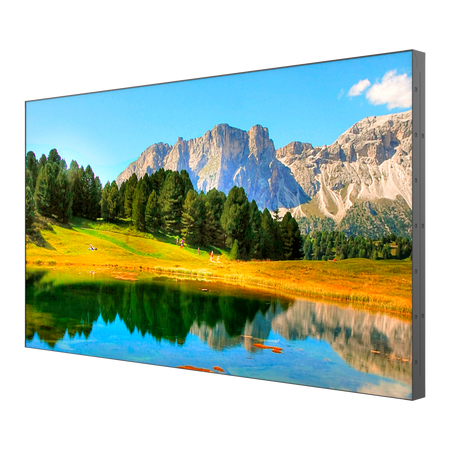

• Brand: UNIVIEW
• Size: 55"
• Resolution: 1920x1080
• Refresh rate: 60 Hz
• Panel type: ADS
• Bezel: 3.5 mm (A-A: total bezel between two monitors); Top: 2.3 mm; Left: 2.3 mm; Bottom: 1.2 mm; Right: 1.2 mm
• Brightness: 450 nits
• Contrast: 1200:1
• Anti-glare: 25%
• Response time: 8 ms
• Viewing angle (horizontal / vertical): 178º / 178º
• Color depth: 8 bit (16.7 M)
• Color gamut: 72% NTSC
• Operation: 24/7

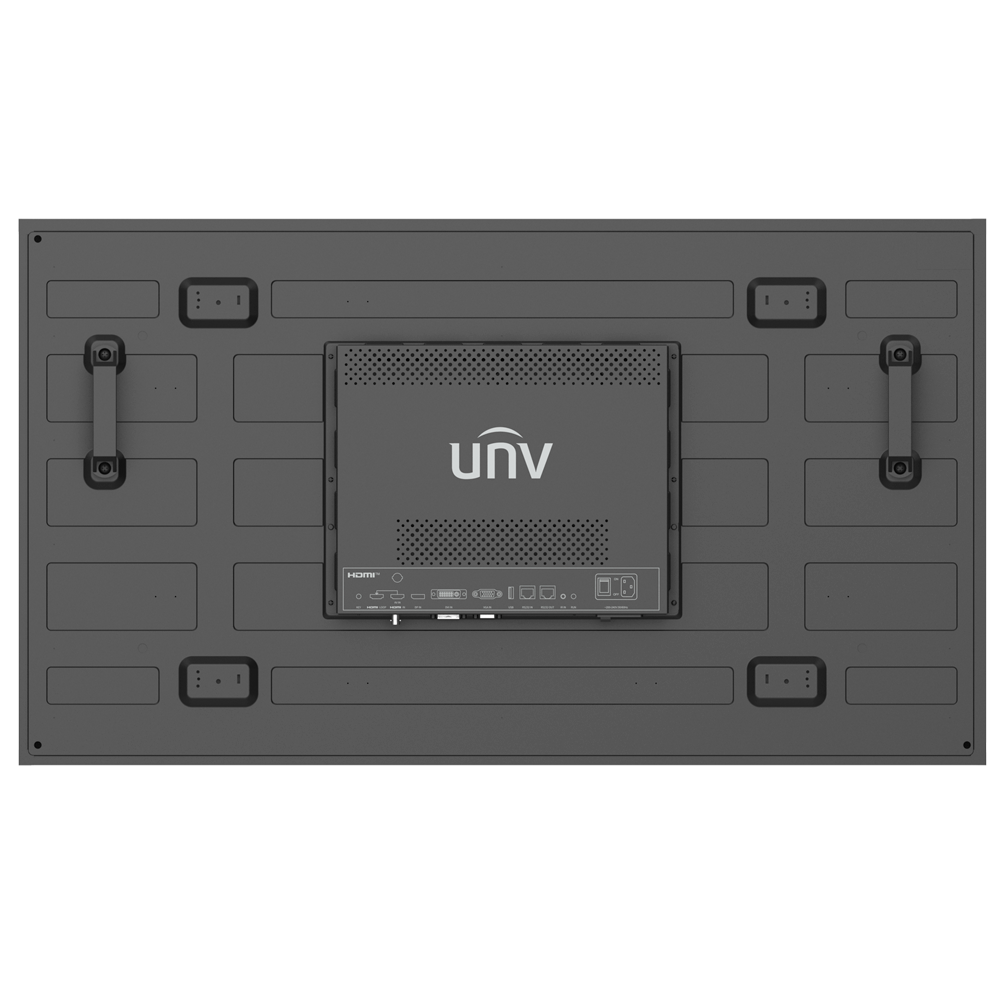

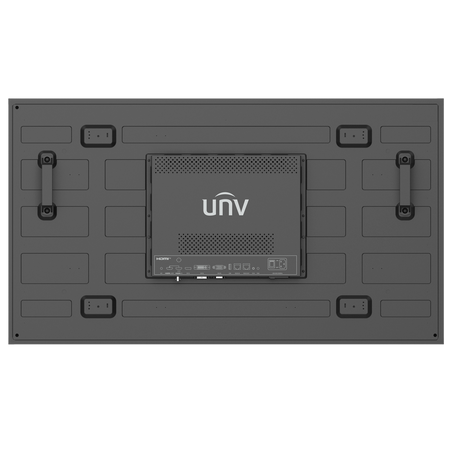

• Inputs: HDMI x1; DVI x1; VGA x1; CVBS x1; DisplayPort x1; USB 2.0 x1; RS232 x1; IR x1
• Outputs: HDMI x1; RS232 x1
• Daisy chain: Yes, via HDMI; Up to a maximum of 9 monitors (total)
• Videowall configuration: Via remote control and monitor videowall settings
• Orientation: Landscape
• Dimensions: 1,213.5 (H) x 684.3 (W) x 89.89 (D) mm
• VESA: 600x400 mm
• Weight: 14.9 kg
• Power supply: AC 100 ~ 240 V 50/60 Hz
• Power consumption: 180 W (max.)
• Operating conditions: Temperature: 0 ~ 40 ºC; Humidity: 20 ~ 90 % (non-condensing)
• Storage conditions: Temperature: -20 ~ 60 ºC; Humidity: 10 ~ 90 % (non-condensing)
📦 INCLUDED:
• 4 x 55" Videowall monitor UV-MW-A55-B1-E• 4 x Power cable• Network cable• 3 x HDMI cable (1.8 m)• 4 x Grounding cable• IR receiver• Remote control• 2 x Floor stand bases• 4 x Monitor mounts• Screws• Quick guide
| Description | 55" videowall monitor mount (UV-MW-A55-B1-E) |
|---|---|
| Material | Aluminum Metal |
| Color | Black |
| Dimensions | 1,214 (H) x 684 (W) x 170 (D) mm |
| Weight | 15.8 kg |
| Description | Floor stand base |
| Material | Aluminum Metal |
| Color | Black |
| Adjustable height | 100 ~ 110 cm |
| Dimensions | 1,214 (H) x 960 (W) x 300 (D) mm |
| Weight | 30.5 kg |
| Size | 55" |
| Resolution | 1920x1080 |
| Refresh rate | 60 Hz |
| Panel type | ADS |
| Bezel | 3.5 mm (A-A: total structure when two monitors are installed together) Top: 2.3 mm Left: 2.3 mm Bottom: 1.2 mm Right: 1.2 mm |
| Brightness | 450 nits |
| Contrast | 1200:1 |
| Anti-glare | 25% |
| Response time | 8 ms |
| Viewing angle (horizontal / vertical) | 178º / 178º |
| Color depth | 8 bit (16.7 M) |
| Color gamut | 72% NTSC |
| Operation | 24/7 |
| Inputs | HDMI x1 DVI x1 VGA x1 CVBS x1 DisplayPort x1 USB 2.0 x1 RS232 x1 IR x1 |
| Outputs | HDMI x1 RS232 x1 |
| Daisy chain | Yes, via HDMI Up to a maximum of 9 monitors (in total) |
| Videowall configuration | Using the remote control and monitor videowall settings |
| Orientation | Landscape |
| Dimensions | 1,213.5 (H) x 684.3 (W) x 89.89 (D) mm |
| VESA | 600x400 mm |
| Weight | 14.9 kg |
| Power supply | AC 100 ~ 240 V 50/60 Hz |
| Power consumption | 180 W (max.) |
| Operating conditions | Temperature: 0 ~ 40 ºC Humidity: 20 ~ 90 % (No condensation) |
| Storage conditions | Temperature: -20 ~ 60 ºC Humidity: 10 ~ 90 % (No condensation) |
