Uniview IP and WiFi video intercom kit
Regular price
€661,30
Final price
Regular price
-8%
€717,00
Sale price
€661,30
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

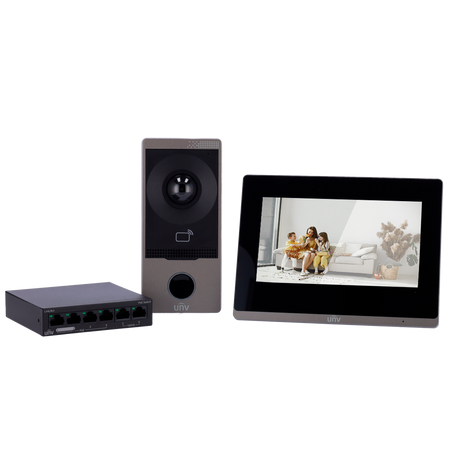

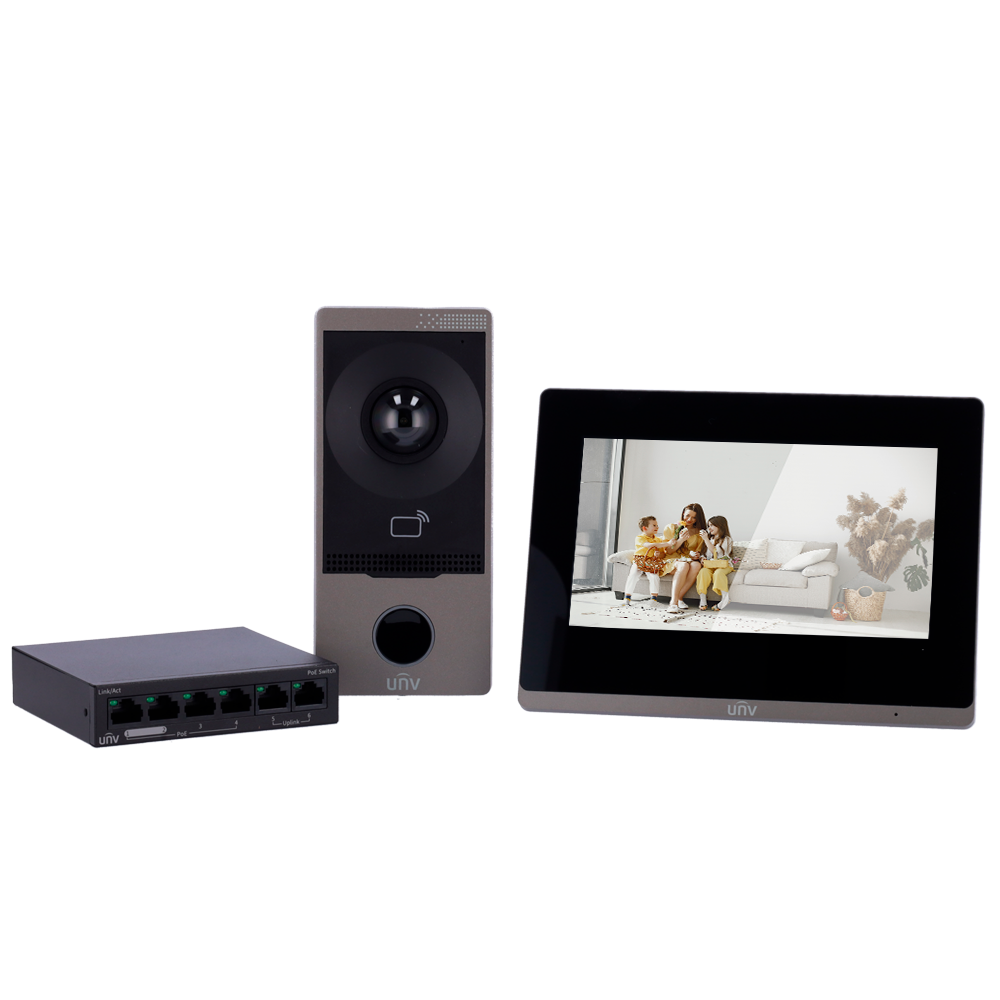

Video intercom kit - IP and WiFi technology - Includes outdoor station and monitor - MF reader | PoE - P2P mobile app (activation from monitor) - Wall mount | IP65 and IK08
📋 SPECIFICATIONS:
• Brand: Uniview
• Model: OEI-372S-H-W
• Operating system: Linux
• Display type: 7" color touchscreen TFT
• Screen resolution: 1024 x 600
• Inputs: 8 x configurable alarm inputs, 1 x RS485
• Outputs: 2 x relay outputs
• Audio: Two-way audio with built-in microphone and speaker; Noise reduction and echo cancellation
• Device capacity: Up to 20 devices (outdoor stations and monitors)
• Storage: microSD card slot (up to 32 GB)
• Connection: 10/100 BaseT Ethernet / 802.11 b/g/n WiFi (supports 2.4 GHz only)
• Remote access: Web browser; UNV-Link mobile app
• Power supply: DC 12 V / 1 A max. / PoE IEEE802.3af
• Operating temp: -10 ºC ~ +55 ºC
• Dimensions: 143 (H) x 193 (W) x 25 (D) mm
• Weight: 360 g
• Brand: Uniview
• Model: OEU-201S-HMK-W
• Operating system: Linux
• Optical sensor: 2 Mpx IR wide-angle CMOS
• Image functions: BLC / WDR / DNR
• Viewing angle: H: 124º, V: 68º, D: 147º
• Audio: Two-way audio with microphone and speaker
• Access control: Door opening with 13.56 MHz MF card; Up to 2,000 users and 10,000 cards
• Keypad: Mechanical call button
• Outputs: 2 x relays for lock, 1 x RS485
• Inputs: 4 auxiliary inputs (2 open buttons and 2 door sensors)
• Storage: microSD card (used only for debugging, not for storage)
• Device capacity: Up to 20 devices (outdoor stations and monitors)
• Remote access: Web browser; UNV-Link mobile application
• Network interface: 10/100 BaseT Ethernet / WiFi (supports 2.4 GHz only)
• Power supply: DC 12 V / 1000 mA max. / PoE IEEE802.3af
• Protection rating: Suitable for outdoor use IP65; Vandal-proof IK08
• Material: Aluminum alloy
• Operating temp: -30 ºC ~ +60 ºC
• Dimensions: 171 (H) x 79 (W) x 34 (D) mm
• Weight: 270 g
• Brand: Uniview
• Device: Unmanaged PoE switch
• Interface: 6 RJ45 10/100Mbps ports
• Compliant with IEEE 802.3 standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
• PoE features: 4 802.3af/at PoE+ ports; Up to 30W per port; 60W total PoE power
• Functions: VLAN mode; Default mode; Extended mode
• Packet buffer: 448k
• Bandwidth: 1.2Gbps
• Packet forwarding rate: 0.90Mbps
• MAC table: 1K
• Supported technologies: Auto-negotiation mode / Auto MDI/MDIX
• Power supply: 48/51V DC, powered via adapter (AC100-240V, 50/60Hz)
• Maximum consumption: < 60W
• Operating temperature: 0º C ~ 40º C
• Dimensions: 107 x 101 x 25 mm
• Weight: 0.19 kg
📦 INCLUDED:
• Uniview video intercom outdoor station with wall mount• Uniview indoor monitor• PoE switch
| Model | OEI-372S-H-W |
|---|---|
| Operating system | Linux |
| Display type | 7" color touch TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs, 1 x RS485 |
| Outputs | 2 x relay outputs |
| Audio | Two-way audio with built-in microphone and speaker, noise reduction and echo cancellation |
| Device capacity | Up to 20 devices (outdoor stations and monitors) |
| Memory | microSD card slot (up to 32 GB) |
| Connection | Ethernet 10/100 BaseT / WiFi 802.11 b/g/n (only supports 2.4 GHz) |
| Remote access | Web browser, UNV-Link mobile app |
| Power supply | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Operating temp. | -10 ºC ~ +55 ºC |
| Dimensions | 143 (H) x 193 (W) x 25 (D) mm |
| Weight | 360 g |
| Model | OEU-201S-HMK-W |
| Operating system | Linux |
| Optical sensor | 2 Mpx CMOS wide-angle IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 124º, V: 68º, D: 147º |
| Audio | Two-way audio with microphone and speaker |
| Access control | Door opening via 13.56 MHz MF card, up to 2,000 users and 10,000 cards |
| Keypad | Mechanical call button |
| Outputs | 2 x relays for lock, 1 x RS485 |
| Inputs | 4 auxiliary inputs (2 exit buttons and 2 door sensors) |
| Storage | microSD card (used for debugging only, not for storage) |
| Device capacity | Up to 20 devices (outdoor stations and monitors) |
| Remote access | Web browser, UNV-Link mobile app |
| Network interface | Ethernet 10/100 BaseT / WiFi (only supports 2.4 GHz) |
| Power supply | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Protection rating | Suitable for outdoor use, IP65, vandal-proof IK08 |
| Material | Aluminum alloy |
| Operating temp. | -30 ºC ~ +60 ºC |
| Dimensions | 171 (H) x 79 (W) x 34 (D) mm |
| Weight | 270 g |
| Device | Unmanaged PoE switch |
| Interface | 6 x 10/100Mbps RJ45 ports |
| Compliance with IEEE 802.3 standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE features | 4 x 802.3af/at PoE+ ports, up to 30W per port, 60W total PoE power |
| Functions | VLAN mode, Default mode, Extend mode |
| Packet Buffer | 448k |
| Bandwidth | 1.2Gbps |
| Packet Forwarding Rate | 0.90Mbps |
| MAC table | 1K |
| Supported technologies | Auto-negotiation mode / Auto MDI/MDIX |
| Power supply | 48/51V DC, powered via adapter (AC100-240V, 50/60Hz) |
| Maximum consumption | < 60W |
| Operating temperature | 0º C ~ 40º C |
| Dimensions | 107 x 101 x 25 mm |
| Weight | 0.19 kg |
