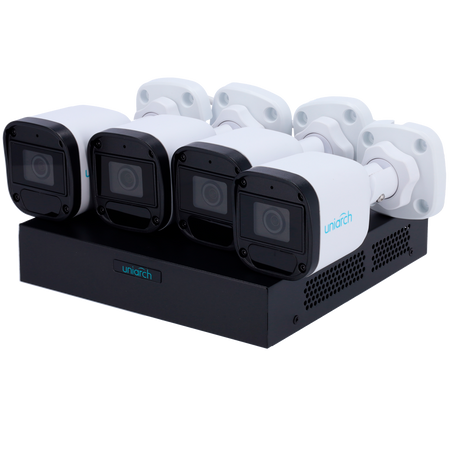

Uniarch video surveillance kit - 8CH PoE NVR - 4 IP67 bullet cameras
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

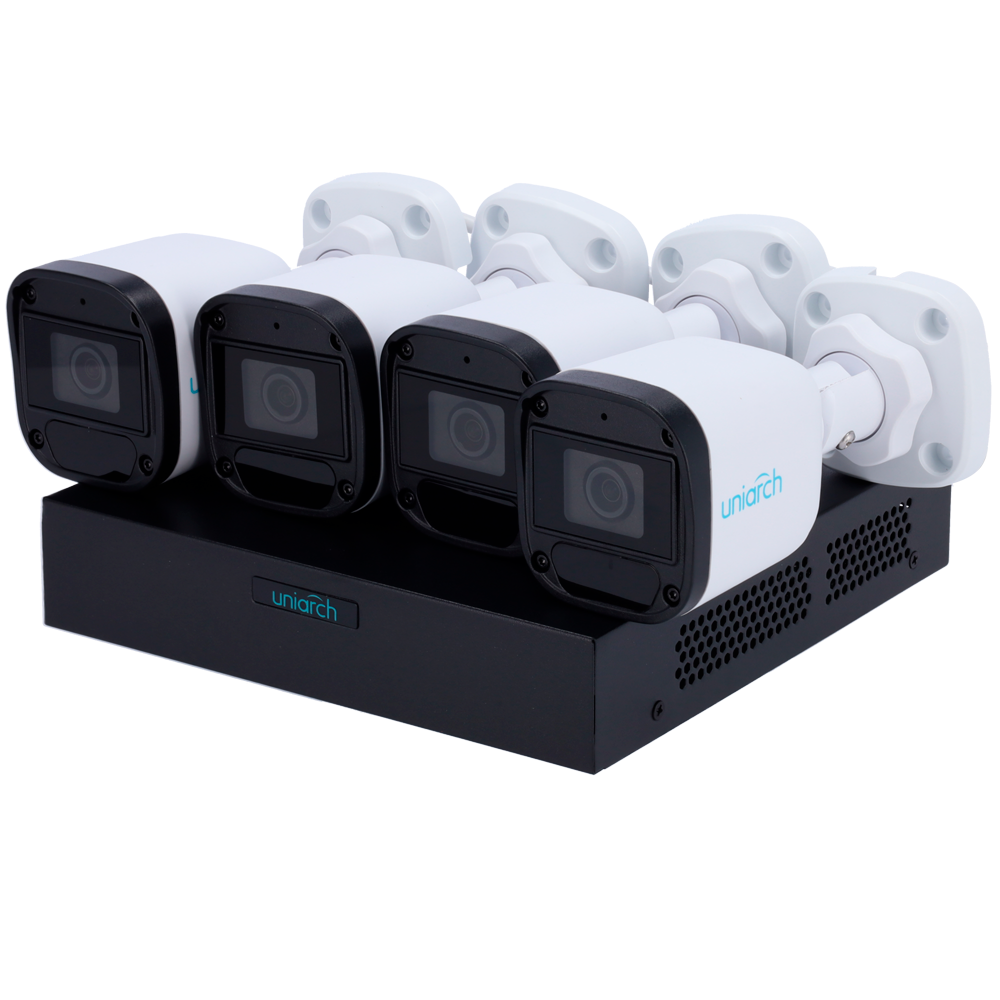

Uniarch video surveillance kit - 8CH PoE NVR - 4 IP67 bullet cameras - 2 MP | 2.8 mm | 30 m IR - Space for 1 HD - ONVIF compatible
📋 SPECIFICATIONS:

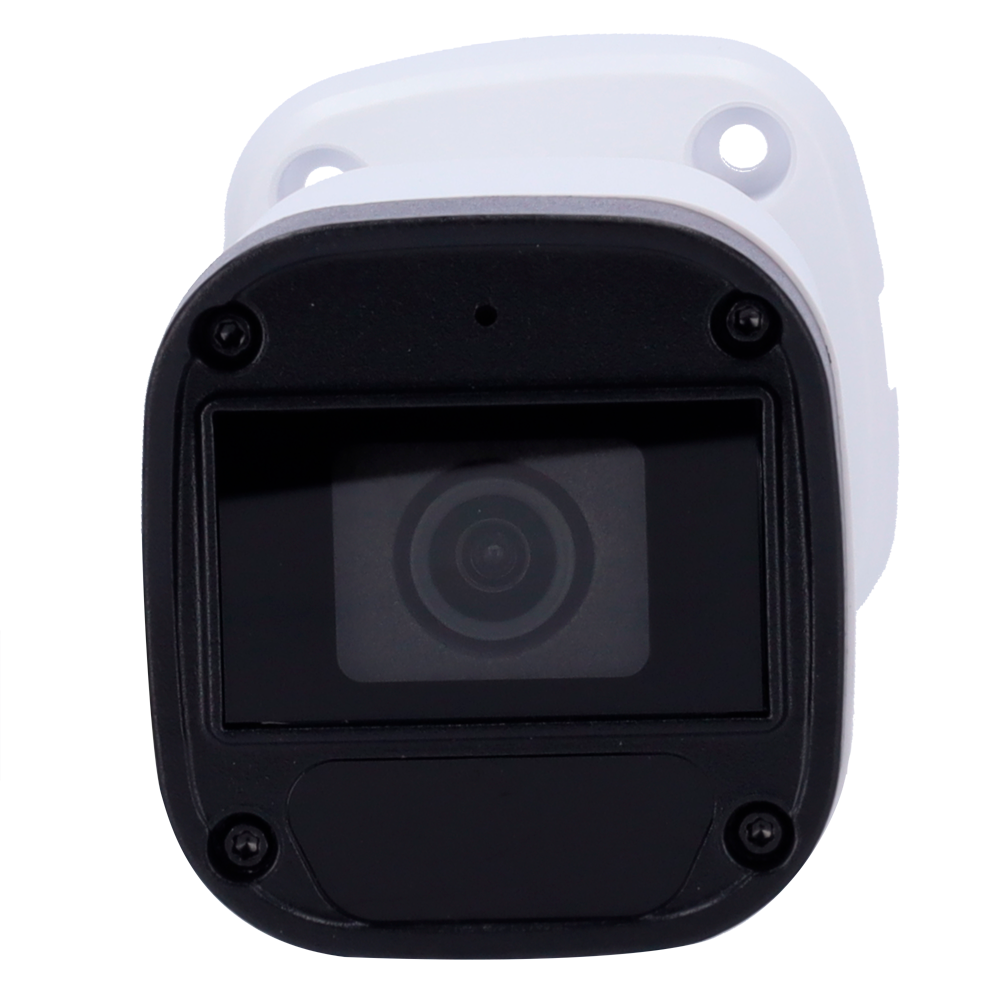

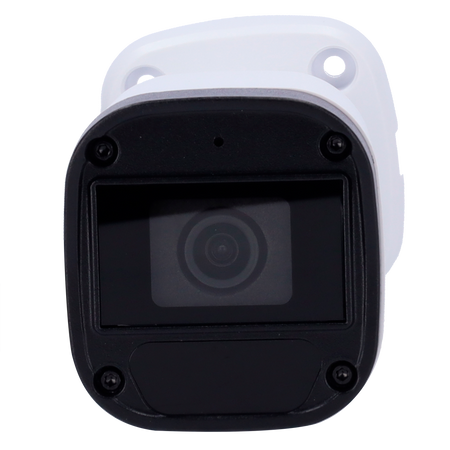

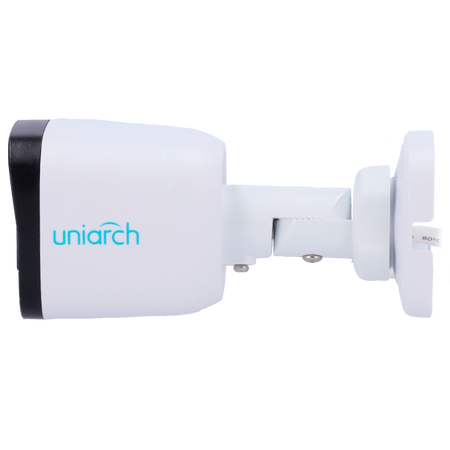

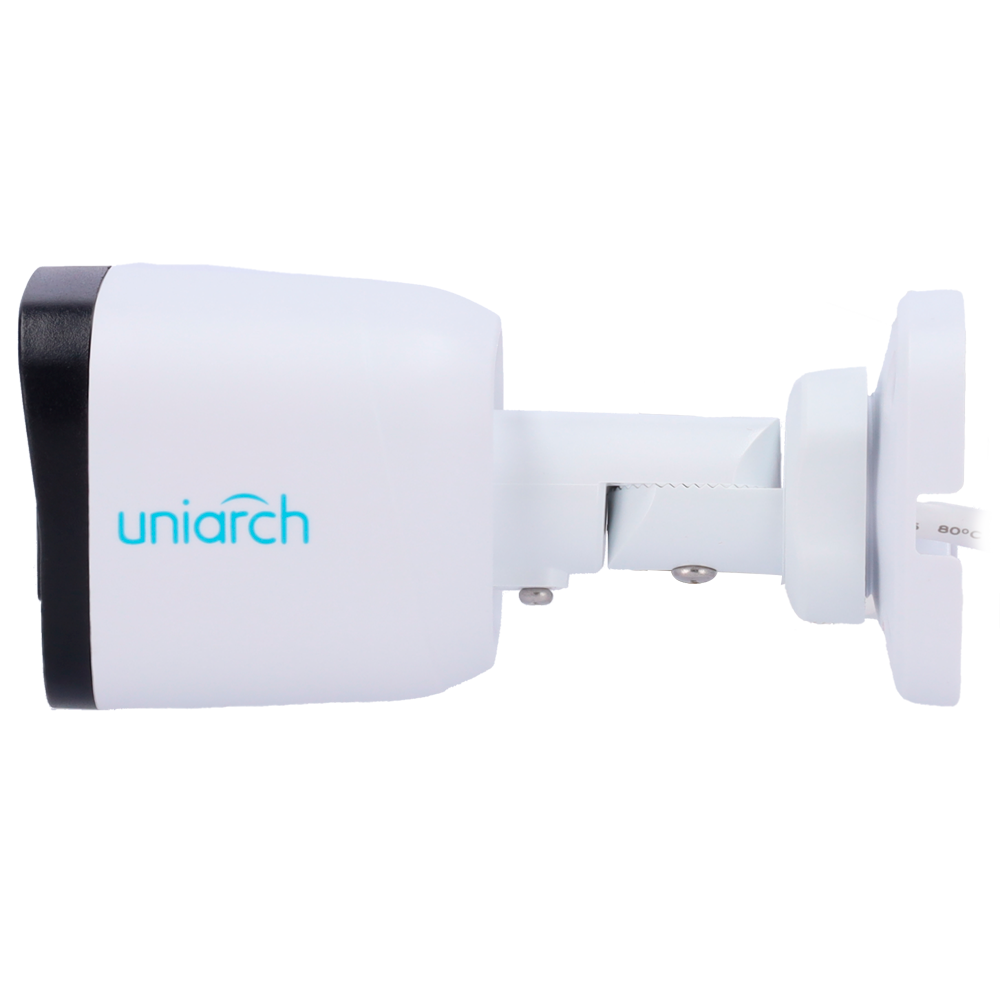

• Model: IPC-B122-APF28-ECO
• Optical sensor: 1/2.8” 2 Megapixel Progressive Scan CMOS
• Resolution: 2 Megapixel (1920x1080)
• Frame rate: Max 25 FPS
• Compression: Ultra H.265 / H.265 / H.264 / MJPEG
• Lens: 2.8 mm @ F2.1
• Minimum illumination: Color: 0.02 Lux / 0 Lux B/W
• Infrared range: 30 m
• Image enhancements: 2D/3D-DNR, DWDR, HLC, BLC, OSD, PM, ROI, MD
• Audio: Built-in microphone
• Network interface: 10/100 BaseT Ethernet
• Protection: Suitable for outdoor use IP67
• Power supply: DC 12 V / 3.5 W, PoE IEEE802.3af
• Operating temperature: -30º C ~ 60º C
• Dimensions / Weight: 144 (W) x 60 (H) x 65 (D) mm; 170 g

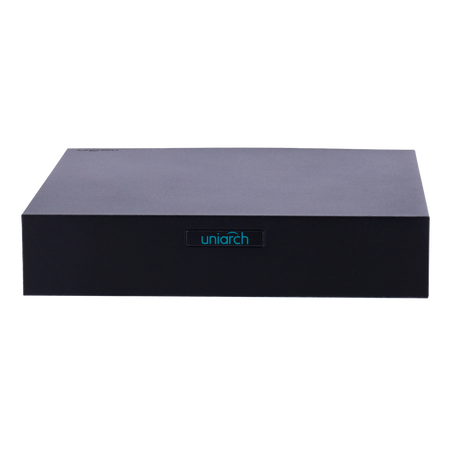

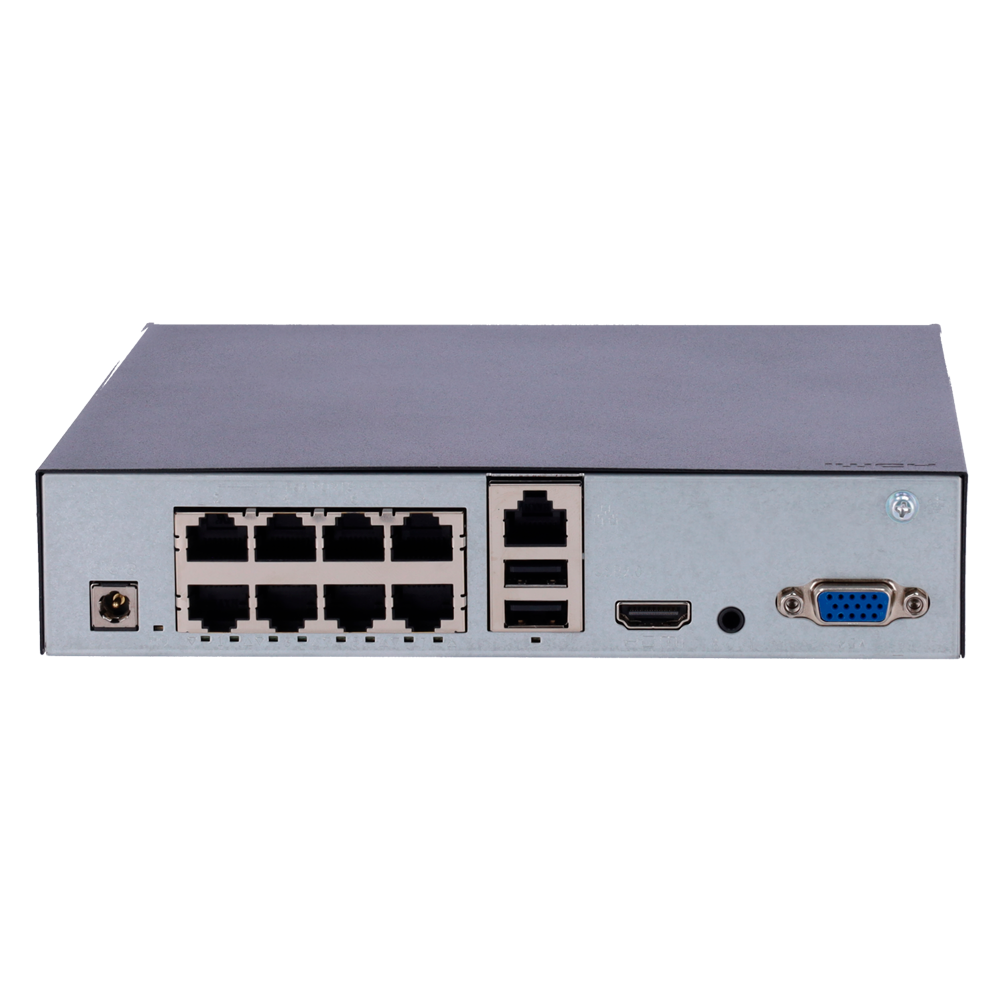

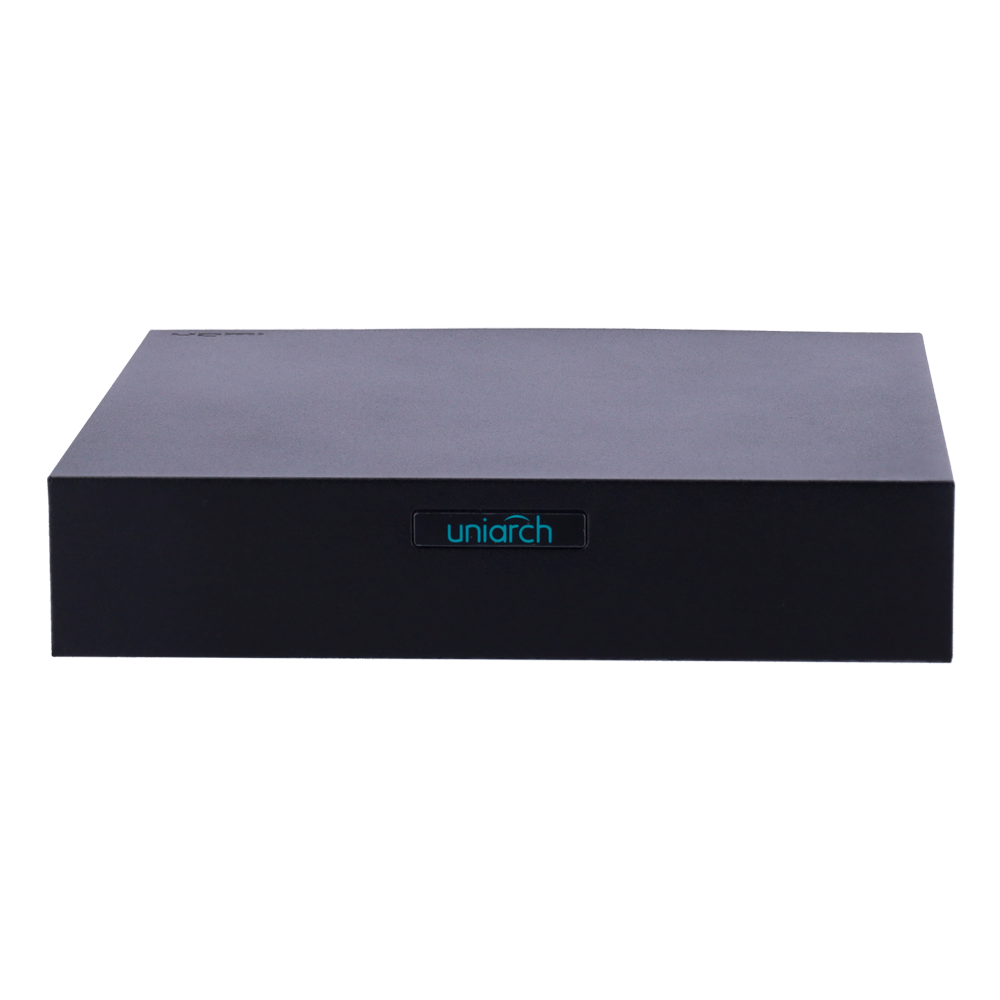

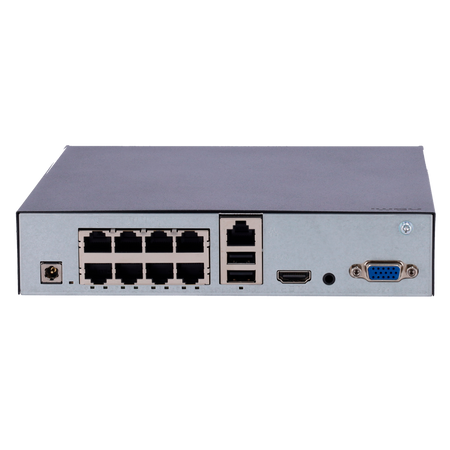

• Model: NVR-108S3-P8-ECO
• Video inputs: 8 CH; 8 CH PoE
• Bandwidth: 64 Mbps incoming; 48 Mbps outgoing
• Video output: 1 Full HD HDMI, 1 simultaneous VGA output
• Audio: 1 x 3.5 mm output
• Video/audio compression format: Ultra 265, H.265, H.264
• Display resolution: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• Maximum recording resolution: 6 Mpx
• Encoding: 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30
• Recording method: Manual, scheduled, motion detection
• Internal storage: 1 x 3.5" SATA HDD up to 6 TB (not included)
• Communication: 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS485
• Power supply: DC 48 V / 1.35 A; 9 W
• Dimensions: 42 (W) x 190 (H) x 195 (D) mm; 1 Kg
📦 INCLUDED:
• NVR-108S3-P8-ECO • 4 x IPC-B122-APF28-ECO cameras • Installation material • Power supplies • USB mouse
| Model | IPC-B122-APF28-ECO |
|---|---|
| Optical sensor | 1/2.8” 2 Megapixel Progressive Scan CMOS |
| Resolution | 2 Megapixel (1920x1080) |
| Frame rate | Max 25 FPS |
| Compression | Ultra H.265 / H.265 / H.264 / MJPEG |
| Lens | 2.8 mm @ F2.1 |
| Minimum illumination | Color: 0.02 Lux / 0 Lux B/W |
| Infrared range | 30 m |
| Image enhancements | 2D/3D-DNR, DWDR, HLC, BLC, OSD, PM, ROI, MD |
| Audio | Built-in microphone |
| Network interface | Ethernet 10/100 BaseT |
| Protection | Suitable for outdoor use IP67 |
| Power supply | DC 12 V / 3.5 W, PoE IEEE802.3af |
| Operating temperature | -30º C ~ 60º C |
| Dimensions / Weight | 144 (W) x 60 (H) x 65 (D) mm 170 g |
| Model | NVR-108S3-P8-ECO |
| Video inputs | 8 CH 8 CH PoE |
| Bandwidth | 64 Mbps incoming 48 Mbps outgoing |
| Video output | 1 HDMI Full HD, 1 simultaneous VGA output |
| Audio | 1 3.5 mm output |
| Video/audio compression format | Ultra 265, H.265, H.264 |
| Display resolution | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Maximum recording resolution | 6 Mpx |
| Decoding | 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 |
| Recording mode | Manual, scheduled, motion detection |
| Internal memory | 1 HDD SATA 3.5" up to 6 TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS485 |
| Power supply | DC 48 V / 1.35 A 9 W |
| Dimensions | 42 (W) x 190 (H) x 195 (D) mm 1 Kg |
